Toyota Wish

2009-11 → 2016-06 · chassis ZGE21 · catalogue 167310 · General

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

17 part groups · 2 illustrations

Illustrations

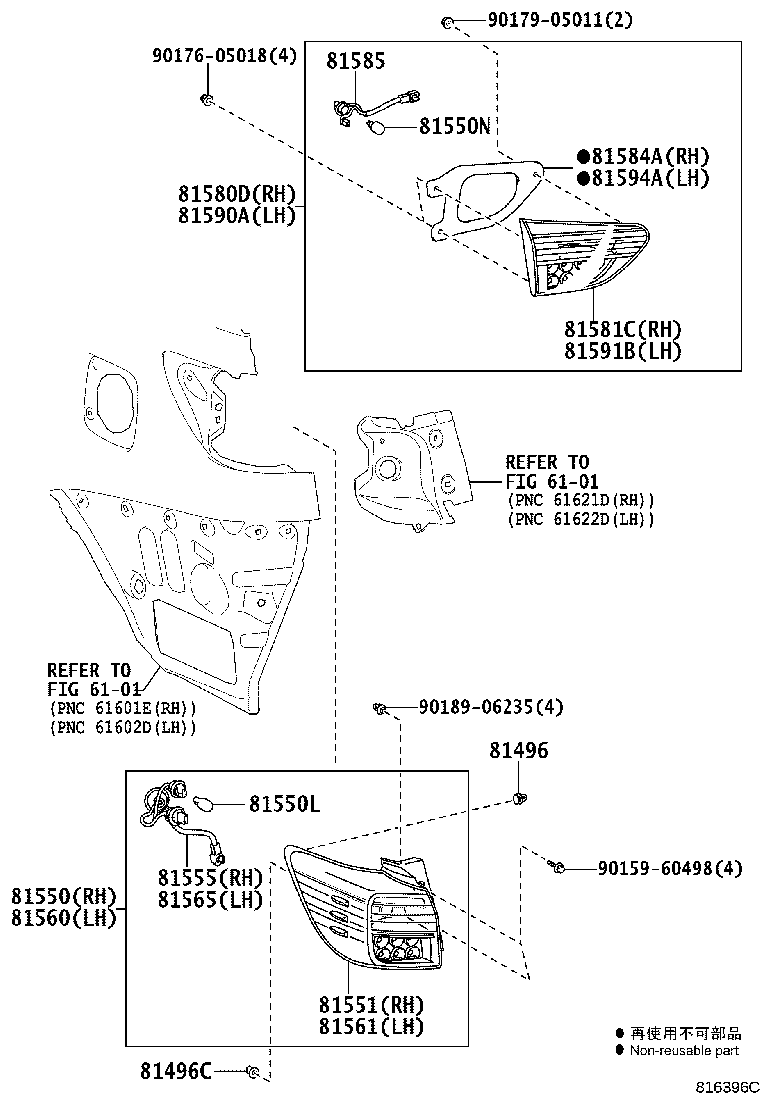

Figure 815280B 815280B 2009-11 → 2012-12 Figure 816396C 816396C 2012-12 → —

Part groups

PNCDescription
81496 Guide, Rear Combination Lamp
81496C Guide, Rear Combination Lamp, NO.2
81550 Lamp Assy, Rear Combination, RH
81550L Bulb, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81551 Lens, Rear Combination Lamp, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81580D Lamp Assy, Rear, RH
81581C Lens And Body, Rear Lamp, RH
81584A Gasket, Rear Lamp RH
81585 Socket & Wire, Rear Lamp
81590A Lamp Assy, Rear, LH
81591B Lens And Body, Rear Lamp, LH
81594A Gasket, Rear Lamp LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
