Toyota Wish

2009-11 → 2016-06 · chassis ZGE21 · catalogue 167310 · General

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

12 part groups · 6 illustrations

Illustrations

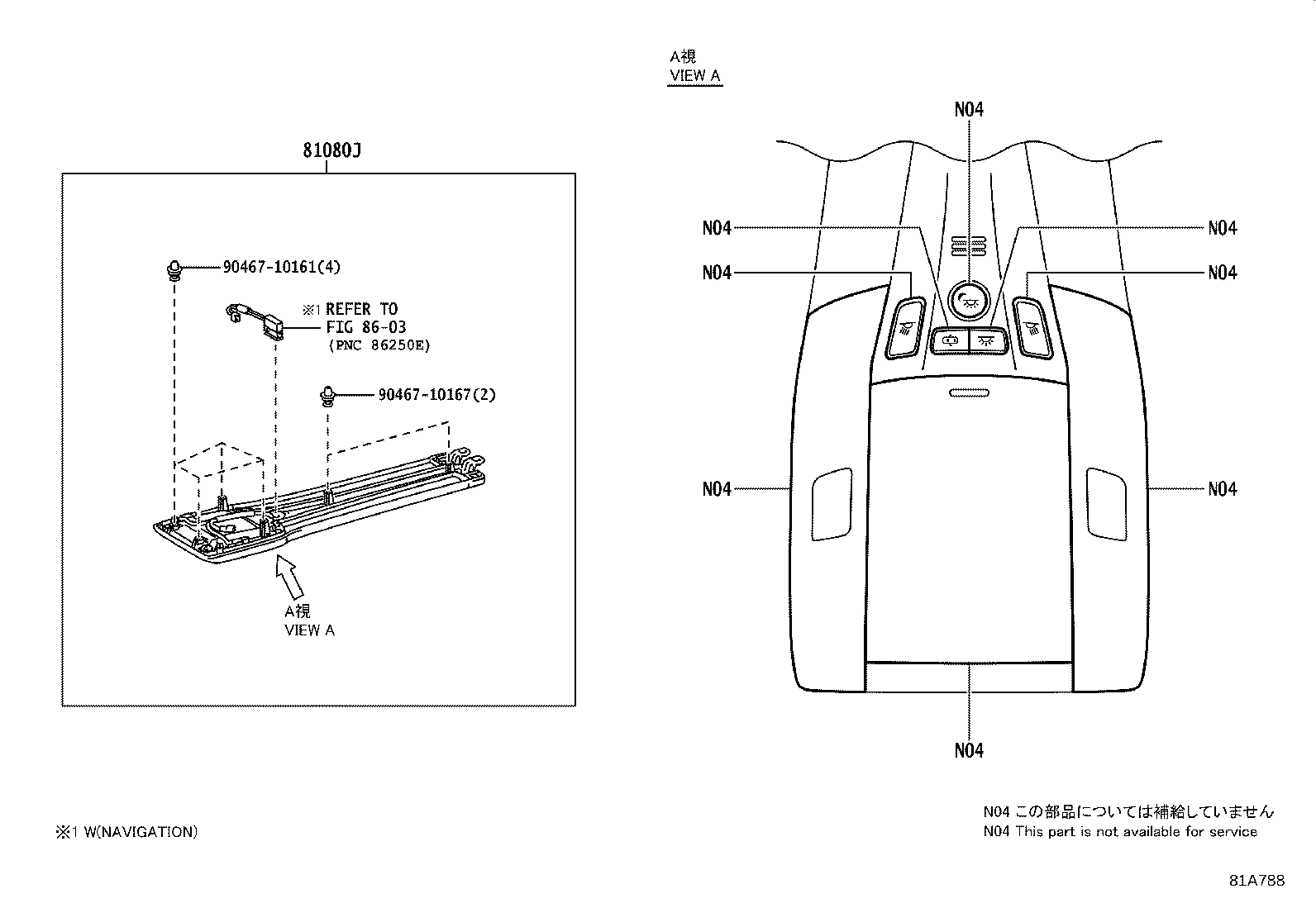

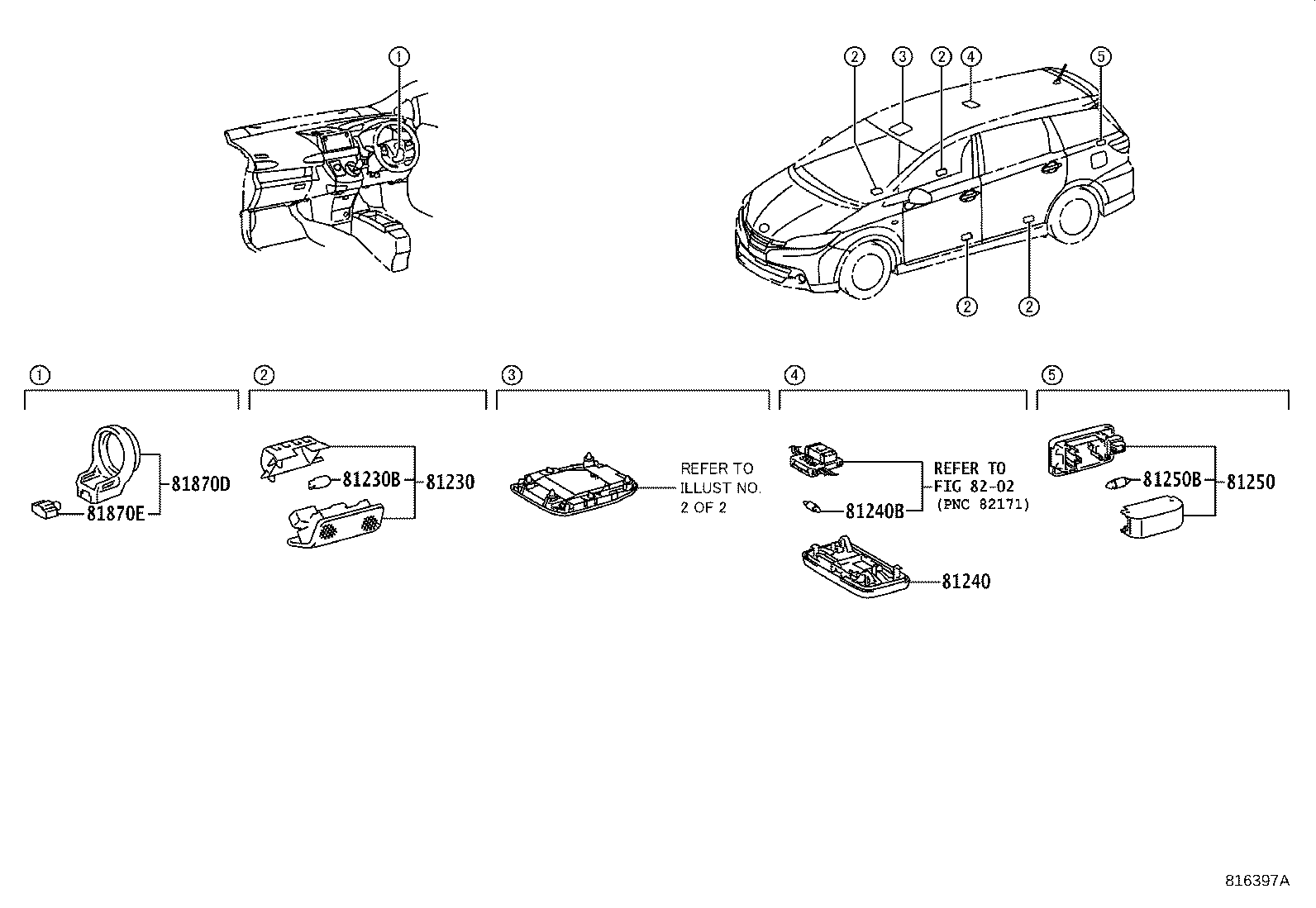

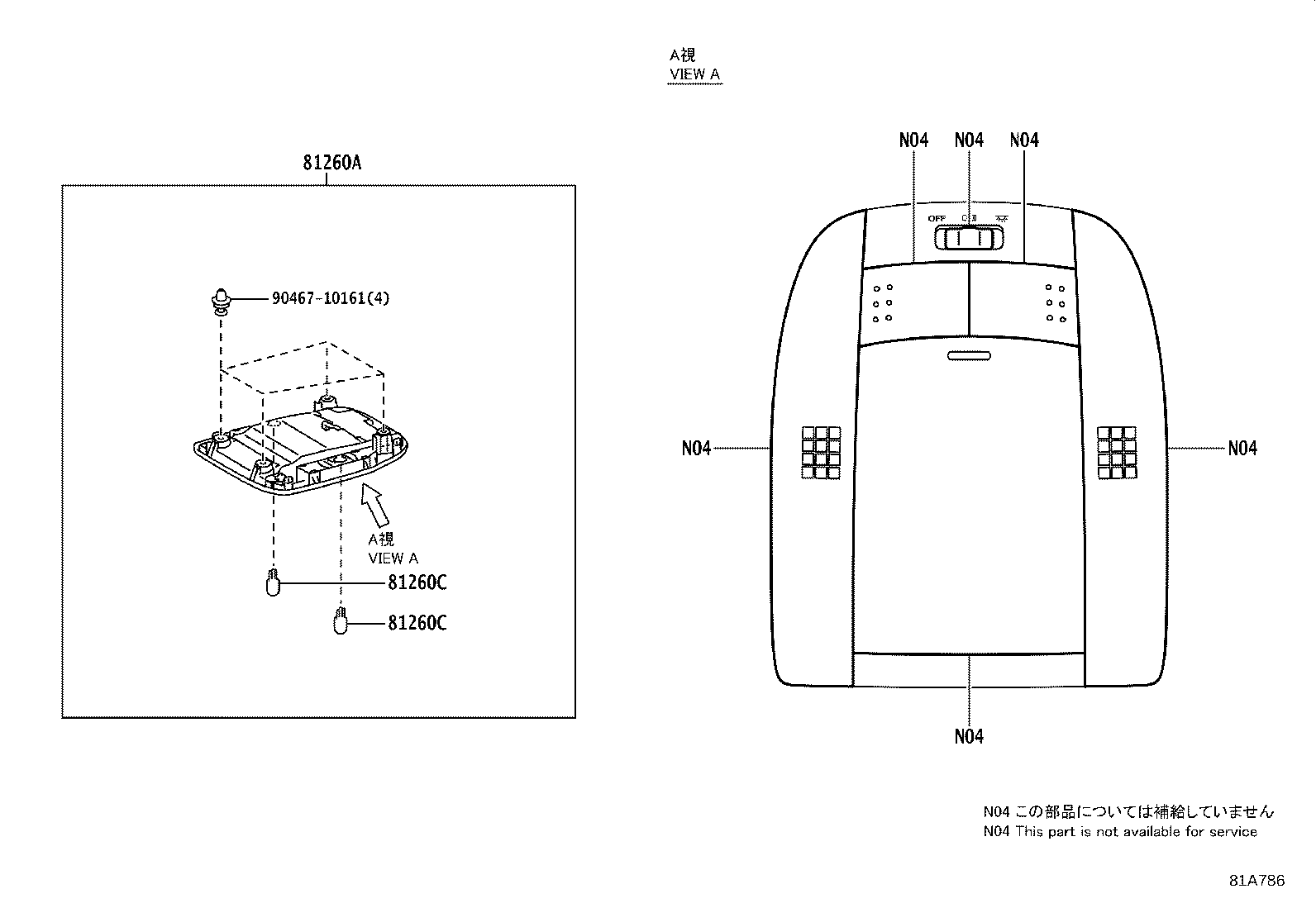

Figure 815293A 815293A 2009-11 → 2012-12 Figure 816397A 816397A 2012-12 → — Figure 81A786 81A786 2009-11 → 2012-12 Figure 81A786 81A786 2011-12 → 2012-12 Figure 81A786 81A786 2012-12 → — Figure 81A788 81A788 2009-11 → 2011-12

Part groups

PNCDescription
81080J Lamp Assy, Interior Illumination, NO.1
81090 Lamp Assy, Interior Illumination, NO.2
81230 Lamp Assy, Courtesy
81230B Bulb(FOR COURTESY LAMP)
81240 Lamp Assy, Room, NO.1
81240B Bulb, Room Lamp, NO.1
81250 Lamp Assy, Room, NO.2
81250B Bulb, Room Lamp, NO.2
81260A Lamp Assy, Map
81260C Bulb(FOR MAP LAMP)
81870D Lamp Assy, Key Cylinder
81870E Bulb, Key Cylinder Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
