Toyota Wish
2009-11 → 2016-06 · chassis ZGE21 · catalogue 167310 · General
Discontinued model
Data version 2016-12
Wiring & Clamp
62 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 82111 | Wire, Engine Room Main |
| 82114 | Wire, Engine Room, NO.4 |

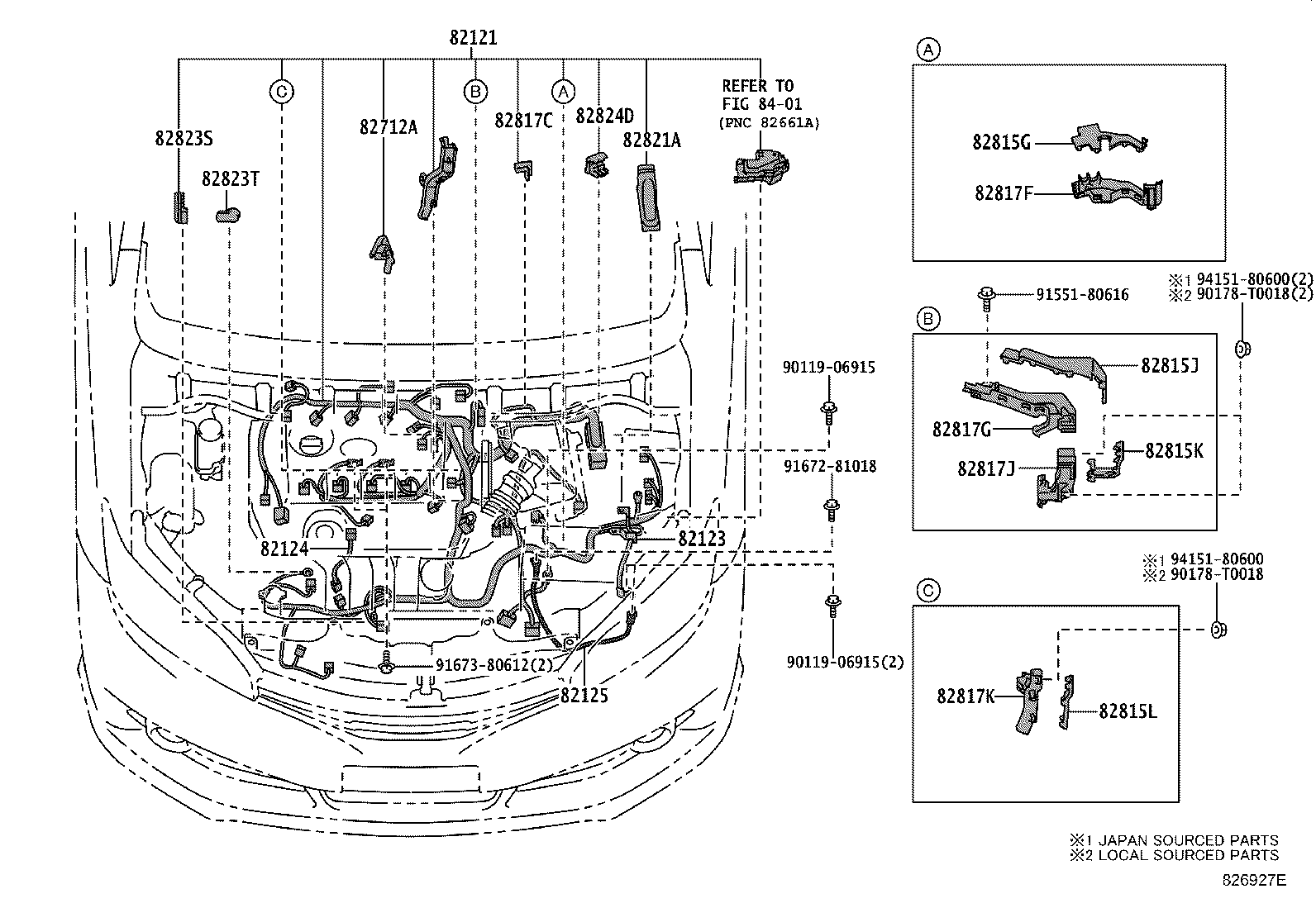

| 82121 | Wire, Engine |
| 82123 | Wire, Engine, NO.3 |
| 82124 | Wire, Engine, NO.4 |
| 82125 | Wire, Transmission |
| 82133 | Wire, Cowl, NO.3 |

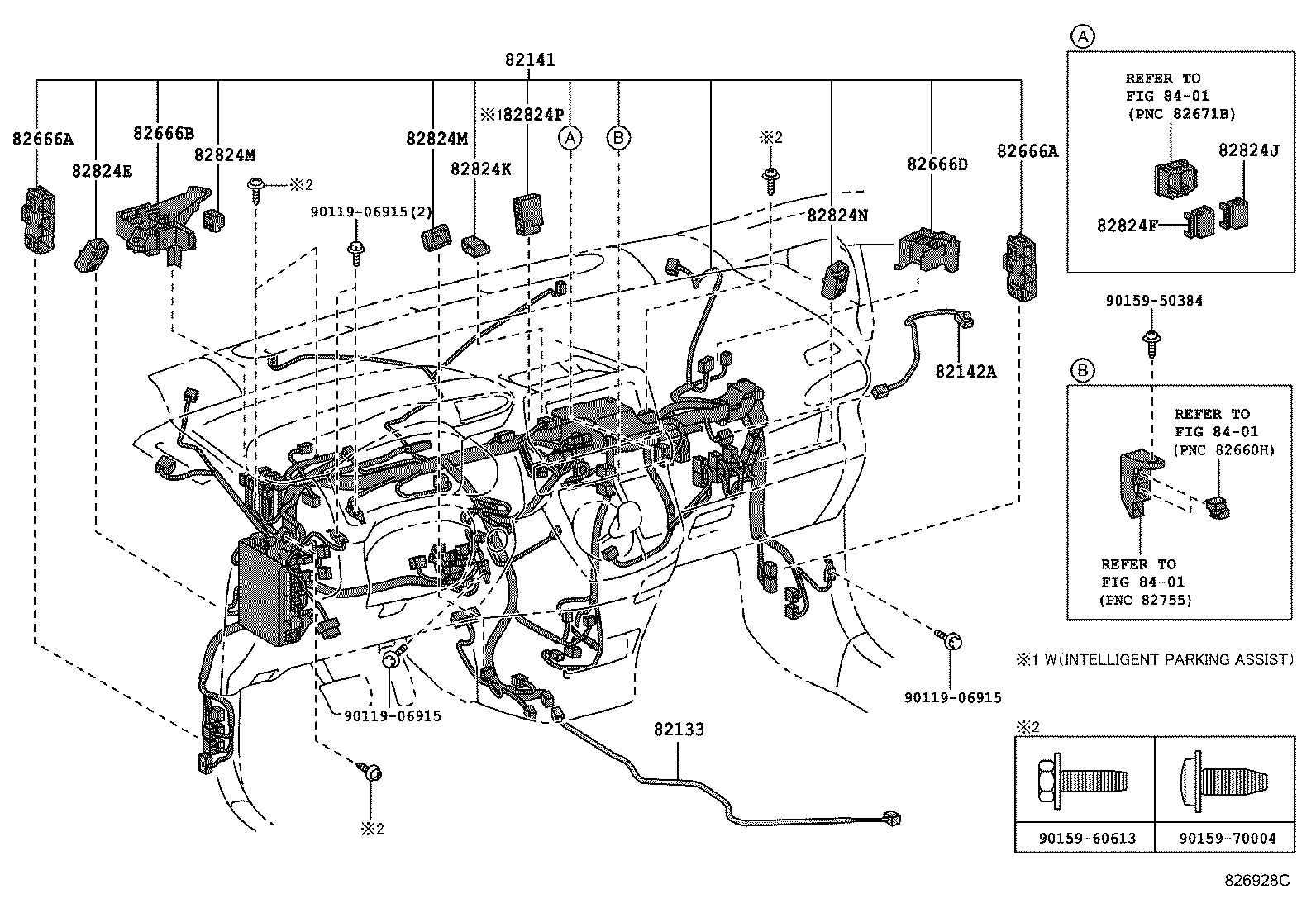

| 82141 | Wire, Instrument Panel |
| 82142A | Wire, Instrument Panel, NO.2 |

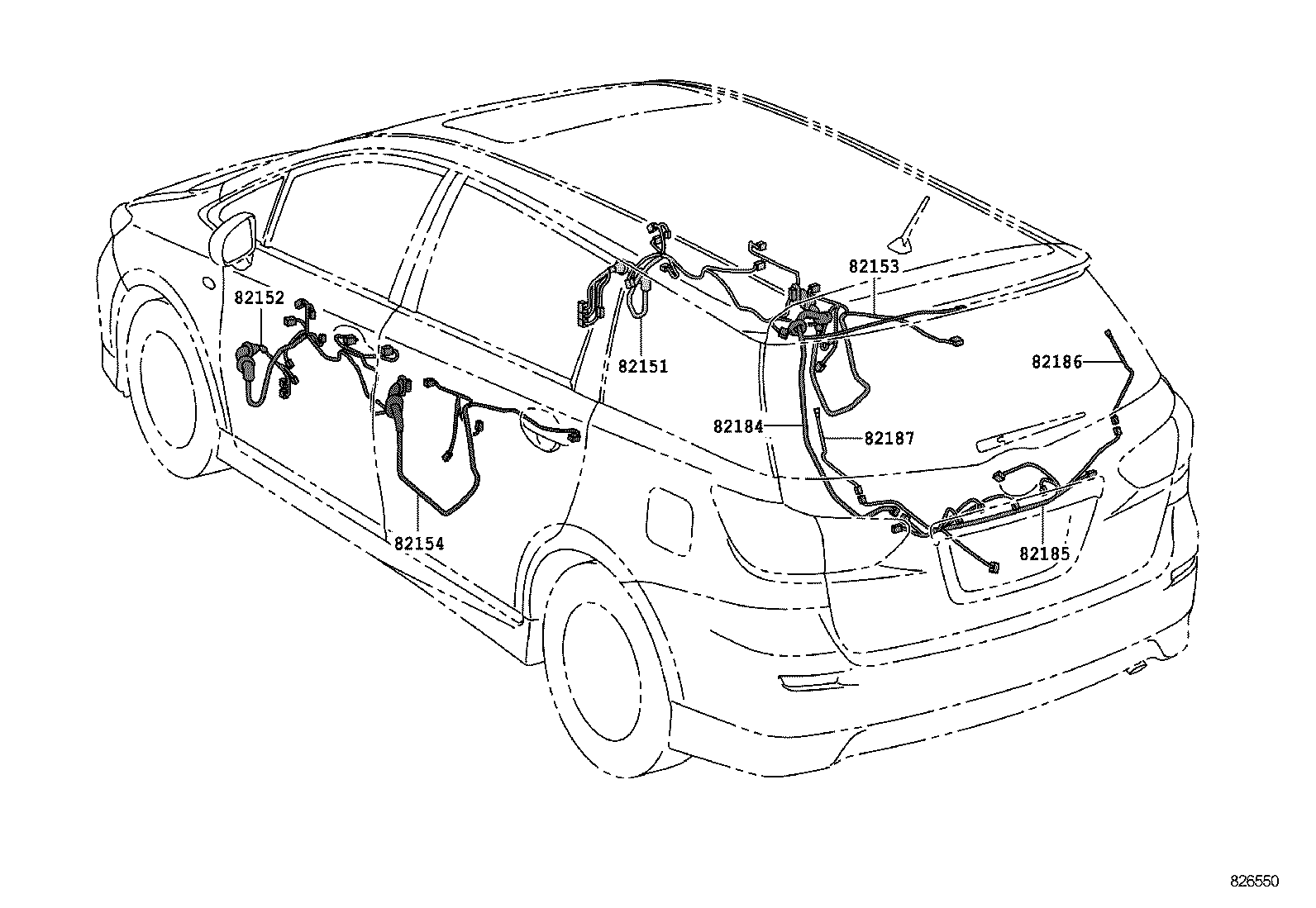

| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153 | Wire, Rear Door, NO.1 |
| 82154 | Wire, Rear Door, NO.2 |

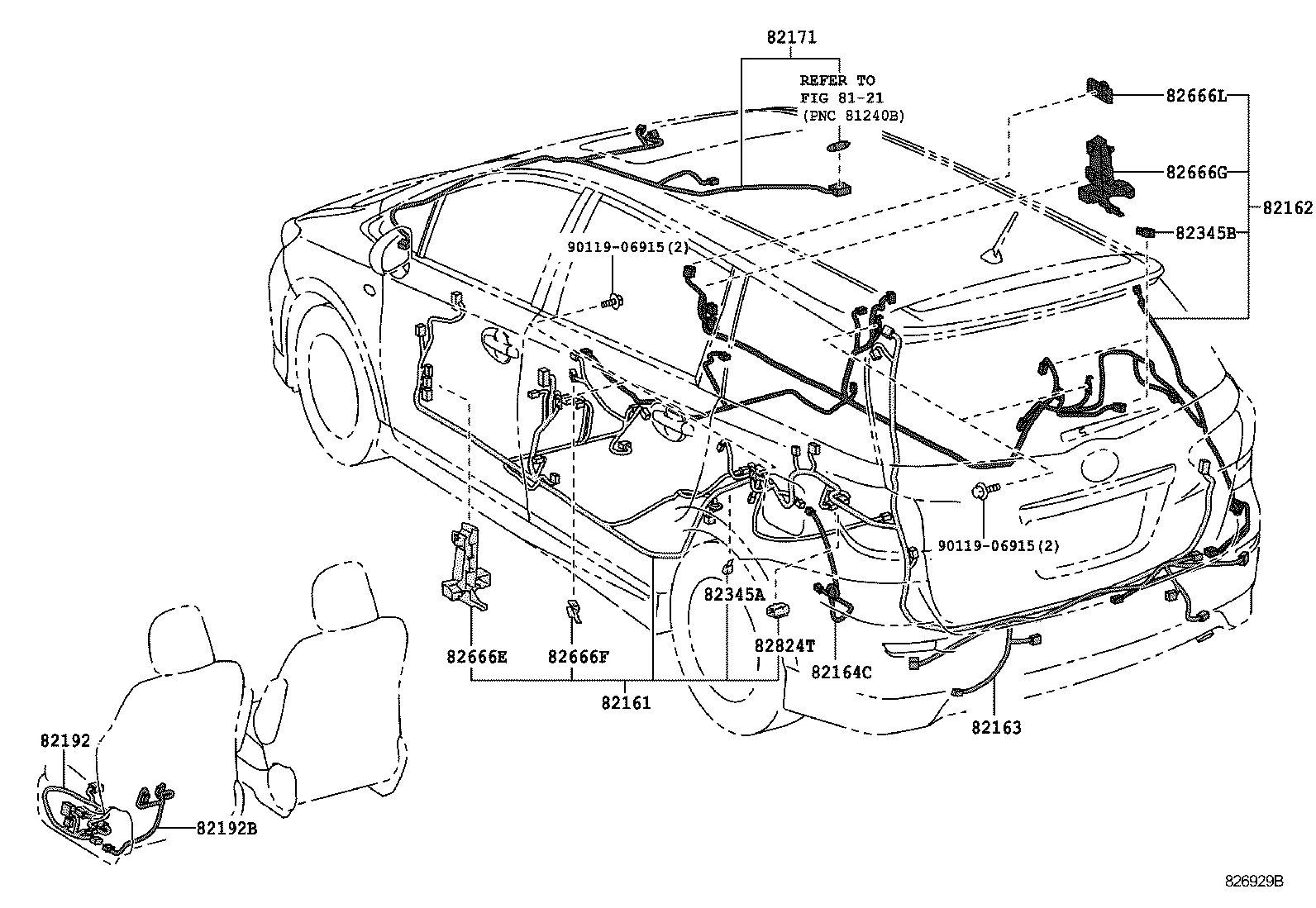

| 82161 | Wire, Floor |
| 82162 | Wire, Floor, NO.2 |
| 82163 | Wire, Floor, NO.3 |
| 82164C | Wire, Floor, NO.4 |
| 82171 | Wire, Roof, NO.1 |
| 82184 | Wire, Back Door, NO.1 |
| 82185 | Wire, Back Door, NO.2 |
| 82186 | Wire, Rear Window, NO.1 |
| 82187 | Wire, Rear Window, NO.2 |
| 82192 | Wire, Front Seat, LH |
| 82192B | Wire, Front Seat, LH NO.2 |
| 82345A | Diode |
| 82345B | Diode |
| 82666A | Holder, Connector NO.2 |
| 82666B | Holder, Connector NO.3 |
| 82666D | Holder, Connector NO.5 |
| 82666E | Holder, Connector NO.6 |
| 82666F | Holder, Connector NO.7 |
| 82666G | Holder, Connector NO.8 |
| 82666L | Holder, Connector NO.9 |

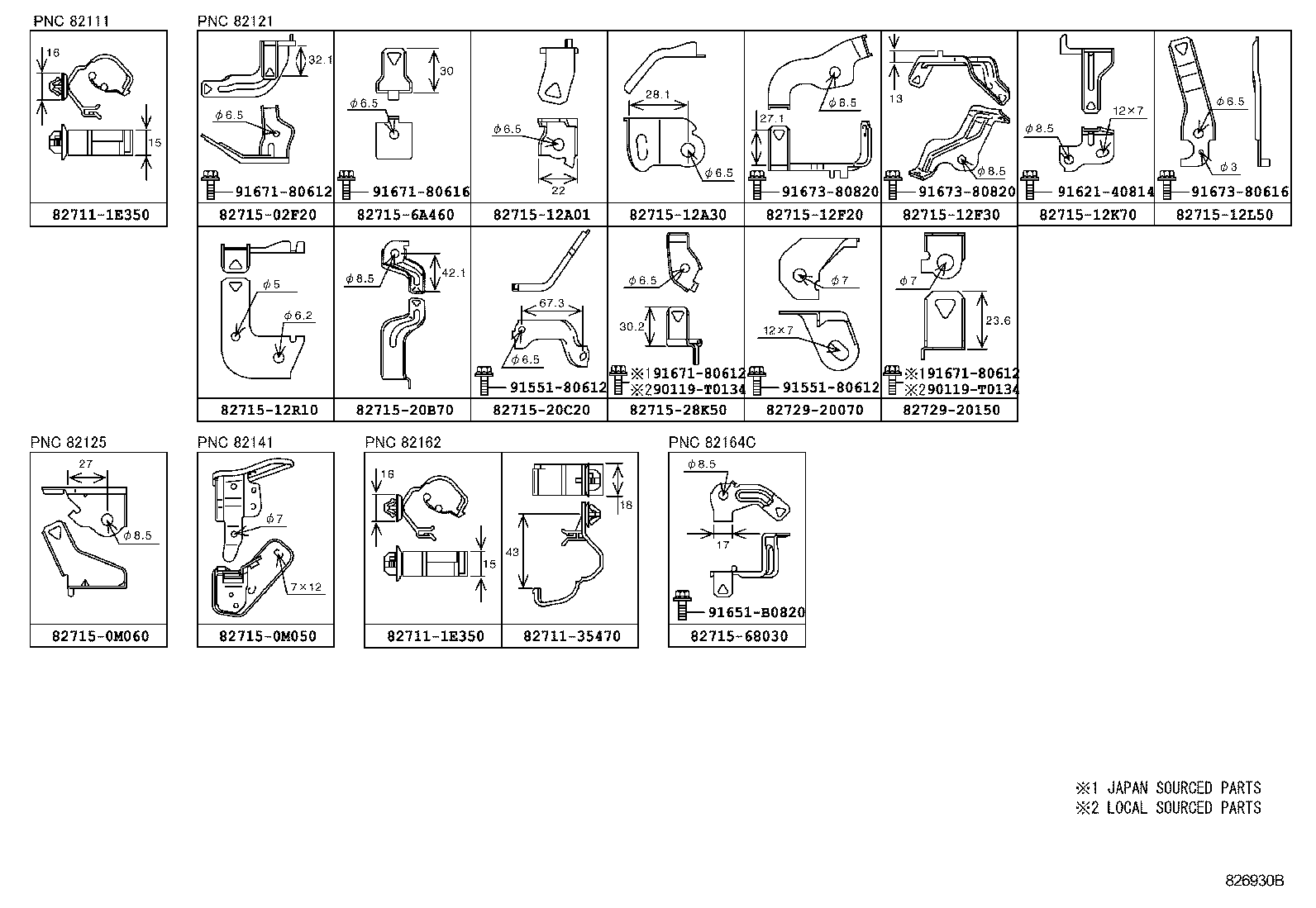

| 82712A | Support, Wiring Harness |
| 82815A | Cover, Wiring Harness Protector |
| 82815B | Cover, Wiring Harness Protector |
| 82815G | Cover, Wiring Harness Protector NO.5 |
| 82815J | Cover, Wiring Harness Protector, NO.7 |
| 82815K | Cover, Wiring Harness Protector, NO.8 |
| 82815L | Cover, Wiring Harness Protector, NO.9 |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82817A | Protector, Wiring Harness, NO.2 |
| 82817B | Protector, Wiring Harness, NO.3 |
| 82817C | Protector, Wiring Harness, NO.4 |
| 82817F | Protector, Wiring Harness, NO.7 |
| 82817G | Protector, Wiring Harness, NO.8 |
| 82817J | Protector, Wiring Harness, NO.9 |
| 82817K | Protector, Wiring Harness, NO.10 |
| 82821A | Cover, Connector |
| 82821E | Cover, Connector |
| 82821H | Cover, Connector |
| 82823S | Cap, Starter Terminal |
| 82823T | Cap, Alternator Terminal |
| 82824D | Connector, Wiring Harness |
| 82824E | Connector, Wiring Harness |
| 82824F | Connector, Wiring Harness |
| 82824J | Connector, Wiring Harness |
| 82824K | Connector, Wiring Harness |
| 82824M | Connector, Wiring Harness |
| 82824N | Connector, Wiring Harness |
| 82824P | Connector, Wiring Harness |
| 82824T | Connector, Wiring Harness |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
