Toyota Wish

2009-11 → 2016-06 · chassis ZGE21 · catalogue 167310 · General

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

7 part groups · 2 illustrations

Illustrations

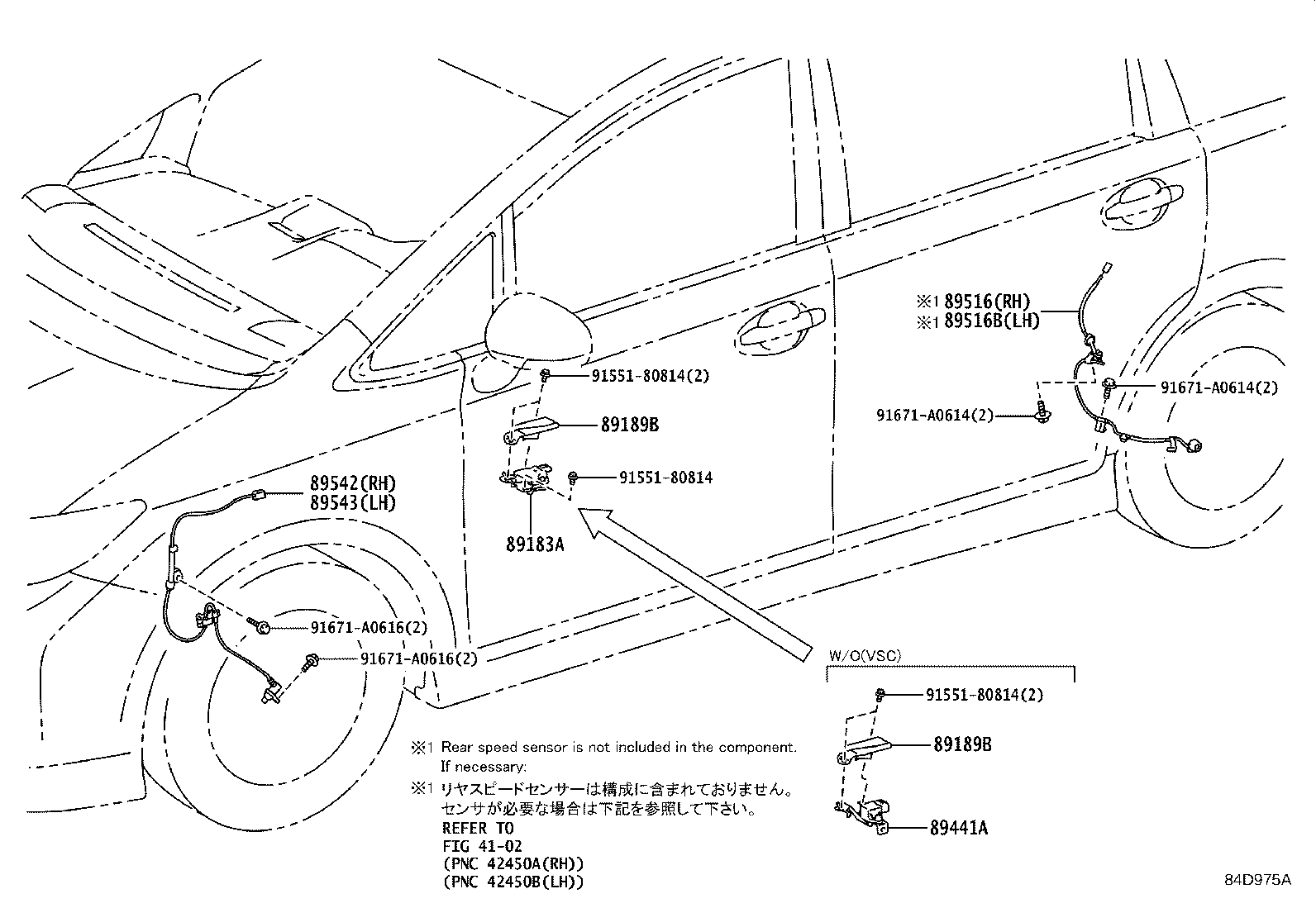

Figure 84B235A 84B235A 2009-11 → 2012-12 Figure 84D975A 84D975A 2012-12 → —

Part groups

PNCDescription
89183A Sensor, Yawrate
89189B Bracket, Yawrate Sensor
89441A Sensor, Deceleration
89516 Wire, Skid Control Sensor
89516B Wire, Skid Control Sensor
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
