Ventilation Hose

14 part groups · 5 illustrations

Illustrations

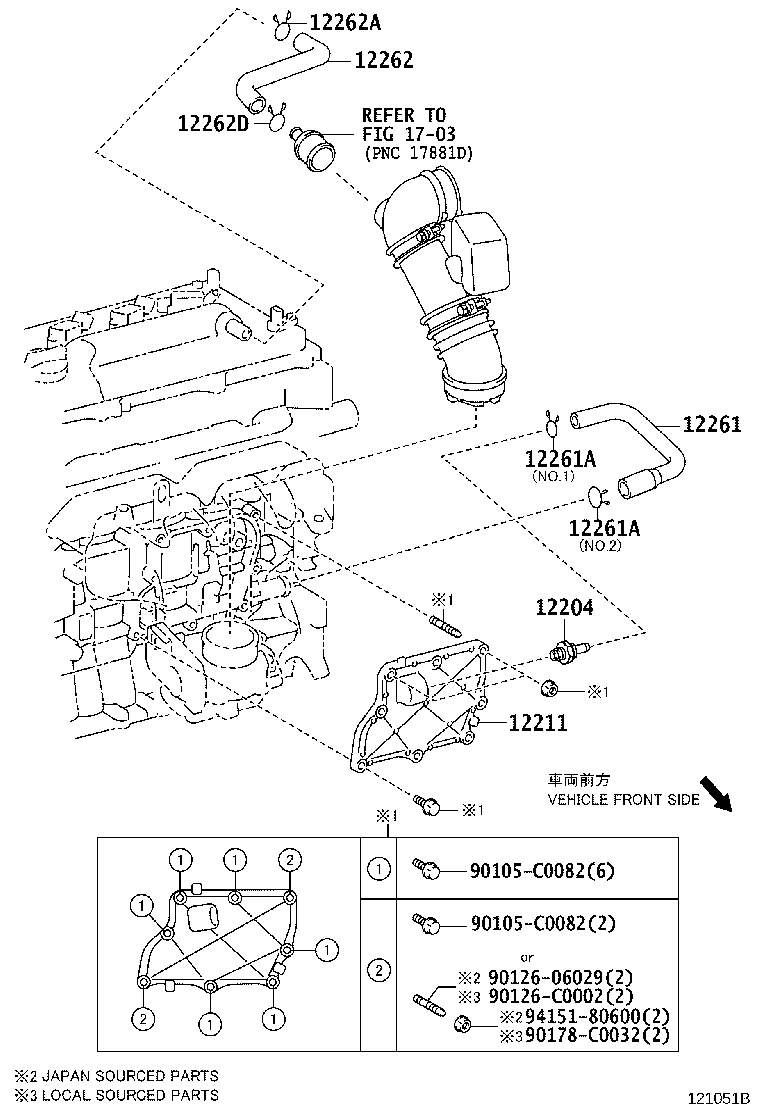

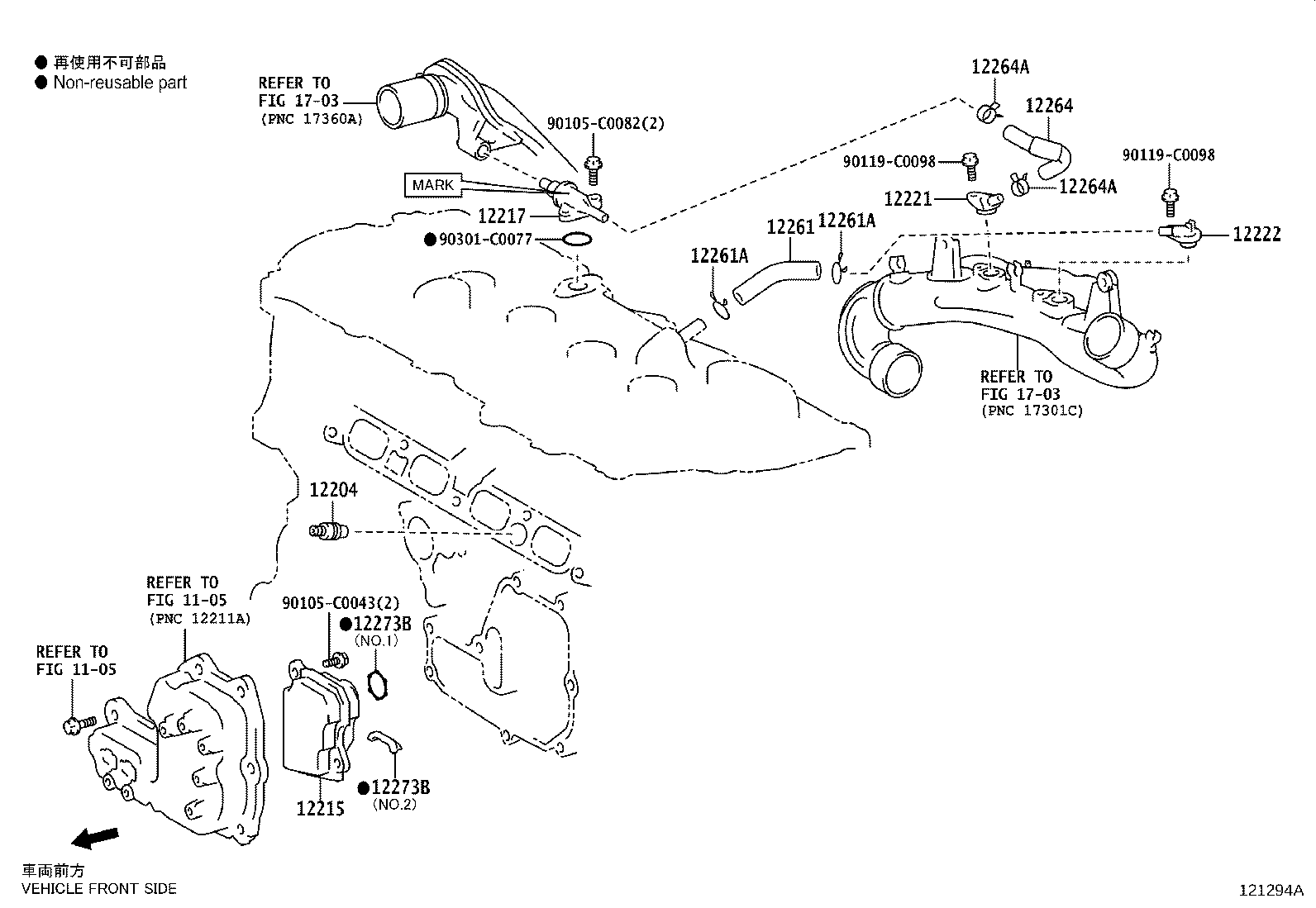

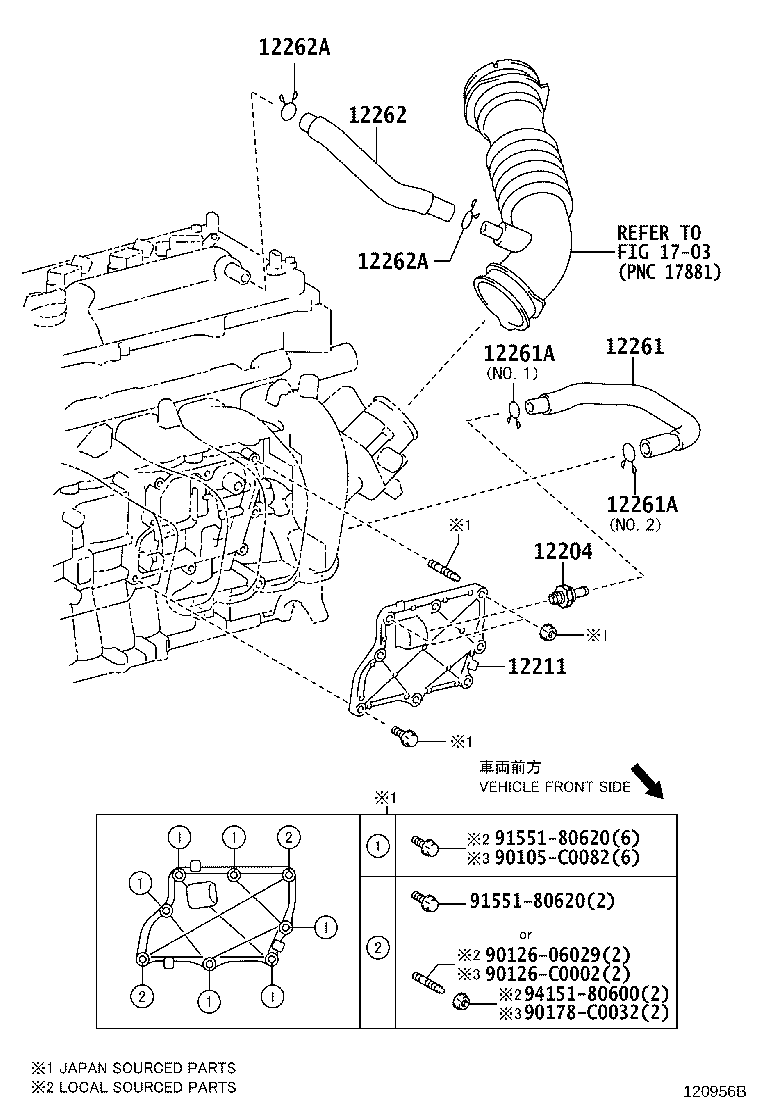

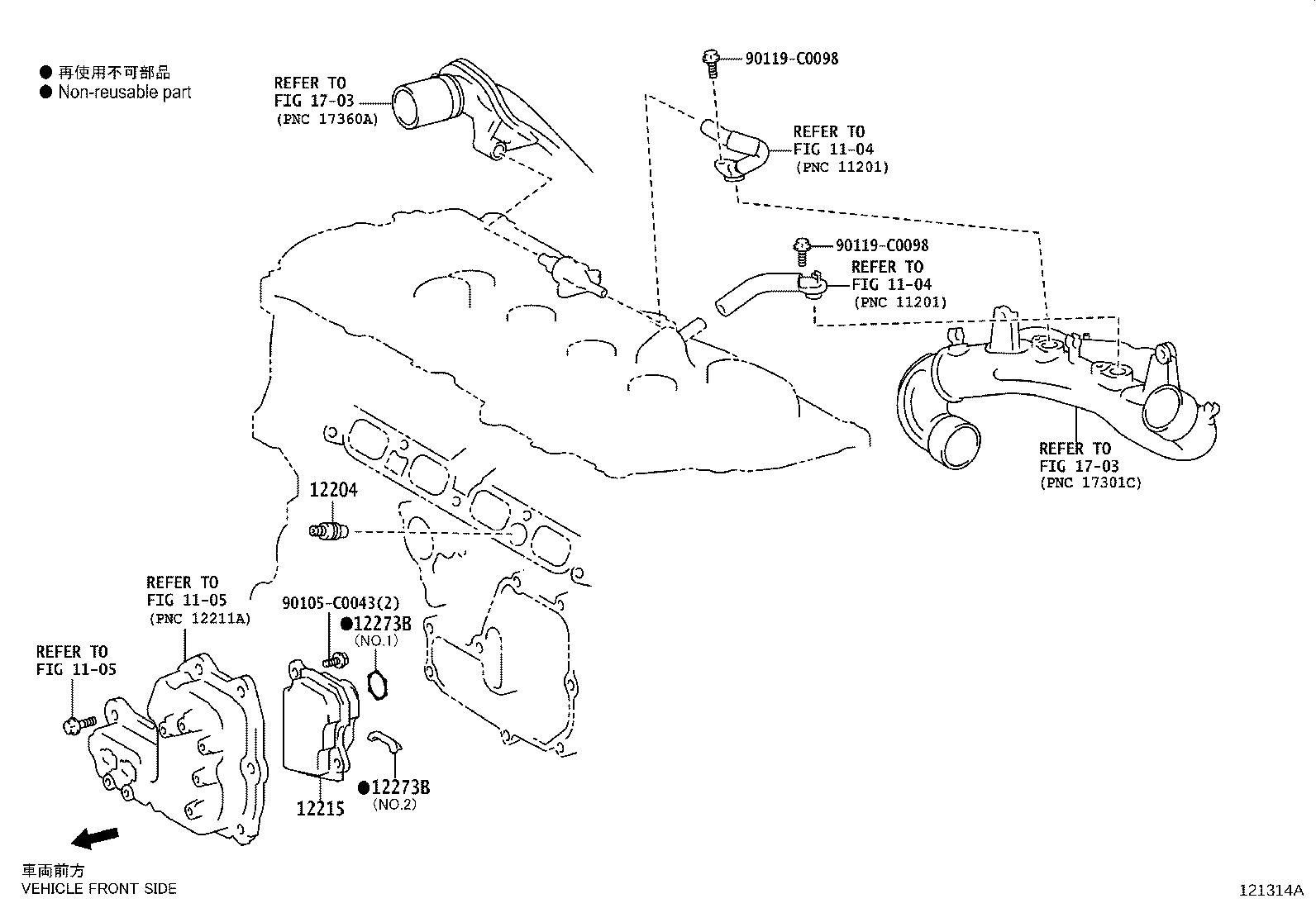

Figure 121097B 121097B 2016-12 → 2018-06 Figure 121294A 121294A 2018-06 → — Figure 121314A 121314A 2018-10 → — Figure 120956B 120956B 2014-08 → — Figure 121051B 121051B 2015-12 → —

Part groups

PNCDescription
12204 Valve Sub-assy, Ventilation
12211 Case, Ventilation, NO.1
12215 Separator, Case
12217 Ejector, Ventilation
12221 Tube, Ventilation NO.1
12222 Tube, Ventilation, NO.2
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12262D Clip(FOR VENTILATION HOSE NO.2)
12264 Hose, Ventilation, NO.4
12264A Clip(FOR VENTILATION HOSE)
12273B Gasket, Oil Separator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
