Toyota Levin/Hybrid

2014-08 → 2019-05 · chassis NRE181,ZRE18#,ZWE182 · catalogue 168310 · General

Supported model Data version 2019-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

6 part groups · 3 illustrations

Illustrations

152571 2016-12 → —

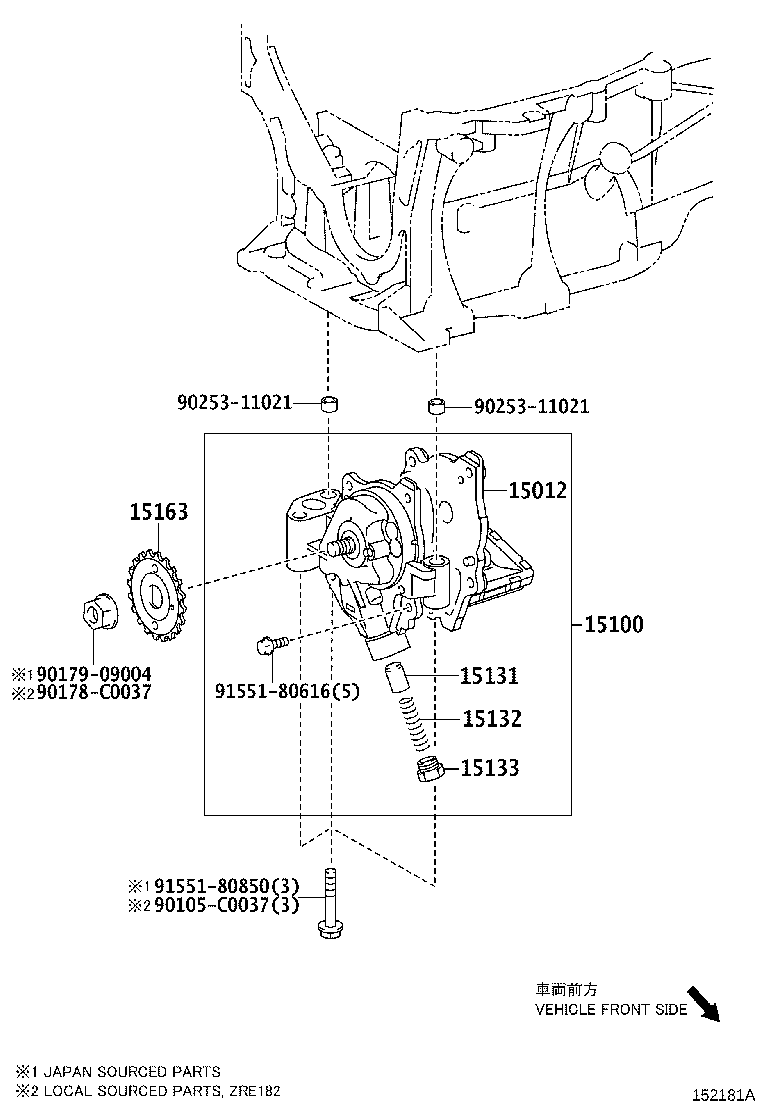

Figure 152181A

152181A 2014-08 → —

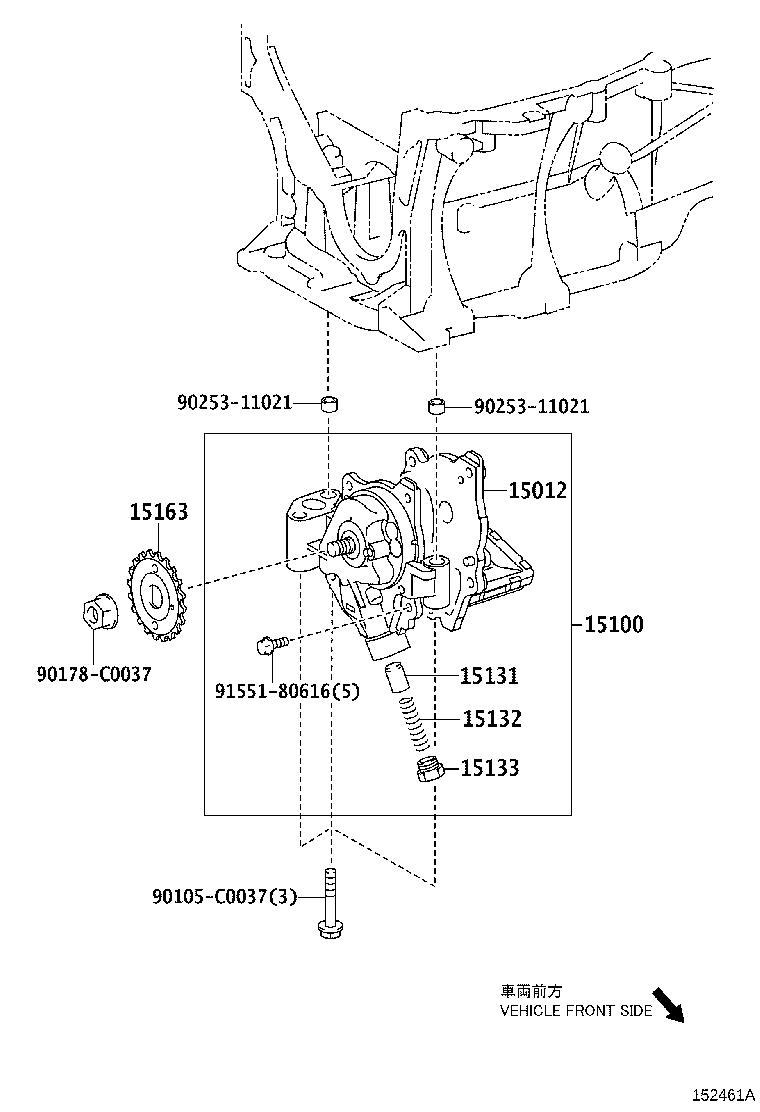

Figure 152461A

152461A 2015-12 → —

Part groups

PNC	Description
15012	Cover Sub-assy, Oil Pump
15100	Pump Assy, Oil
15131	Valve, Oil Pump Relief
15132	Spring, Oil Pump Relief Valve
15133	Plug, Oil Pump Relief Valve
15163	Gear, Oil Pump Drive Shaft

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
