Toyota Levin/Hybrid

2014-08 → 2019-05 · chassis NRE181,ZRE18#,ZWE182 · catalogue 168310 · General

Supported model Data version 2019-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

25 part groups · 5 illustrations

Illustrations

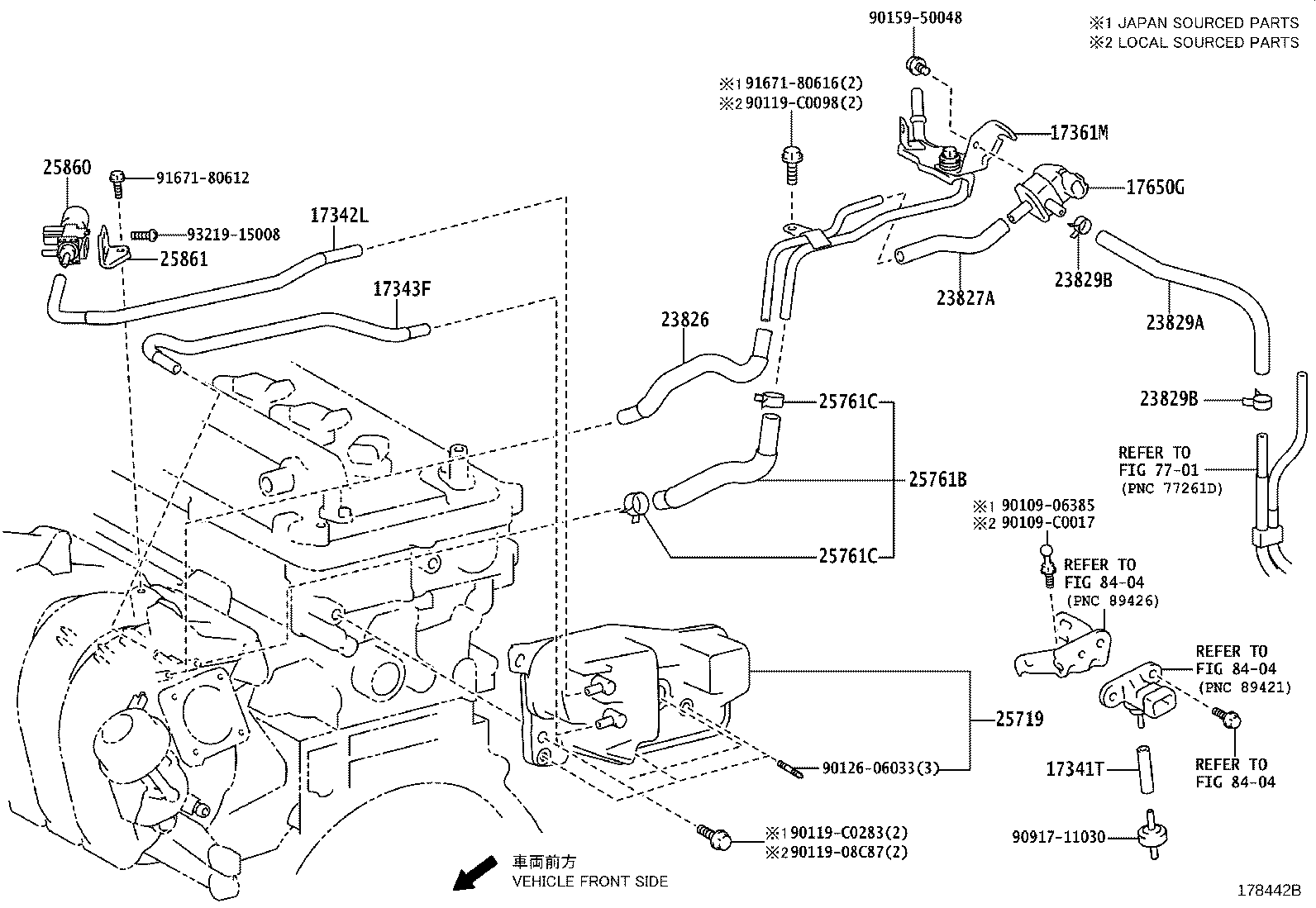

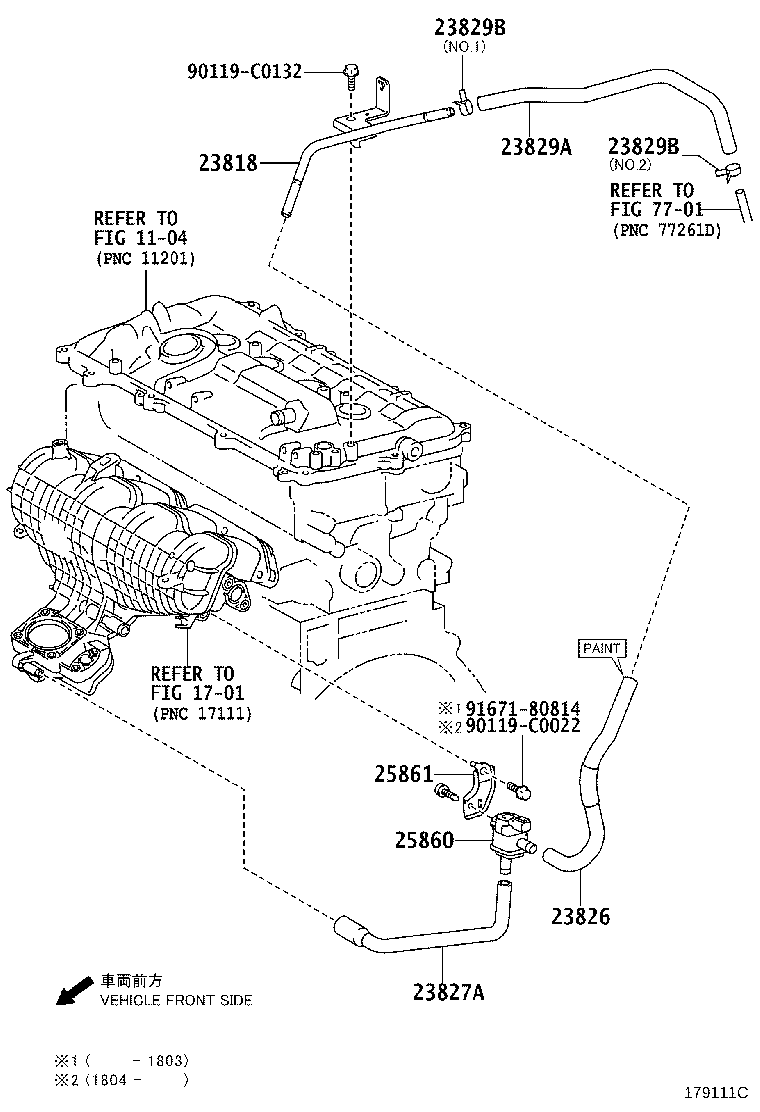

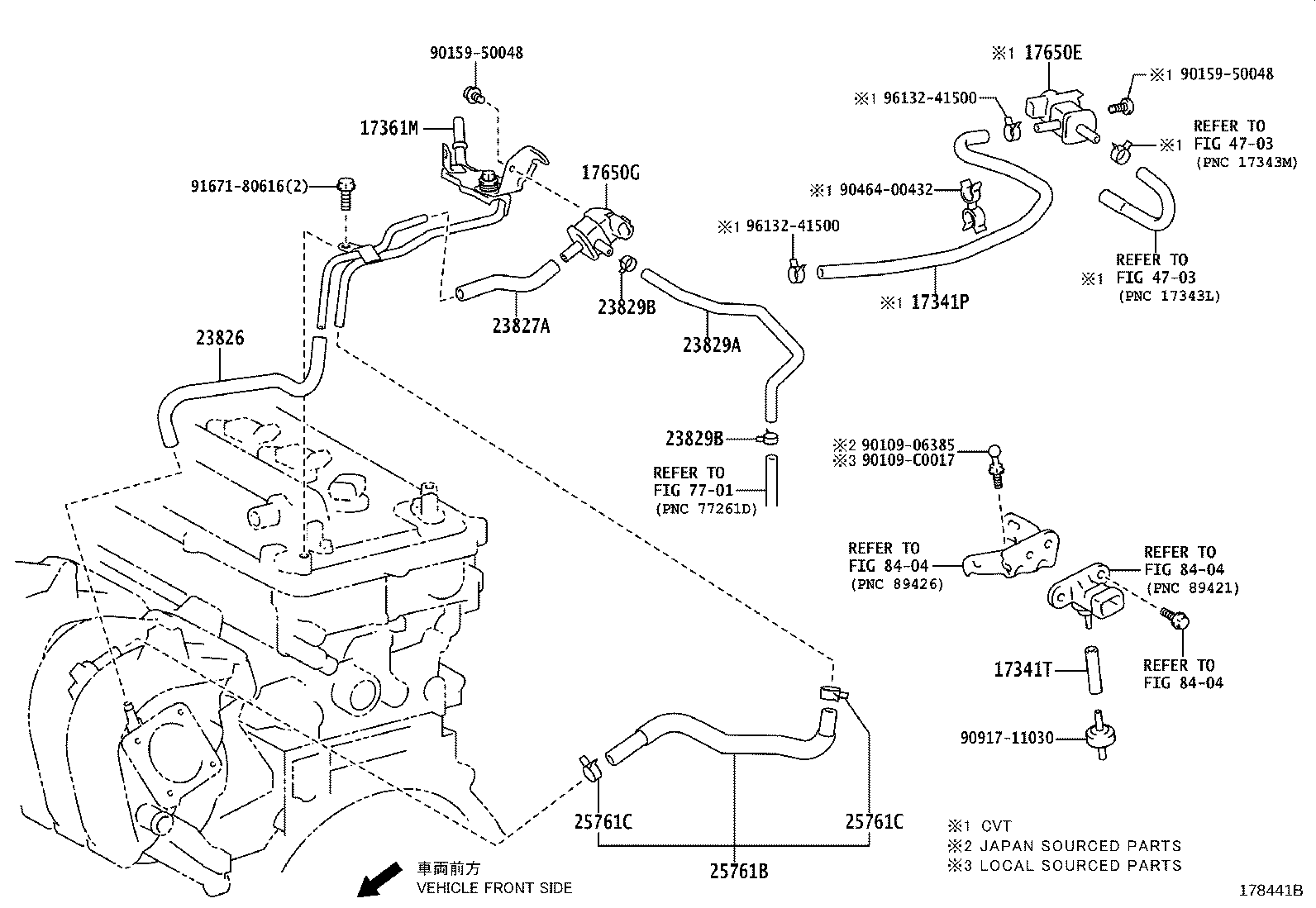

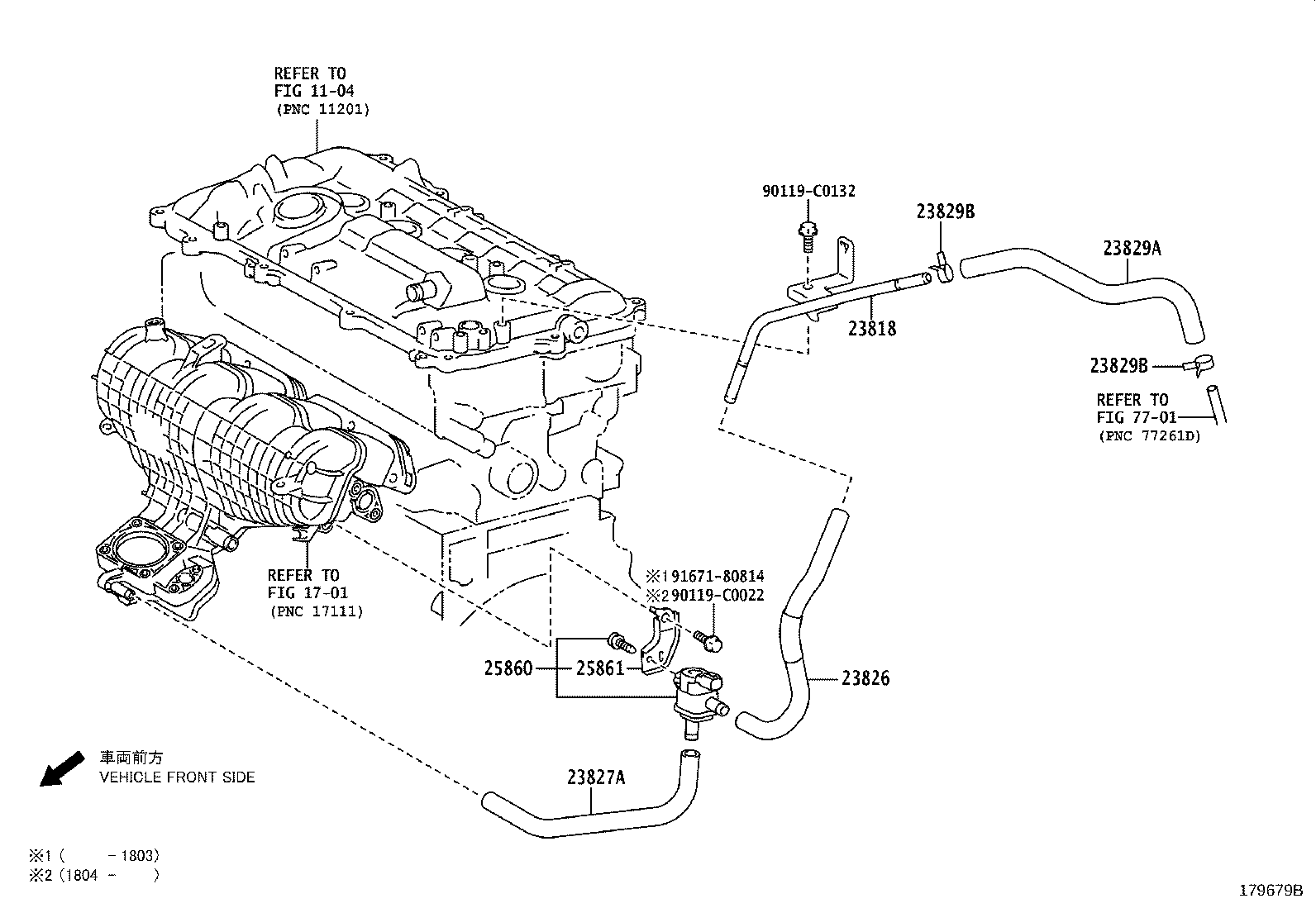

Figure 179493E 179493E 2016-12 → — Figure 178441B 178441B 2014-08 → — Figure 178442B 178442B 2014-08 → — Figure 179111C 179111C 2015-12 → — Figure 179679B 179679B 2018-10 → —

Part groups

PNCDescription
17341P Hose, Air
17341T Hose, Air, NO.1
17342L Hose, Air, NO.2
17343F Hose, Air, NO.3
17361M Tube, Air
17650E Valve, Vacuum Switching
17650G Valve, Duty Vacuum Switching
23285A Valve, Check, NO.1
23818 Pipe, Fuel Vapor Feed
23826 Hose, Fuel Vapor Feed, NO.1
23827A Hose, Fuel Vapor Feed, NO.2
23827G Clip(FOR FUEL VAPOR FEED HOSE, NO.3)
23829 Hose, Fuel Vapor Feed, NO.3
23829A Hose, Fuel Vapor Feed
23829B Clip(FOR FUEL VAPOR FEED HOSE)
25719 Tank, Vacuum Surge
25760D Hose Assy, Vacuum Transmitting, NO.4
25761B Hose, Vaccum Transmitting, NO.1
25761C Clip(VACCUM TRANSMITTING HOSE NO.1)
25771B Hose, Vaccum Transmitting, NO.2
25781A Hose, Vacuum Transmitting, NO.3
25819 Valve Assy, Vacuum Regulating
25860 Valve Assy, Vacuum Switching, NO.1
25861 Bracket, Vacuum Switching Valve
25861A Bracket, Vacuum Switching Valve, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
