Toyota Levin/Hybrid

2014-08 → 2019-05 · chassis NRE181,ZRE18#,ZWE182 · catalogue 168310 · General

Supported model Data version 2019-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Axle Housing & Differential

27 part groups · 3 illustrations

Illustrations

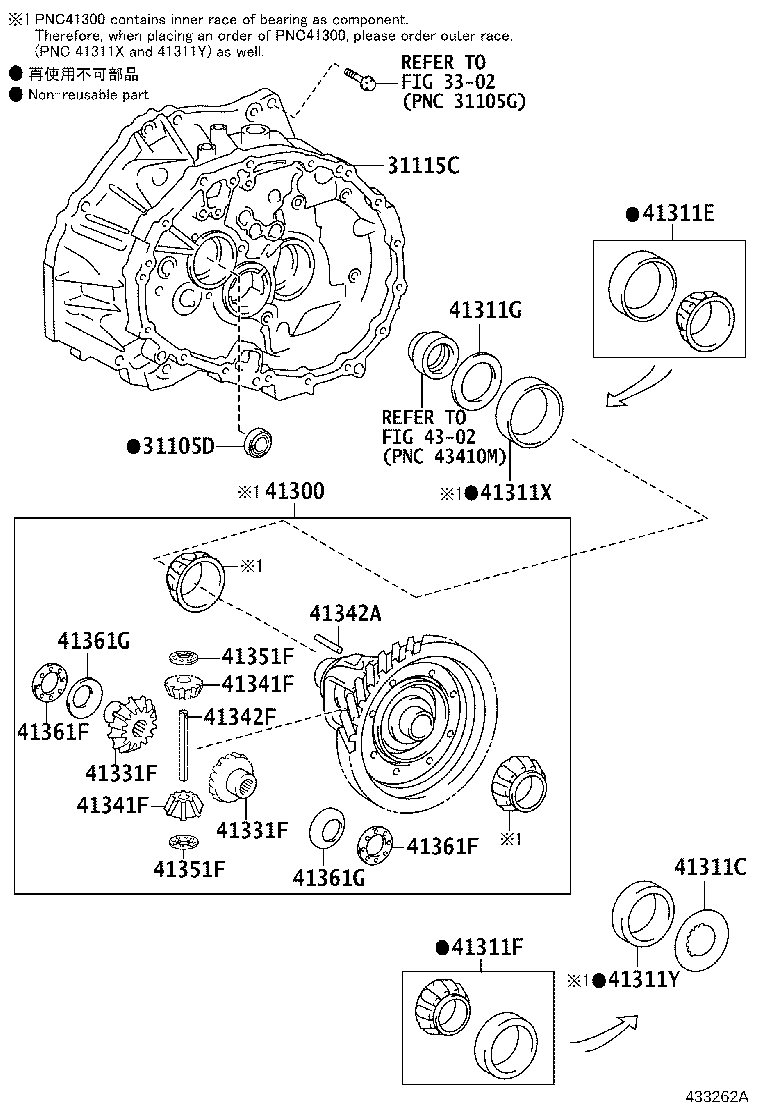

Figure 433261A 433261A 2014-08 → — Figure 433262A 433262A 2014-08 → — Figure 433263F 433263F 2014-08 → —

Part groups

PNCDescription
31105A Plug, Tight(FOR FRONT TRANSAXLE CASE)
31105D Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE)
31115C Case, Front Transaxle(MTM)
33449 Magnet, Transmission
33481 Gear, Speedometer Drive (MTM)
35111C Housing, Transaxle
35759A Gear, Reduction Driven
41211A Bearing, Tapered Roller (FOR FRONT DRIVE PINION FRONT)
41211B Bearing, Tapered Roller (FOR FRONT DRIVE PINION REAR)
41221 Gear, Front Differential Ring
41222B Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET)
41231A Nut, Drive Pinion Lock
41300 Case Assy, Front Differential, W/Ring Gear
41302F Case Sub-assy, Front Differential
41311C Shim (FOR FRONT DIFFERENTIAL CASE REAR)
41311E Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
41311F Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
41311G Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT)
41311X Outer Race, Tapered Roller Bearing (FOR DIFF. CASE FRONT)
41311Y Outer Race, Tapered Roller Bearing (FOR DIFF. CASE REAR)
41331F Gear, Front Differential Side
41341F Pinion, Front Differential
41342A Pin, Straight (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342F Shaft, Front Differential Pinion, NO.1
41351F Washer, Front Differential Pinion Thrust
41361F Washer, Front Differential Side Gear Thrust, NO.1
41361G Washer, Conical Spring(FOR CENTER DIFFERENTIAL SIDE GEAR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
