Toyota Levin/Hybrid

2014-08 → 2019-05 · chassis NRE181,ZRE18#,ZWE182 · catalogue 168310 · General

Supported model Data version 2019-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Pedal & Bracket

4 part groups · 2 illustrations

Illustrations

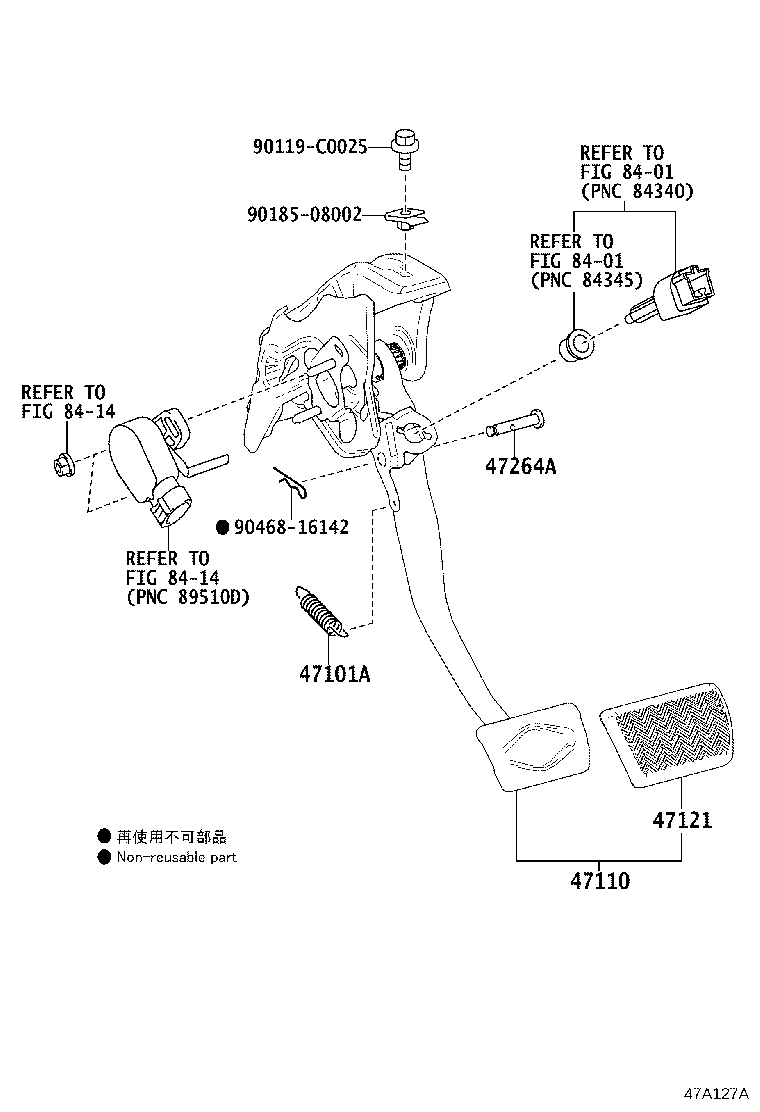

Figure 479388A 479388A 2014-08 → — Figure 47A127A 47A127A 2015-12 → —

Part groups

PNCDescription
47101A Spring(FOR BRAKE PEDAL RETURN)
47110 Support Assy, Brake Pedal
47121 Pad, Brake Pedal
47264A Pin(FOR PUSH ROD)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
