Factory parts data · Europe

Toyota Levin/Hybrid

2014-08 → 2019-05 · chassis NRE181,ZRE18#,ZWE182 · catalogue 168310 · General

Supported model Data version 2019-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

4 part groups · 3 illustrations

Illustrations

Figure 534269A

534269A 2014-08 → 2017-06

Figure 534269A

534269A 2017-06 → —

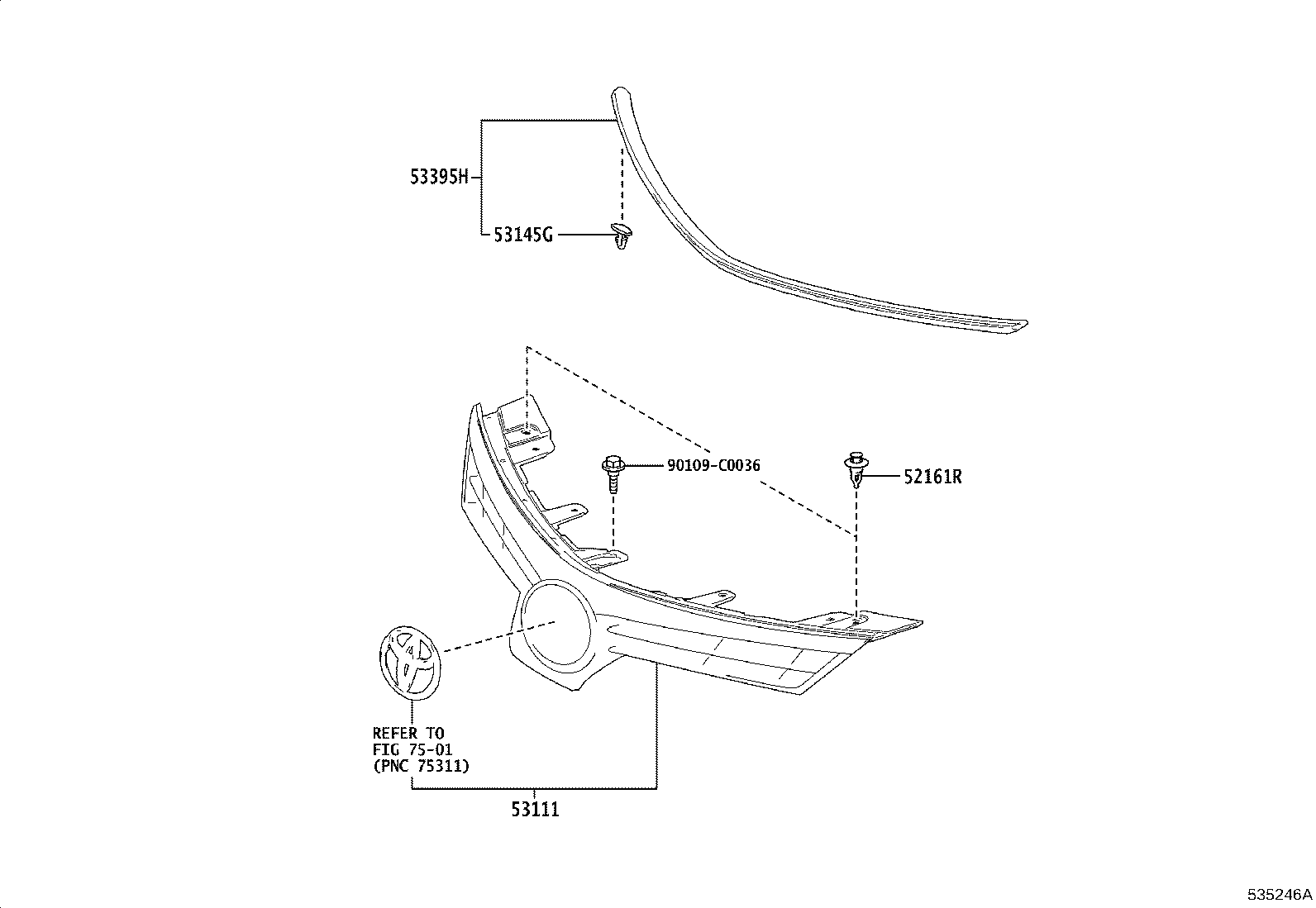

Figure 535246A

535246A 2017-06 → —

Part groups

PNC	Description
52161R	Piece, Front Bumper
53111	Grille, Radiator
53145G	Clip, Radiator Grille
53395H	Seal, Hood TO Radiator Grille

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
