Toyota Levin/Hybrid
2014-08 → 2019-05 · chassis NRE181,ZRE18#,ZWE182 · catalogue 168310 · General
Supported model
Data version 2019-05

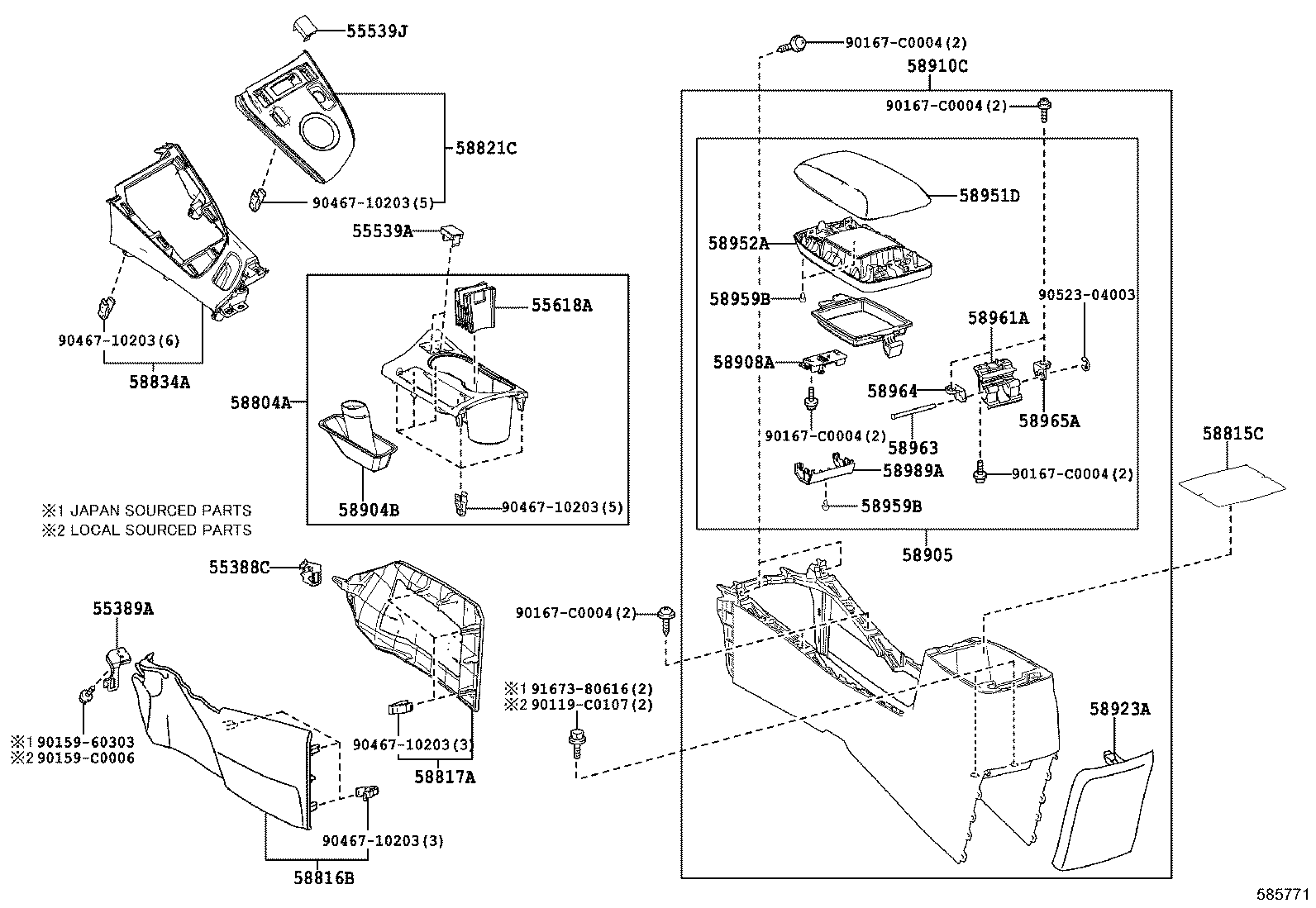

Console Box & Bracket
26 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55388C | Bracket, Console Mounting, RH |
| 55389A | Bracket, Console Mounting, LH |
| 55539A | Cover, Spare Switch Hole |
| 55539J | Cover, Spare Switch Hole |
| 55618A | Holder, Console Box Cup |
| 58804A | Panel Sub-assy, Console, Upper |
| 58808 | Cover Sub-assy, Shifting Hole |
| 58815C | Carpet, Console Box |
| 58816B | Insert, Console Box |
| 58817A | Insert, Console Box, Front NO.2 |
| 58821C | Panel, Console, Upper |
| 58834A | Cover, Console, Lower |
| 58843 | Bezel, Shifting Hole |
| 58904B | Cover Sub-assy, Parking Brake Hole |
| 58905 | Door Sub-assy, Console Compartment |
| 58908A | Lock Sub-assy, Console Compartment Door |
| 58910C | Box Assy, Console, Rear |
| 58923A | Panel, Console Rear End |
| 58951D | Door, Console Compartment, Outer |
| 58952A | Door, Console Compartment, Inner |
| 58959B | Cushion, Console Compartment Door |
| 58961A | Hinge, Console Compartment Door Male |
| 58963 | Shaft, Console Compartment Door Hinge |
| 58964 | Stopper, Console Compartment Door, NO.1 |
| 58965A | Stopper, Console Compartment Door, NO.2 |
| 58989A | Retainer, Console Box |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
