Toyota Levin/Hybrid
2014-08 → 2019-05 · chassis NRE181,ZRE18#,ZWE182 · catalogue 168310 · General
Supported model
Data version 2019-05

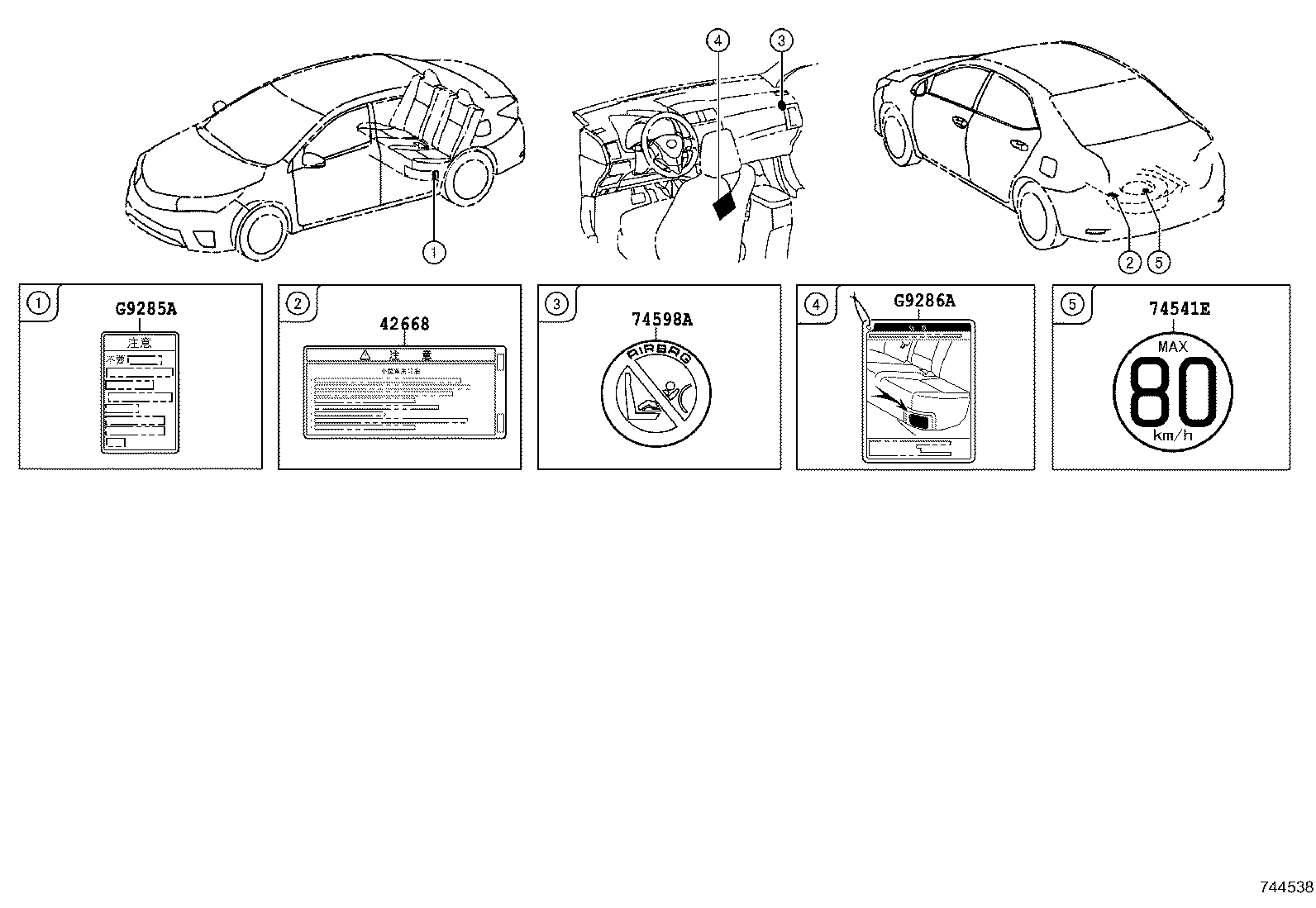

Caution Plate (EXTERIOR & INTERIOR)
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11285A | Label, Coolant System Notice |
| 11291B | Plate, Engine Name |
| 11293D | Label, Engine Caution |
| 16793B | Label, Cooling Fan Information |
| 42668 | Label, Compact Spare Tire Caution |
| 69339C | Label, Child Protector Information |
| 74541E | Plate, Compact Spare Tire Caution |
| 74579A | Label, Unleaded Fuel Information |
| 74596A | Label, Side Airbag Caution |
| 74598A | Label, Passenger Airbag Caution |
| 74751 | Label, Tire Pressure Information |
| 88723J | Label, Cooler Service Caution, NO.2 |
| G9275 | Label, Battery Caution, NO.1 |
| G9285A | Label, HV Battery Caution, NO.1 |
| G9286A | Label, Hybrid Battery Information, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
