Toyota Levin/Hybrid
2014-08 → 2019-05 · chassis NRE181,ZRE18#,ZWE182 · catalogue 168310 · General
Supported model
Data version 2019-05
Navigation & Front Monitor Display

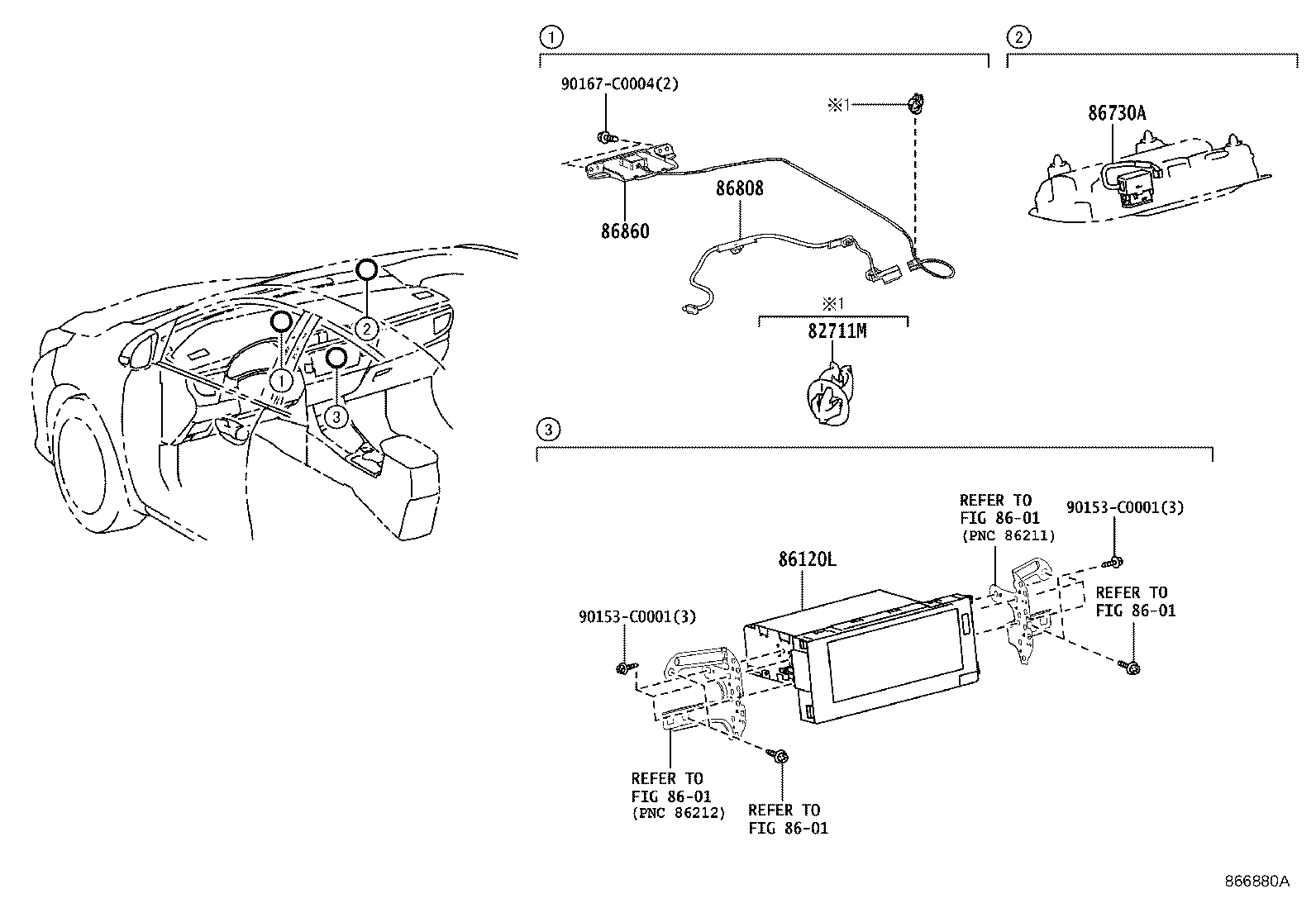

10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 82711M | Clamp, Wiring Harness |
| 86120L | Receiver Assy, Navigation |
| 86120P | Knob, Navigation Receiver Switch |
| 86140A | Receiver Assy, Radio & Display |
| 86140B | Knob, Radio & Display Receiver Switch |
| 86723D | Wire, Mobilephone, NO.1 |
| 86723E | Wire, Mobilephone, NO.2 |
| 86730A | Microphone Assy, Telephone |
| 86808 | Cord Sub-assy, Navigation Antenna, NO.1 |
| 86860 | Antenna Assy, Navigation |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
