Factory parts data · Europe

Toyota Levin/Hybrid

2014-08 → 2019-05 · chassis NRE181,ZRE18#,ZWE182 · catalogue 168310 · General

Supported model Data version 2019-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

7 part groups · 2 illustrations

Illustrations

865760 2014-08 → —

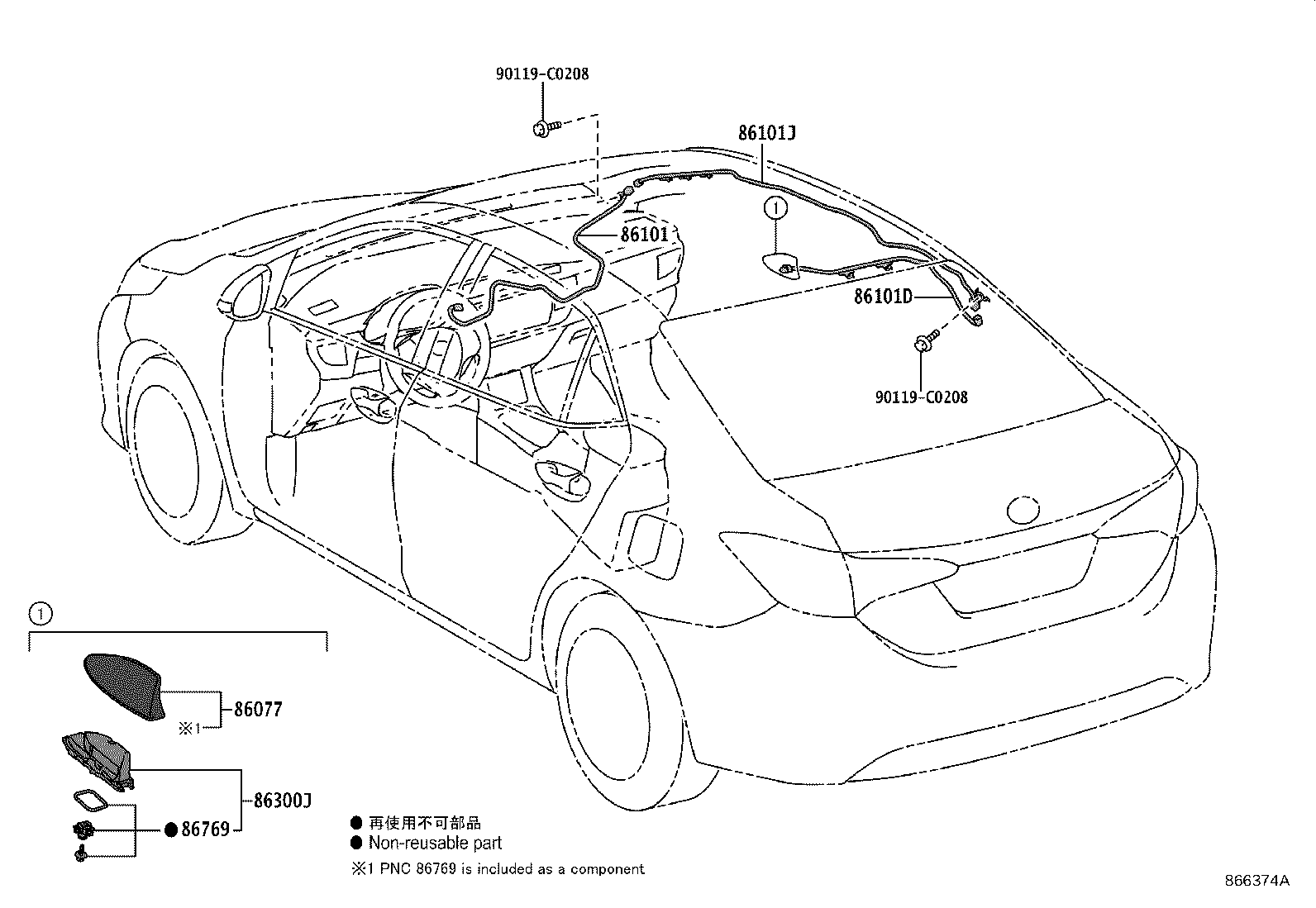

Figure 866374A

866374A 2015-12 → —

Part groups

PNC	Description
86077	Cover Kit, Antenna
86101	Cord Sub-assy, Antenna
86101D	Cord Sub-assy, Antenna, NO.3
86101J	Cord Sub-assy, Antenna, NO.2
86300B	Antenna Assy, Amplifier, NO.1
86300J	Antenna Assy, Roof
86769	Housing, Roof Antenna

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
