Toyota Levin/Hybrid

2014-08 → 2019-05 · chassis NRE181,ZRE18#,ZWE182 · catalogue 168310 · General

Supported model Data version 2019-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

22 part groups · 4 illustrations

Illustrations

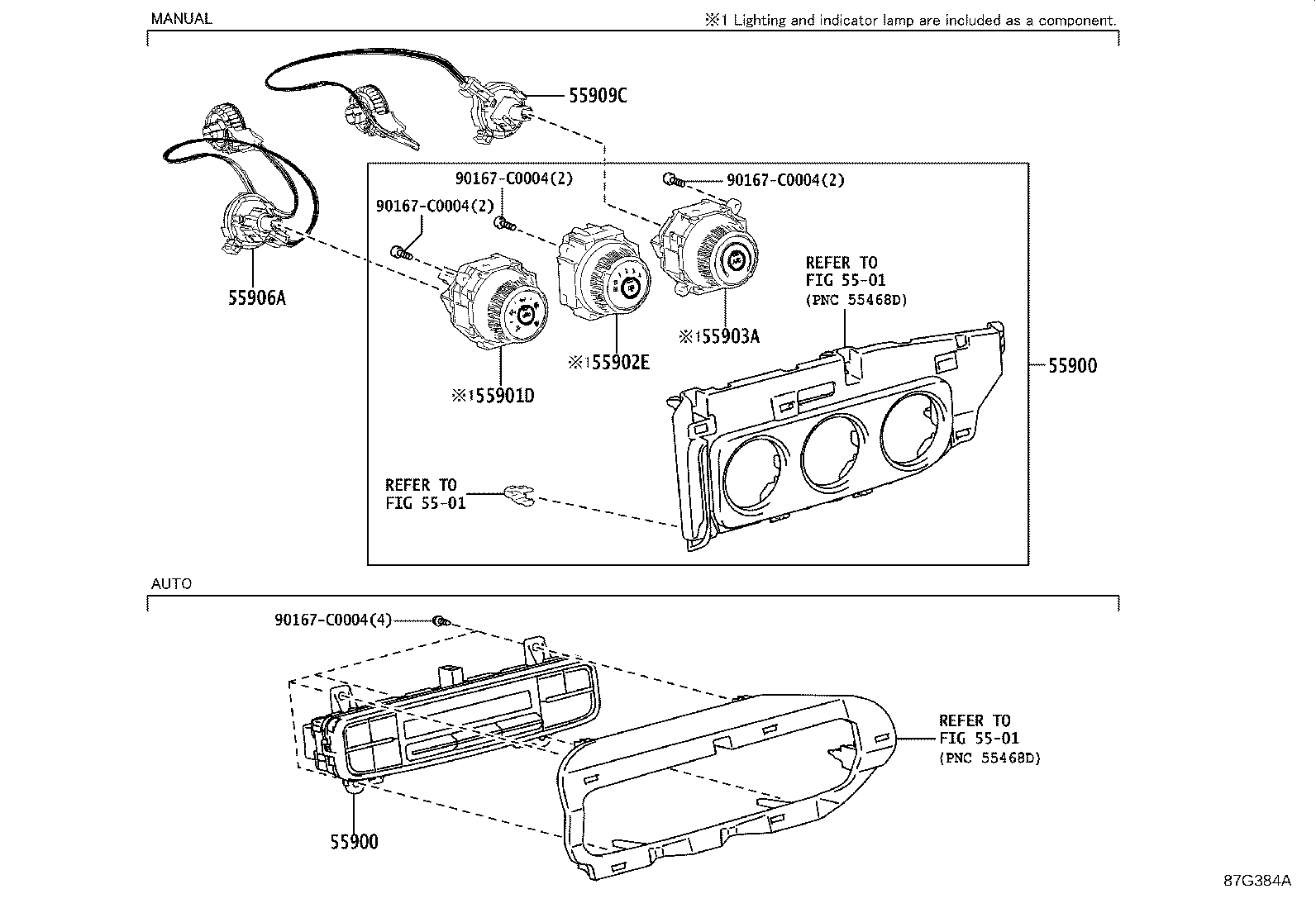

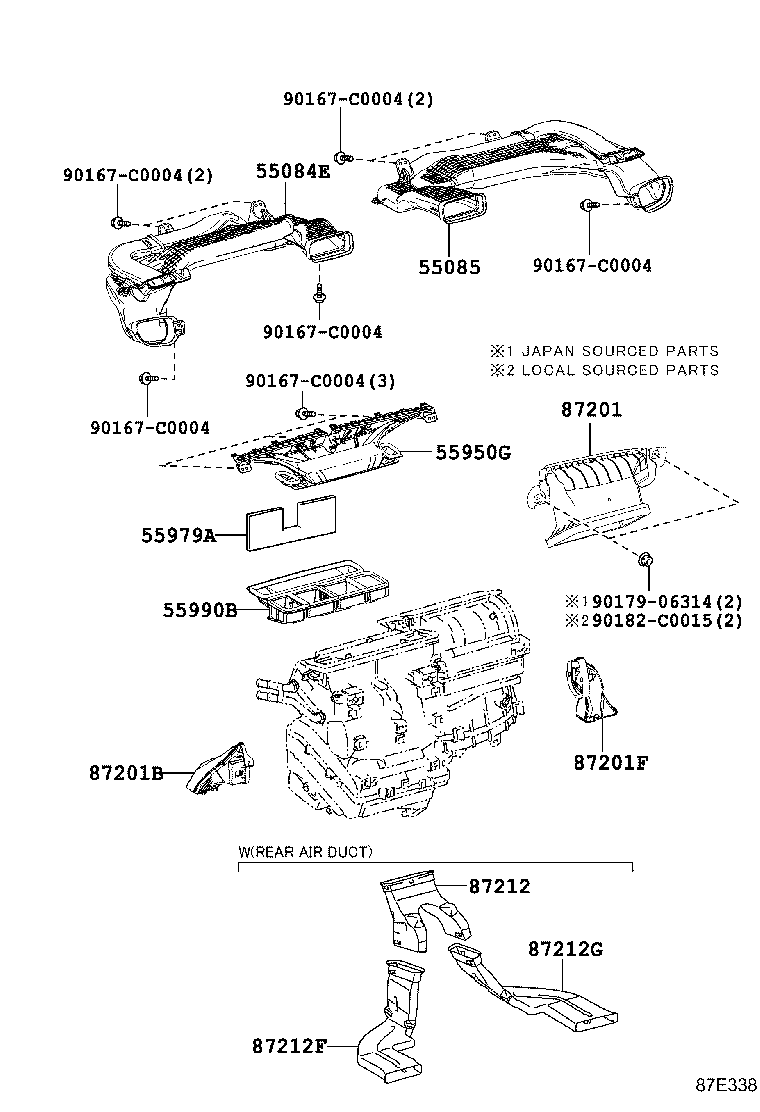

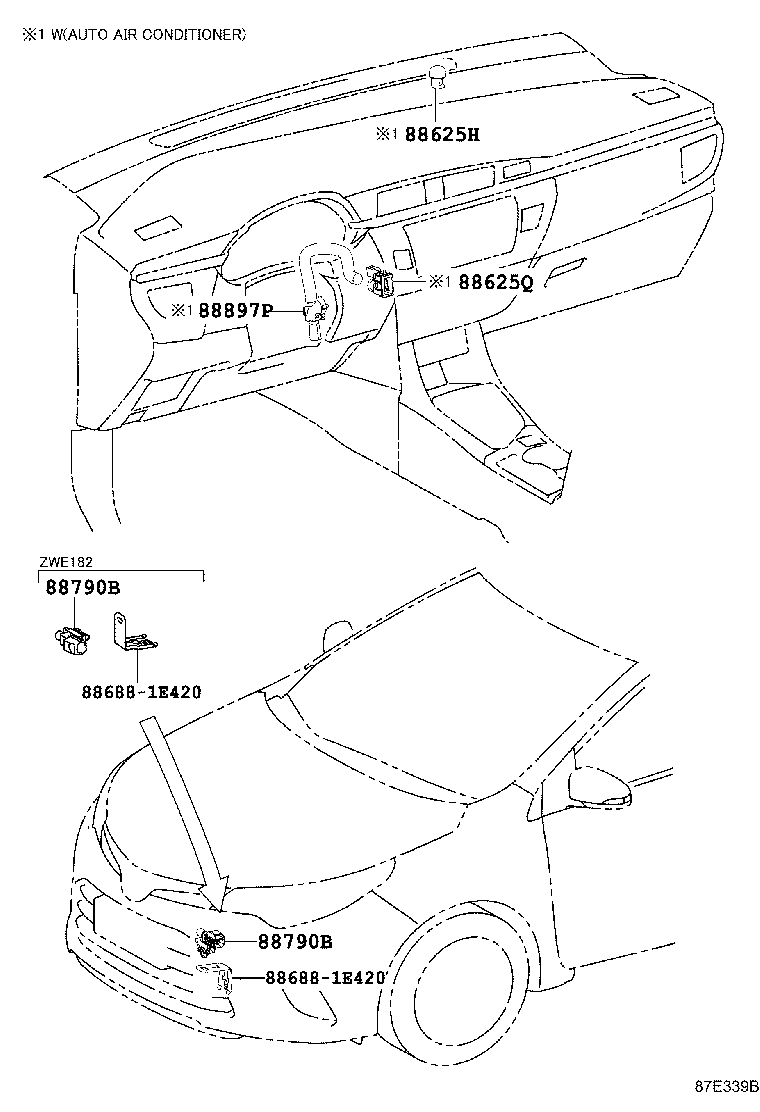

Figure 87E337A 87E337A 2014-08 → 2017-06 Figure 87G384A 87G384A 2017-06 → — Figure 87E338 87E338 2014-08 → — Figure 87E339B 87E339B 2014-08 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55085 Duct Sub-assy, Heater TO Register, NO.2
55900 Control Assy, Air Conditioner
55901D Control Sub-assy, Heater, NO.1
55902E Control Sub-assy, Heater, NO.2
55903A Control Sub-assy, Heater, NO.3
55906A Cable Sub-assy, Defroster Damper Control
55909C Cable Sub-assy, Airmix Damper Control
55950G Nozzle Assy, Defroster
55979A Cushion, Defroster Nozzle
55990B Nozzle Assy, Defroster, Lower
87114C Cover, Heater
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87201F Duct Sub-assy, Air, NO.3
87212 Duct, Air, Rear NO.1
87212F Duct, Air, Rear NO.2
87212G Duct, Air, Rear NO.3
88625H Thermistor, Cooler (SOLAR SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88790B Thermistor Assy
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
