Toyota Levin/Hybrid

2014-08 → 2019-05 · chassis NRE181,ZRE18#,ZWE182 · catalogue 168310 · General

Supported model Data version 2019-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

5 part groups · 5 illustrations

Illustrations

Figure 87E359B

87E359B 2014-08 → —

Figure 87E358

87E358 2014-08 → —

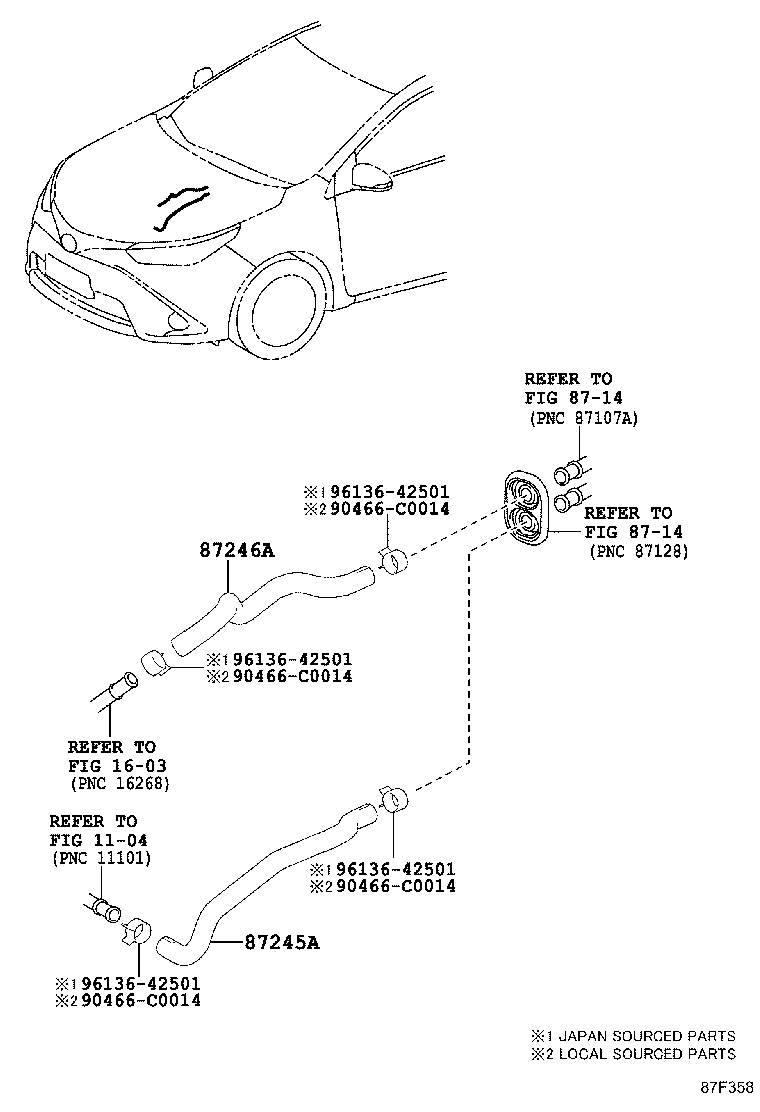

Figure 87F358

87F358 2015-12 → —

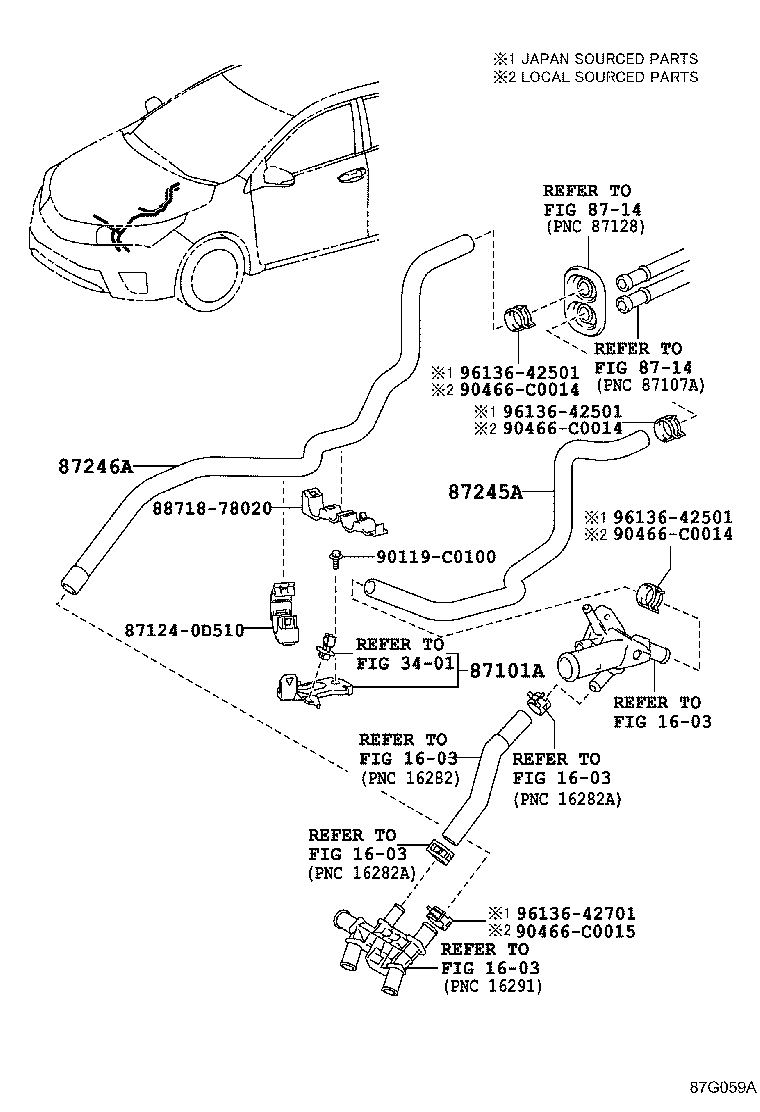

Figure 87G059A

87G059A 2016-12 → —

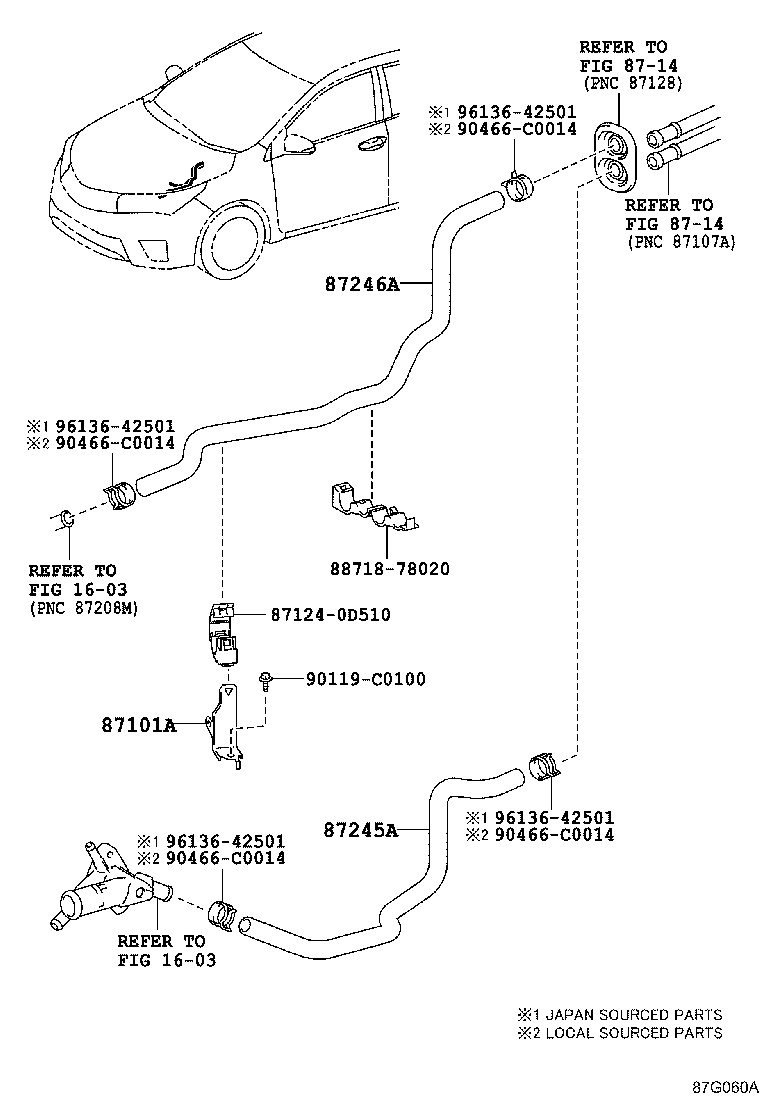

Figure 87G060A

87G060A 2016-12 → —

Part groups

PNC	Description
87101A	Bracket Sub-assy, Heater NO.1
87245A	Hose, Heater Water, Inlet A
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B
87248X	Pipe, Heater Water

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
