Toyota Levin/Hybrid

2019-06 → present · chassis MZEA1#,NRE210,ZWE21# · catalogue 168320 · General

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

11 part groups · 4 illustrations

Illustrations

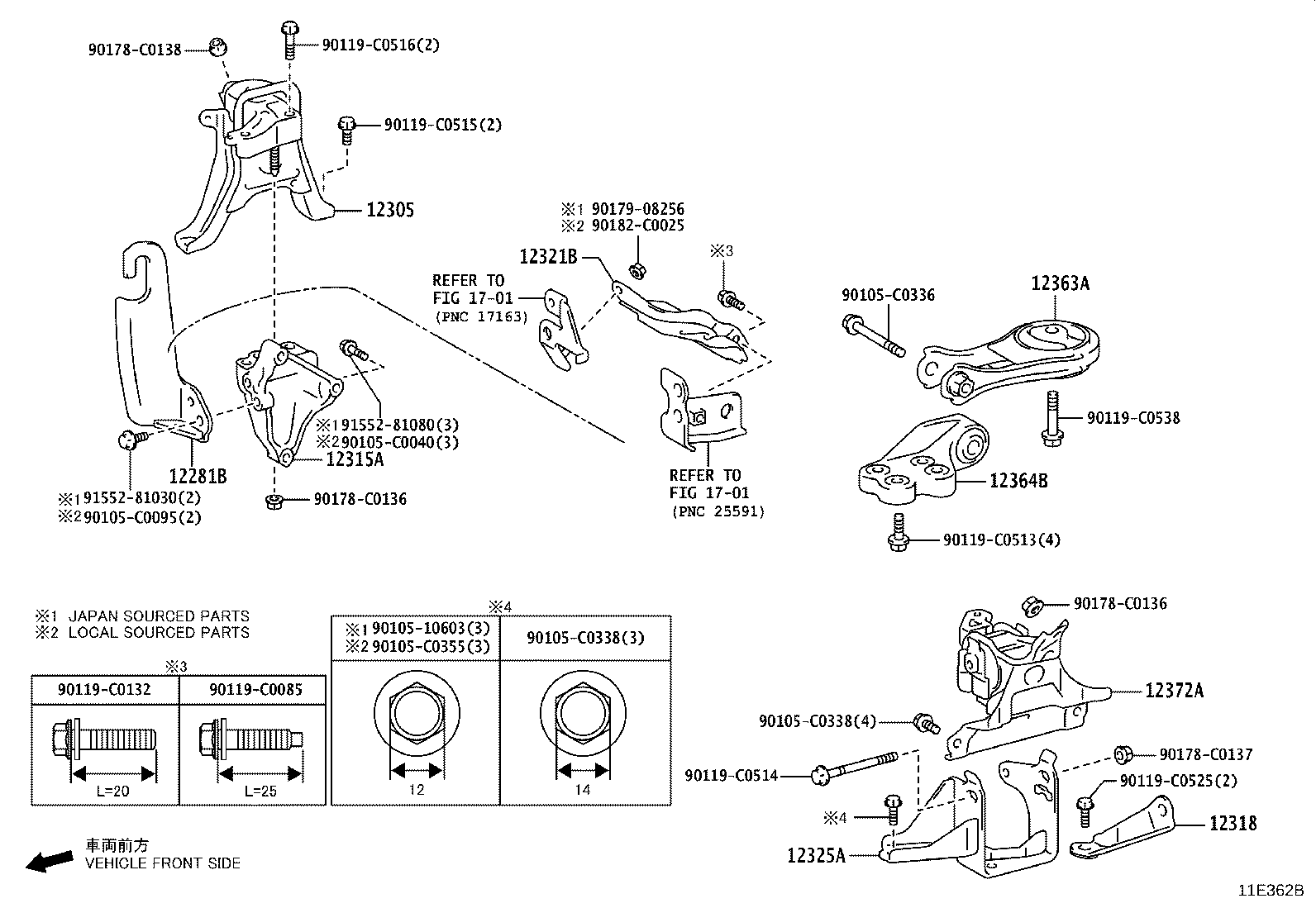

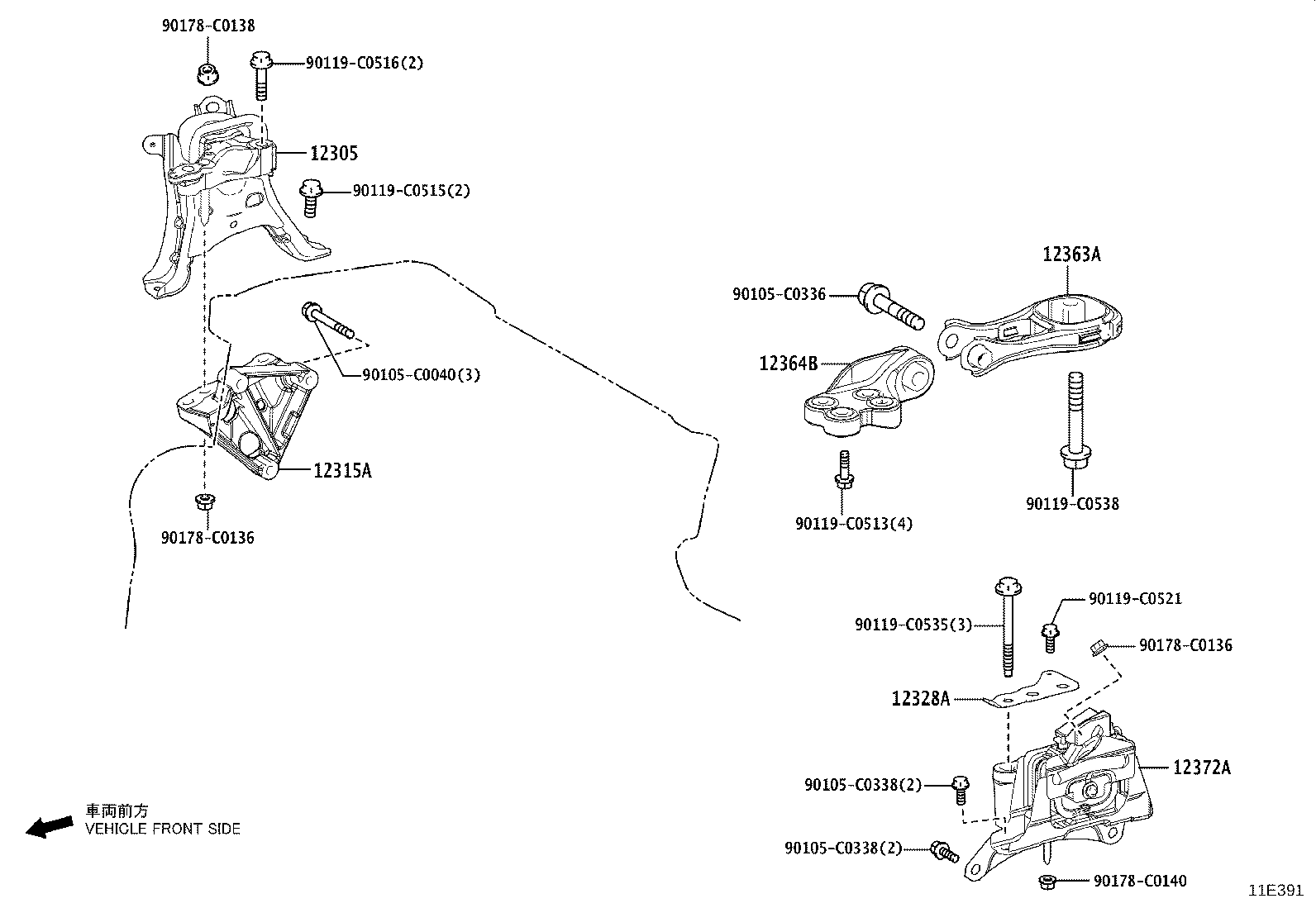

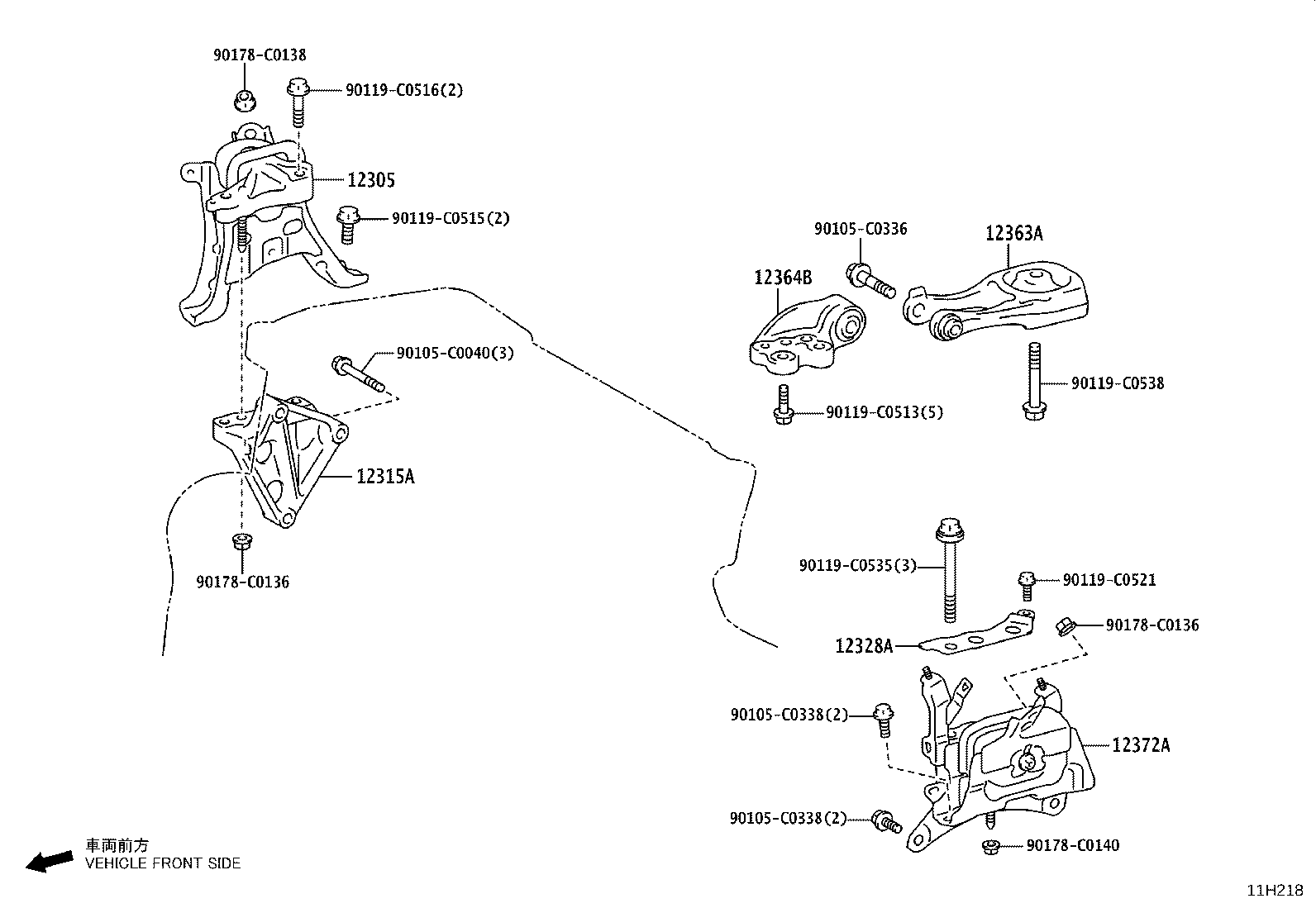

Figure 11F099B 11F099B 2021-01 → — Figure 11E362B 11E362B 2019-06 → — Figure 11E391 11E391 2019-06 → — Figure 11H218 11H218 2023-04 → —

Part groups

PNCDescription
12281B Hanger, Engine, NO.1
12305 Insulator Sub-assy, Engine Mounting, RH
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12318 Stay, Engine Mounting, LH
12321B Insulator Sub-assy, Drive Shaft Heat
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12328A Stay, Engine Mounting, NO.2 LH
12353 Cap, Engine Mounting Bracket
12363A Rod, Engine Moving Control
12364B Rod, Engine Moving Control, NO.2
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
