Toyota Levin/Hybrid

2019-06 → present · chassis MZEA1#,NRE210,ZWE21# · catalogue 168320 · General

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

129 part groups · 13 illustrations

Illustrations

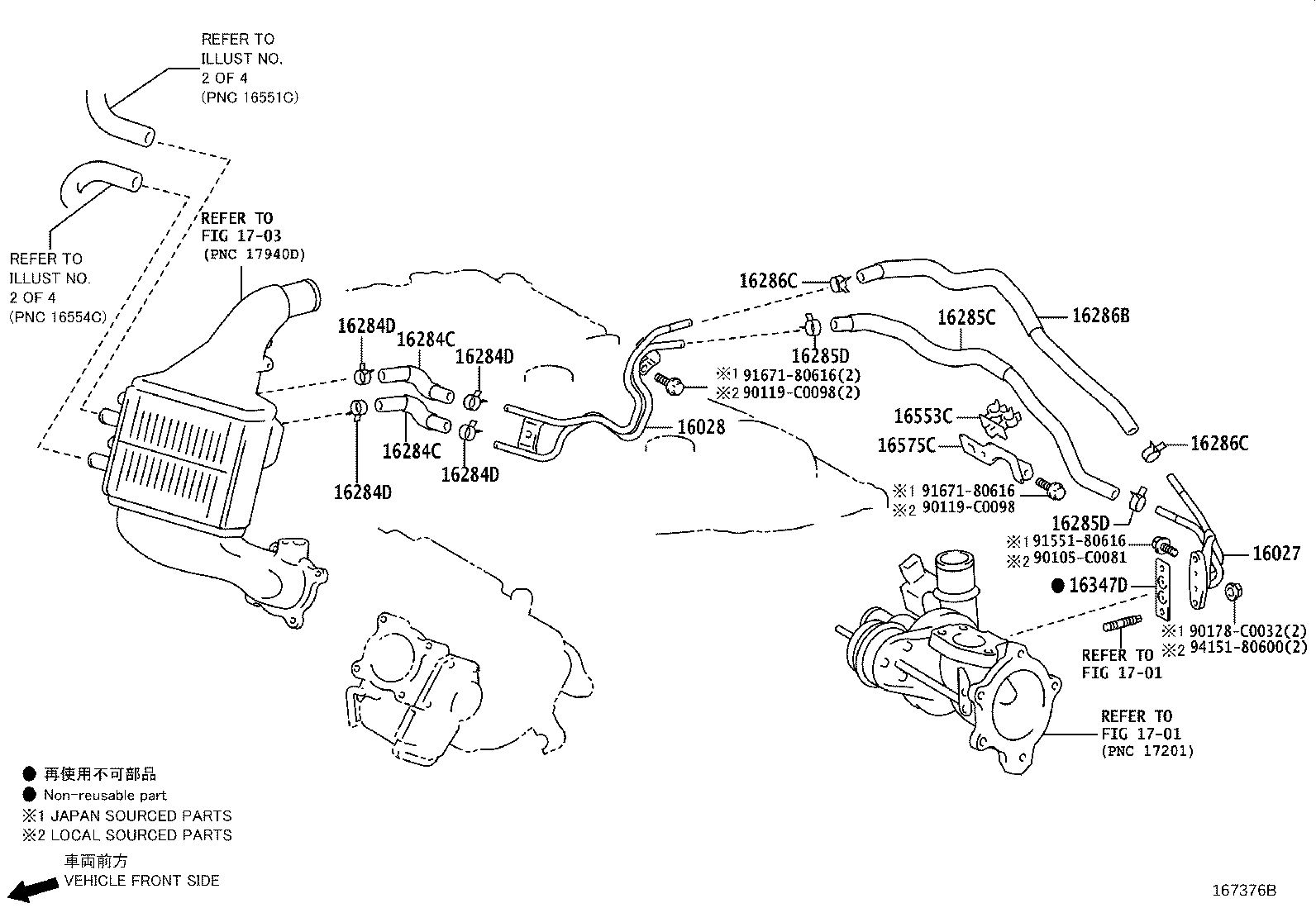

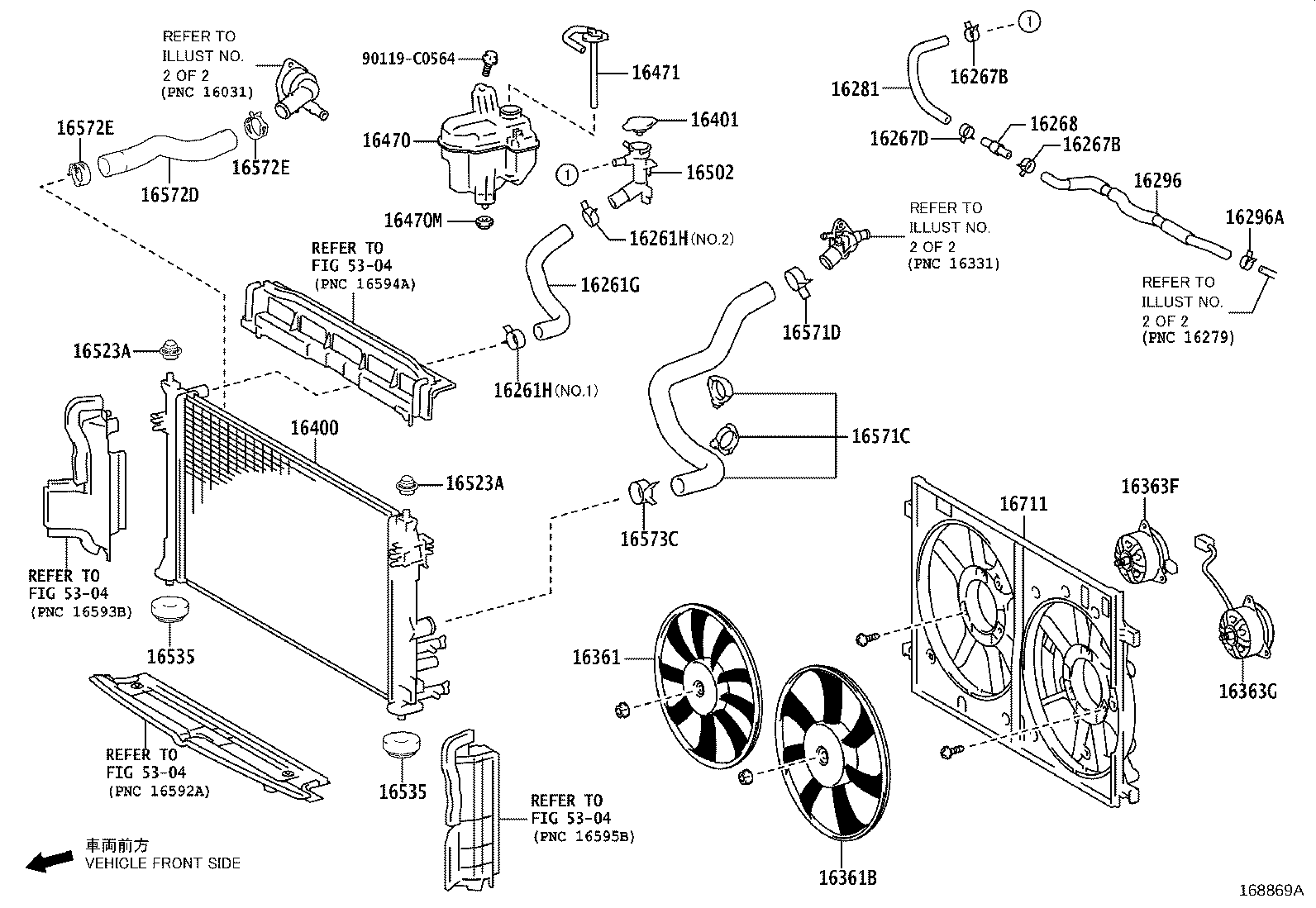

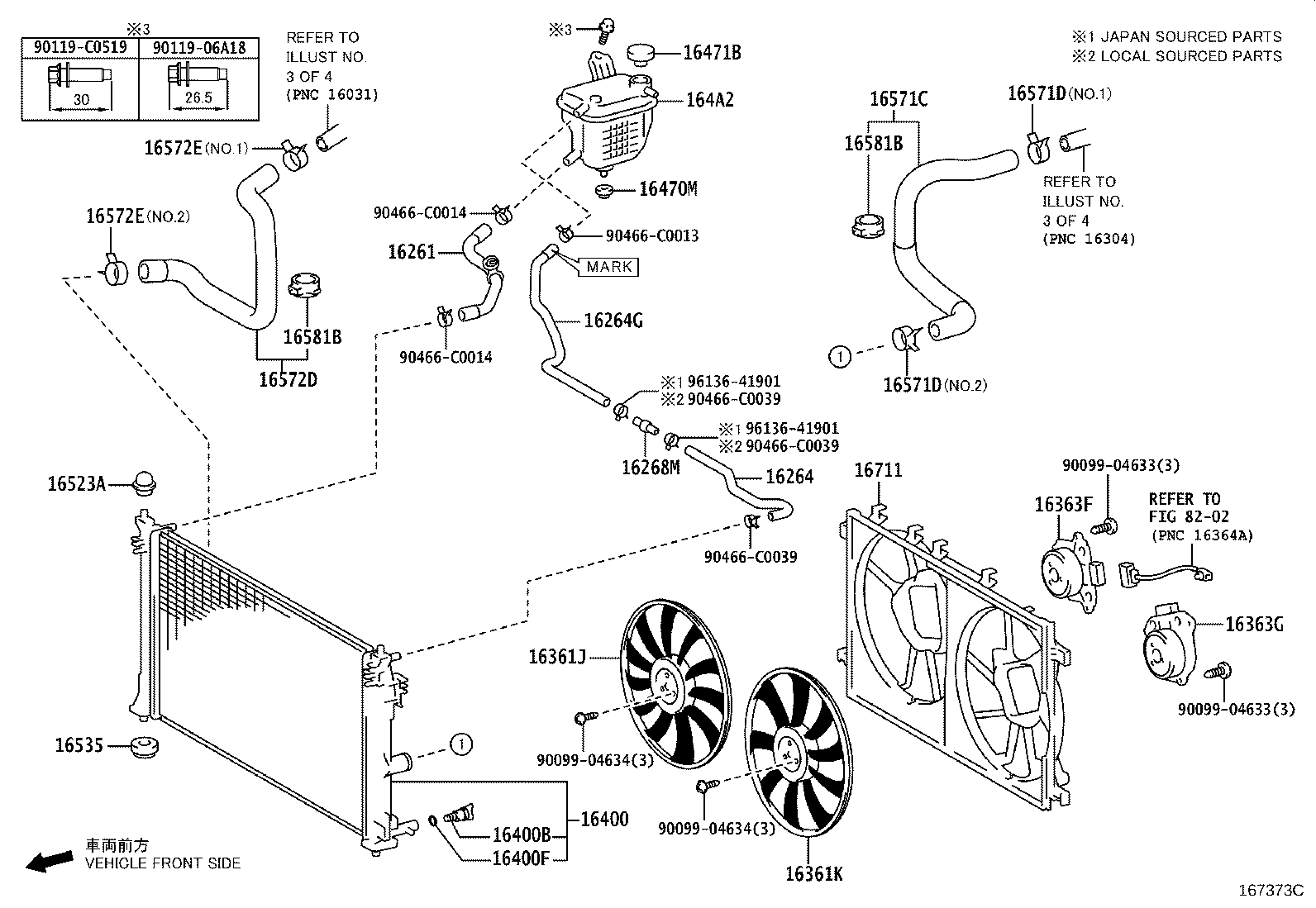

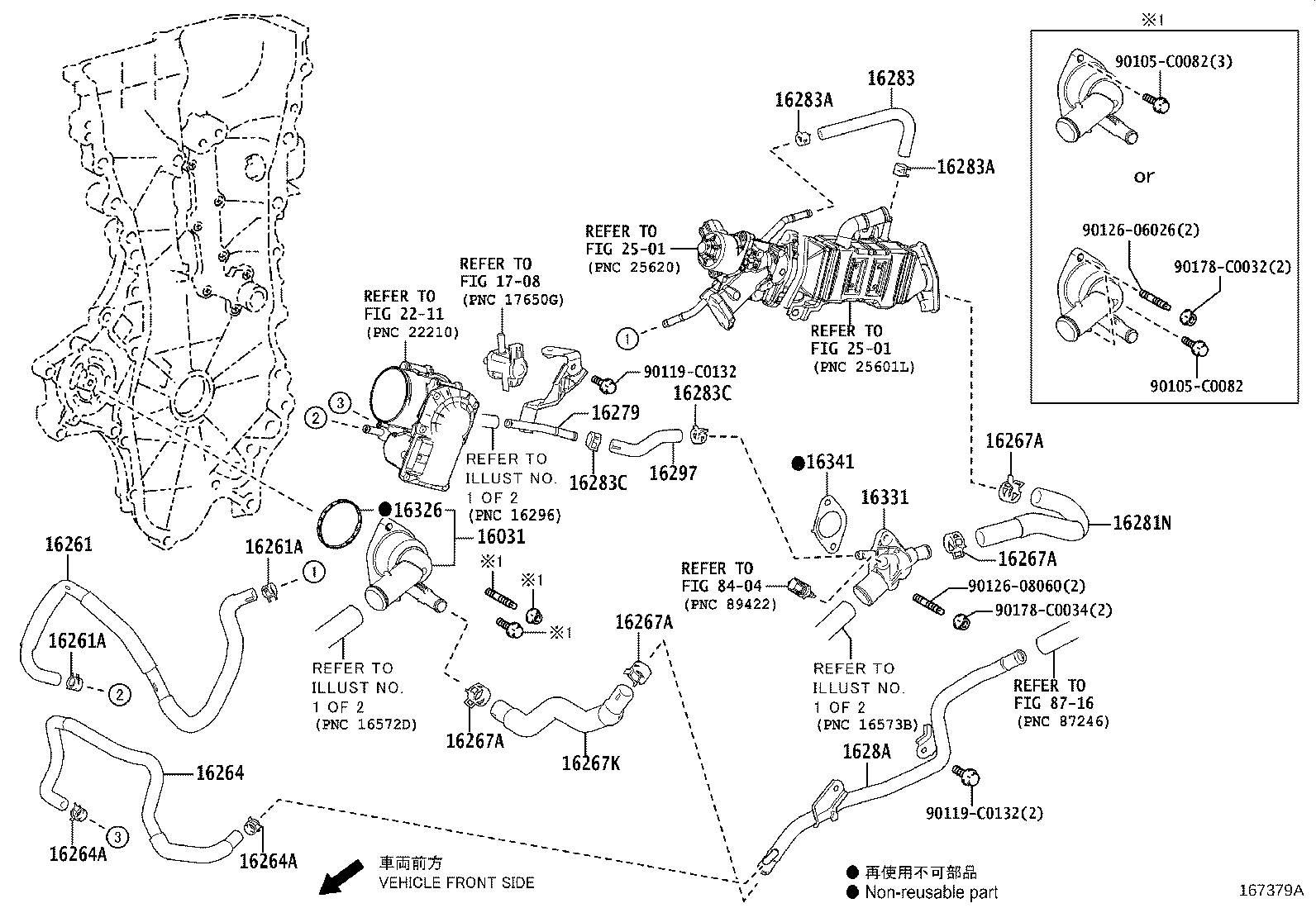

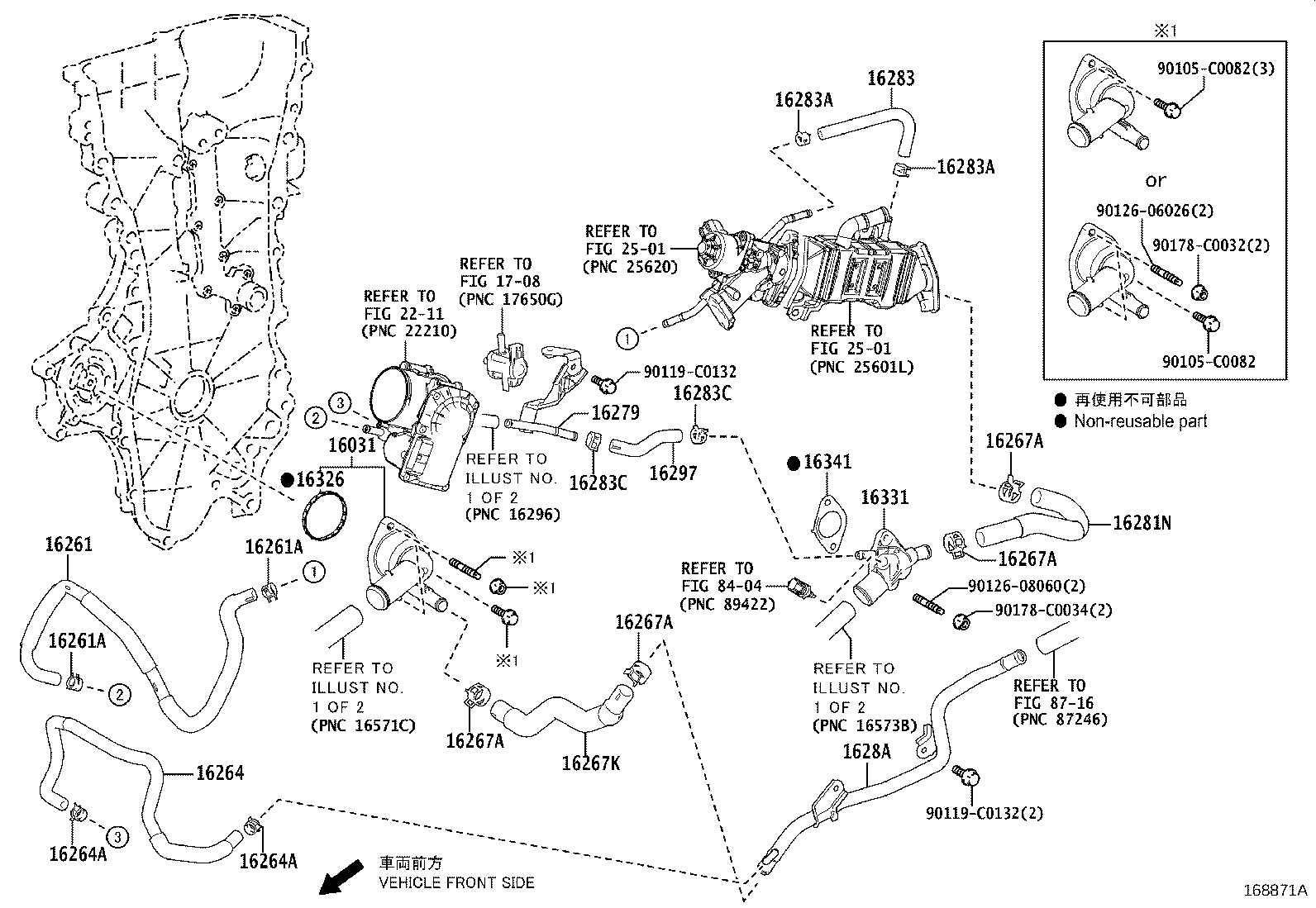

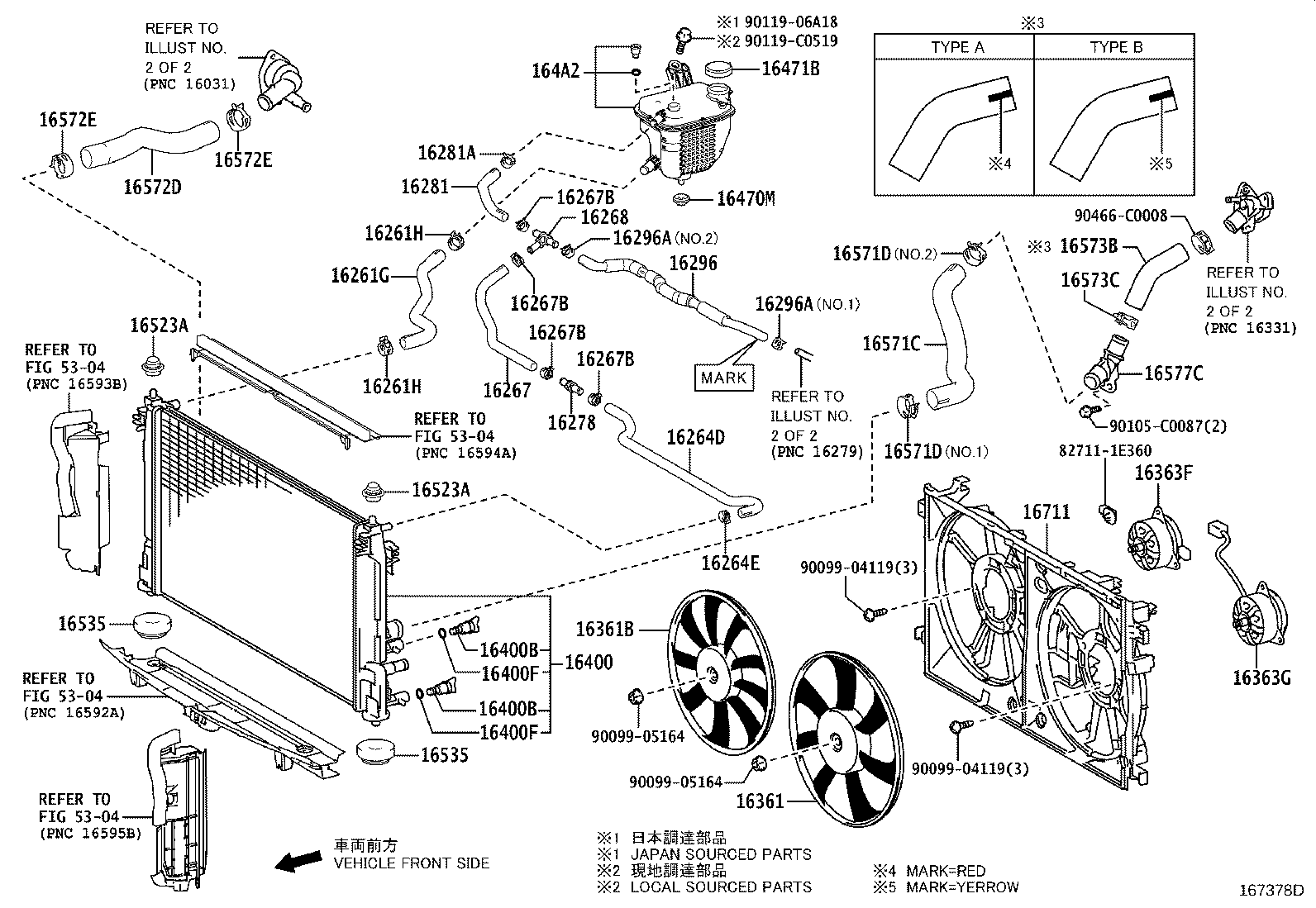

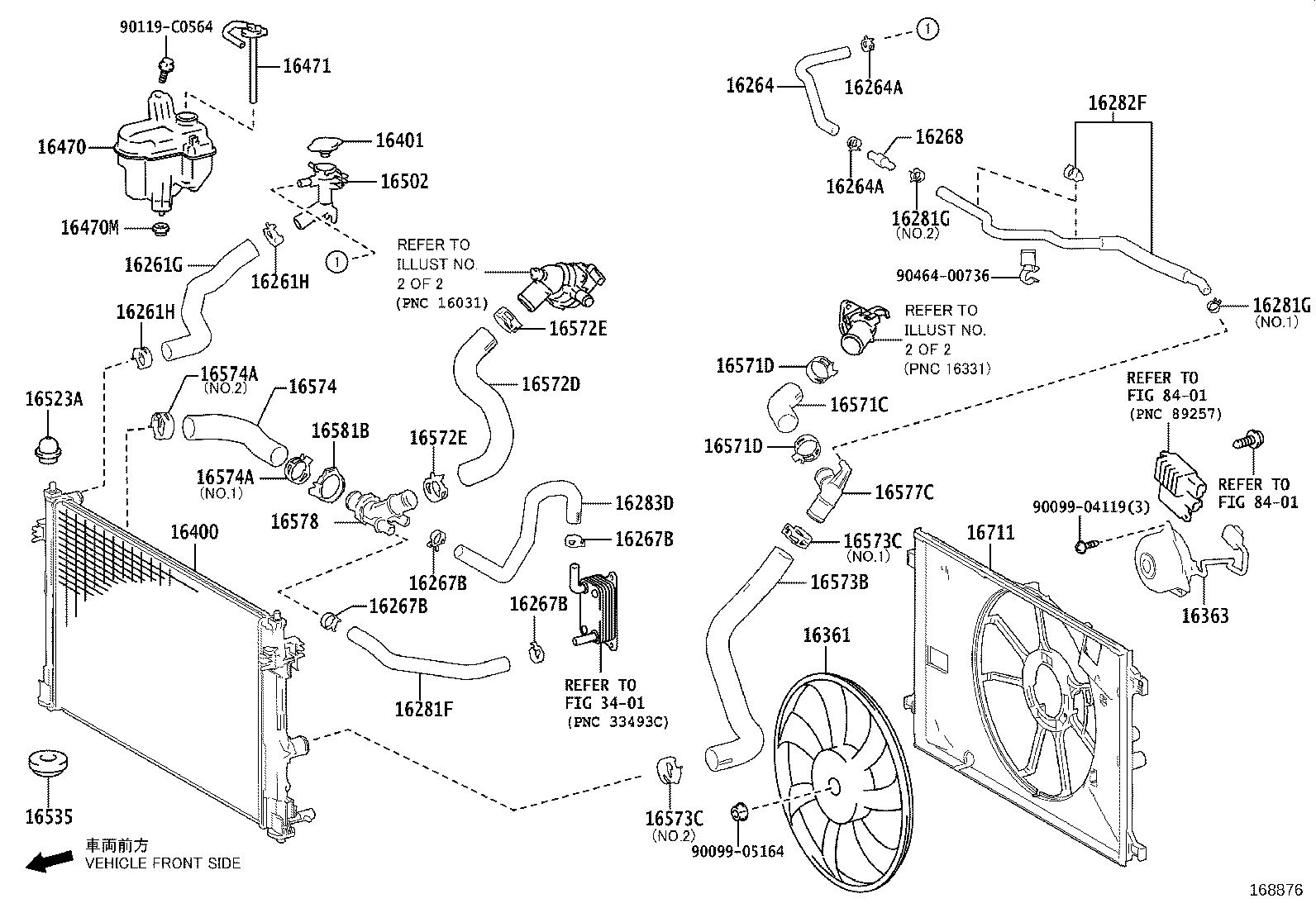

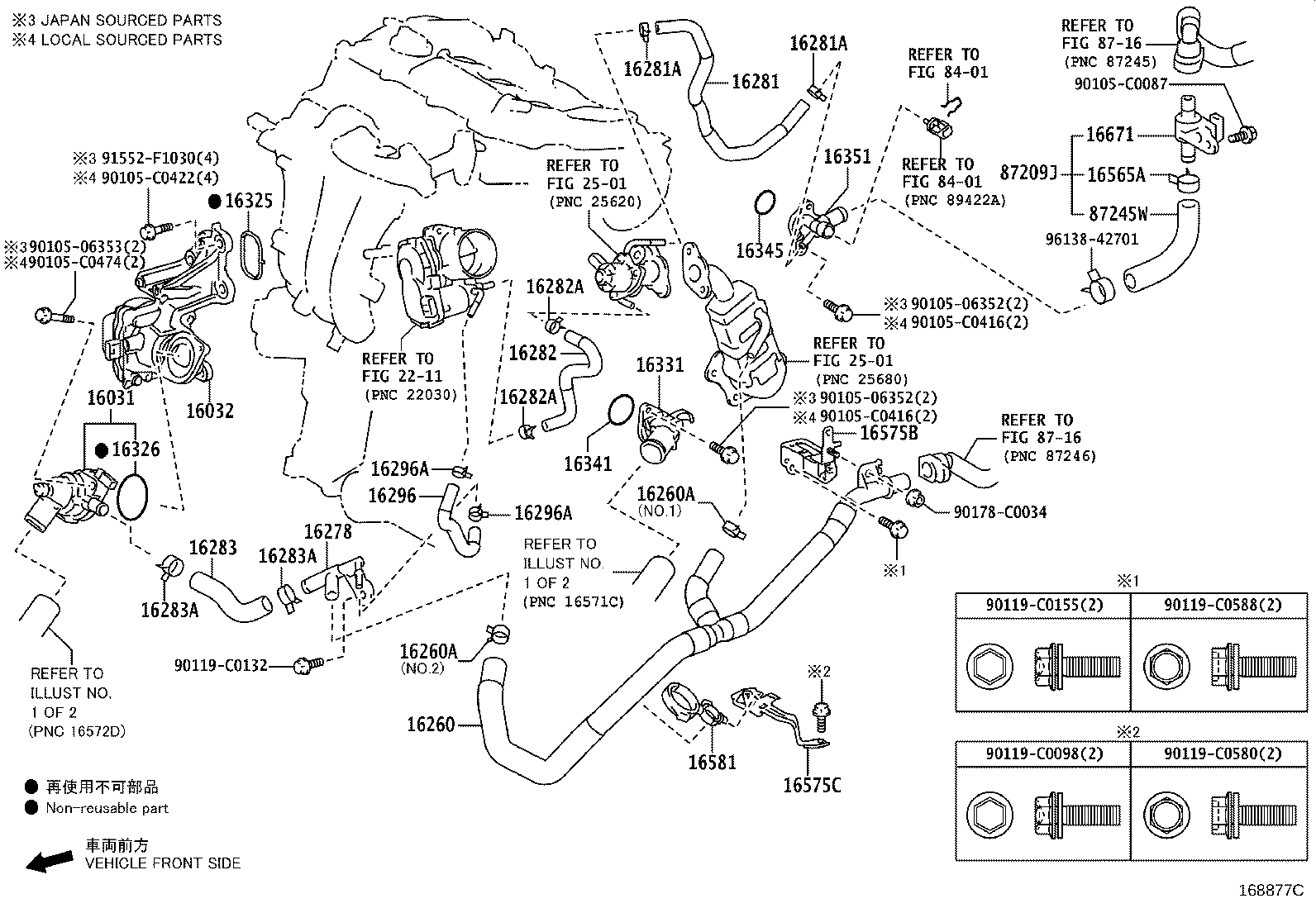

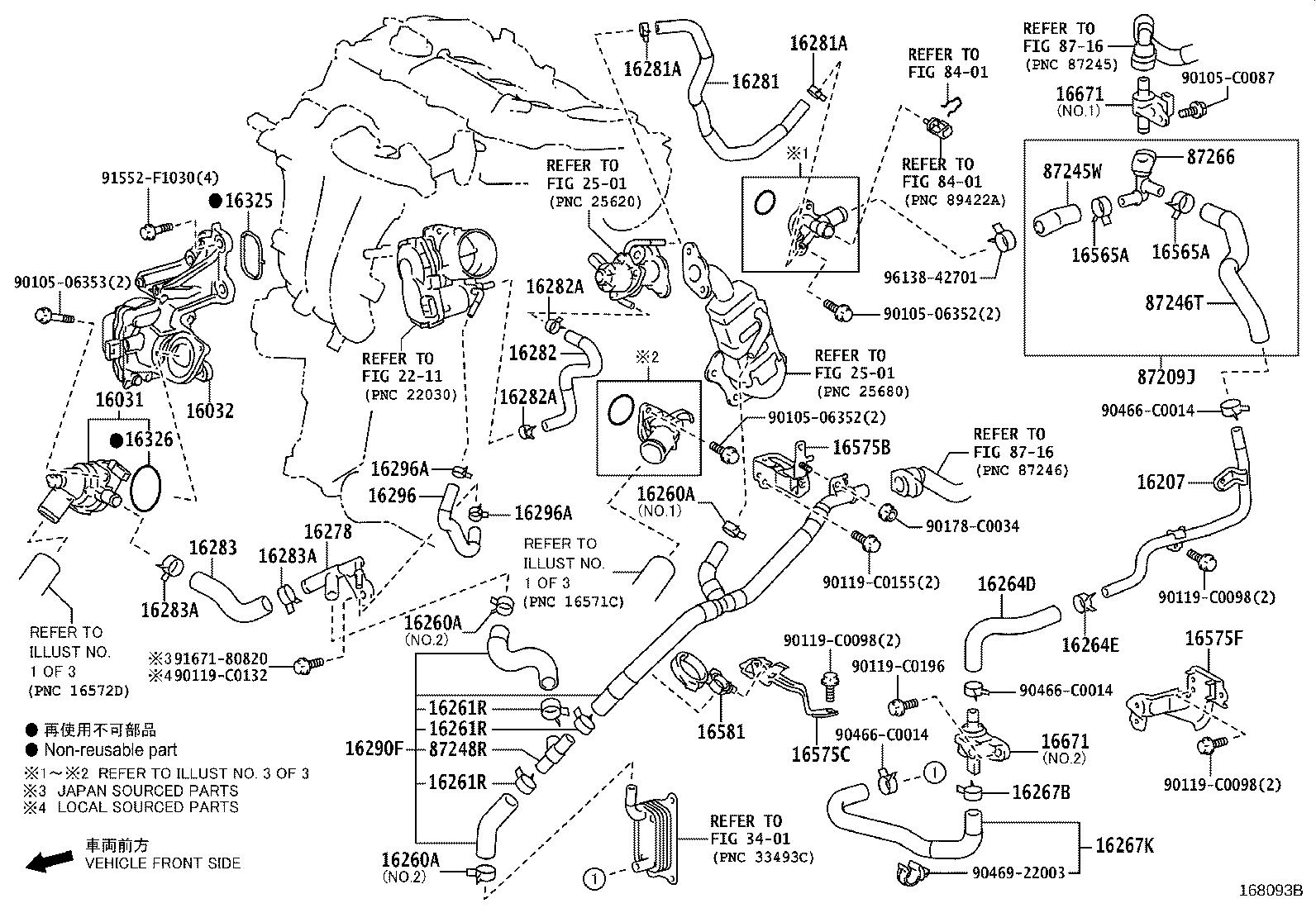

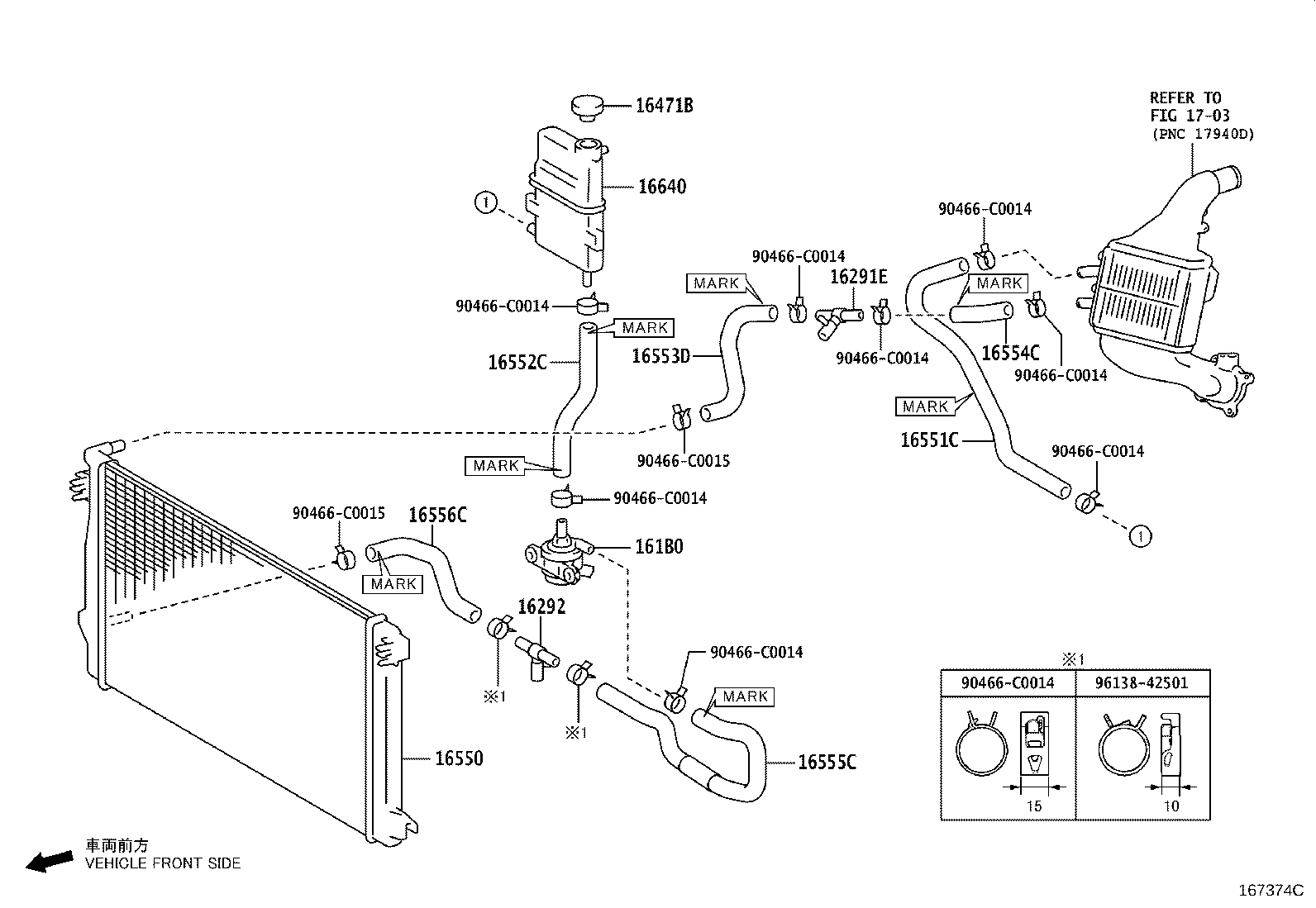

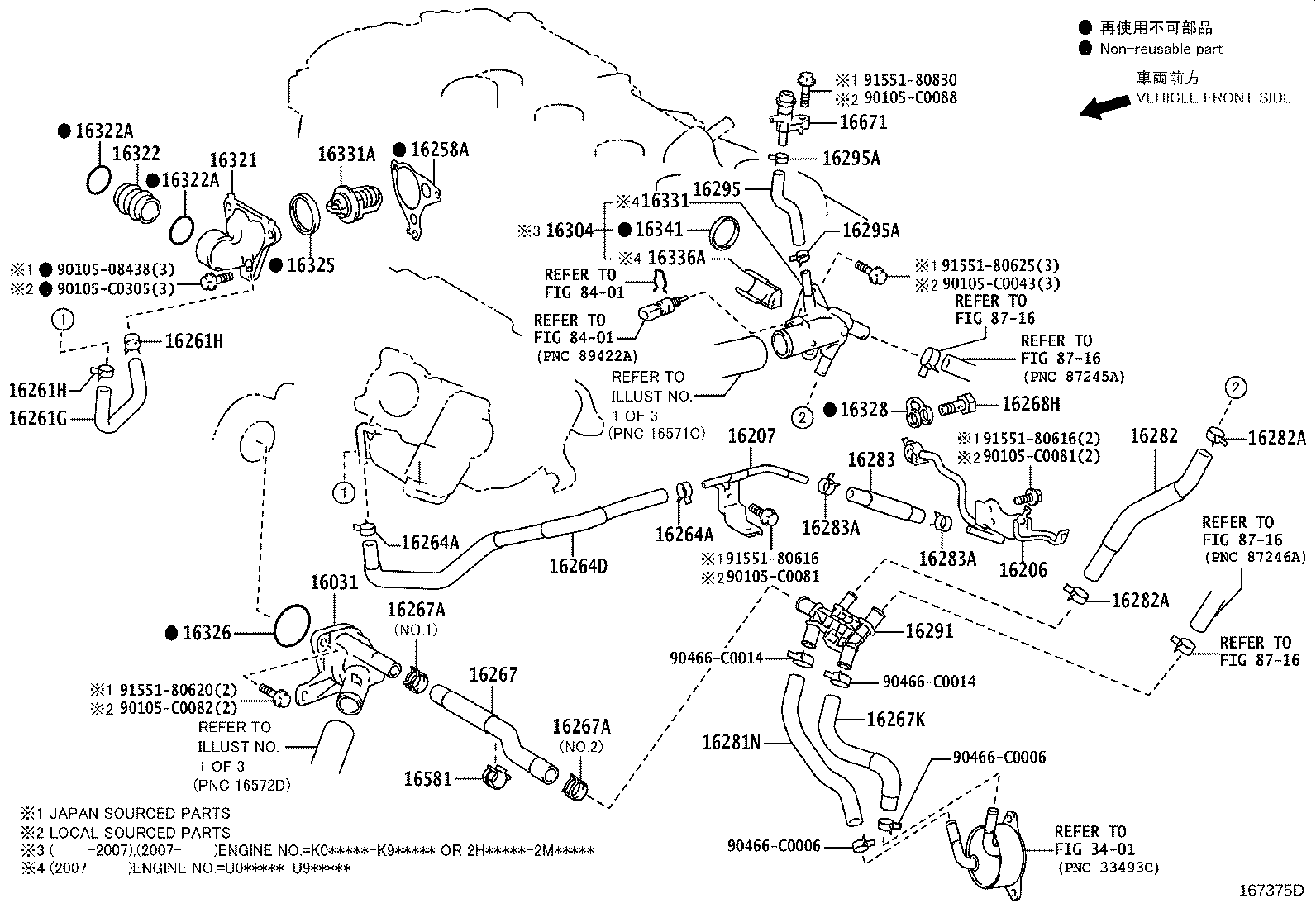

Figure 167773D 167773D 2021-01 → — Figure 168093B 168093B 2021-01 → — Figure 167776C 167776C 2021-01 → — Figure 168876 168876 2023-04 → — Figure 168877C 168877C 2023-04 → — Figure 167373C 167373C 2019-06 → — Figure 167374C 167374C 2019-06 → — Figure 167375D 167375D 2019-06 → — Figure 167376B 167376B 2019-06 → — Figure 167378D 167378D 2019-06 → — Figure 167379A 167379A 2019-06 → — Figure 168869A 168869A 2023-04 → — Figure 168871A 168871A 2023-04 → —

Part groups

PNCDescription
16027 Pipe Sub-assy, Turbo Water, NO.1
16028 Pipe Sub-assy, Turbo Water, NO.2
16031 Water Inlet Sub-assy, W/Thermostat
16032 Housing Sub-assy, Water Inlet W/Water Pump
161B0 Pump Assy, Electric Water
16206 Pipe Sub-assy, Water By-pass
16207 Pipe Sub-assy, Water By-pass, NO.2
16258A Gasket(FOR HEATER RETURN)
16260 Hose Assy, Water By-pass
16260A Clip(FOR WATER BY-PASS HOSE ASSY)
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261G Hose, Water By-pass, NO.1
16261H Clip(FOR WATER BY-PASS HOSE NO.1)
16261R Clamp OR Clip(FOR WATER BY-PASS HOSE)
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16264D Hose, Water By-pass, NO.2
16264E Clip(FOR WATER BY-PASS HOSE NO.2)
16264G Hose, Water By-pass, NO.3
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16267B Clip(FOR WATER BY-PASS HOSE)
16267D Clip(FOR WATER BY-PASS HOSE NO.4)
16267K Hose, Water By-pass, NO.3
16268 Pipe, Water By-pass, NO.1
16268H Bolt, Union(FOR WATER BY-PASS PIPE)
16268M Pipe, Water By-pass, NO.3
16278 Pipe, Water By-pass, NO.2
16278K Pipe, Water By-pass, NO.2
16279 Pipe, Water By-pass, NO.3
16281 Hose, Water By-pass, NO.4
16281A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16281F Hose, Water By-pass, NO.5
16281G Clip(FOR WATER BY-PASS HOSE NO.5)
16281N Hose, Water By-pass, NO.4
16282 Hose, Water By-pass, NO.5
16282A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
16282F Hose, Water By-pass, NO.5
16283 Hose, Water By-pass, NO.6
16283A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
16283C Clamp OR Clip(FOR WATER BY-PASS HOSE)
16283D Hose, Water By-pass, NO.6
16284C Hose, Intercooler Water, NO.1
16284D Clip(FOR INTERCOOLER WATER HOSE NO.1)
16285C Hose, Intercooler Water, NO.2
16285D Clip(FOR INTERCOOLER WATER HOSE NO.2)
16286B Hose, Intercooler Water, NO.3
16286C Clip(FOR INTERCOOLER WATER HOSE NO.3)
1628A Pipe, Water By-pass, NO.6
16290F Hose Assy, Water By-pass, NO.3
16291 Joint, Water Hose
16291E Joint,Water Hose, NO.1
16292 Joint, Water Hose, NO.2
16295 Hose, Water By-pass, NO.7
16295A Clip(FOR WATER BY-PASS HOSE NO.7)
16296 Hose, Water By-pass, NO.8
16296A Clip(FOR WATER BY-PASS HOSE NO.8)
16297 Hose, Water By-pass, NO.9
16304 Outlet Sub-assy, Water
16305E Outlet Sub-assy, Water By-pass
16321 Inlet, Water
16322 Pipe, Water Inlet
16322A Ring, O(FOR WATER INLET)
16325 Gasket, Water Inlet Housing, NO.1
16326 Gasket, Water Inlet Housing, NO.2
16328 Gasket, Water Inlet Pipe
16331 Outlet, Water
16331A Thermostat
16336A Insert, Water Outlet
16341 Gasket, Water Outlet
16345 Gasket, Water Outlet Pipe
16347D Gasket, Water By-pass
16351 Outlet, Water By-pass
16361 Fan
16361B Fan, NO.2
16361J Fan, RH
16361K Fan, LH
16363 Motor, Cooling Fan
16363F Motor, Cooling Fan, RH
16363G Motor, Cooling Fan, LH
16400 Radiator Assy
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16401 Cap Sub-assy, Radiator
16470 Tank Assy, Radiator Reserve
16470M Grommet
16471 Cap Sub-assy, Reserve Tank
16471B Cap, Reserve Tank
164A2 Tank, Reserve Sealed W/O Cap
16502 Filler Sub-assy, Water
16523A Cushion, Radiator Support
16535 Support, Radiator, Lower
16550 Radiator Assy, Intercooler Cooling
16551C Hose, Intercooler Cooling Water, NO.1
16552C Hose, Intercooler Cooling Water, NO.2
16553C Clamp, Hose
16553D Hose, Intercooler Cooling Water, NO.3
16554C Hose, Intercooler Cooling Water, NO.4
16555C Hose, Intercooler Cooling Water, NO.5
16556C Hose, Intercooler Cooling Water, NO.6
16565A Clip
16571C Hose, Radiator, NO.1
16571D Clip, Radiator Hose, NO.1
16572D Hose, Radiator, NO.2
16572E Clip, Radiator Hose, NO.2
16573B Hose, Radiator, NO.3
16573C Clamp OR Clip, Radiator Hose, NO.3
16574 Hose, Radiator, NO.4
16574A Clip, Radiator Hose, NO.4
16575 Hose, Radiator, NO.5
16575A Clip, Radiator Hose, NO.5
16575B Bracket, Water Hose Clamp, NO.2
16575C Bracket, Water Hose Clamp, NO.1
16575F Bracket, Water Hose Clamp, NO.3
16577C Pipe, Radiator
16578 Pipe, Radiator, NO.2
16581 Clamp, Hose(FOR WATER HOSE)
16581B Clamp, Hose(FOR RADIATOR HOSE)
16581C Clamp, Hose(FOR RADIATOR HOSE NO.2)
165A0A Clip, Hose
16640 Tank Assy, Intercooler Reserve
16671 Valve, Water
16711 Shroud, Fan
87209J Hose Sub-assy, Water
87245W Hose, Water
87246T Hose, Water, NO.2
87248R Pipe, Water
87266 Connector, Water Hose, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
