Toyota Levin/Hybrid

2019-06 → present · chassis MZEA1#,NRE210,ZWE21# · catalogue 168320 · General

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

8 part groups · 4 illustrations

Illustrations

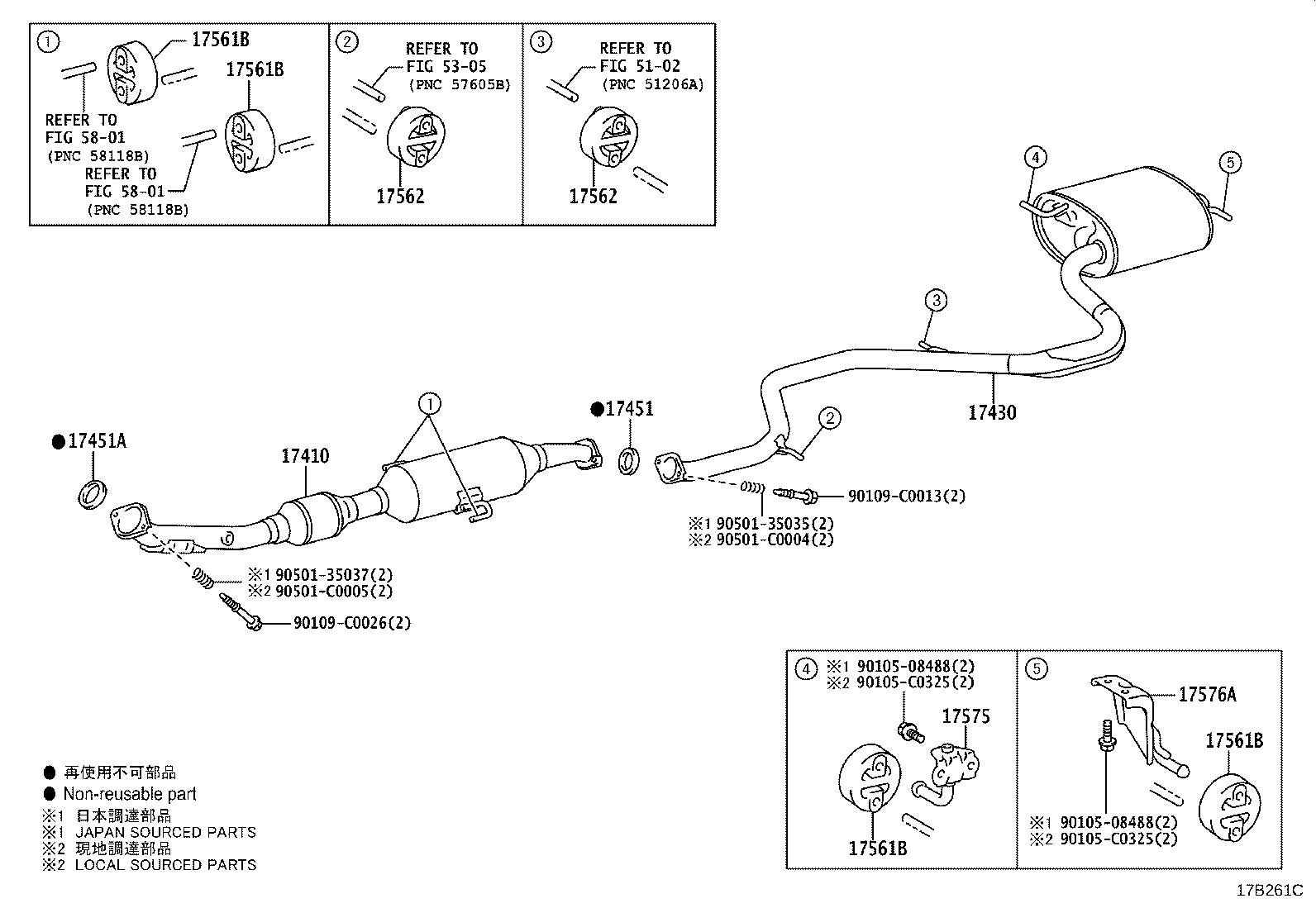

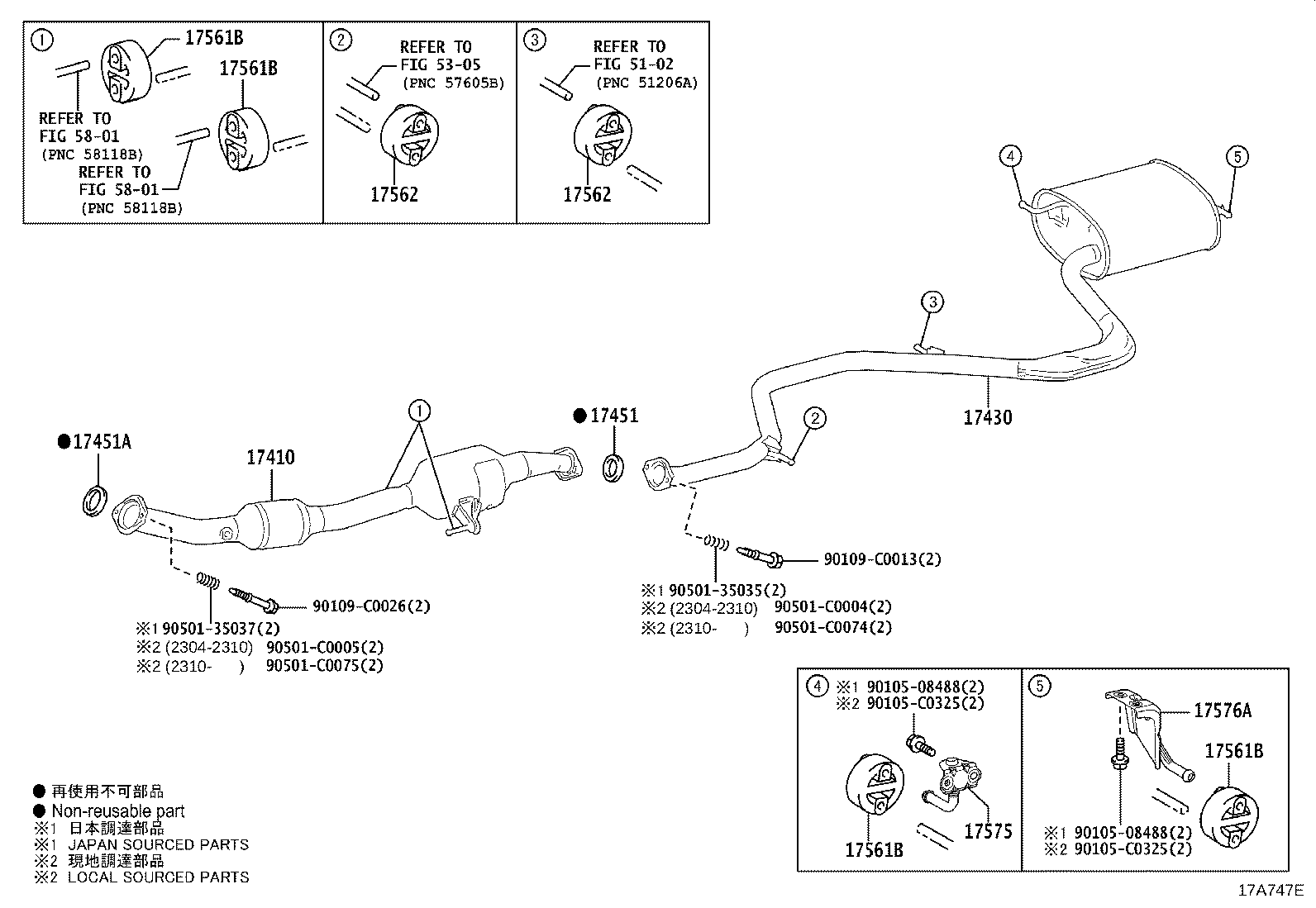

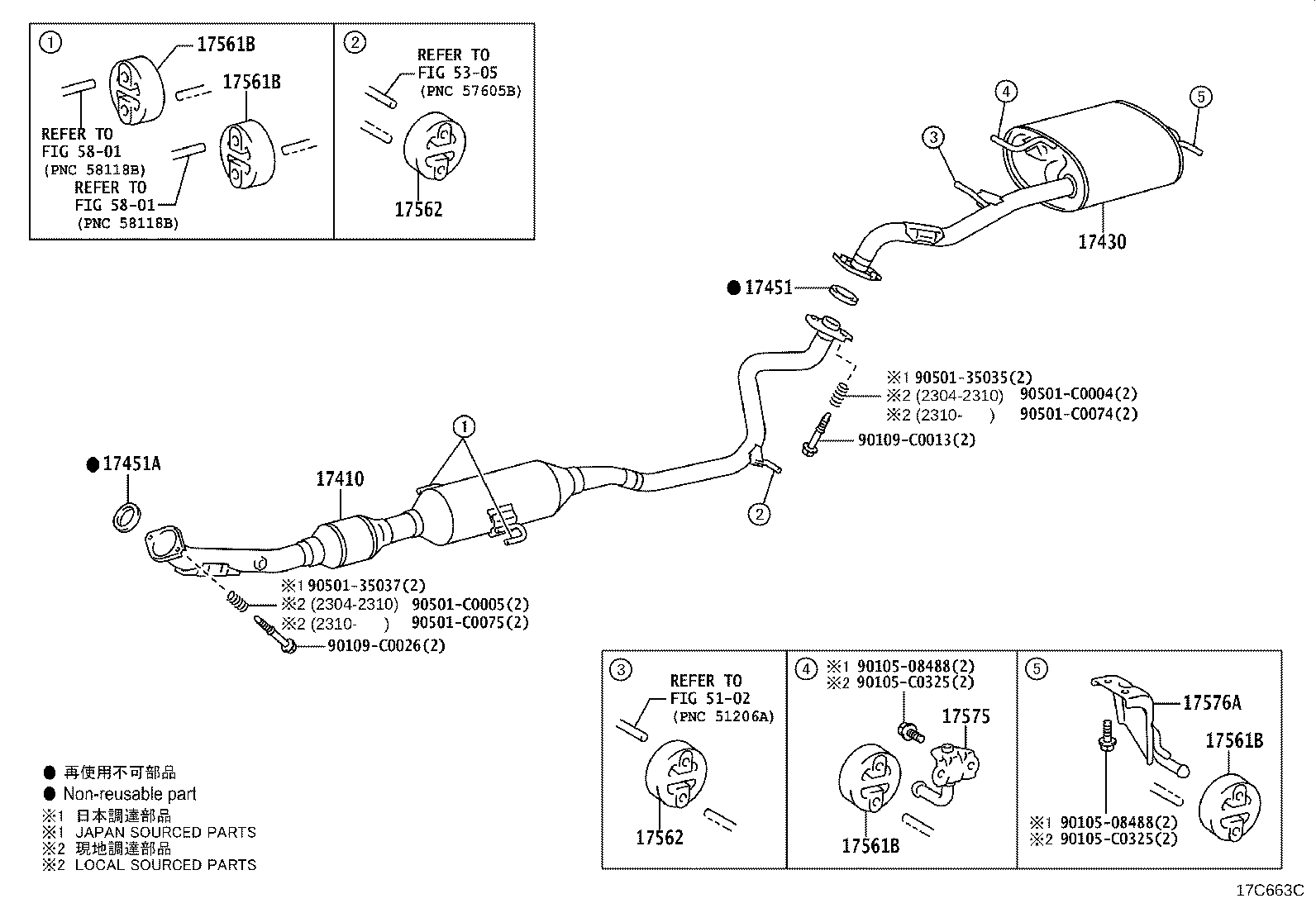

Figure 17A746E 17A746E 2019-06 → — Figure 17A747E 17A747E 2019-06 → — Figure 17B261C 17B261C 2021-01 → 2023-03 Figure 17C663C 17C663C 2023-04 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17561B Support, Exhaust Pipe, NO.1
17562 Support, Exhaust Pipe, NO.2
17575 Bracket, Exhaust Pipe Support, NO.5
17576A Bracket, Exhaust Pipe Support, NO.6
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
