Toyota Levin/Hybrid

2019-06 → present · chassis MZEA1#,NRE210,ZWE21# · catalogue 168320 · General

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

25 part groups · 6 illustrations

Illustrations

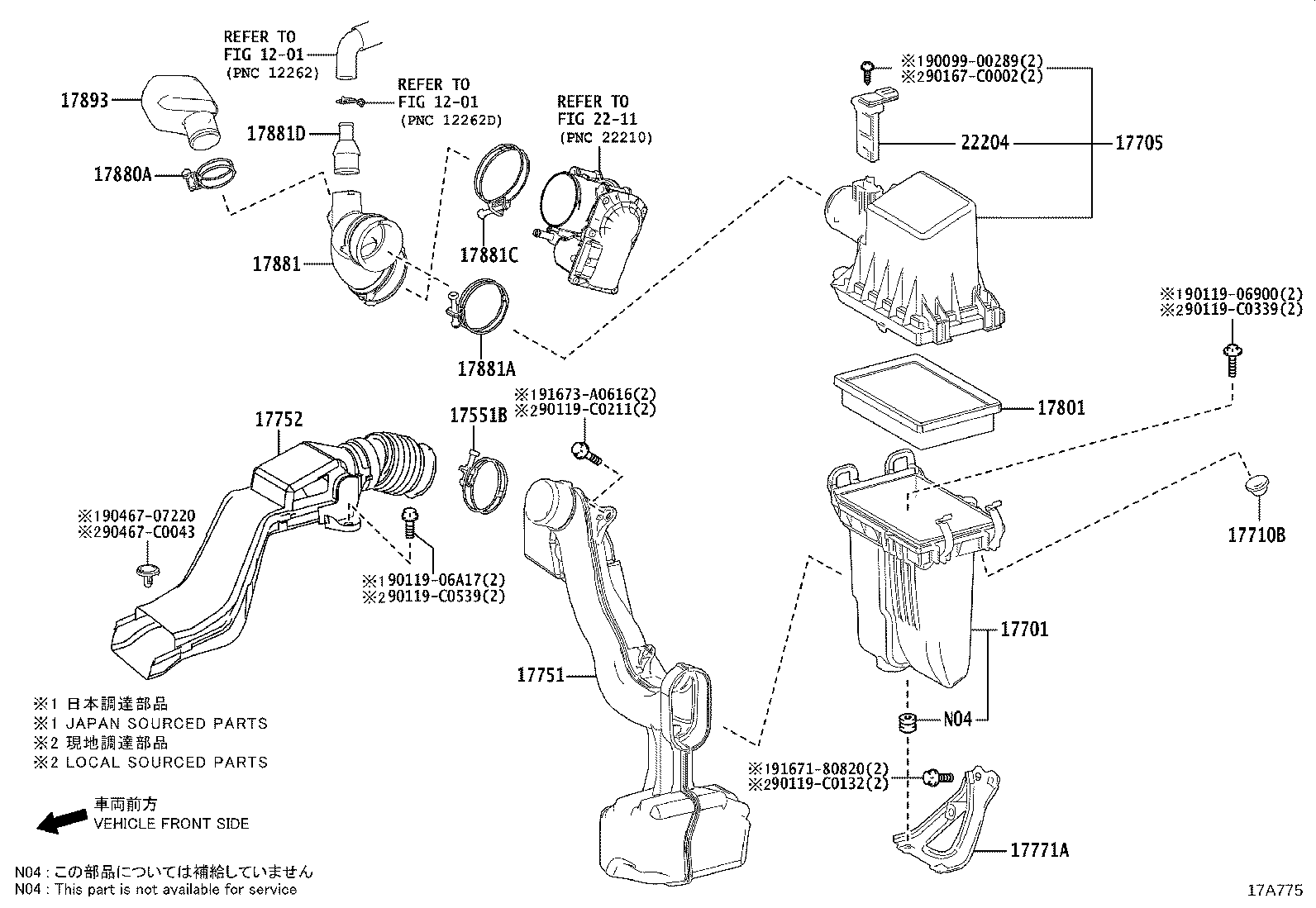

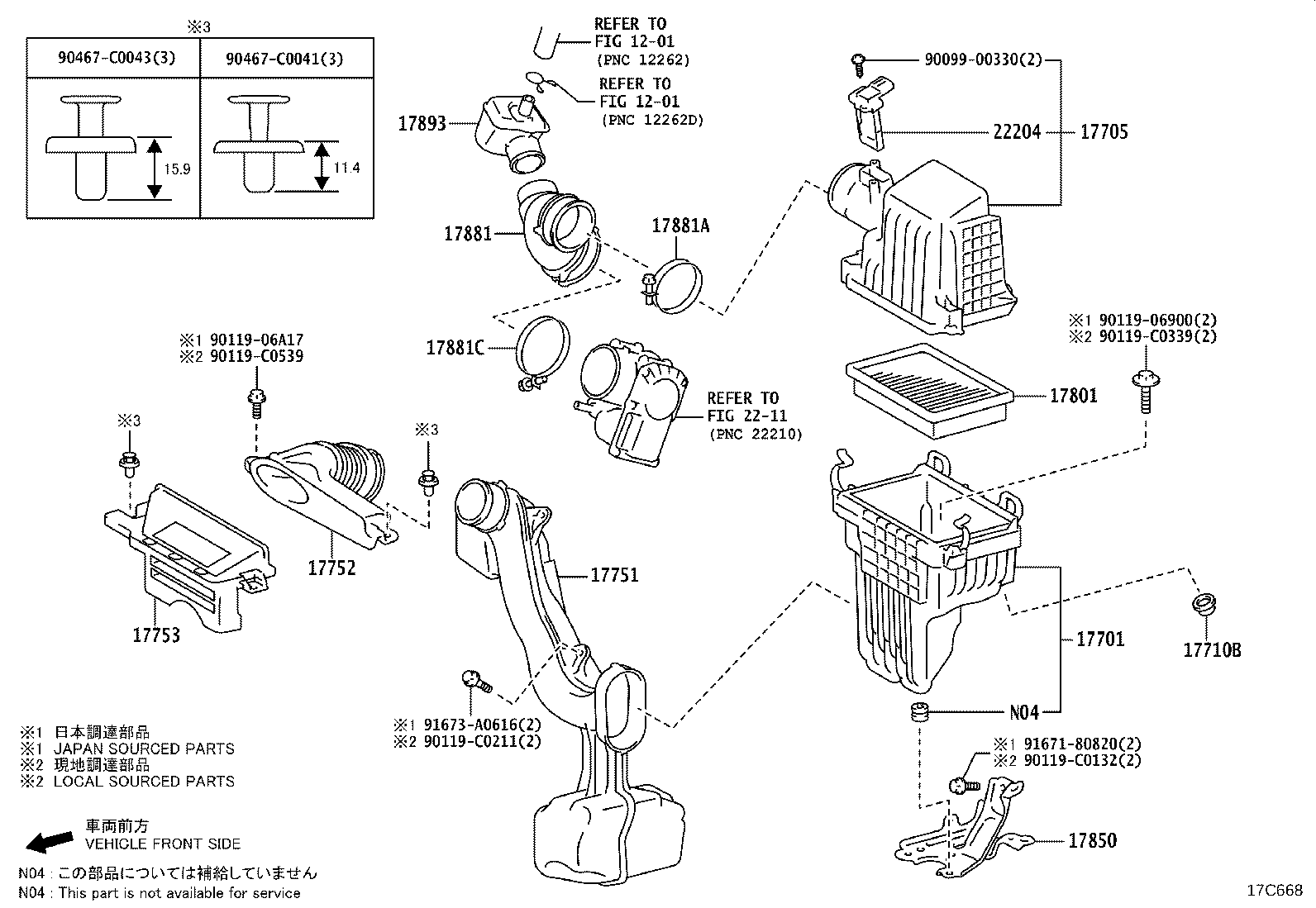

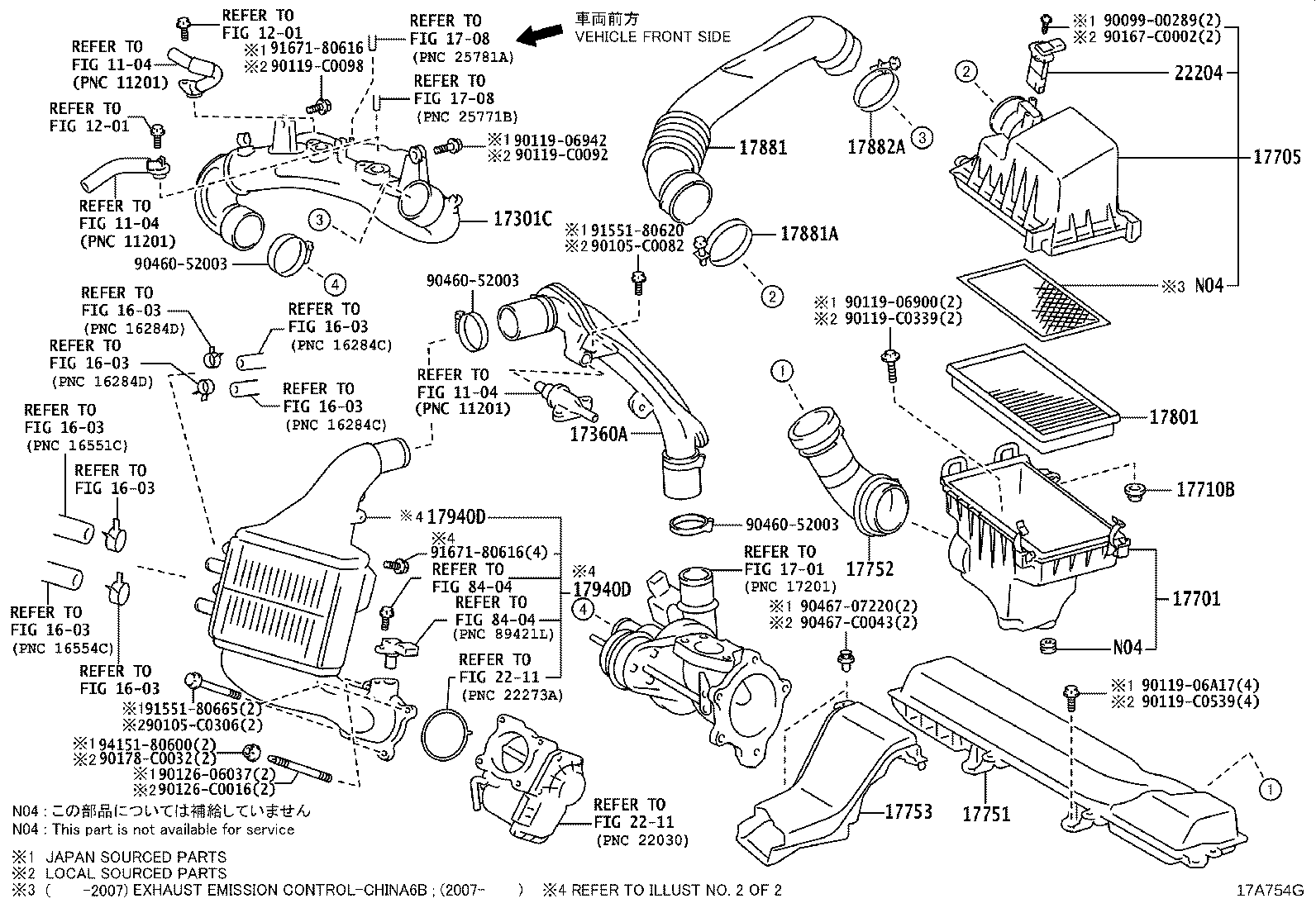

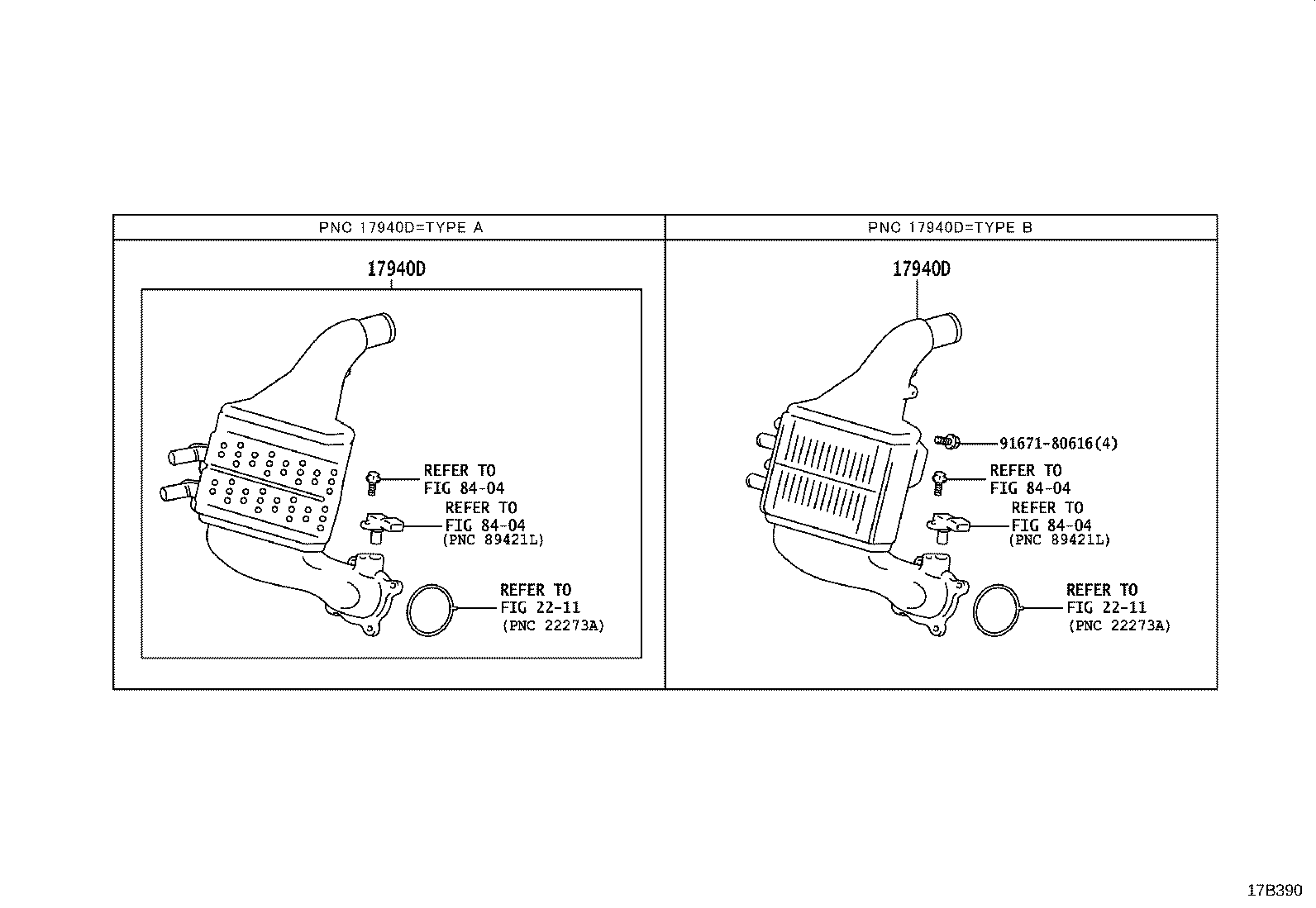

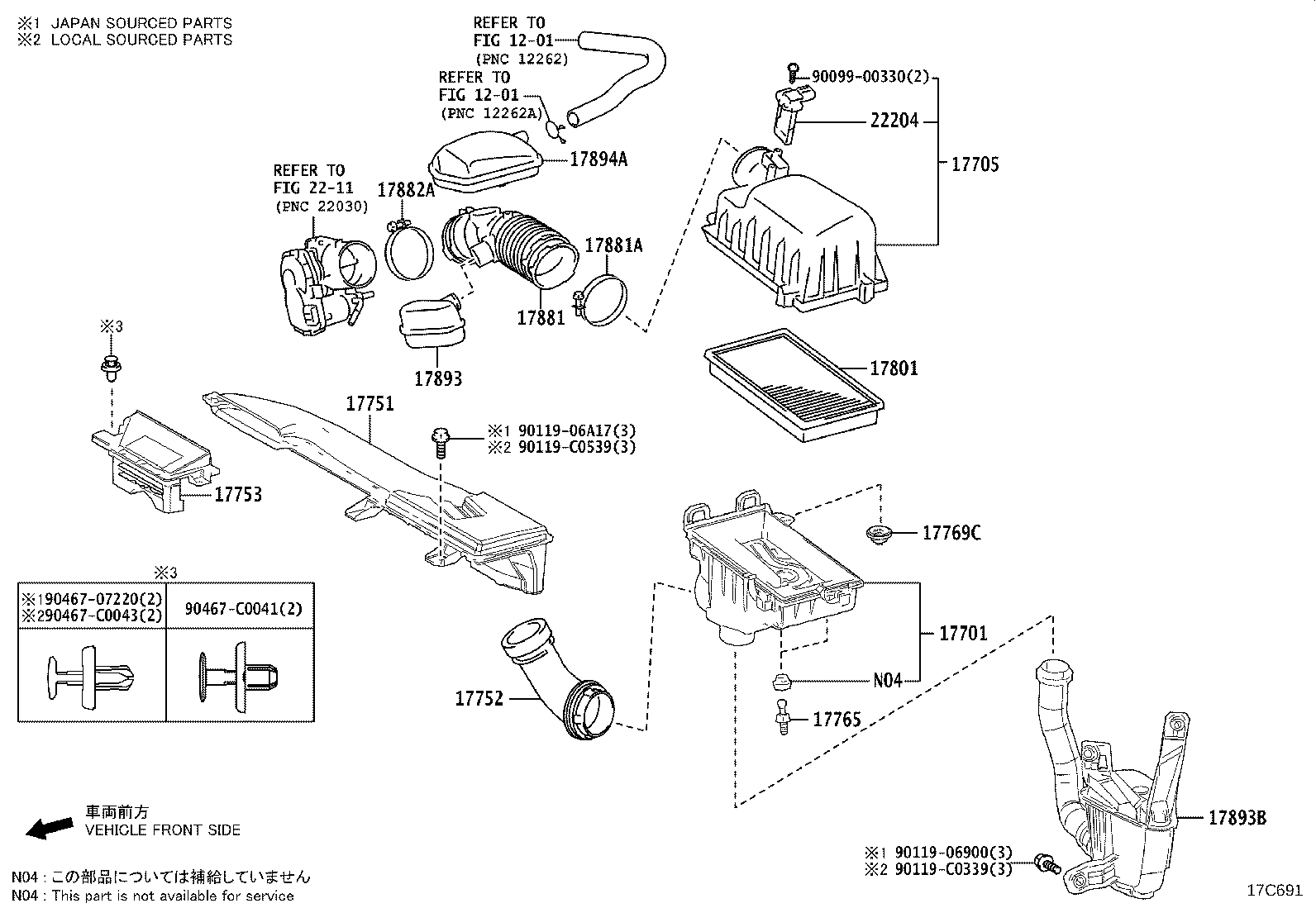

Figure 17B249A 17B249A 2021-01 → — Figure 17C691 17C691 2023-04 → — Figure 17A754G 17A754G 2019-06 → — Figure 17B930 17B930 2019-06 → — Figure 17A775 17A775 2019-06 → — Figure 17C668 17C668 2023-04 → —

Part groups

PNCDescription
17301C Duct Sub-assy, Air Inlet, NO.1
17360A Tube Assy, Air
17551B Clamp(FOR AIR CLEANER INLET, NO.1)
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17710B Grommet
17751 Inlet, Air Cleaner, NO.1
17752 Inlet, Air Cleaner, NO.2
17753 Inlet, Air Cleaner, NO.3
17765 Stay, Air Cleaner, NO.1
17769C Support, Air Cleaner, NO.1
17771A Bracket, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17850 Bracket Assy, Air Cleaner Support
17880A Clamp, Hose
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17881C Clamp(FOR AIR CLEANER HOSE, NO.1)
17881D Tube, Union(FOG AIR CLEANER HOSE)
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17893 Resonator, Intake Air
17893B Resonator, Intake Air, NO.2
17894A Resonator, Intake Air, NO.2
17940D Intercooler Assy
22204 Meter Sub-assy, Intake Air Flow
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
