Toyota Levin/Hybrid

2019-06 → present · chassis MZEA1#,NRE210,ZWE21# · catalogue 168320 · General

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

25 part groups · 5 illustrations

Illustrations

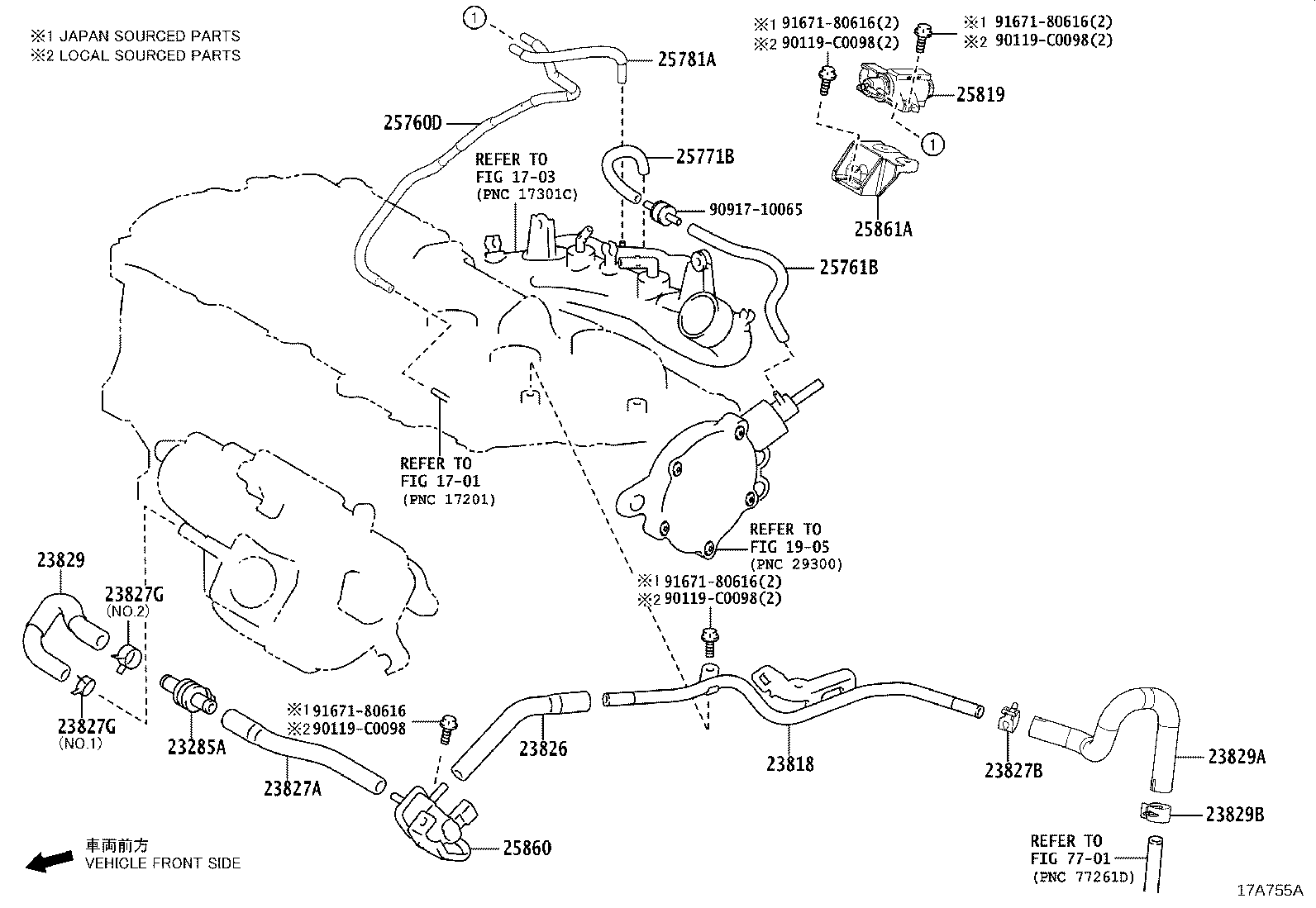

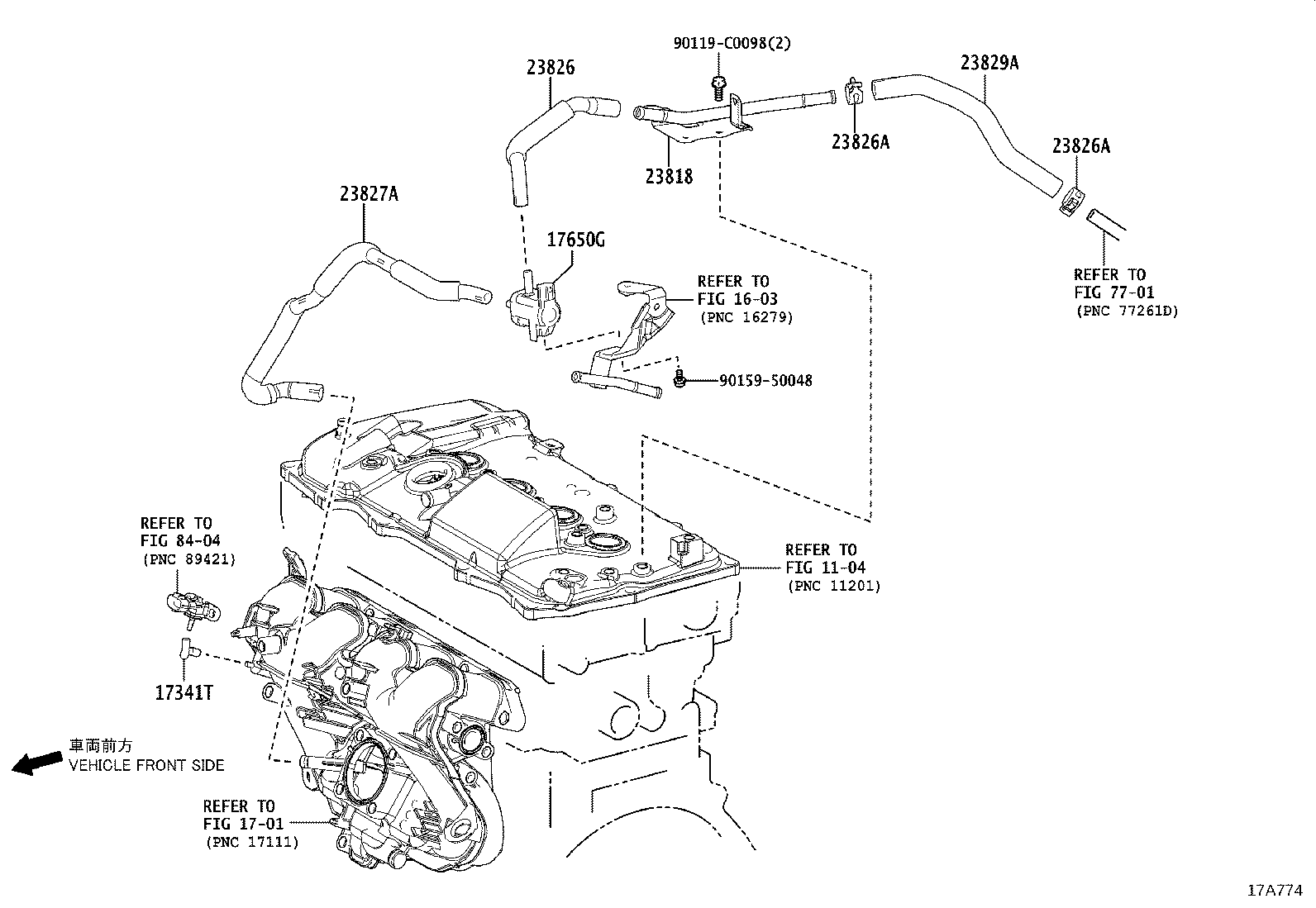

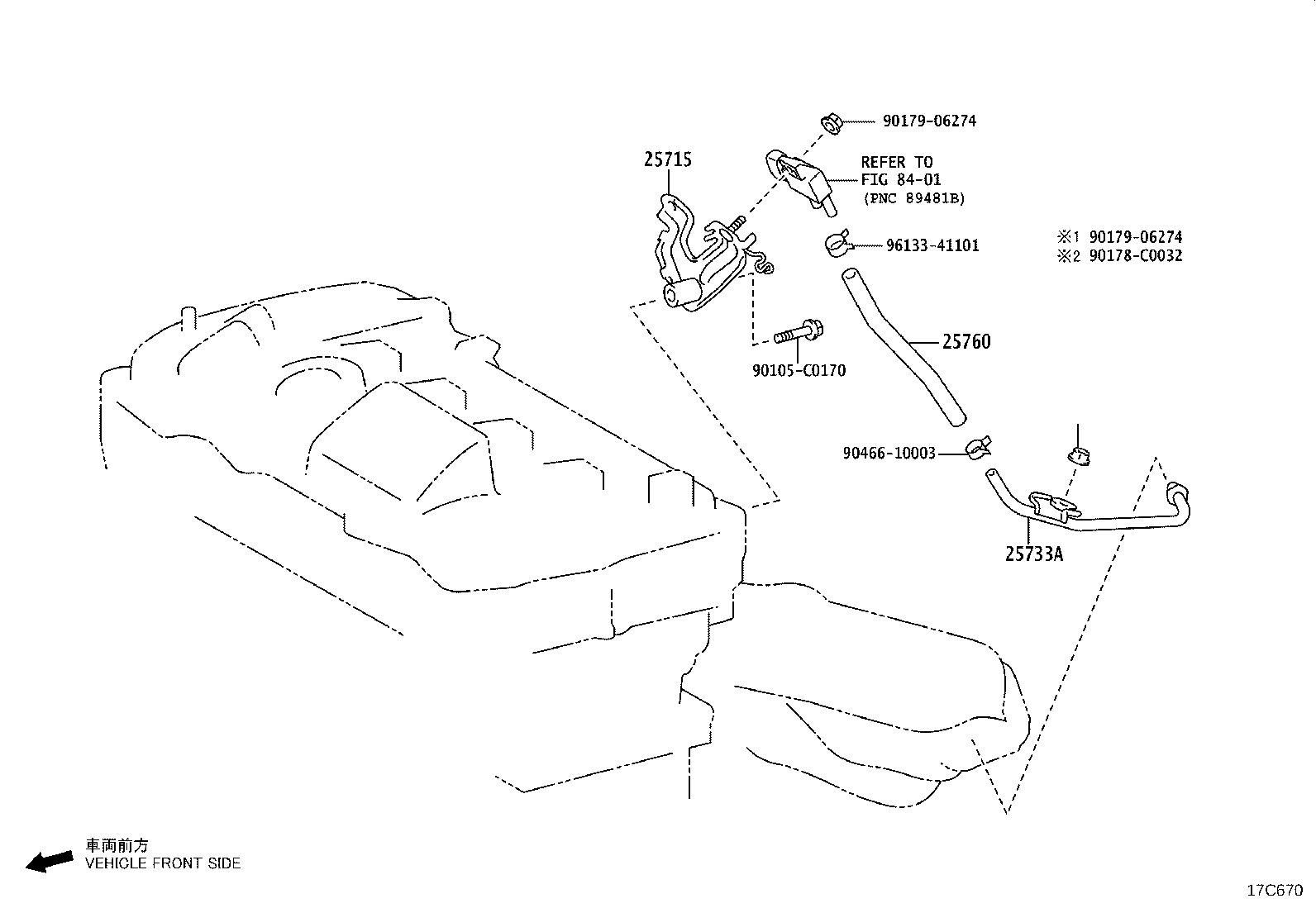

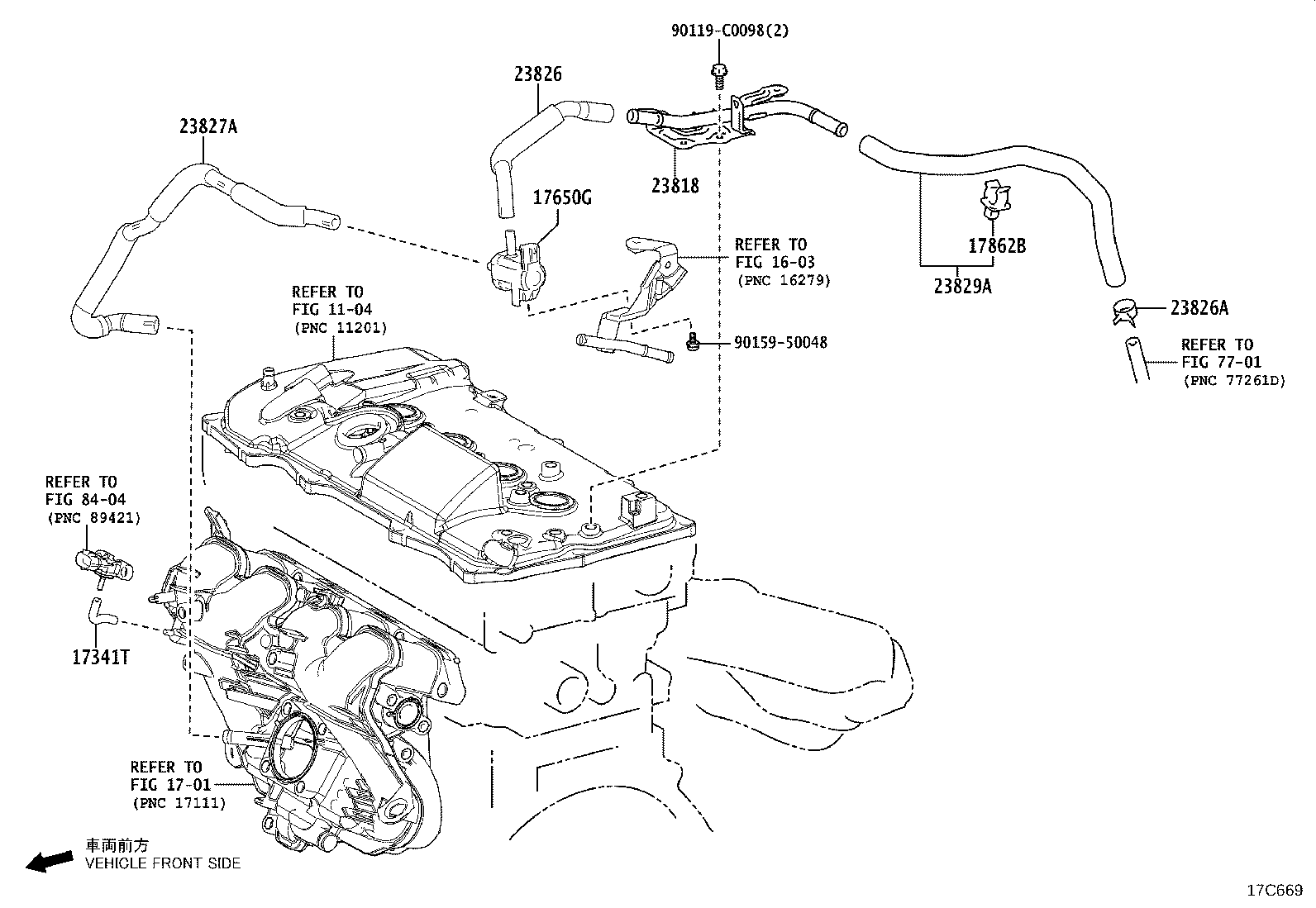

Figure 17B253B 17B253B 2021-01 → — Figure 17A755A 17A755A 2019-06 → — Figure 17A774 17A774 2019-06 → — Figure 17C669 17C669 2023-04 → — Figure 17C670 17C670 2023-04 → —

Part groups

PNCDescription
17341T Hose, Air, NO.1
17650G Valve, Duty Vacuum Switching
17862B Clamp, Hose
23285A Valve, Check, NO.1
23818 Pipe, Fuel Vapor Feed
23820 Hose Assy, Fuel Vapor Feed
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827A Hose, Fuel Vapor Feed, NO.2
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
23827G Clip(FOR FUEL VAPOR FEED HOSE, NO.3)
23829 Hose, Fuel Vapor Feed, NO.3
23829A Hose, Fuel Vapor Feed
23829B Clip(FOR FUEL VAPOR FEED HOSE)
23830 Hose Assy, Fuel Vapor Feed, NO.2
25715 Bracket, Emission Control Valve
25733A Pipe, Vacuum, NO.1
25760 Hose Assy, Vacuum Transmitting
25760D Hose Assy, Vacuum Transmitting, NO.4
25761B Hose, Vaccum Transmitting, NO.1
25771B Hose, Vaccum Transmitting, NO.2
25781A Hose, Vacuum Transmitting, NO.3
25819 Valve Assy, Vacuum Regulating
25860 Valve Assy, Vacuum Switching, NO.1
25861A Bracket, Vacuum Switching Valve, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
