Factory parts data · Europe

Toyota Levin/Hybrid

2019-06 → present · chassis MZEA1#,NRE210,ZWE21# · catalogue 168320 · General

Supported model Data version 2023-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

3 part groups · 4 illustrations

Illustrations

Figure 195817A

195817A 2021-01 → —

Figure 195534A

195534A 2019-06 → —

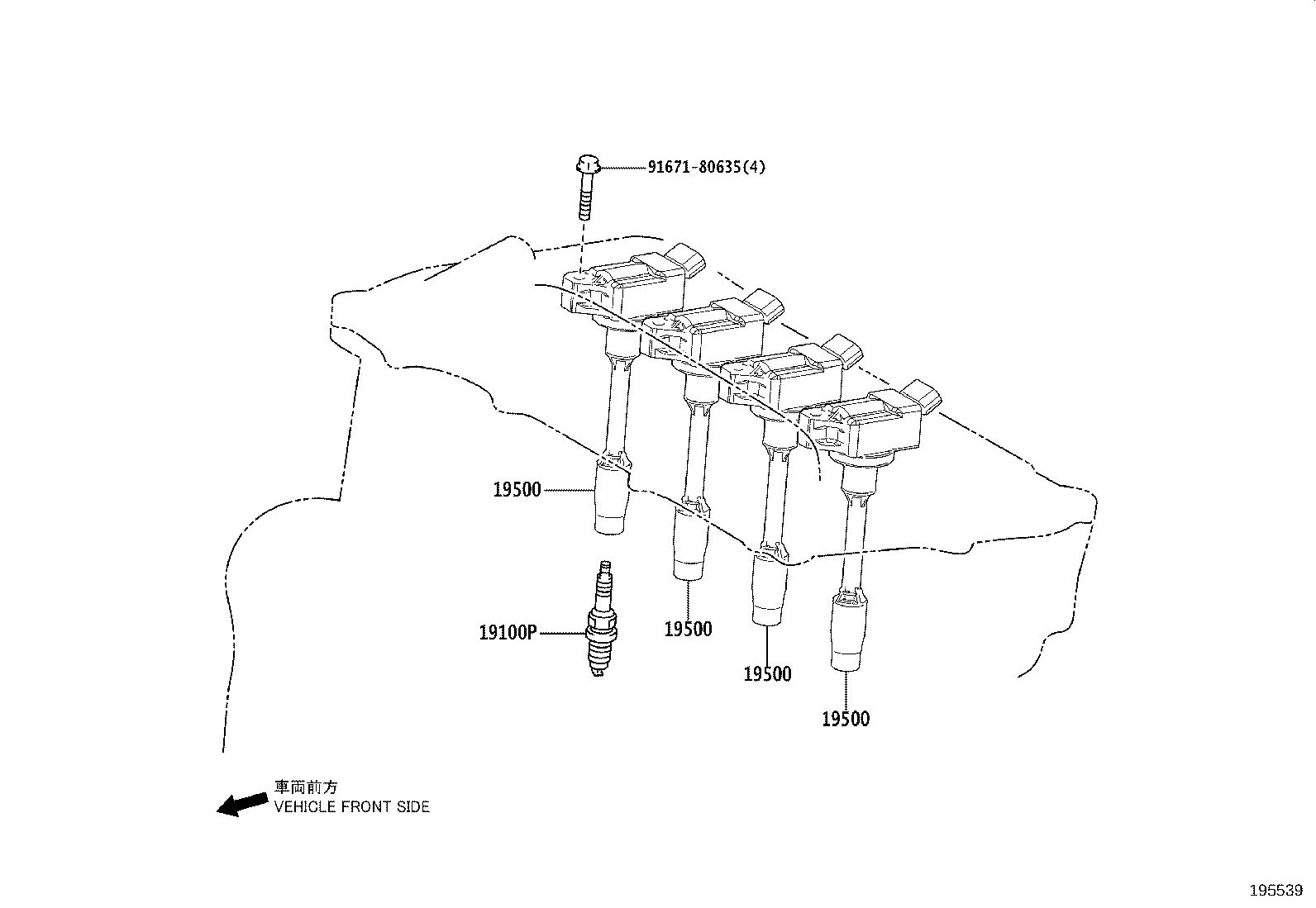

195539 2019-06 → —

196397 2023-04 → —

Part groups

PNC	Description
19100P	Plug, Spark
19500	Coil Assy, Ignition
19500D	Coil, Ignition, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
