Toyota Levin/Hybrid
2019-06 → present · chassis MZEA1#,NRE210,ZWE21# · catalogue 168320 · General
Supported model
Data version 2023-03

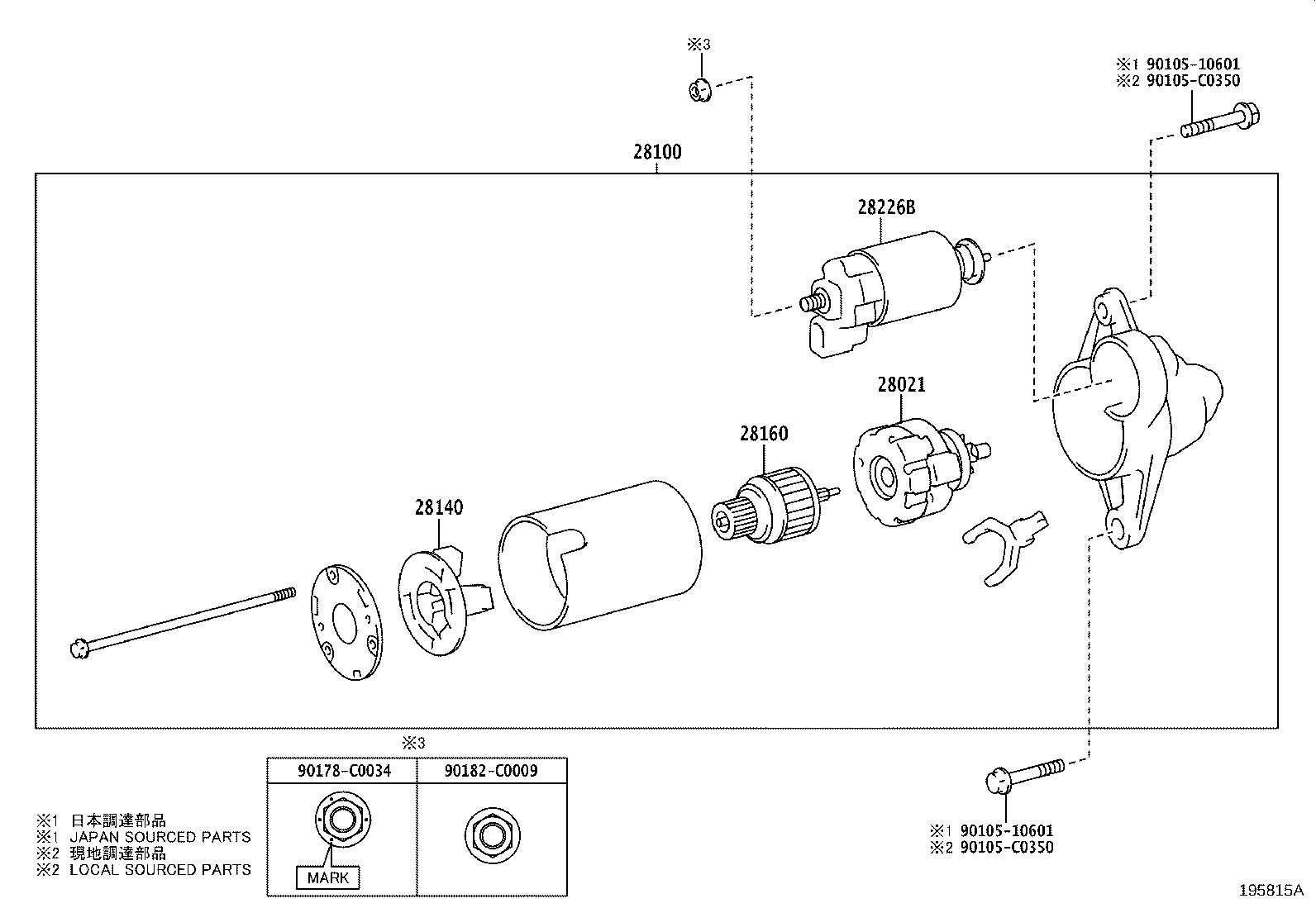

Starter
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 28021 | Clutch Sub-assy, Starter Center Bearing |
| 28100 | Starter Assy |
| 28120 | Yoke Assy, Starter |
| 28140 | Holder Assy, Starter Brush |
| 28160 | Armature Assy, Starter |
| 28192 | Cover, Starter |
| 28226B | Starter Kit, Repair Service |
| 28249 | Relay, Starter Inrush Current Reduction |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
