Toyota Levin/Hybrid

2019-06 → present · chassis MZEA1#,NRE210,ZWE21# · catalogue 168320 · General

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Pump

8 part groups · 3 illustrations

Illustrations

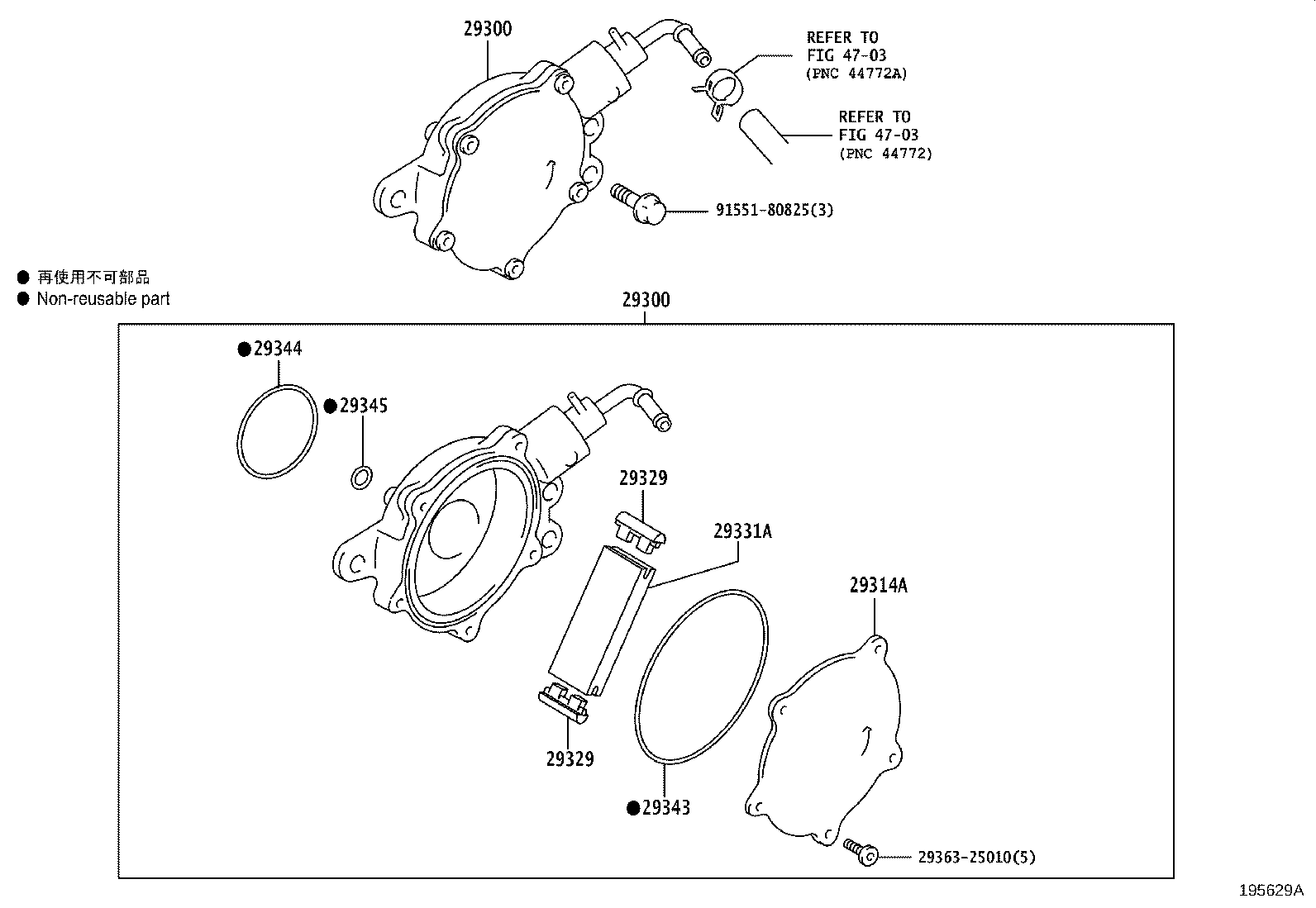

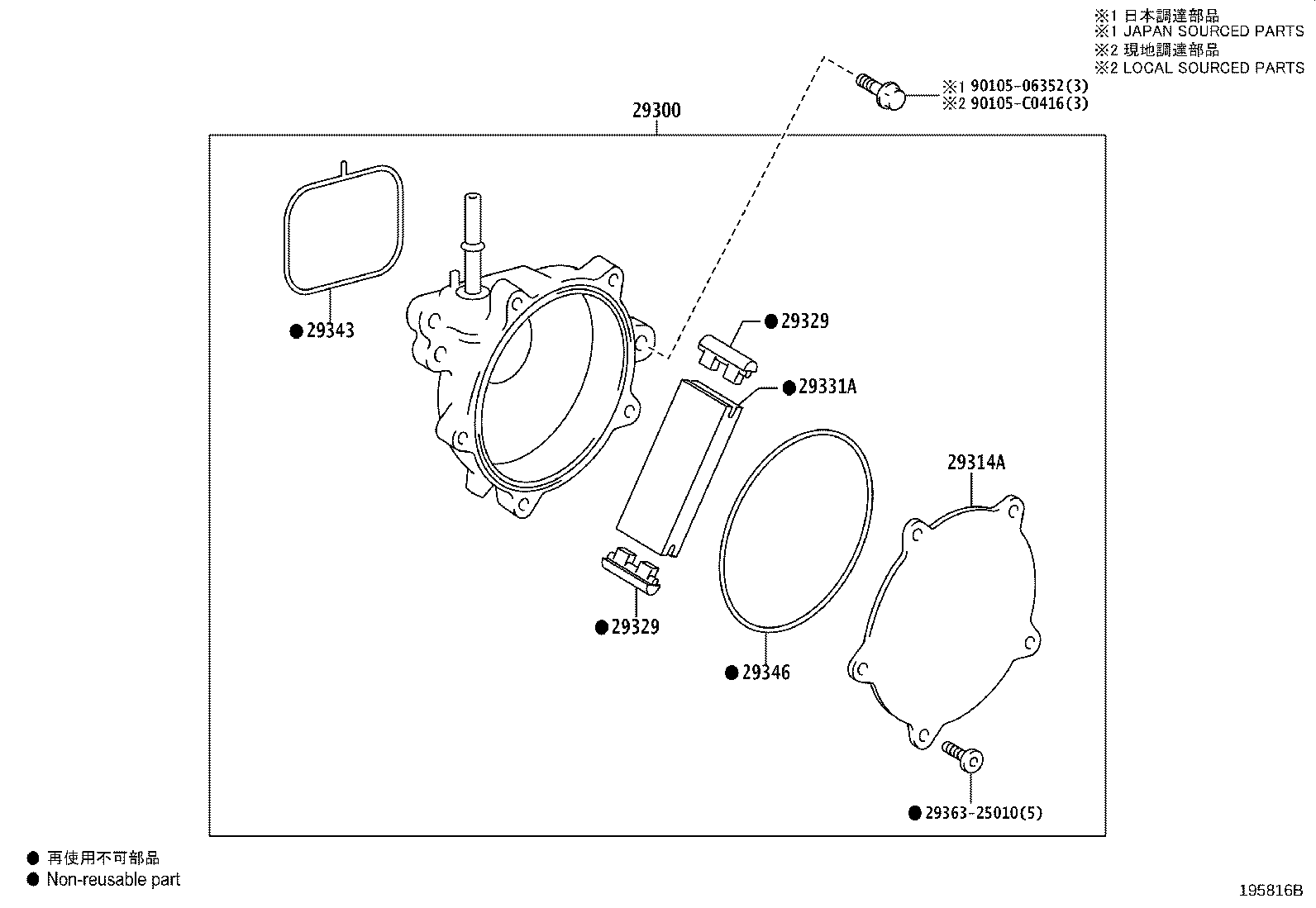

Figure 195550B 195550B 2019-06 → — Figure 195629A 195629A 2020-07 → — Figure 195816B 195816B 2020-07 → —

Part groups

PNCDescription
29300 Pump Assy, Vacuum
29314A Cover, End
29329 Cap, Vacuum Pump Vane
29331A Vane, Vacuum Pump
29343 Ring, O Vacuum Pump, NO.1
29344 Ring, O Vacuum Pump, NO.2
29345 Ring, O Vacuum Pump, NO.3
29346 Ring, O Vacuum Pump Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
