Toyota Levin/Hybrid

2019-06 → present · chassis MZEA1#,NRE210,ZWE21# · catalogue 168320 · General

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Axle Housing & Differential

15 part groups · 2 illustrations

Illustrations

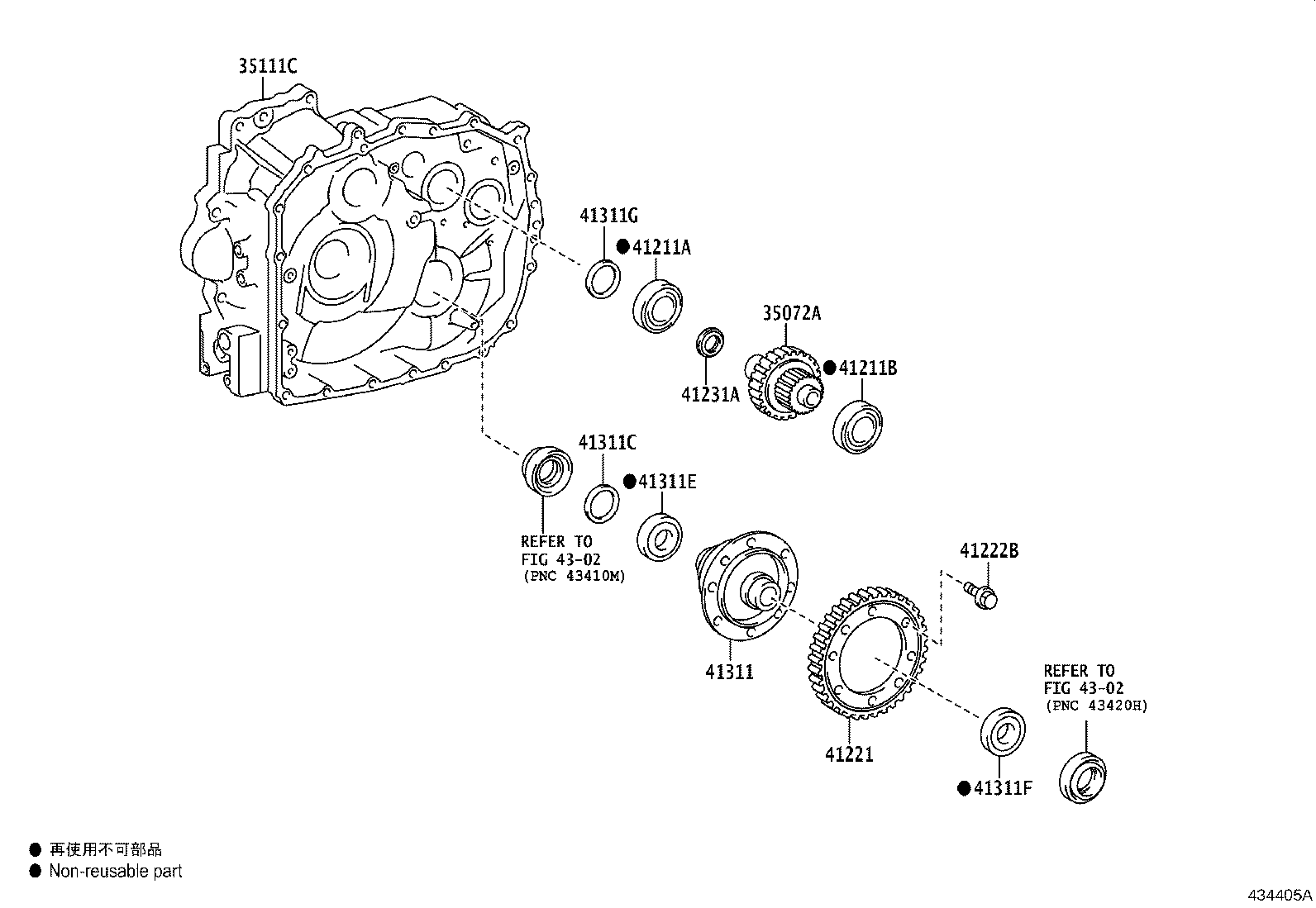

Figure 434152C 434152C 2019-06 → — Figure 434405A 434405A 2021-01 → —

Part groups

PNCDescription
35072A Gear Assy, Counter Driven
35111C Housing, Transaxle
35759A Gear, Reduction Driven
41211A Bearing, Tapered Roller (FOR FRONT DRIVE PINION FRONT)
41211B Bearing, Tapered Roller (FOR FRONT DRIVE PINION REAR)
41221 Gear, Front Differential Ring
41222B Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET)
41231A Nut, Drive Pinion Lock
41302F Case Sub-assy, Front Differential
41311 Case, Front Differential
41311C Shim (FOR FRONT DIFFERENTIAL CASE REAR)
41311E Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
41311F Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
41311G Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT)
41311T Bearing, Cylindrical Roller(FOR SECONDARY SHEAVE SHAFT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
