Toyota Levin/Hybrid

2019-06 → present · chassis MZEA1#,NRE210,ZWE21# · catalogue 168320 · General

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Insulator

3 part groups · 6 illustrations

Illustrations

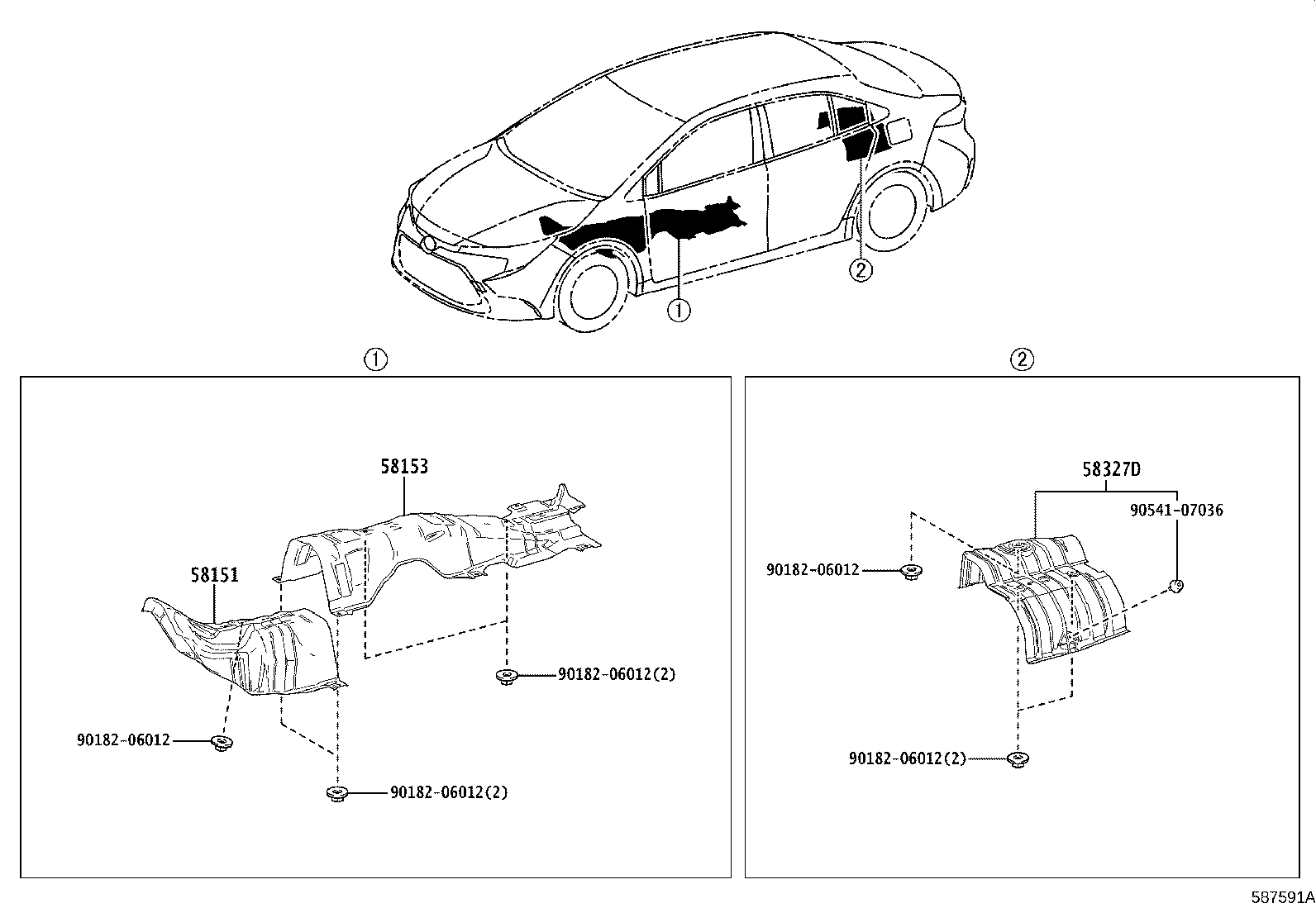

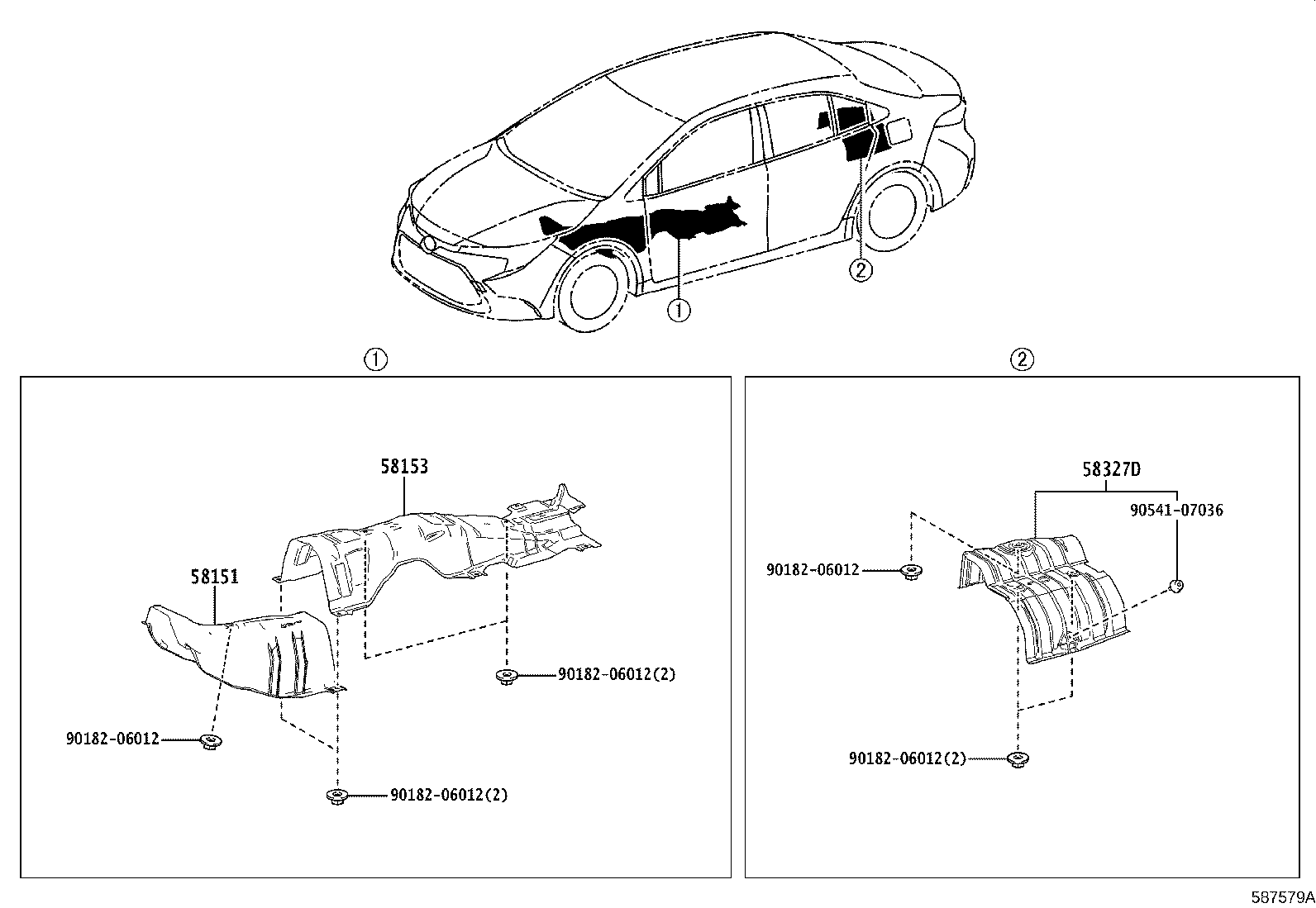

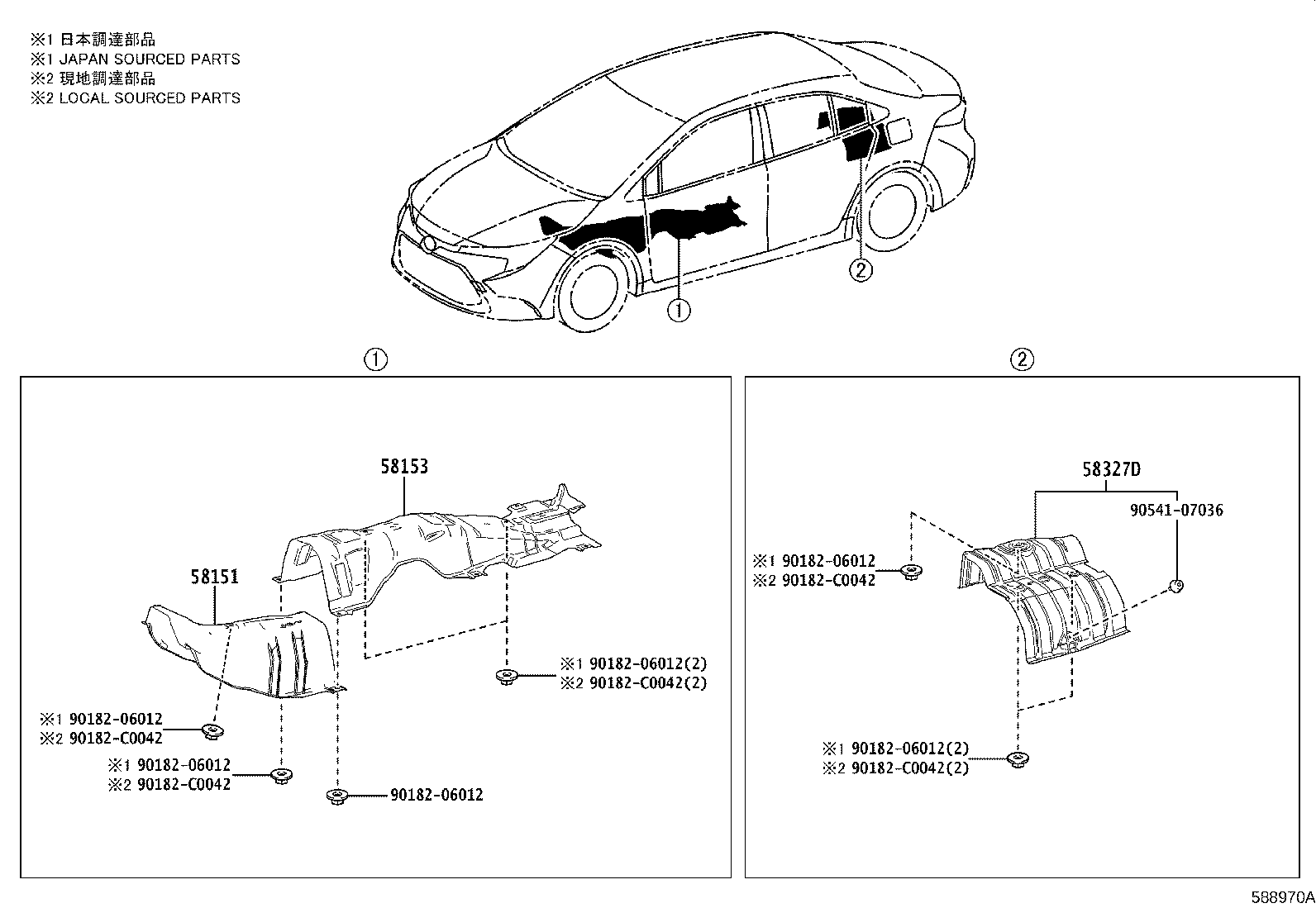

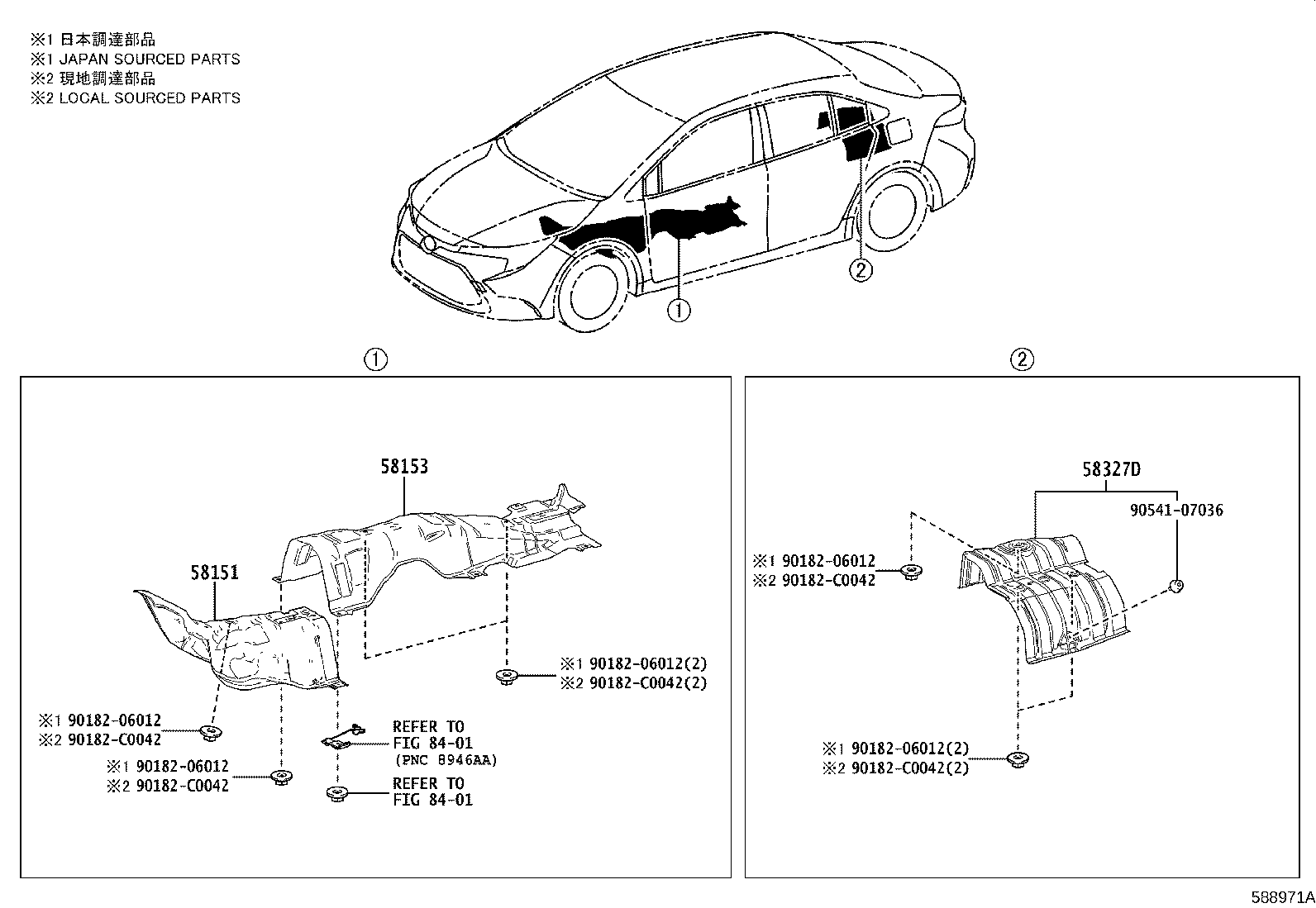

Figure 587086C 587086C 2019-06 → 2023-03 Figure 587086C 587086C 2019-06 → — Figure 587591A 587591A 2019-06 → 2023-03 Figure 587579A 587579A 2021-01 → 2023-03 Figure 588970A 588970A 2023-04 → — Figure 588971A 588971A 2023-04 → —

Part groups

PNCDescription
58151 Insulator, Front Floor Heat, NO.1
58153 Insulator, Front Floor Heat, NO.2
58327D Insulator, Main Muffler Heat, Upper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
