Factory parts data · Europe

Toyota Levin/Hybrid

2019-06 → present · chassis MZEA1#,NRE210,ZWE21# · catalogue 168320 · General

Supported model Data version 2023-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

10 part groups · 3 illustrations

Illustrations

Figure 644617B

644617B 2019-06 → —

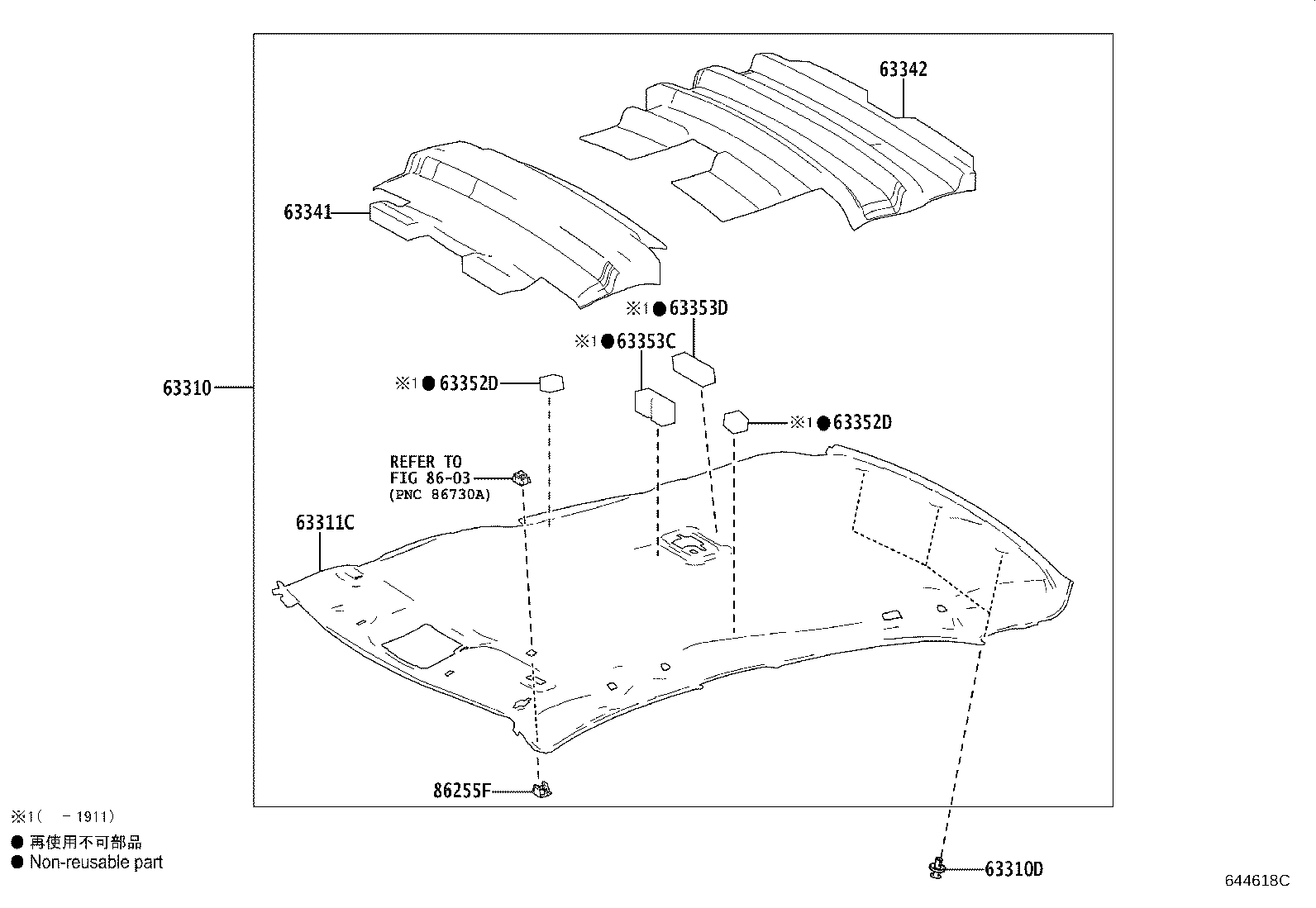

Figure 644618C

644618C 2019-06 → —

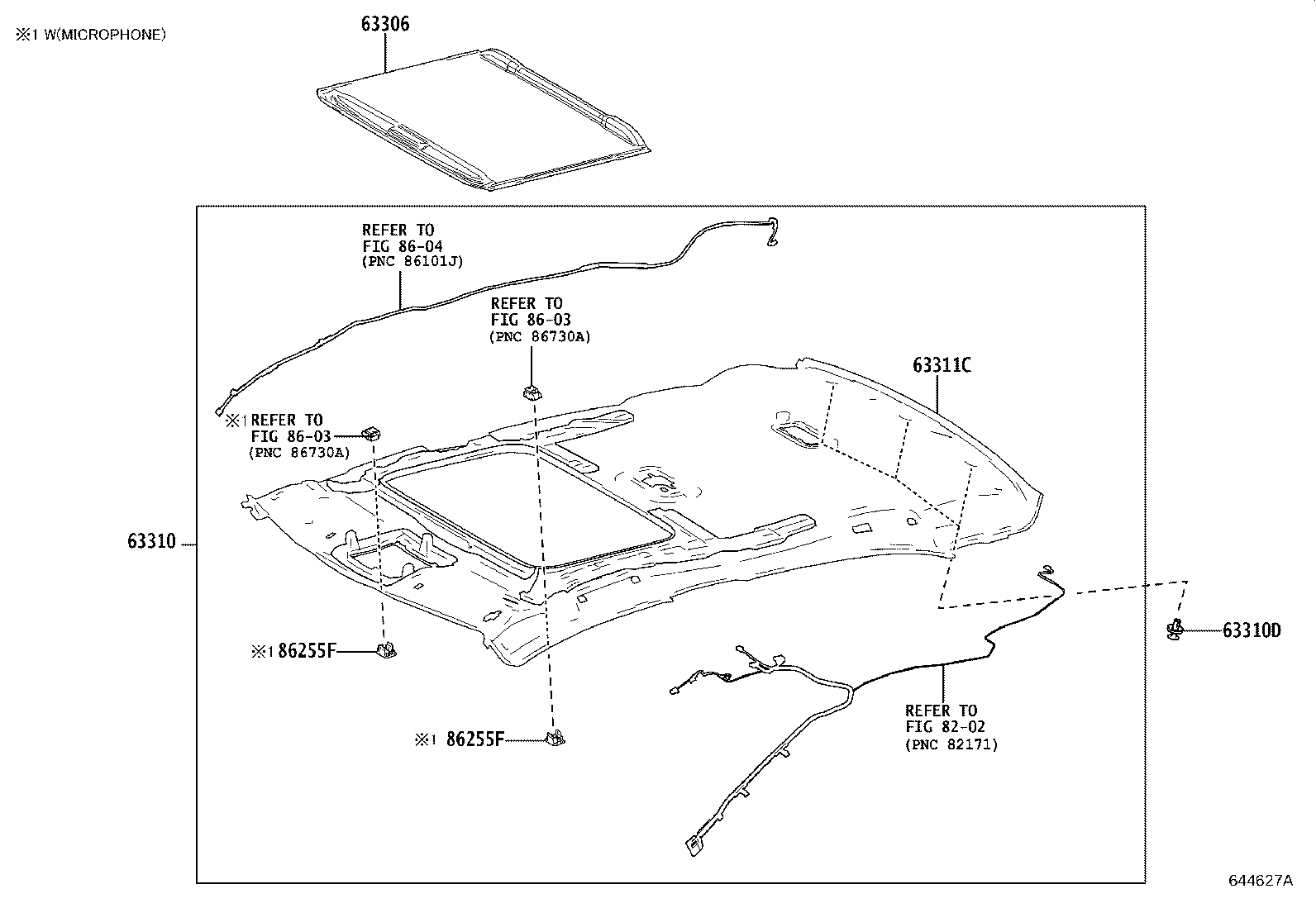

Figure 644627A

644627A 2019-06 → —

Part groups

PNC	Description
63306	Trim Sub-assy, Sunshade
63310	Headlining Assy, Roof
63310D	Clip, Roof Headlining
63311C	Headlining, Roof
63341	Pad, Roof Silencer, NO.1
63342	Pad, Roof Silencer, NO.2
63352D	Pad, Roof Headlining, NO.2
63353C	Pad, Roof Headlining, Center
63353D	Pad, Roof Headlining, Center
86255F	Case, Microphone

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
