Factory parts data · Europe

Toyota Levin/Hybrid

2019-06 → present · chassis MZEA1#,NRE210,ZWE21# · catalogue 168320 · General

Supported model Data version 2023-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

4 part groups · 3 illustrations

Illustrations

Figure 744980B

744980B 2019-06 → —

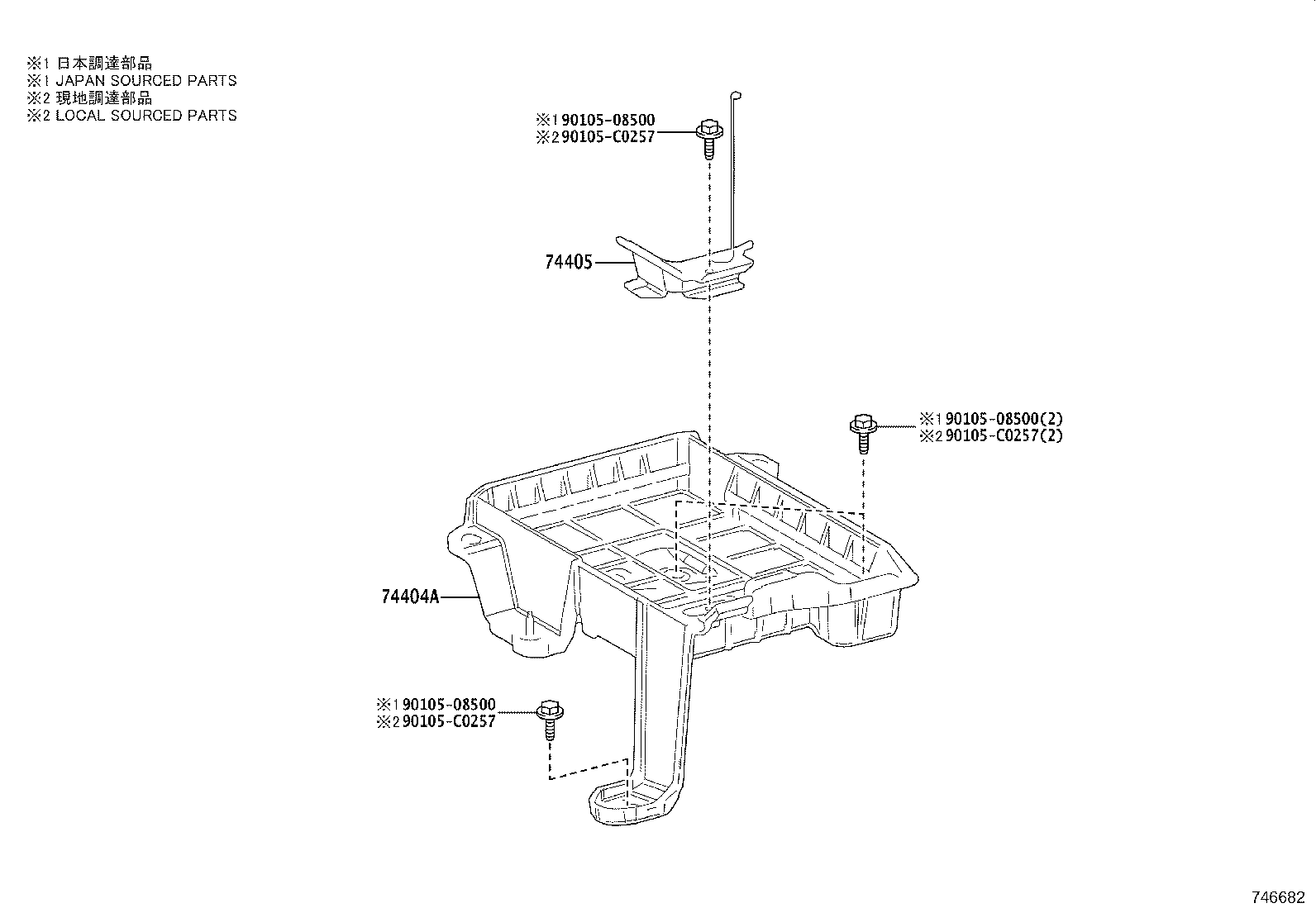

746682 2023-04 → —

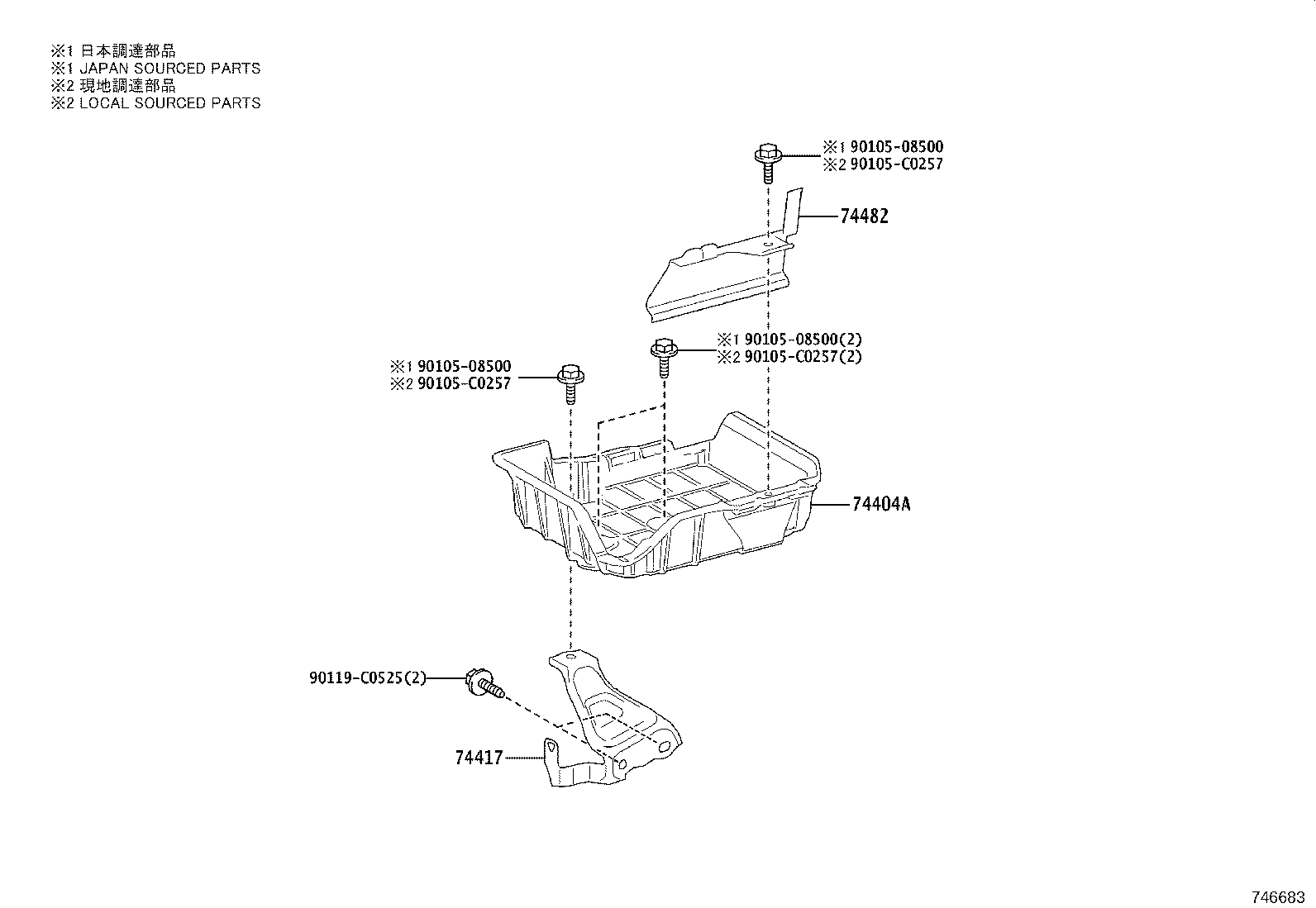

746683 2023-04 → —

Part groups

PNC	Description
74404A	Clamp Sub-assy, Battery
74405	Clamp Sub-assy, Battery, NO.2
74417	Bracket, Battery Carrier
74482	Clamp, Battery, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
