Toyota Levin/Hybrid

2019-06 → present · chassis MZEA1#,NRE210,ZWE21# · catalogue 168320 · General

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

127 part groups · 32 illustrations

Illustrations

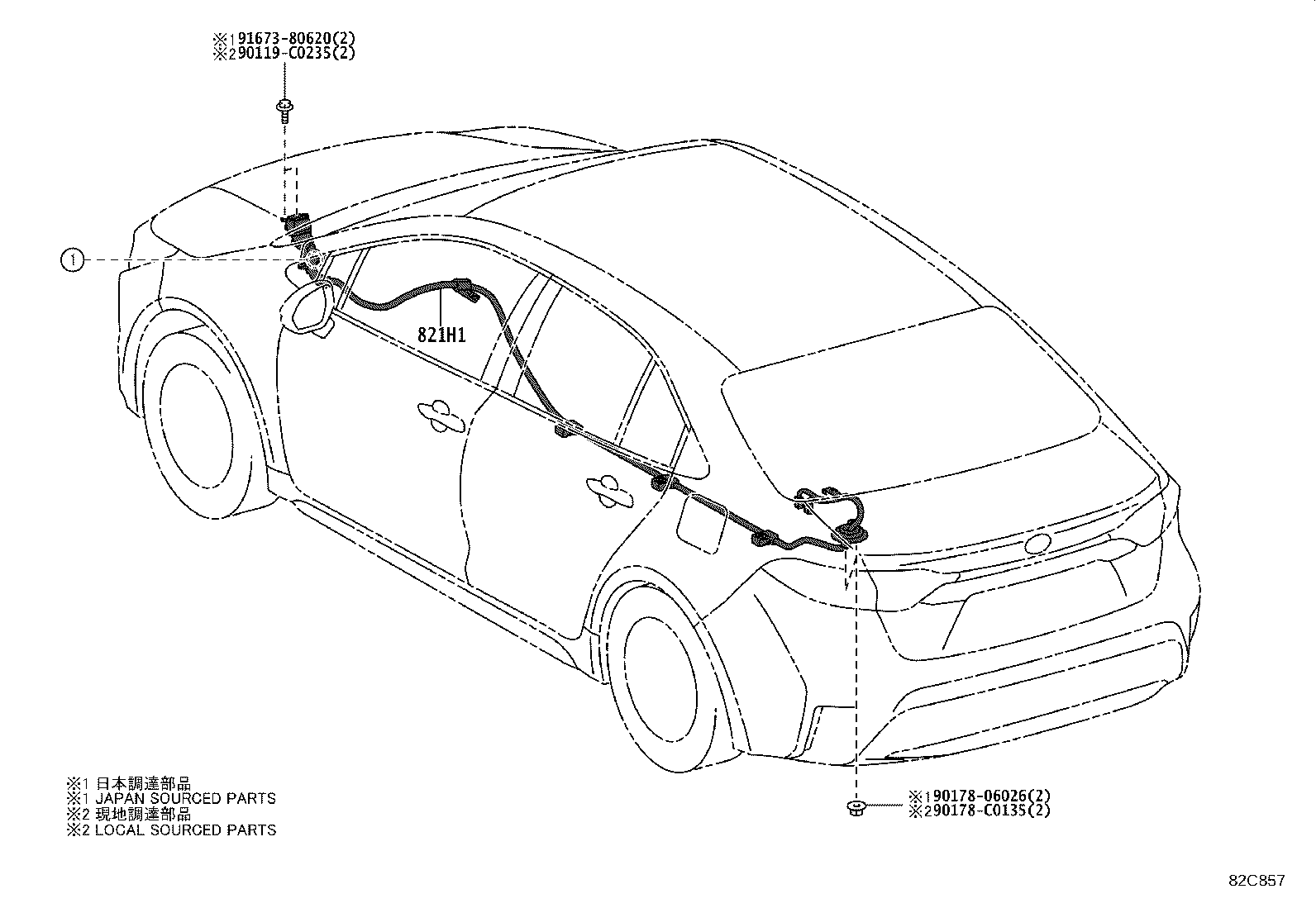

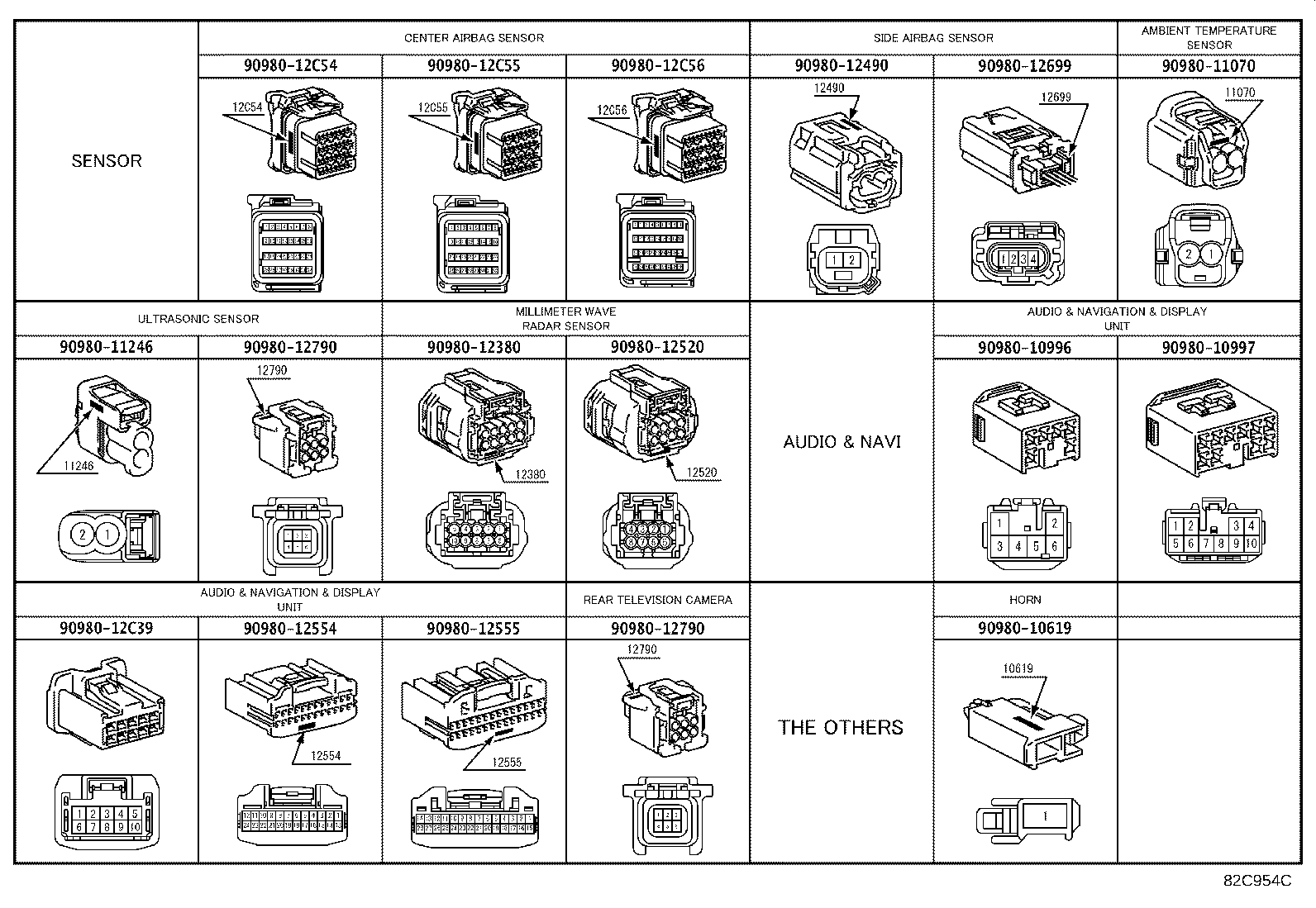

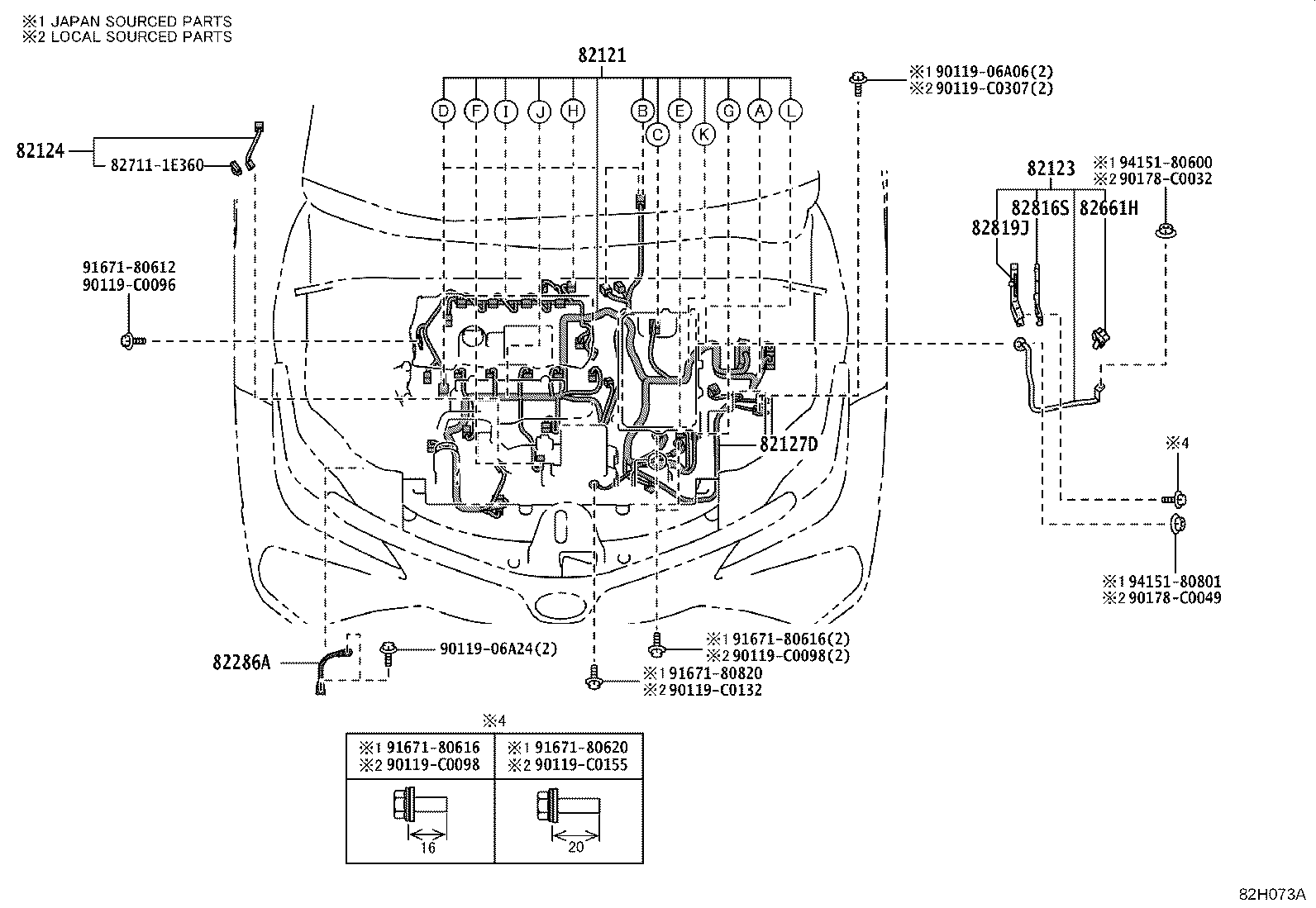

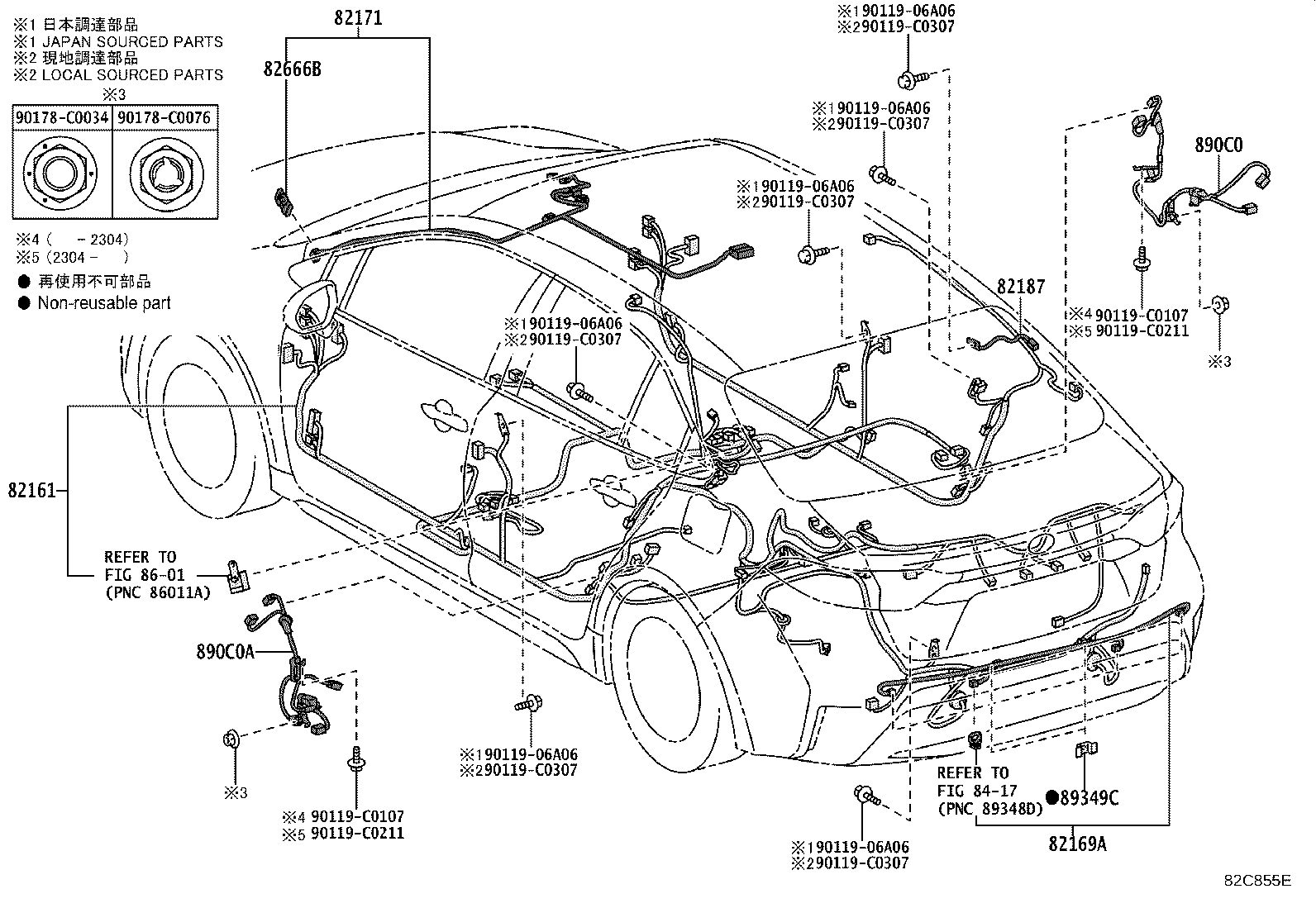

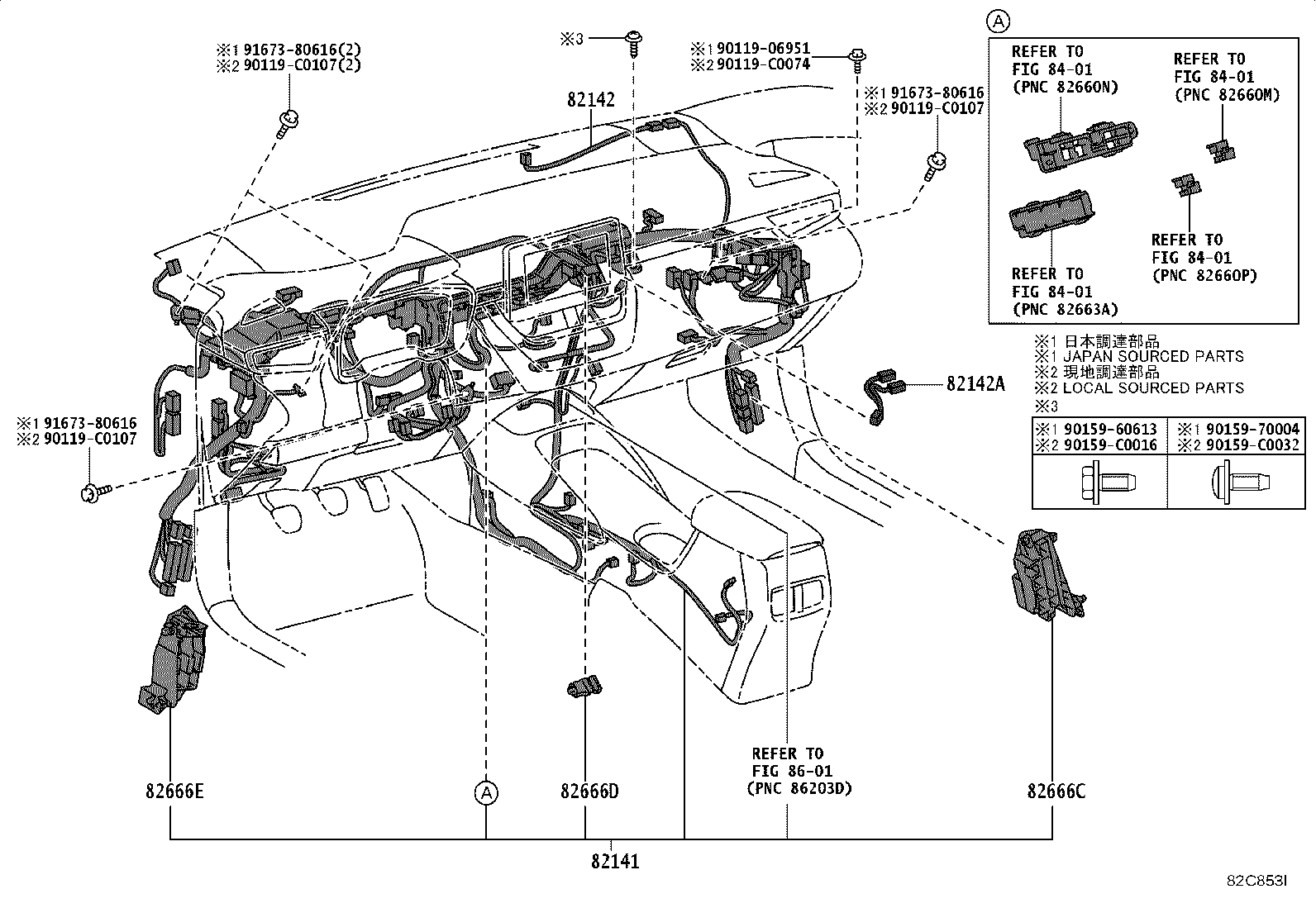

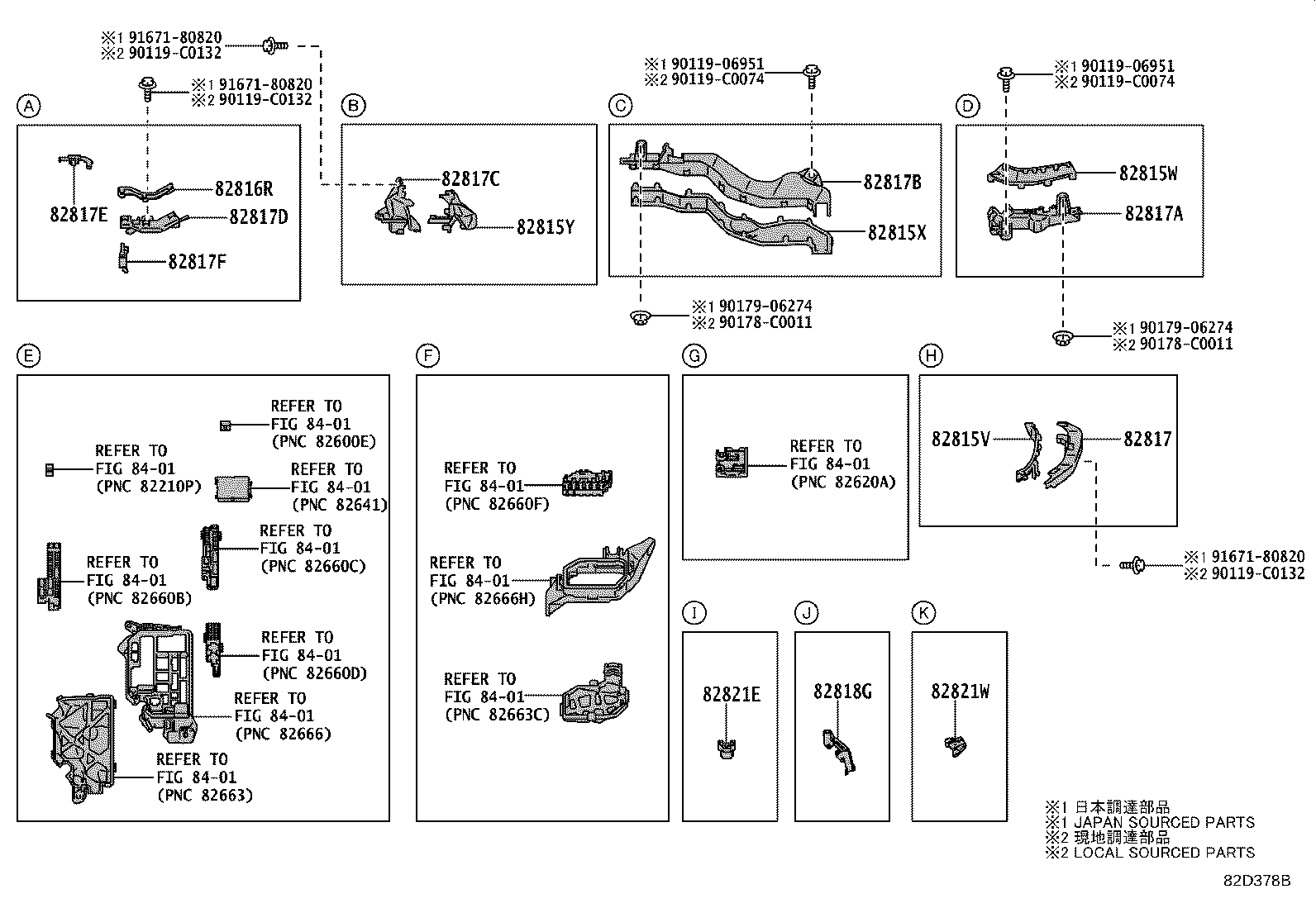

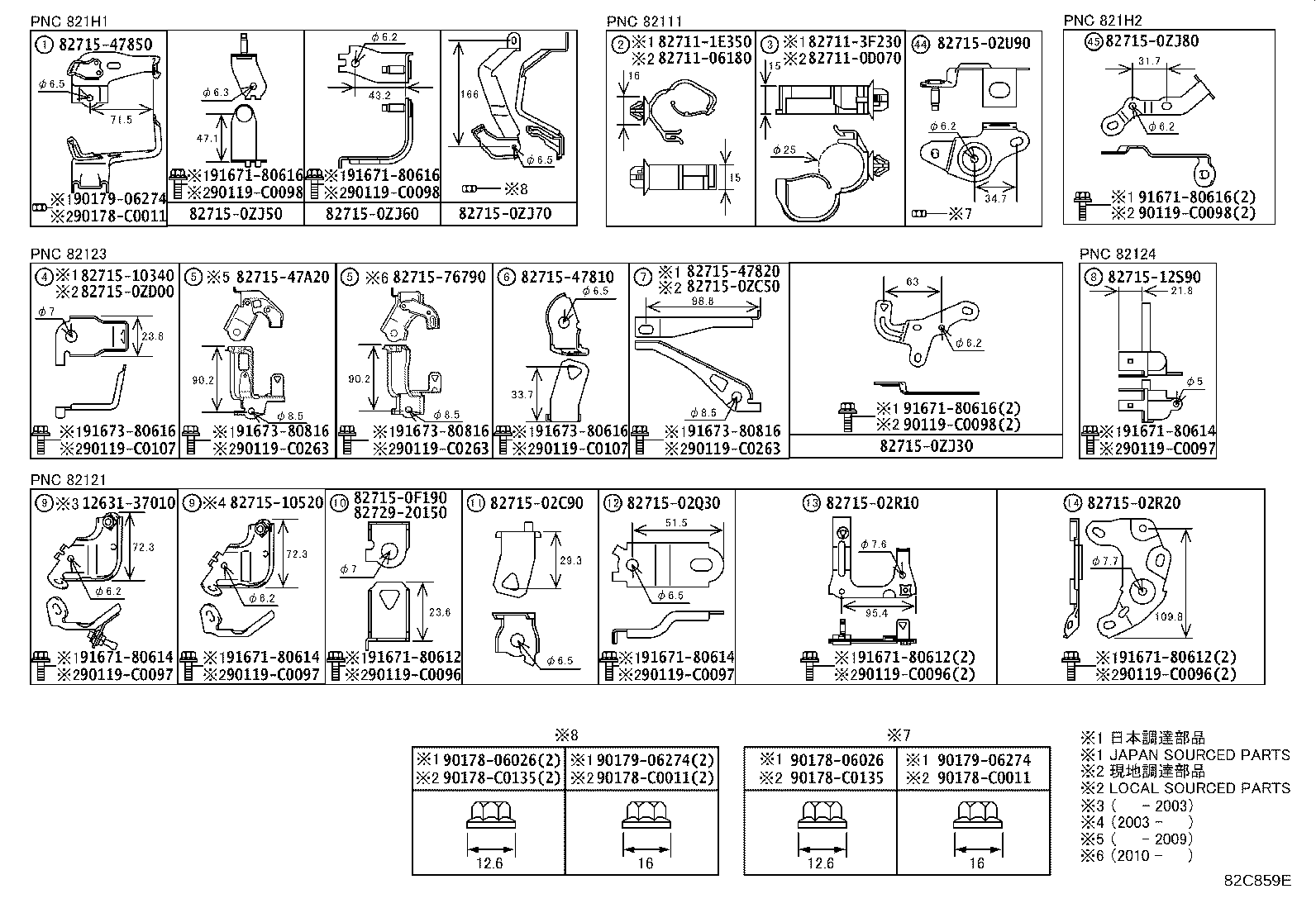

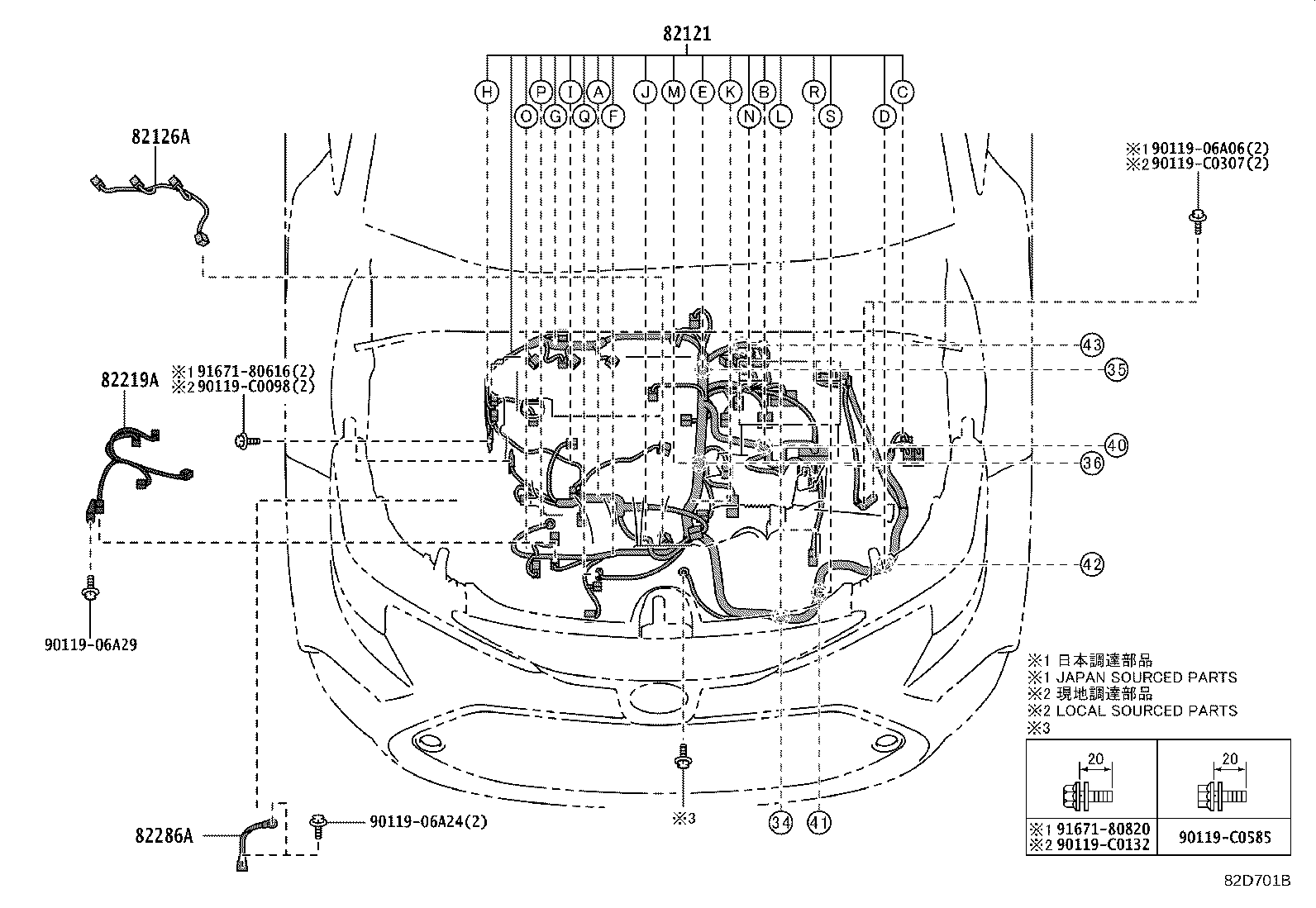

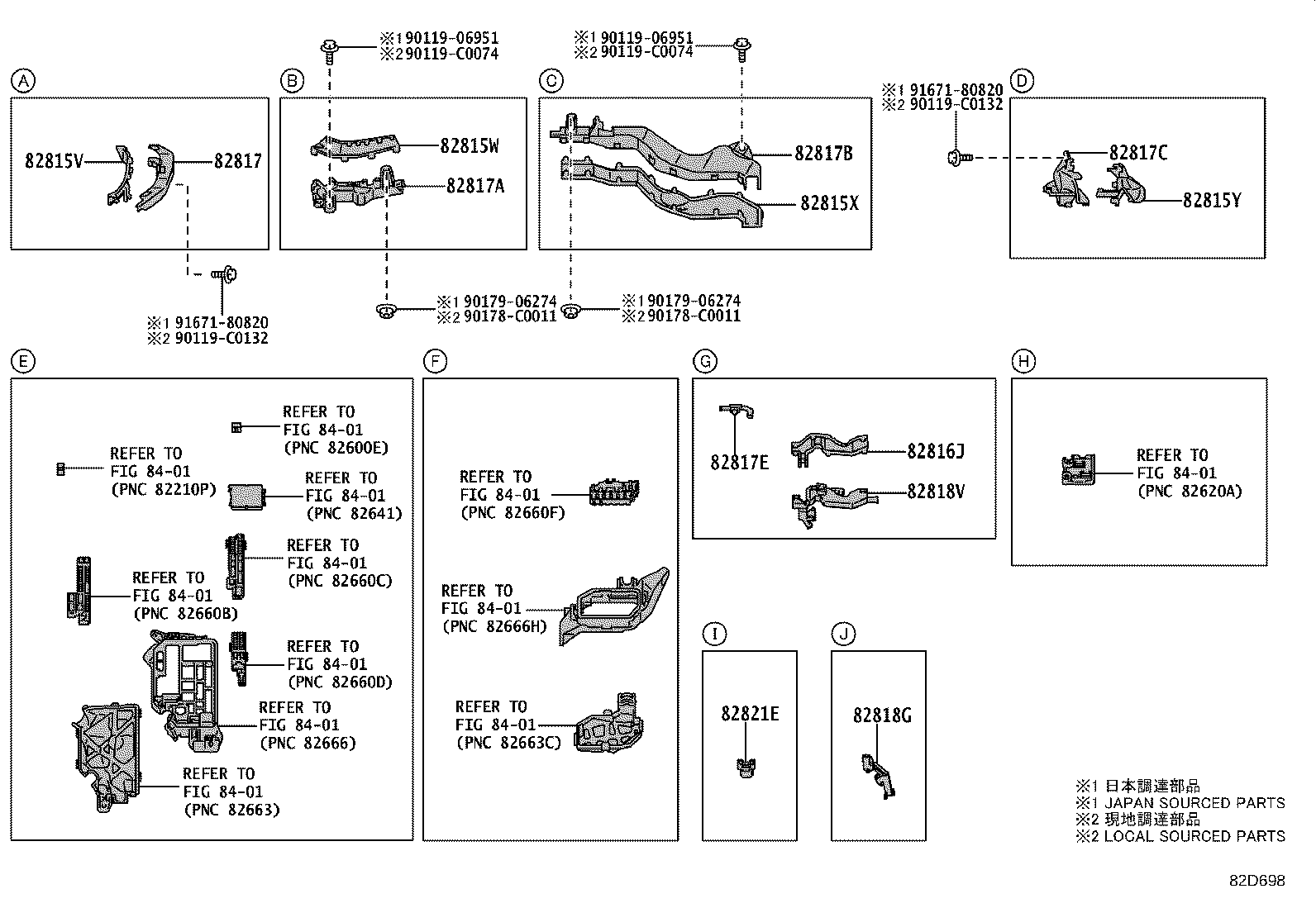

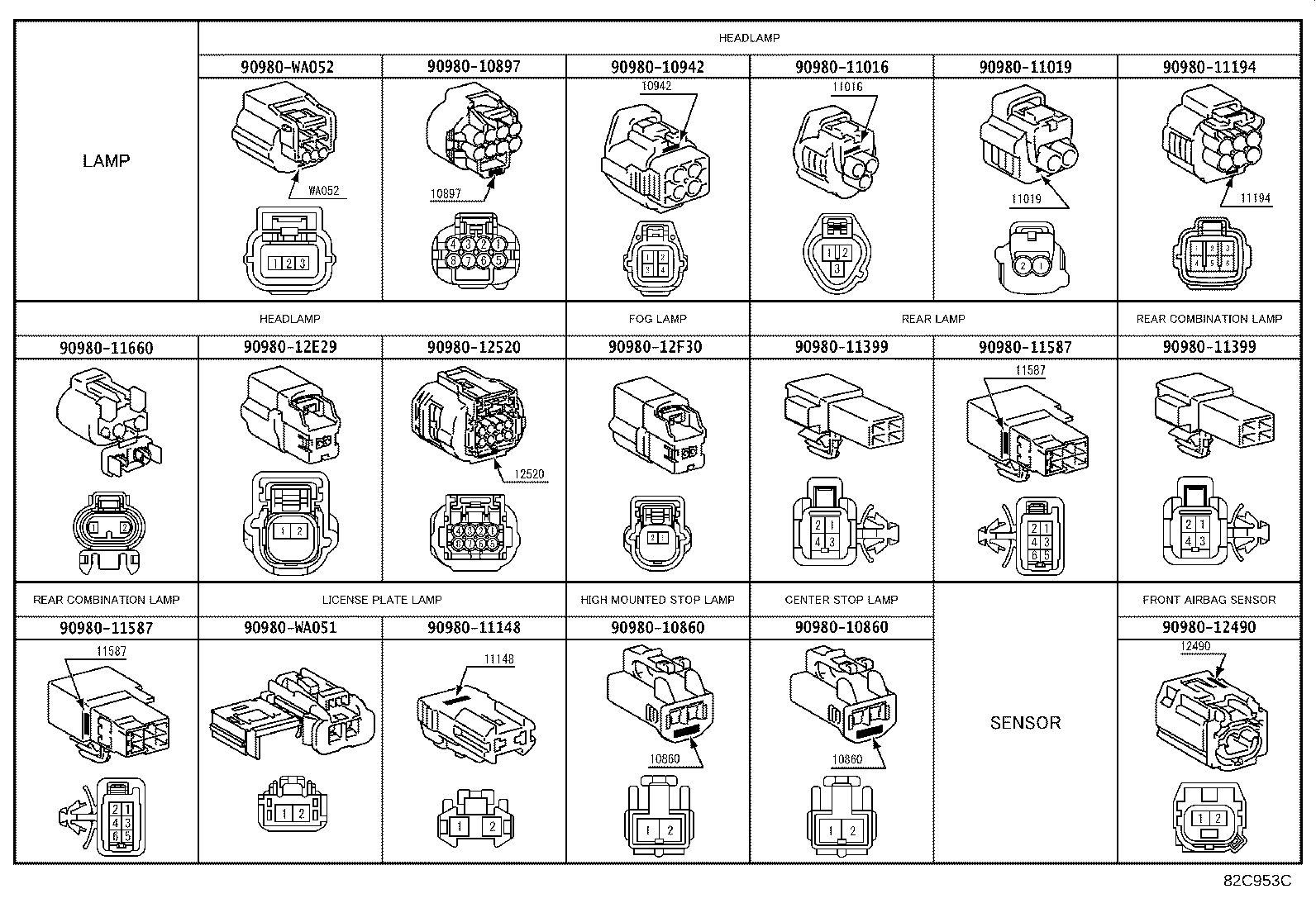

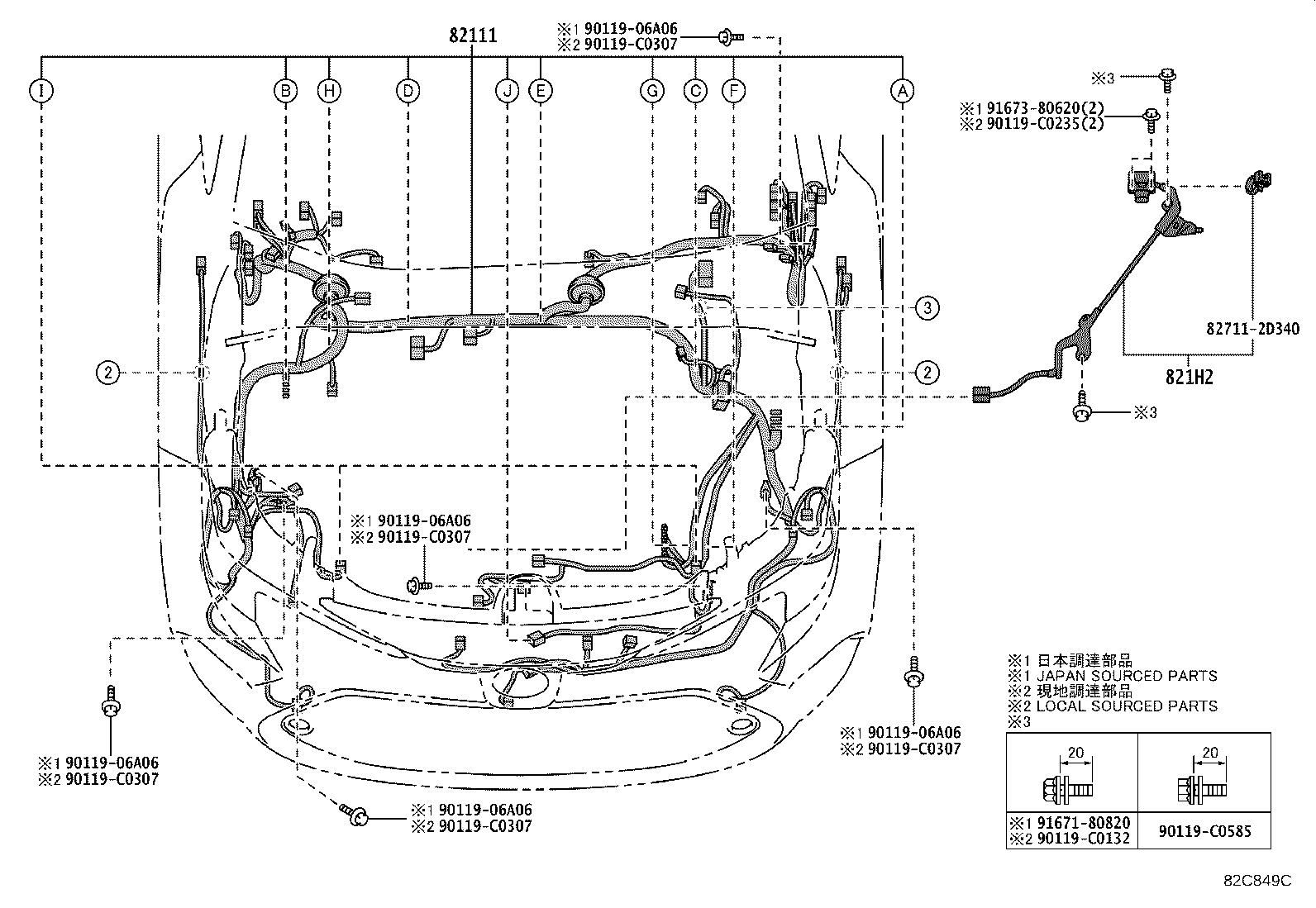

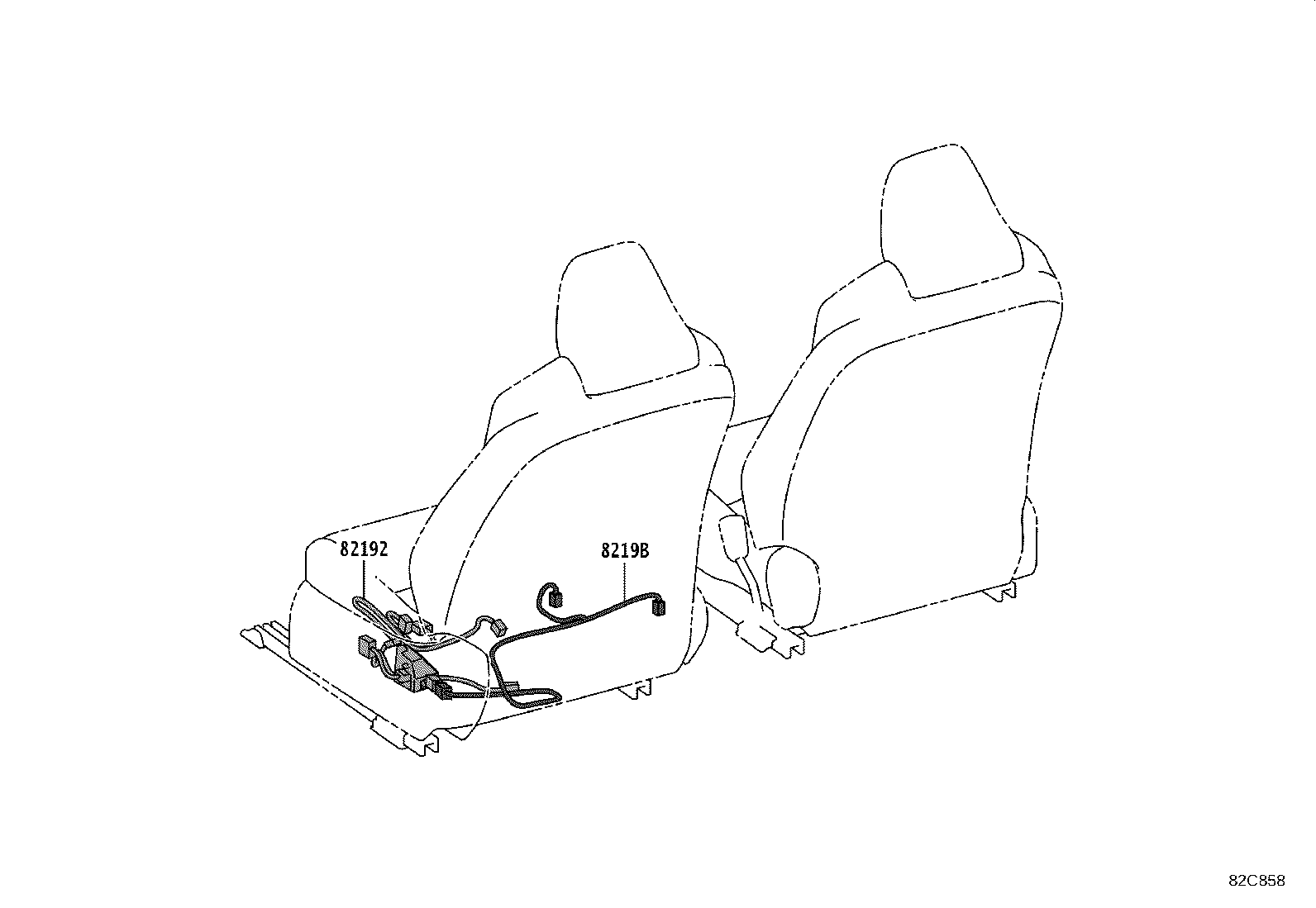

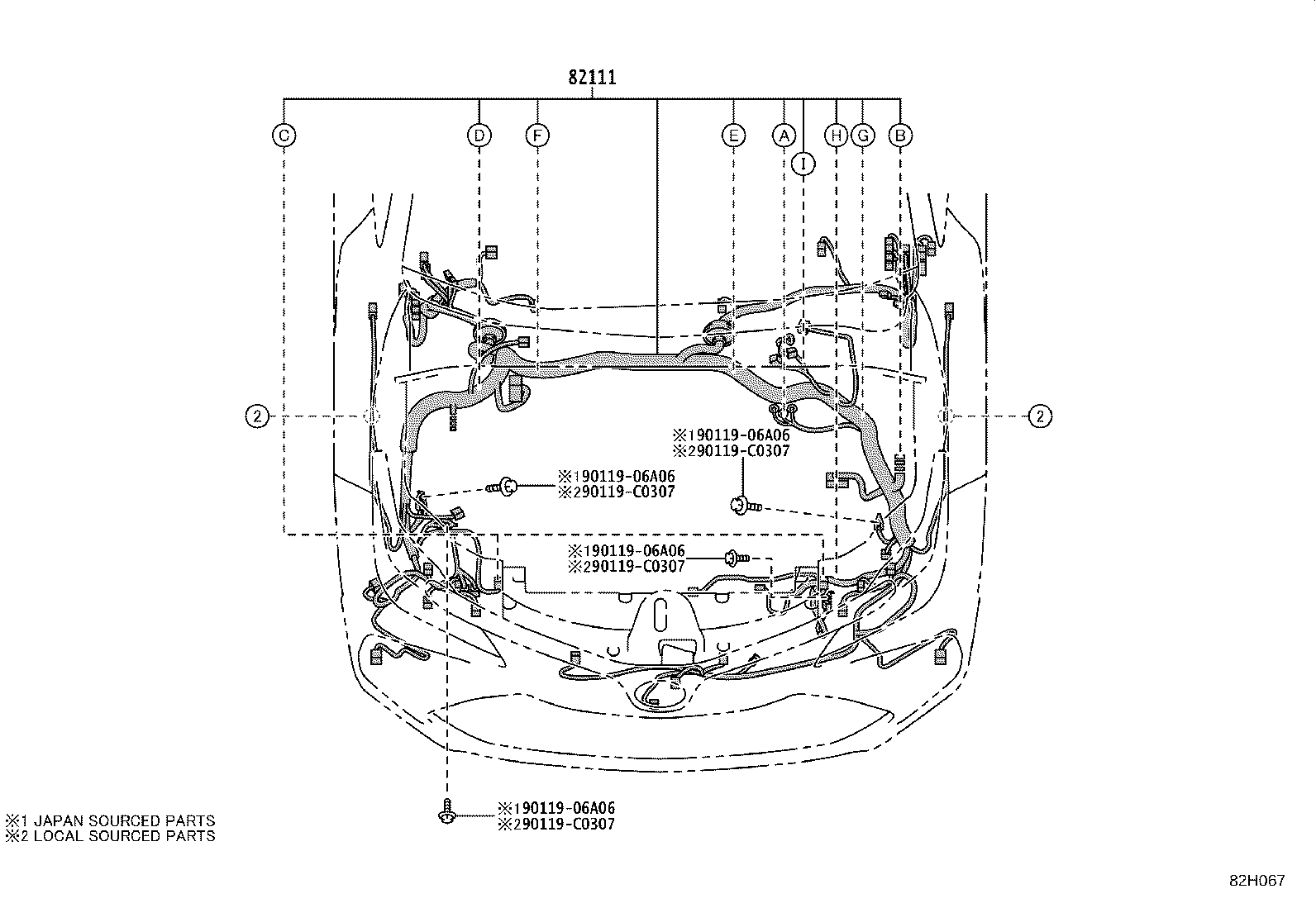

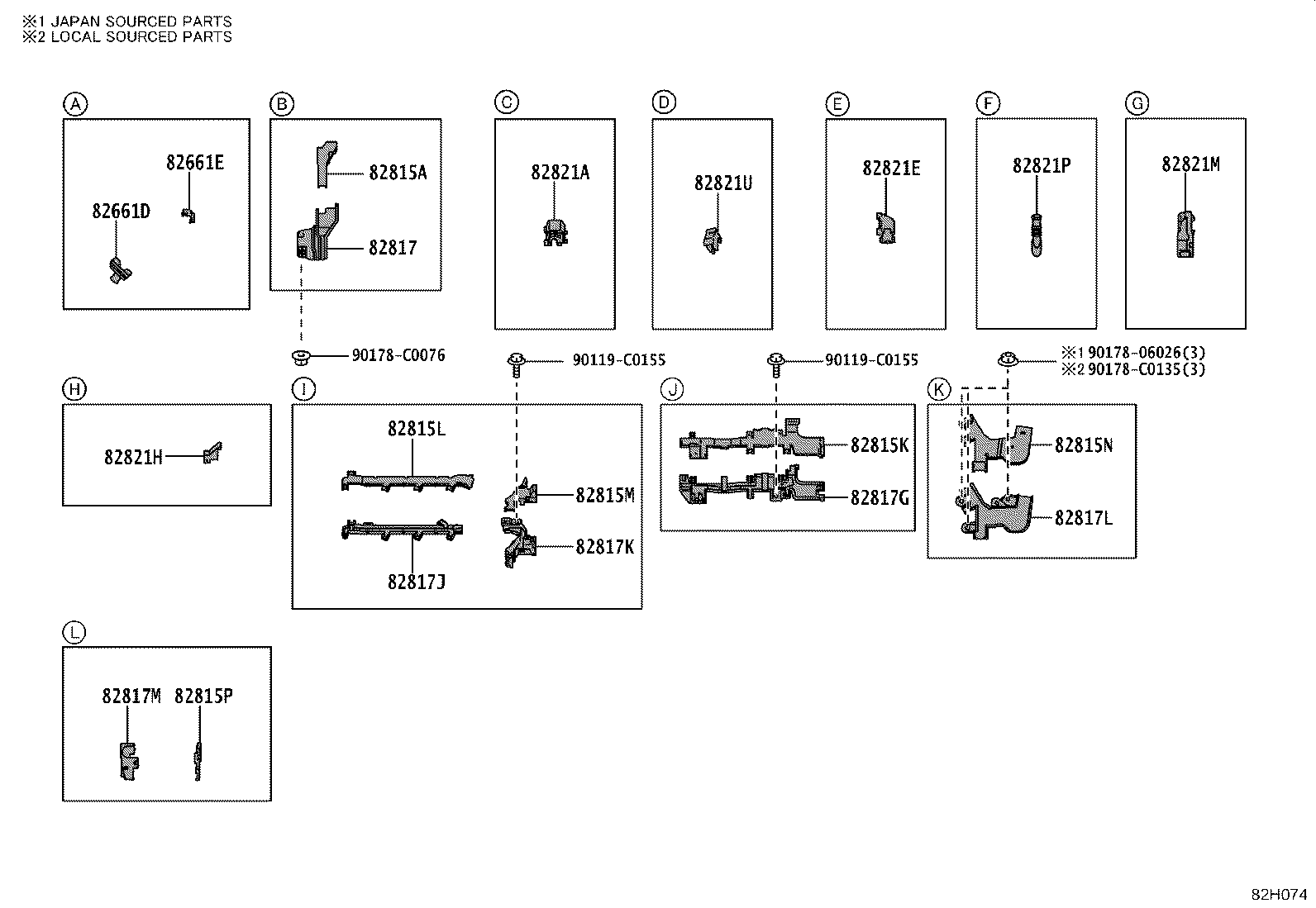

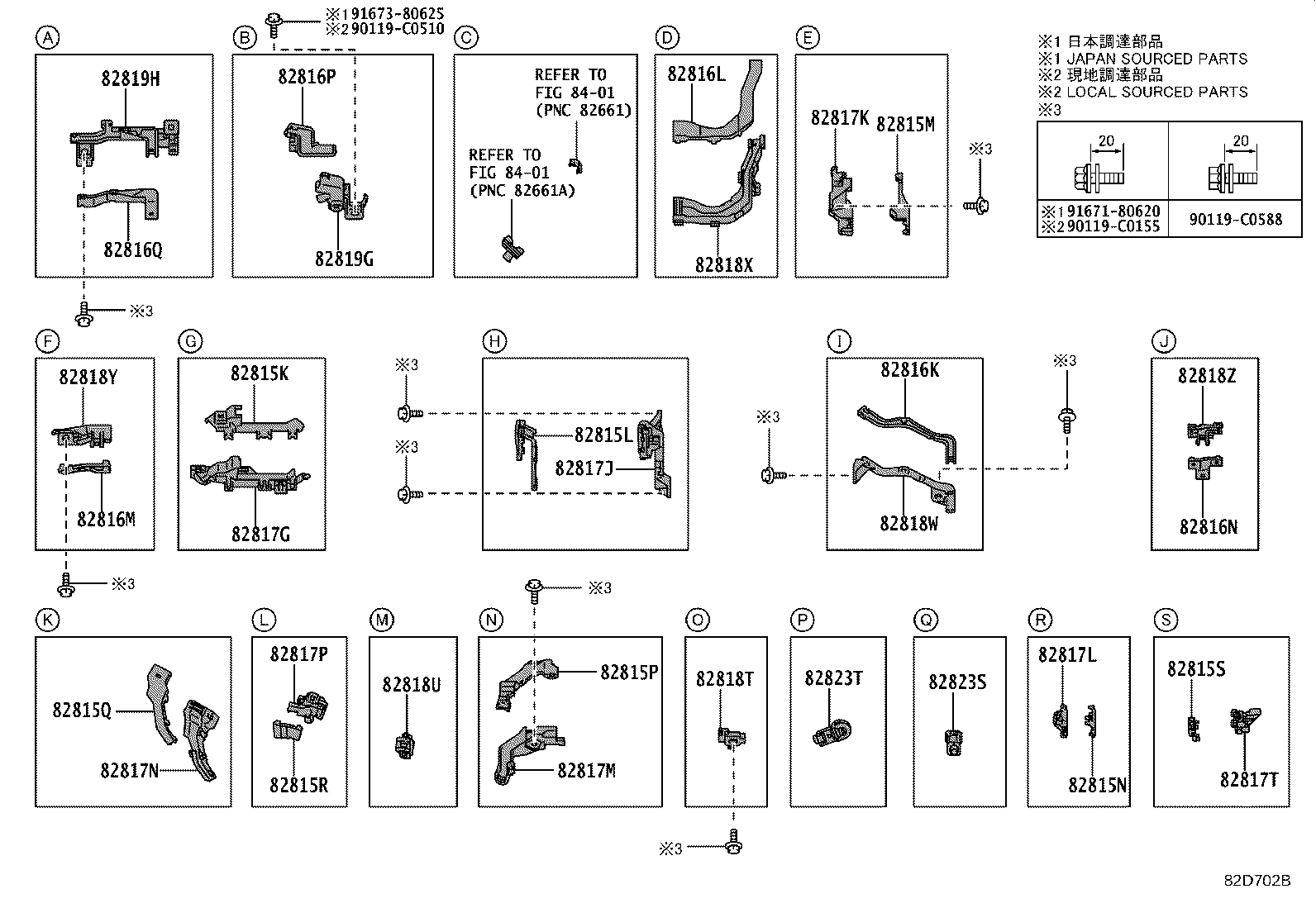

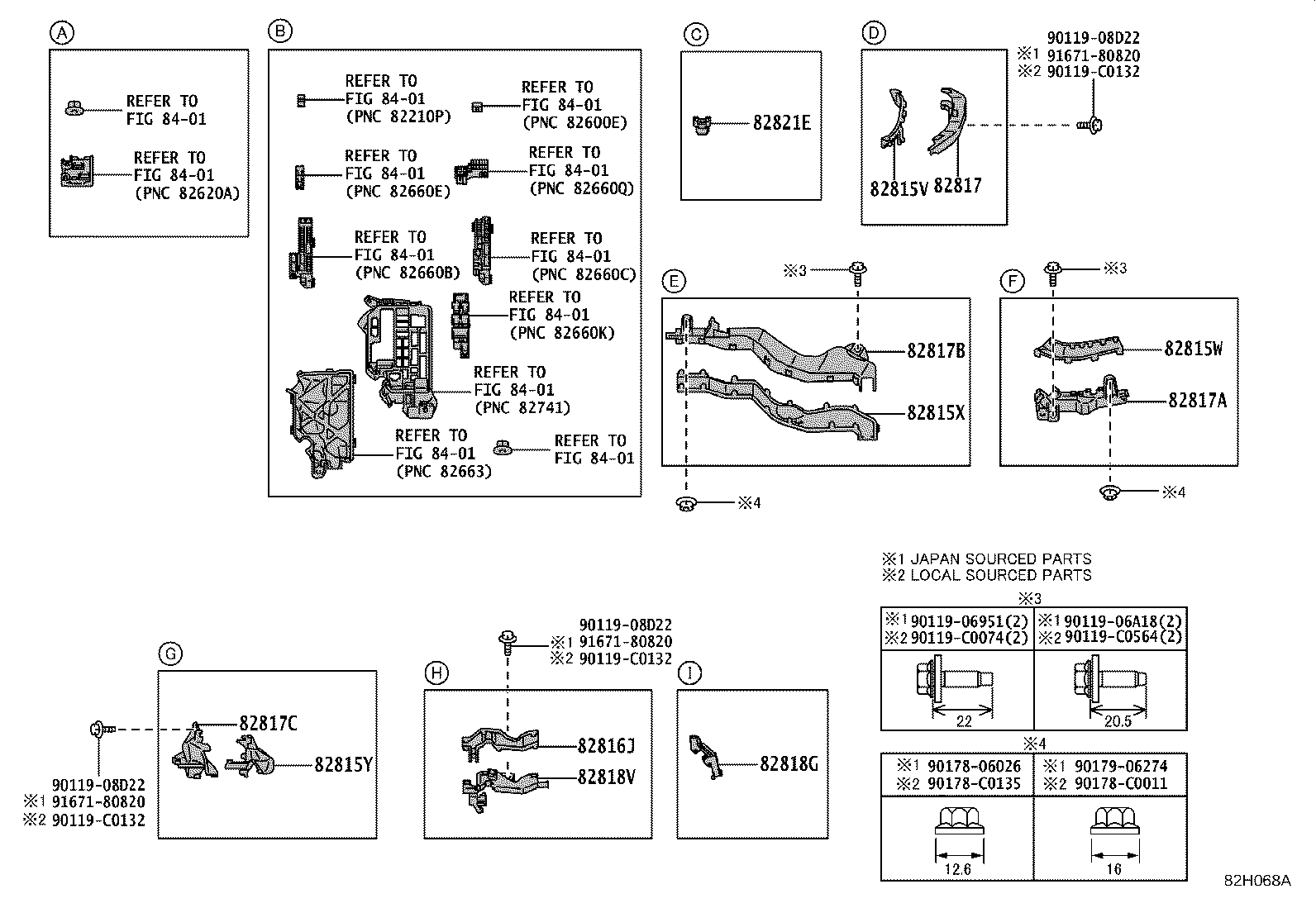

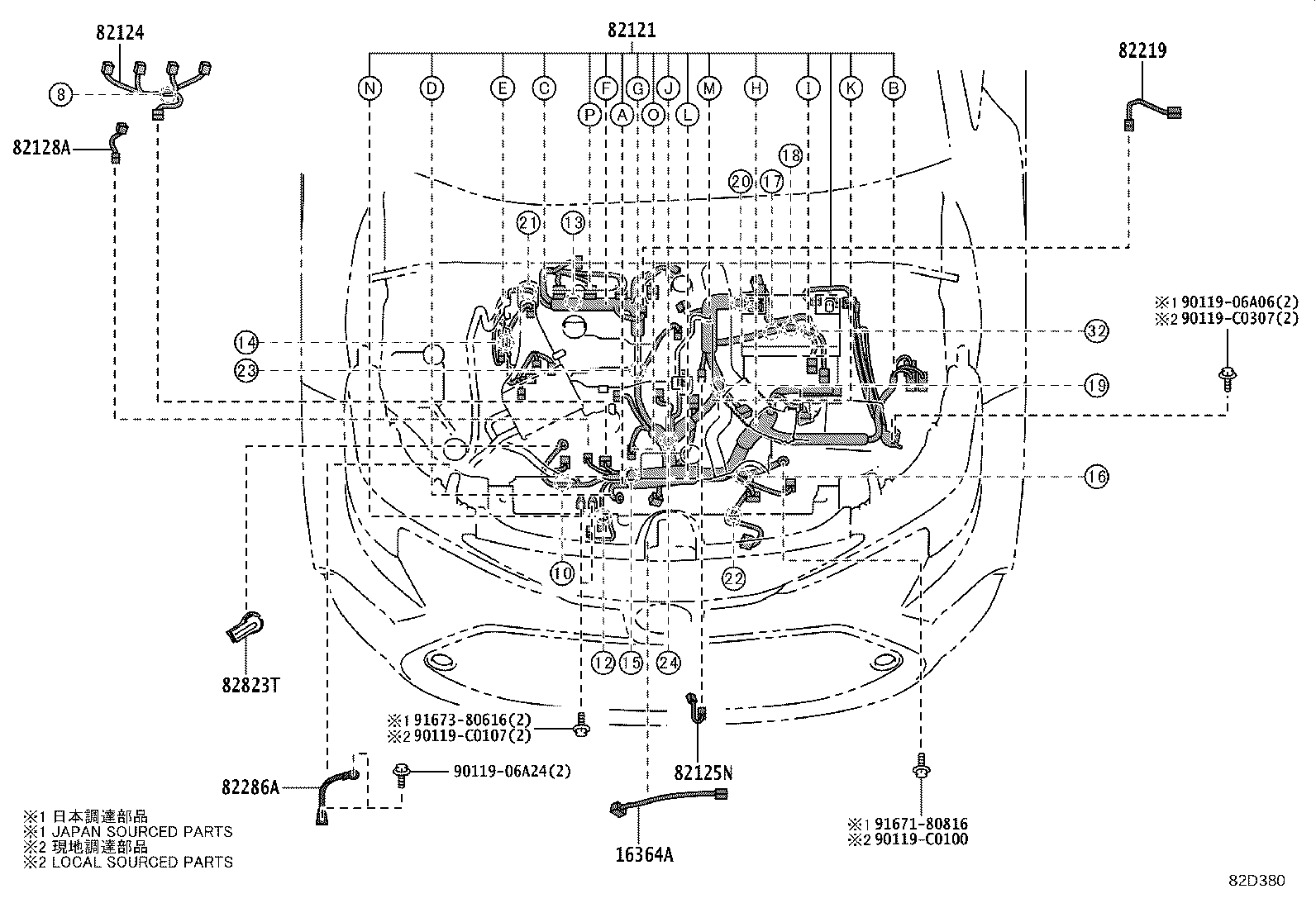

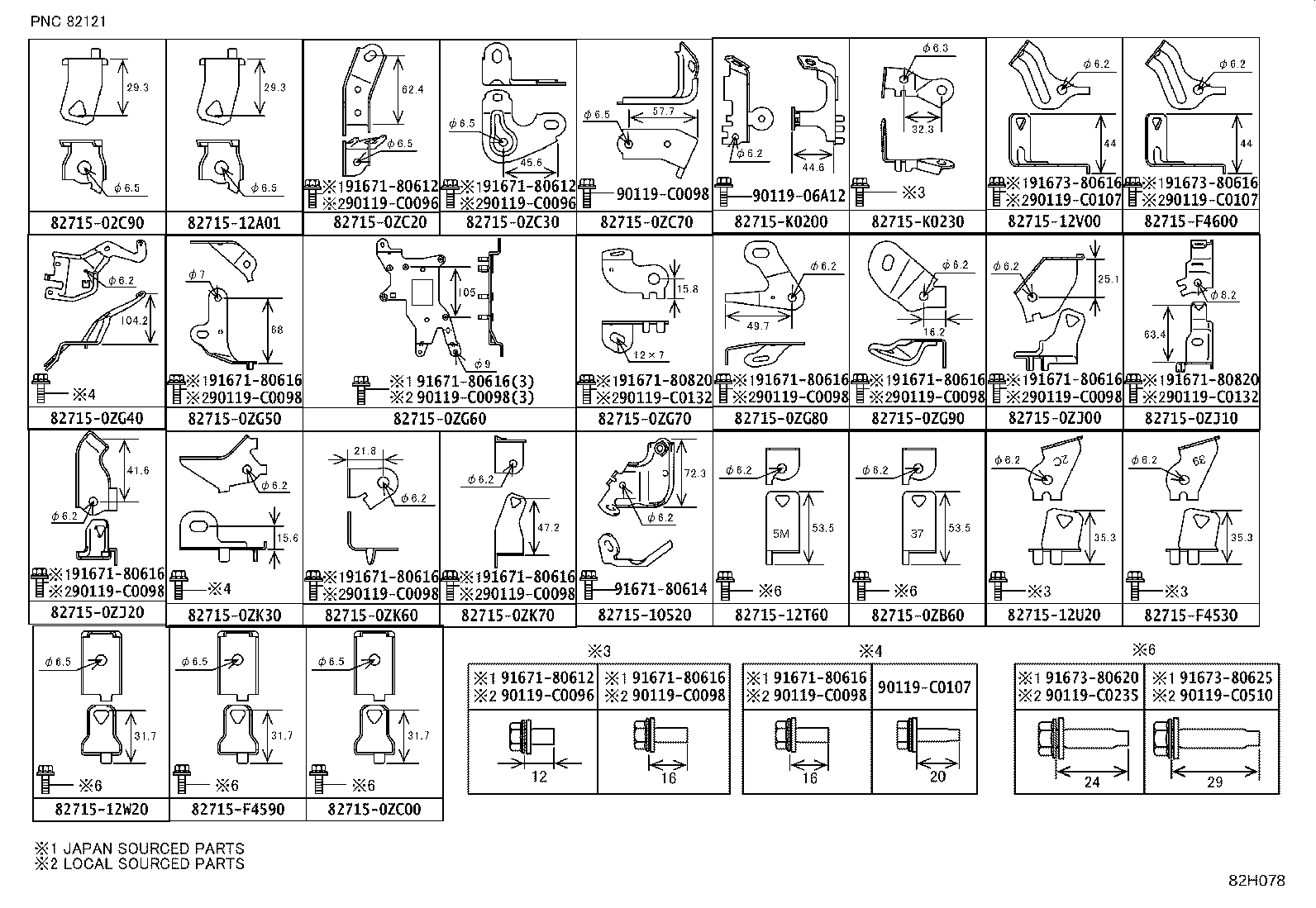

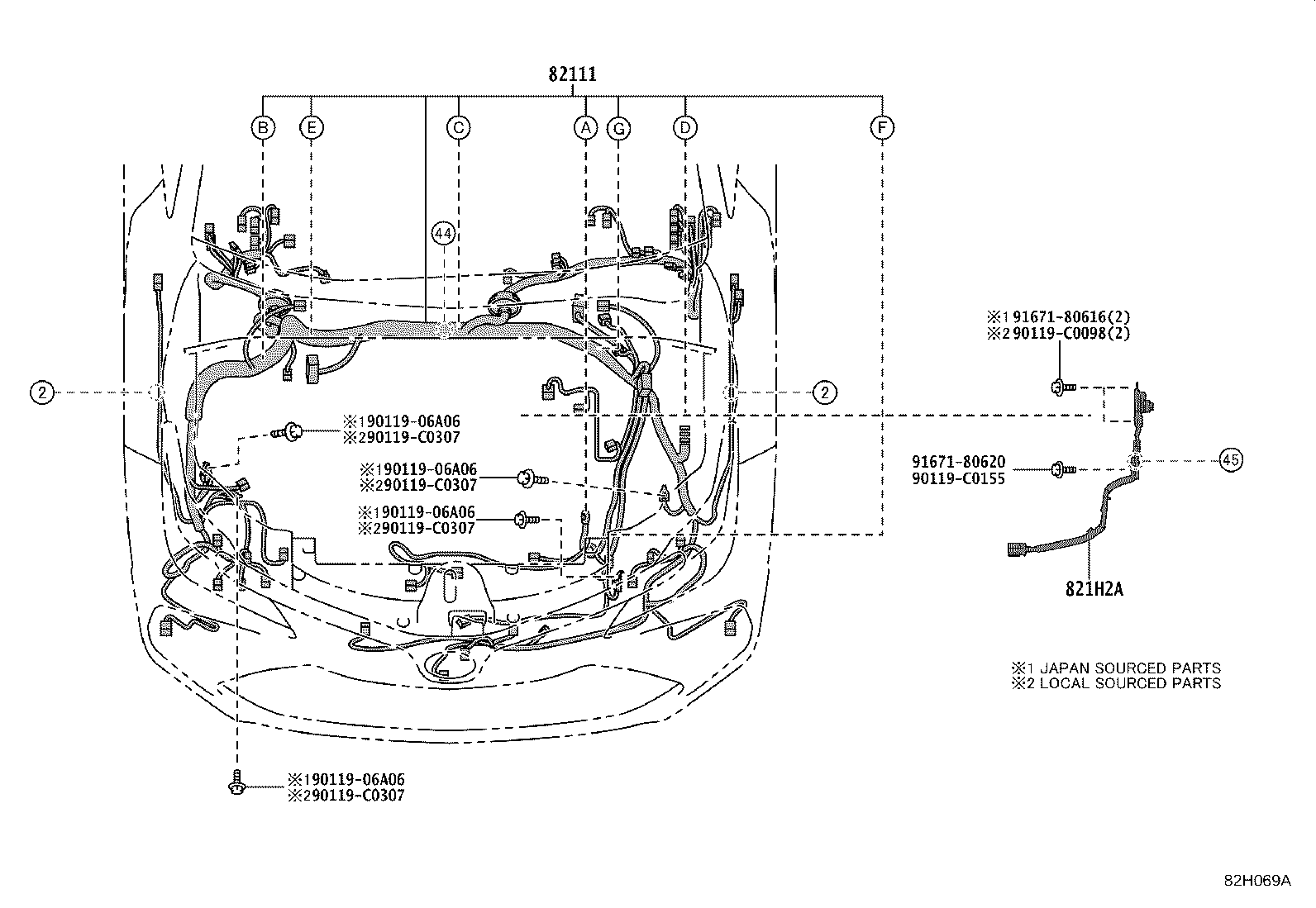

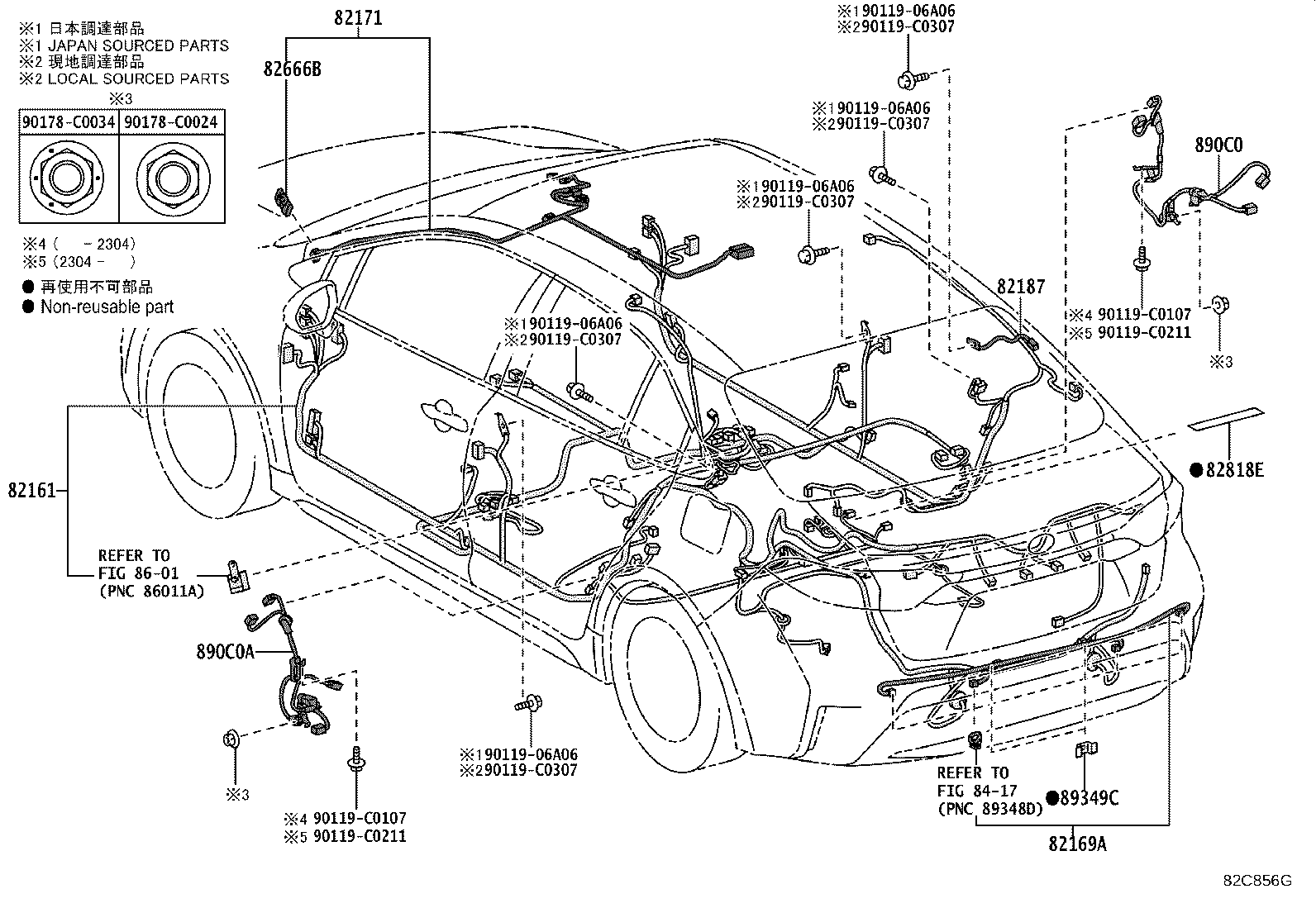

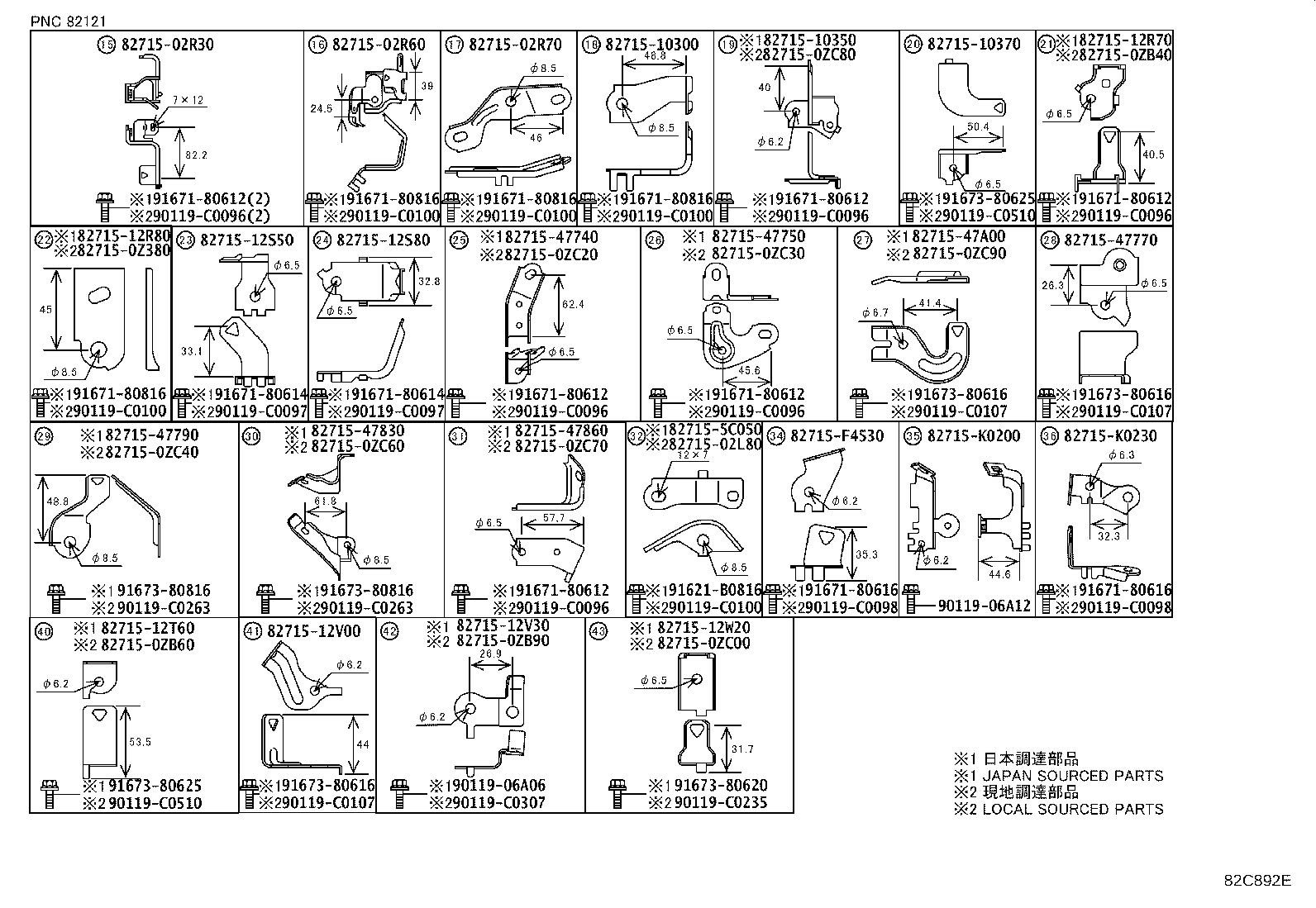

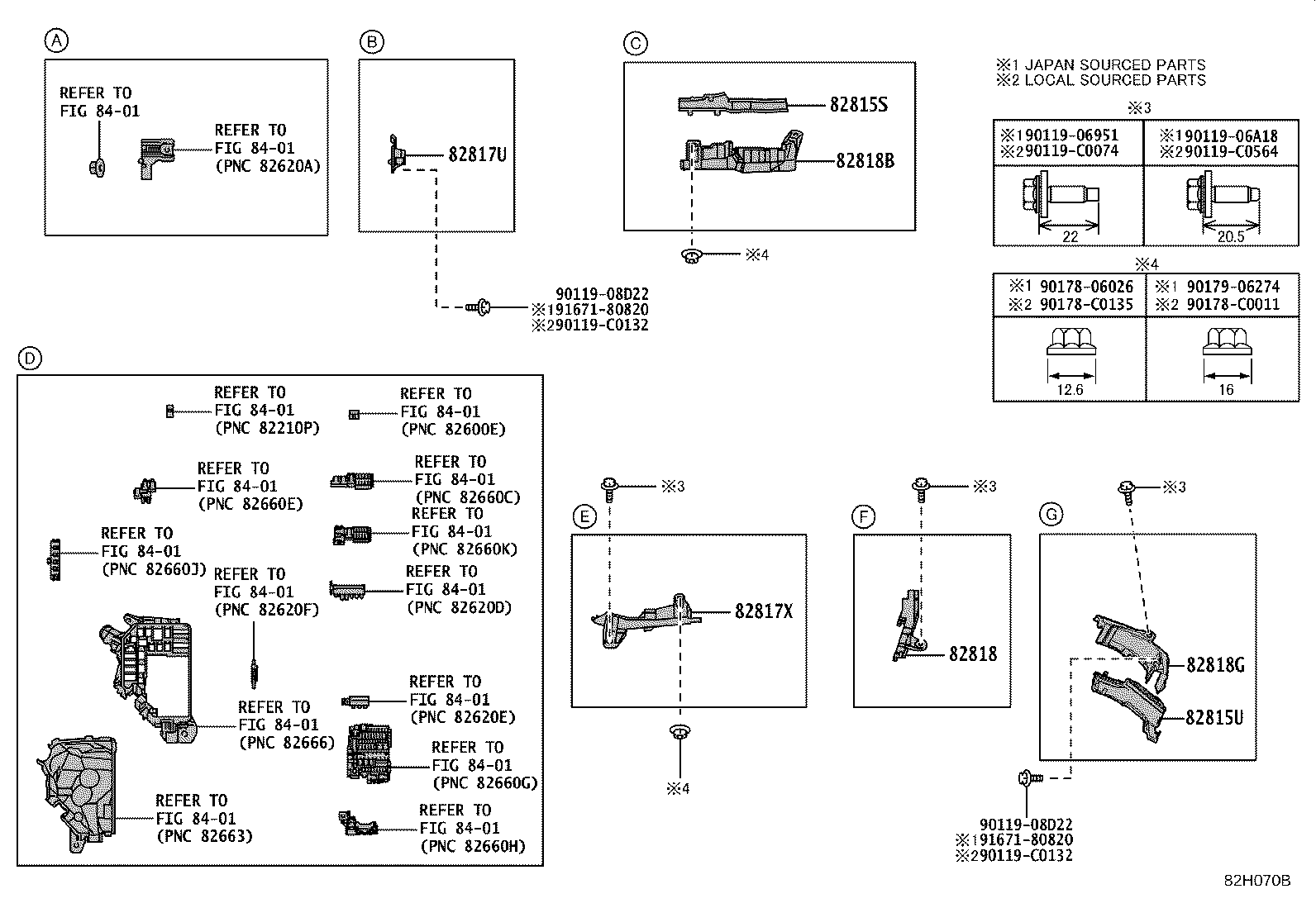

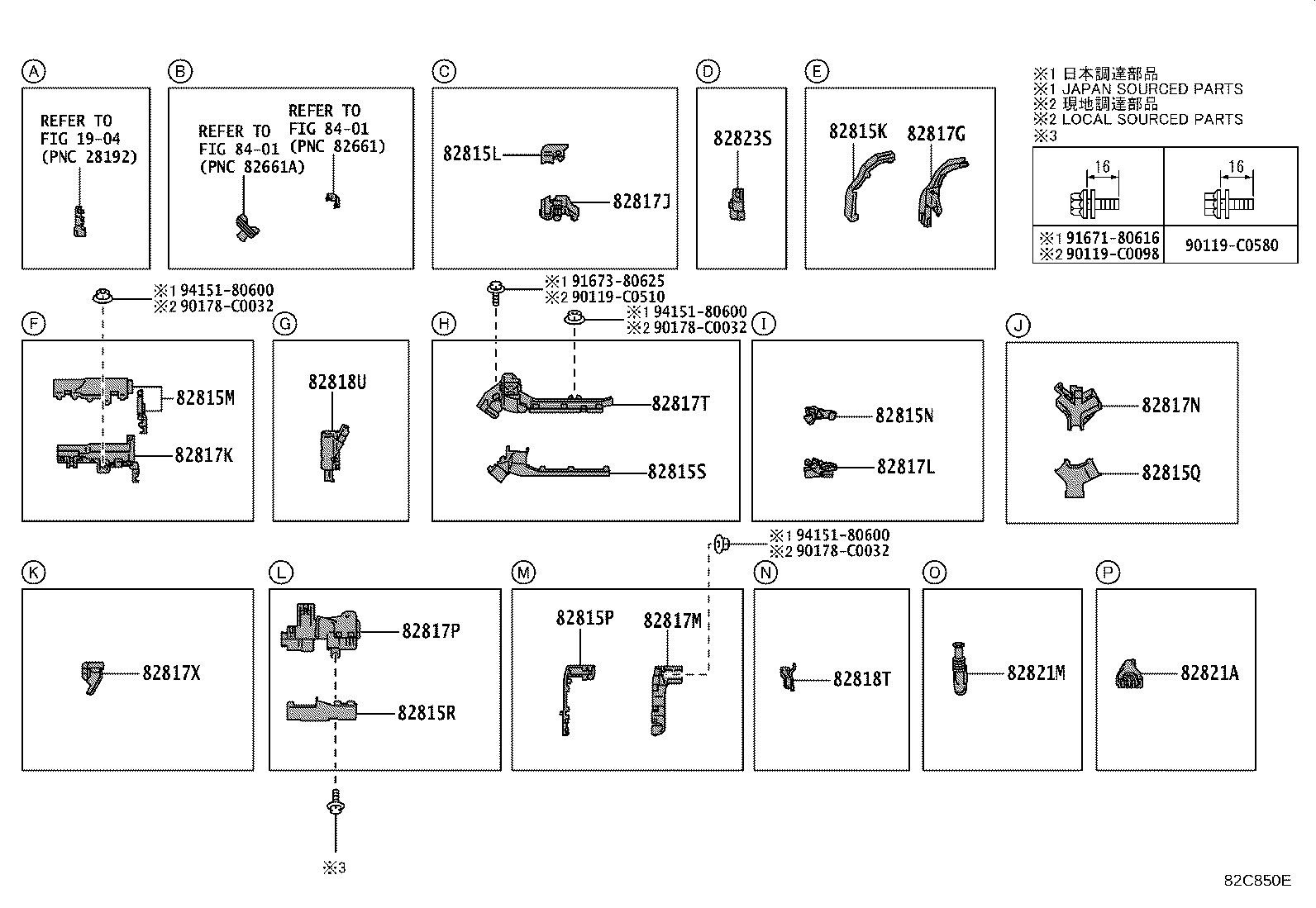

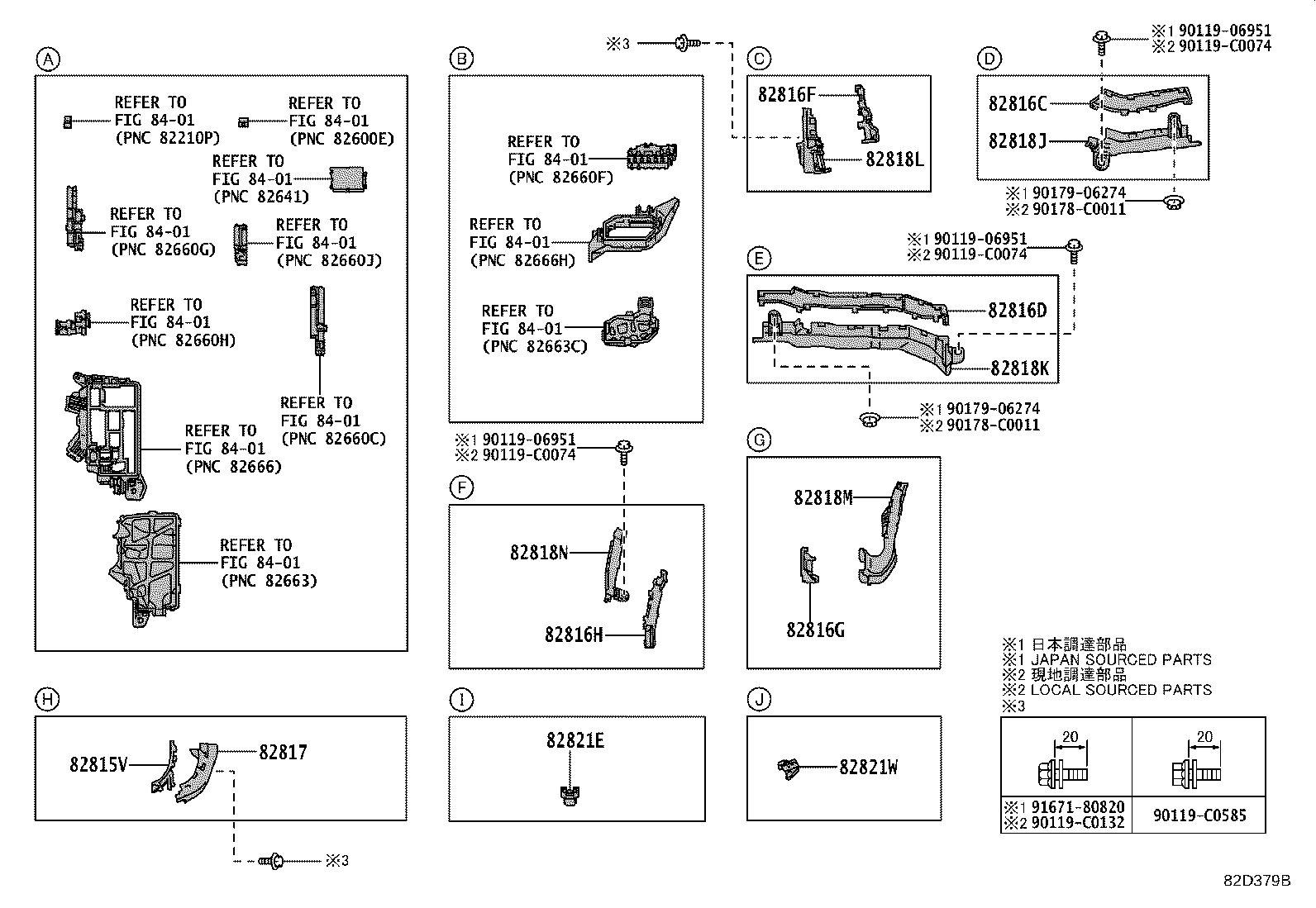

Figure 82C848B 82C848B 2019-06 → — Figure 82D378B 82D378B 2019-06 → — Figure 82C849C 82C849C 2019-06 → — Figure 82D379B 82D379B 2019-06 → — Figure 82D697 82D697 2020-07 → — Figure 82D698 82D698 2020-07 → — Figure 82H067 82H067 2023-04 → — Figure 82H068A 82H068A 2023-04 → — Figure 82H069A 82H069A 2023-04 → — Figure 82H070B 82H070B 2023-04 → — Figure 82D380 82D380 2019-06 → — Figure 82C850E 82C850E 2019-06 → — Figure 82C851B 82C851B 2019-06 → — Figure 82C852C 82C852C 2019-06 → — Figure 82D701B 82D701B 2020-07 → — Figure 82D702B 82D702B 2020-07 → — Figure 82H071A 82H071A 2023-04 → — Figure 82H072A 82H072A 2023-04 → — Figure 82H073A 82H073A 2023-04 → — Figure 82H074 82H074 2023-04 → — Figure 82C853I 82C853I 2019-06 → — Figure 82C854 82C854 2019-06 → — Figure 82C855E 82C855E 2019-06 → — Figure 82C856G 82C856G 2019-06 → — Figure 82C857 82C857 2019-06 → — Figure 82H075 82H075 2023-04 → — Figure 82C858 82C858 2019-06 → — Figure 82C859E 82C859E 2019-06 → — Figure 82C892E 82C892E 2019-06 → — Figure 82H078 82H078 2023-04 → — Figure 82C953C 82C953C 2019-06 → — Figure 82C954C 82C954C 2019-06 → —

Part groups

PNCDescription
16364A Wire, Cooling Fan

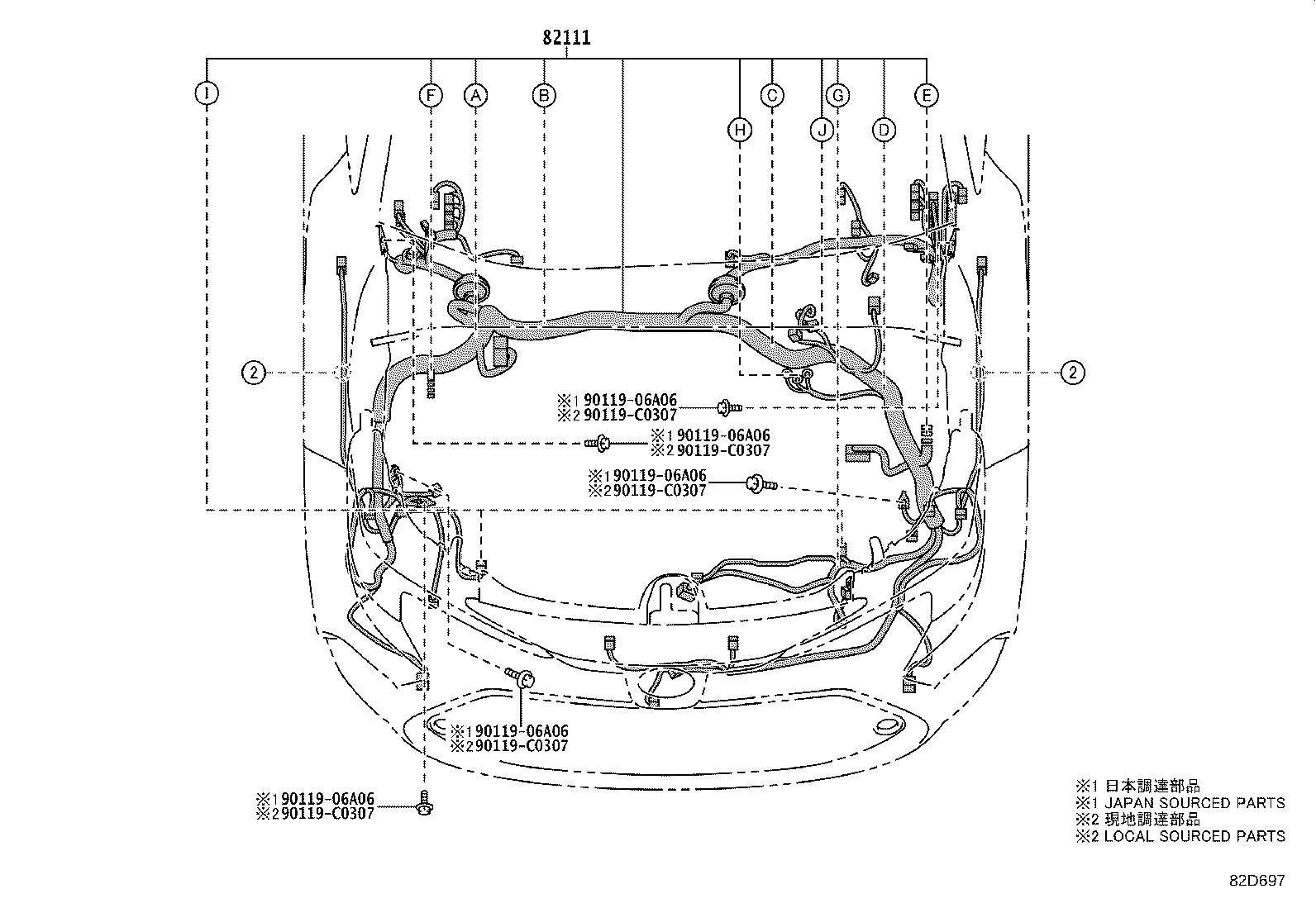

82111 Wire, Engine Room Main

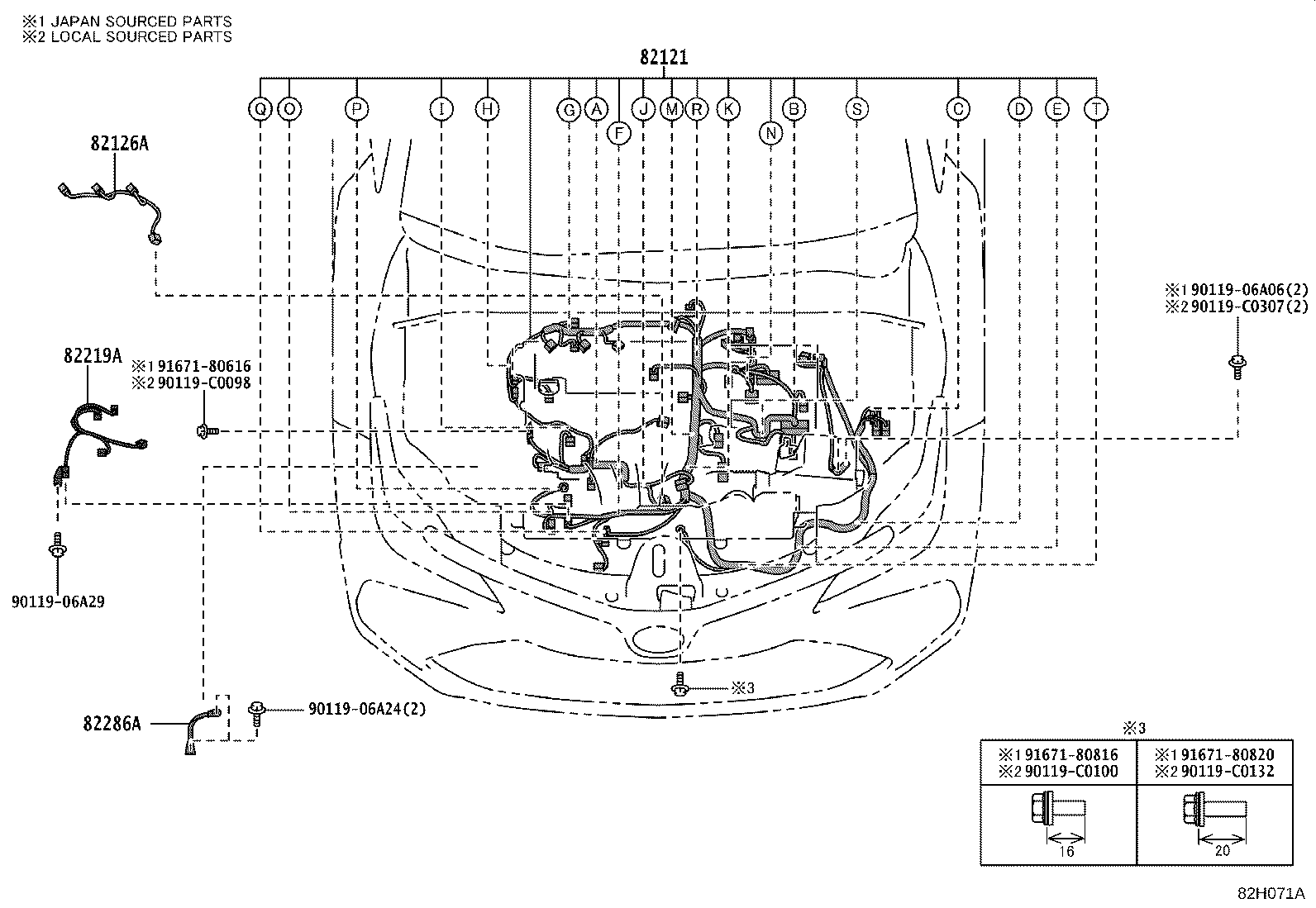

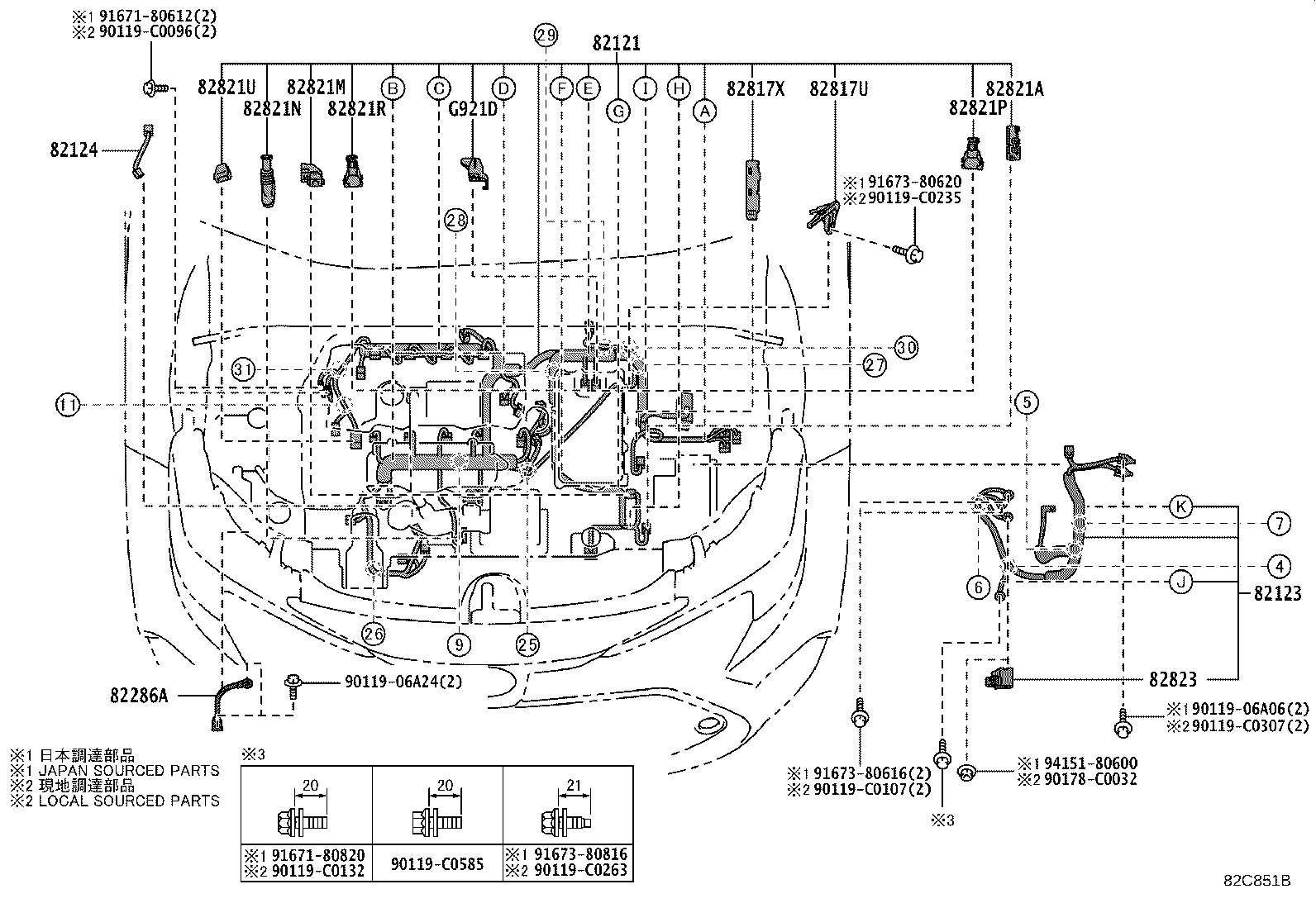

82121 Wire, Engine
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125N Wire, Engine, NO.5
82126A Wire, Engine, NO.6
82127D Wire, Engine, NO.7
82128A Wire, Engine, NO.8
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2

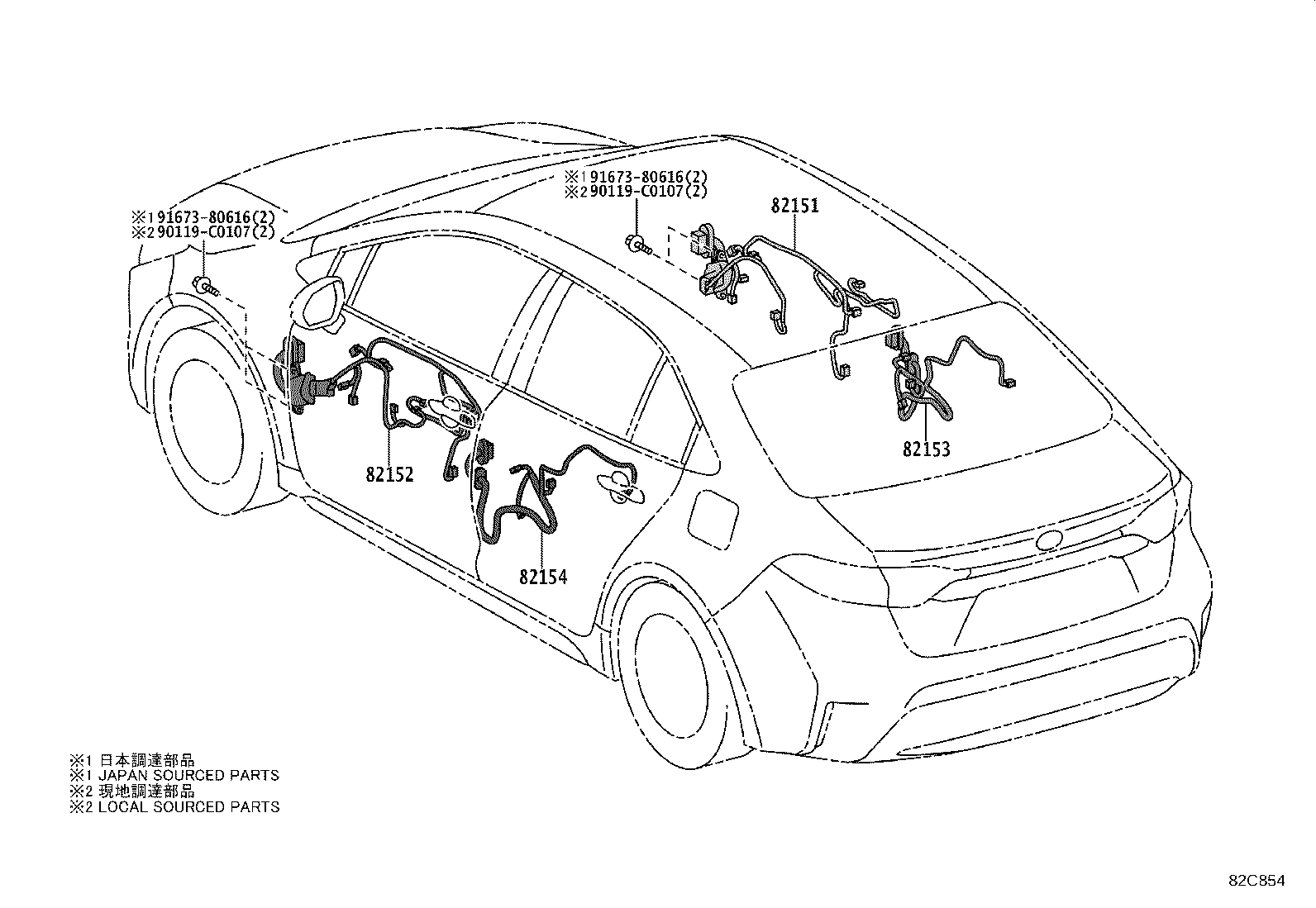

82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82169A Wire, Floor, NO.6
82171 Wire, Roof, NO.1
82187 Wire, Rear Window, NO.2
82192 Wire, Front Seat, LH
8219B Wire, Front Seat, LH NO.2

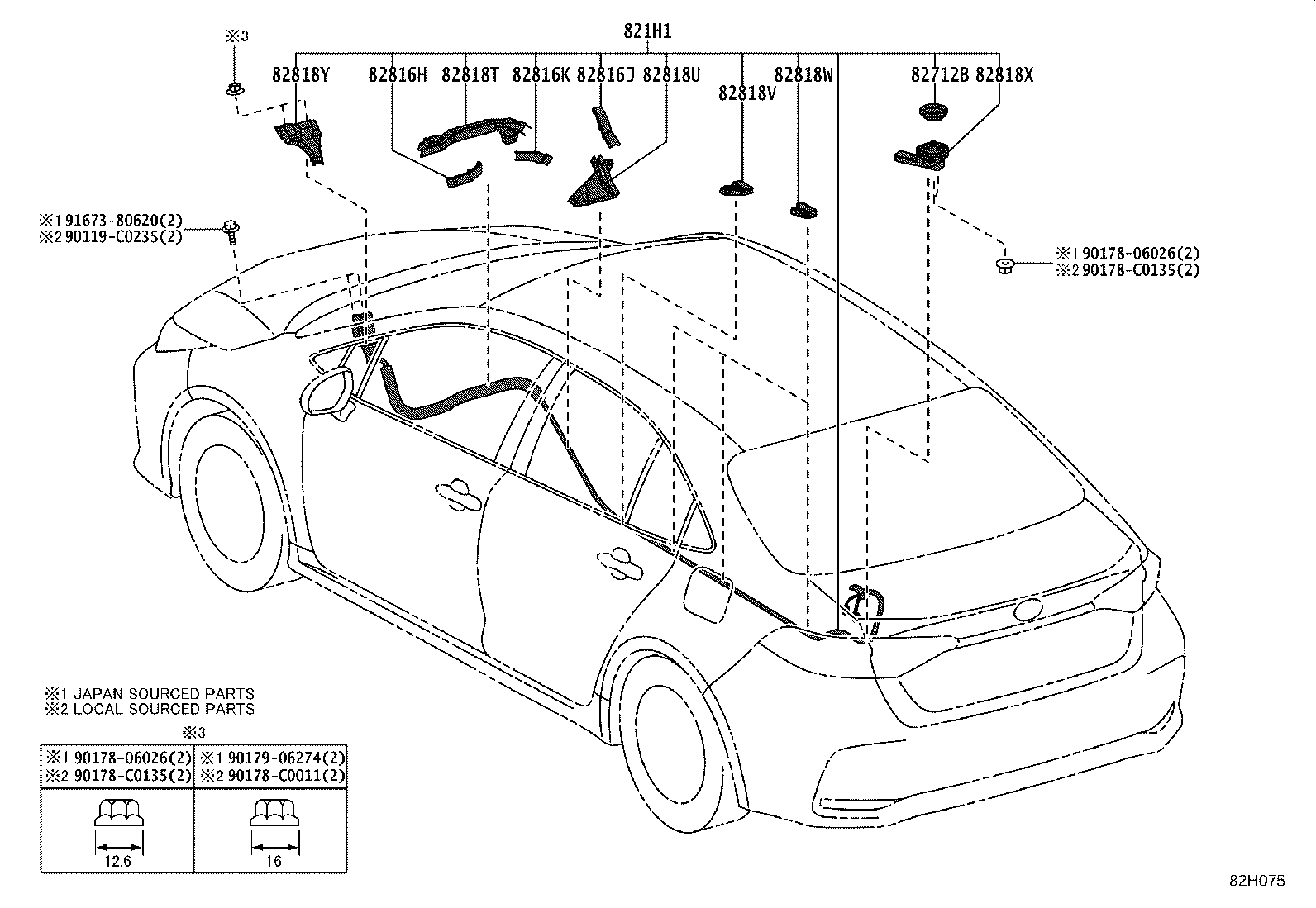

821H1 Wire, Floor Under
821H2 Wire, HV Air Conditioner
821H2A Wire, High Voltage Air Conditioner
82219 Wire, Thermo Sensor
82219A Wire, Sensor
82286A Wire, Earth, NO.2
82661D Cover, Relay Block, Side NO.1
82661E Cover, Relay Block, Side NO.2
82661H Cover, Relay Block
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82712B Support, Wiring Harness

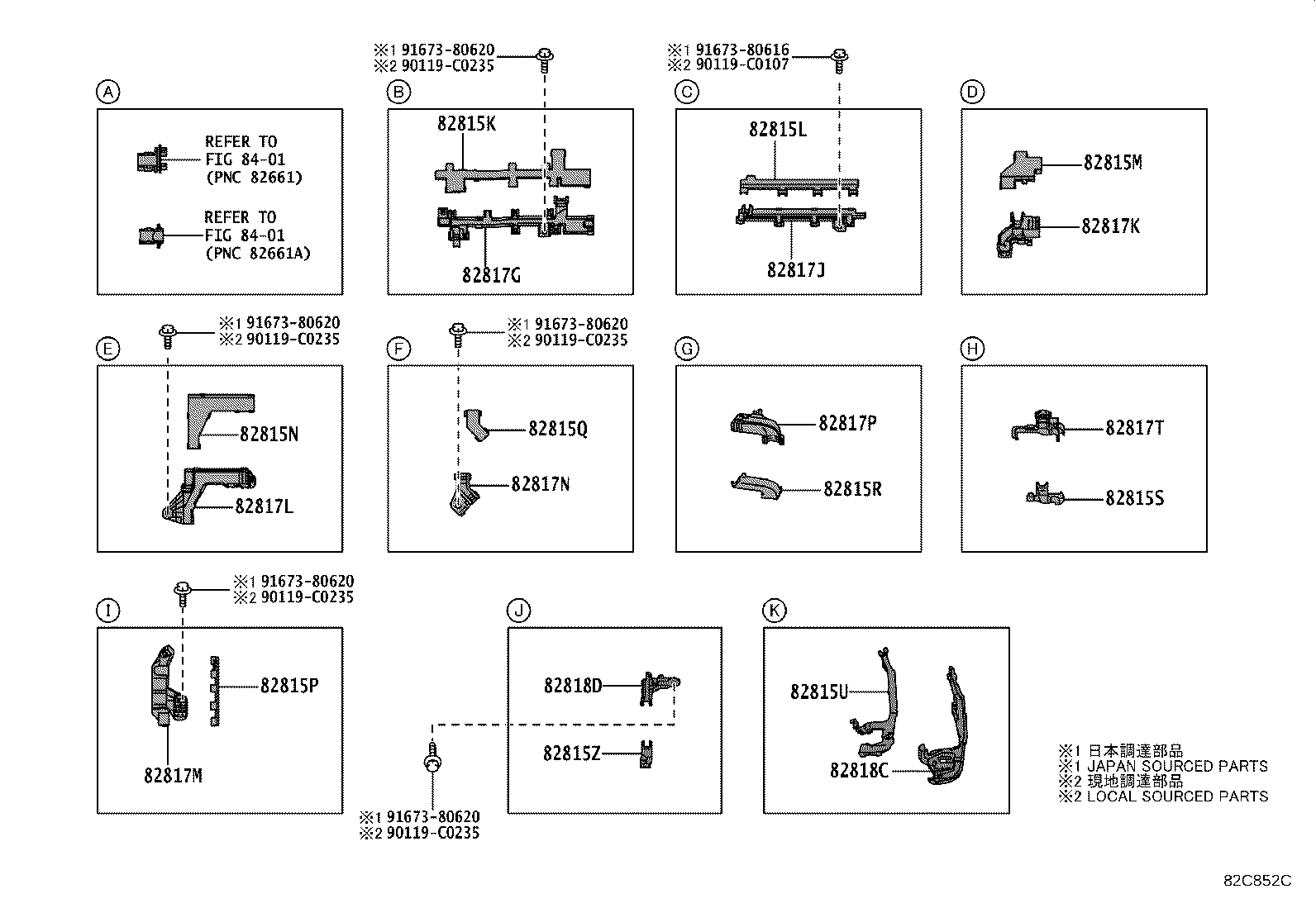

82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815L Cover, Wiring Harness Protector, NO.9
82815M Cover, Wiring Harness Protector, NO.10
82815N Cover, Wiring Harness Protector, NO.11
82815P Cover, Wiring Harness Protector, NO.12
82815Q Cover, Wiring Harness Protector, NO.13
82815R Cover, Wiring Harness Protector, NO.14
82815S Cover, Wiring Harness Protector, NO.15
82815U Cover, Wiring Harness Protector, NO.17
82815V Cover, Wiring Harness Protector, NO.1
82815W Cover, Wiring Harness Protector, NO.2
82815X Cover, Wiring Harness Protector, NO.3
82815Y Cover, Wiring Harness Protector, NO.4
82815Z Cover, Wiring Harness Protector, NO.18
82816B Cover, Wiring Harness Protector, NO.1
82816C Cover, Wiring Harness Protector, NO.2
82816D Cover, Wiring Harness Protector, NO.3
82816F Cover, Wiring Harness Protector, NO.4
82816G Cover, Wiring Harness Protector, NO.5
82816H Cover, Wiring Harness Protector, NO.6
82816J Cover, Wiring Harness Protector, NO.7
82816K Cover, Wiring Harness Protector, NO.8
82816L Cover, Wiring Harness Protector, NO.9
82816M Cover, Wiring Harness Protector, NO.10
82816N Cover, Wiring Harness Protector, NO.11
82816P Cover, Wiring Harness Protector, NO.12
82816Q Cover, Wiring Harness Protector, NO.13
82816R Cover, Wiring Harness Protector, NO.14
82816S Cover, Wiring Harness Protector, NO.15

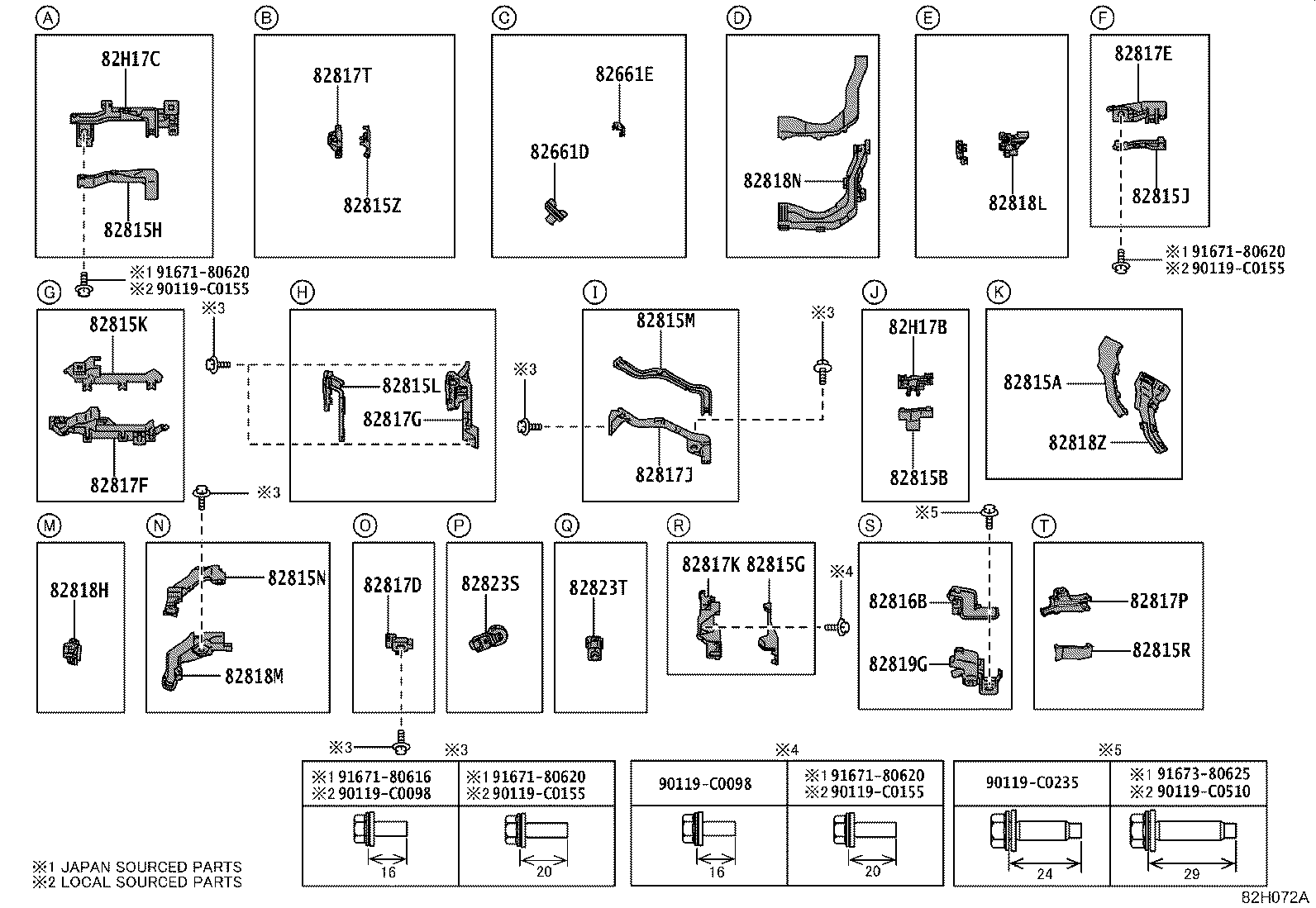

82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82818 Protector, Wiring Harness, NO.2
82818B Protector, Wiring Harness, NO.3
82818C Protector, Wiring Harness, NO.4
82818D Protector, Wiring Harness, NO.5
82818E Protector, Wiring Harness, NO.6
82818G Protector, Wiring Harness, NO.8
82818H Protector, Wiring Harness, NO.9
82818J Protector, Wiring Harness, NO.10
82818K Protector, Wiring Harness, NO.11
82818L Protector, Wiring Harness, NO.12
82818M Protector, Wiring Harness, NO.13
82818N Protector, Wiring Harness, NO.14
82818T Protector, Wiring Harness, NO.16
82818U Protector, Wiring Harness, NO.17
82818V Protector, Wiring Harness, NO.18
82818W Protector, Wiring Harness, NO.19
82818X Protector, Wiring Harness, NO.20
82818Y Protector, Wiring Harness, NO.21
82818Z Protector, Wiring Harness, NO.22
82819G Protector, Wiring Harness, NO.23
82819H Protector, Wiring Harness, NO.24
82819J Protector, Wiring Harness, NO.25
82821A Cover, Connector
82821E Cover, Connector
82821H Cover, Connector
82821M Cover, Connector
82821N Cover, Connector
82821P Cover, Connector
82821R Cover, Connector
82821U Cover, Connector
82821W Cover, Connector
82823 Cap, Terminal, NO.1
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82H17B Protector, Wiring Harness, NO.1
82H17C Protector, Wiring Harness, NO.2
890C0 Wire Assy, Parking Brake, NO.1
890C0A Wire Assy, Parking Brake, NO.2
89349C Clip, Ultrasonic Sensor, Rear NO.2
G921D Protector, Inverter Connector Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
