Toyota Levin/Hybrid

2019-06 → present · chassis MZEA1#,NRE210,ZWE21# · catalogue 168320 · General

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

25 part groups · 3 illustrations

Illustrations

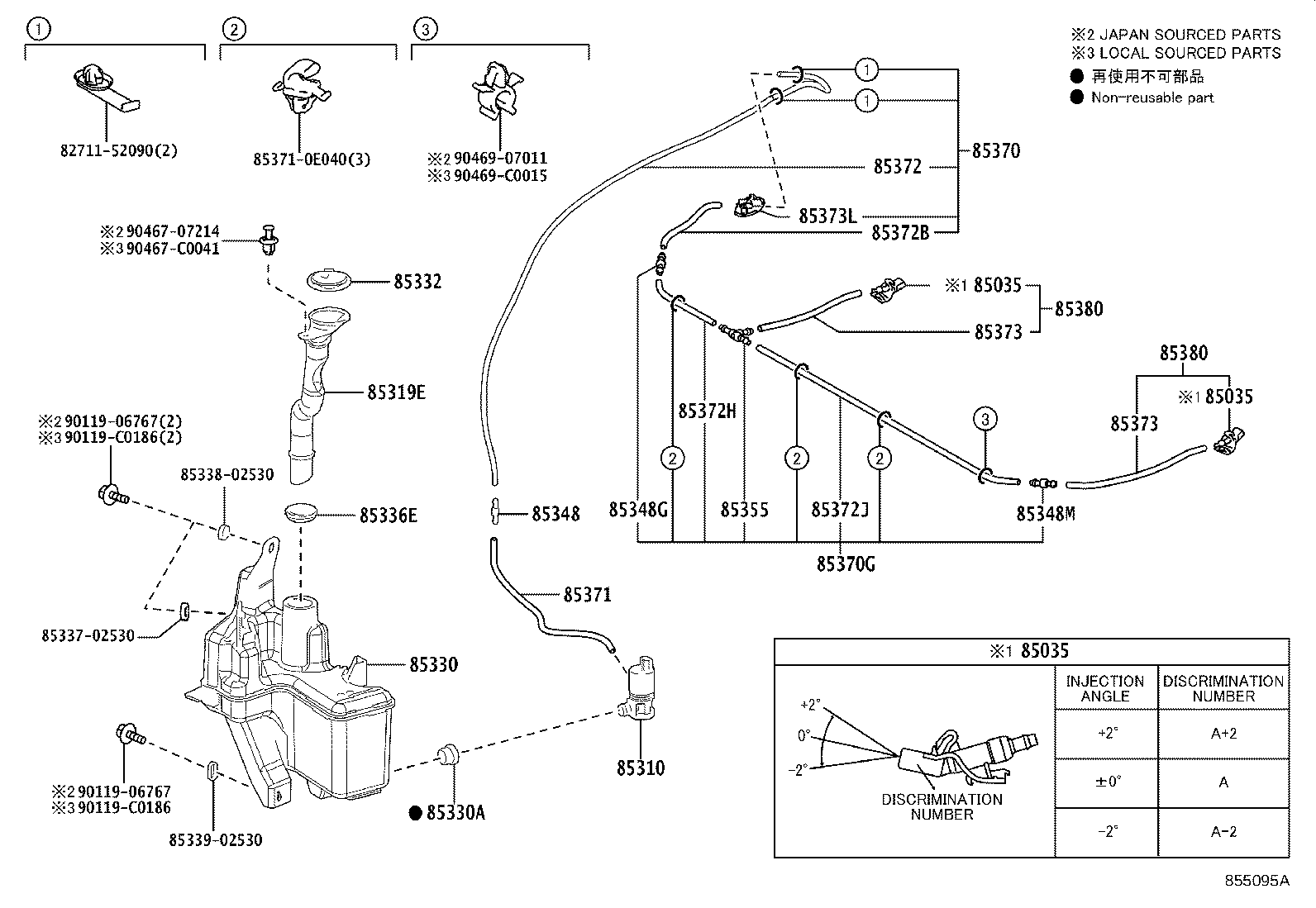

Figure 854098B 854098B 2019-06 → — Figure 855095A 855095A 2023-03 → — Figure 855095A 855095A 2023-04 → —

Part groups

PNCDescription
85035 Nozzle Sub-assy, Washer
85310 Motor And Pump Assy, Windshield Washer
85319A Hose, Inlet
85319D Packing, Front Washer
85319E Inlet Washer
85330 Jar Assy, Windshield Washer
85330A Bush, Windshield Washer Jar
85332 Cap, Windshield Washer Jar
85336E Packing, Windshield Washer Inlet Hose
85348 Joint, Windshield Washer Hose, NO.1
85348G Joint, Windshield Washer Hose, NO.2
85348M Joint, Windshield Washer Hose, NO.3
85355 Valve, Windshield Washer Hose
85370 Hose Assy, Windshield Washer
85370G Hose Assy, Windshield Washer, NO.2
85371 Hose, Windshield Washer (FROM MOTOR TO JOINT)
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85372B Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
85372H Hose, Windshield Washer (FROM JOINT TO JOINT), NO.3
85372J Hose, Windshield Washer (FROM JOINT TO JOINT), NO.4
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
85373L Grommet, Washer
85380 Nozzle & Hose Assy, FR Washer
85387B Clamp, Washer, NO.3
85388 Clamp NO.2 (FOR WINDSEIELD WASHER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
