Toyota Levin/Hybrid

2019-06 → present · chassis MZEA1#,NRE210,ZWE21# · catalogue 168320 · General

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

7 part groups · 4 illustrations

Illustrations

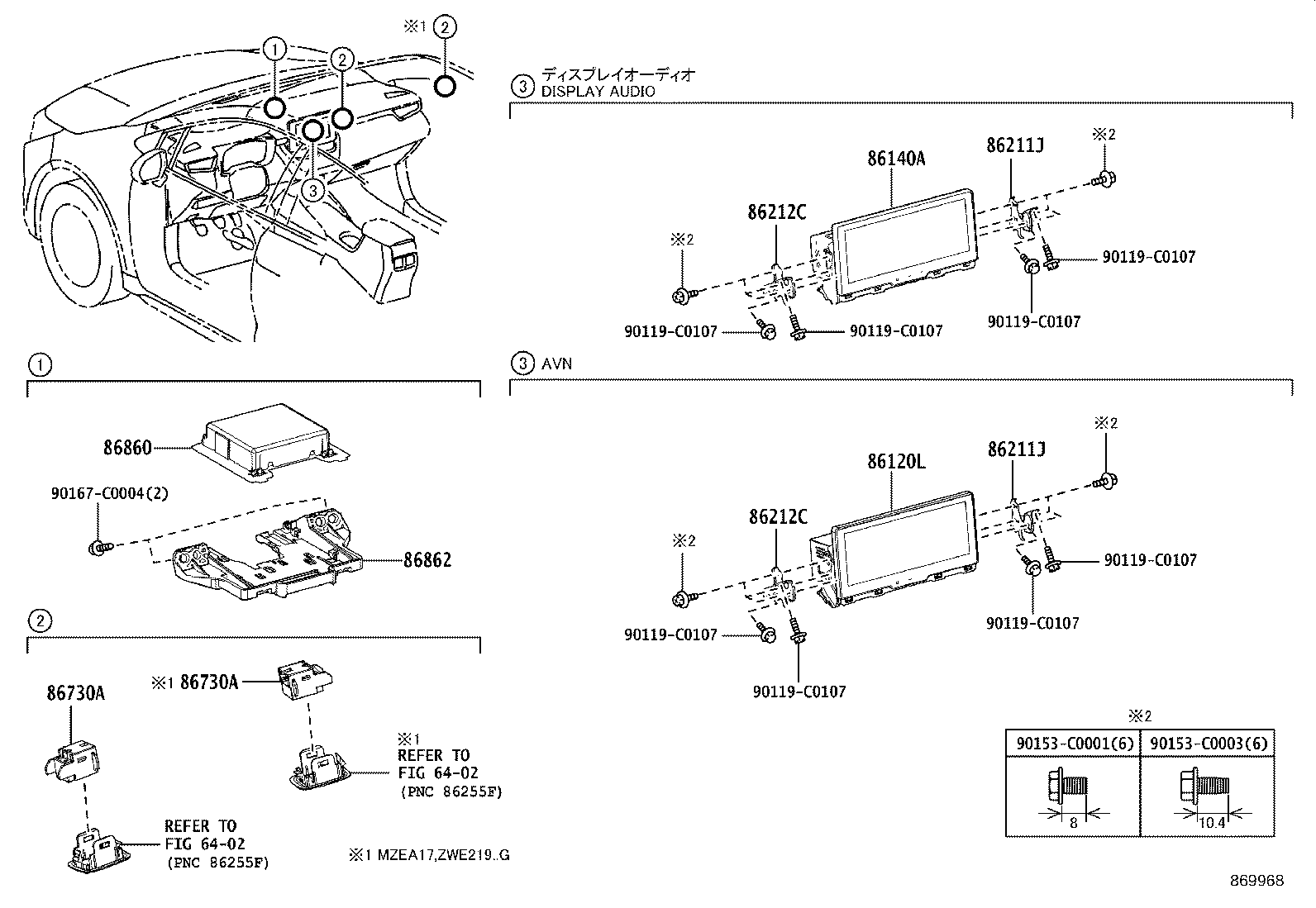

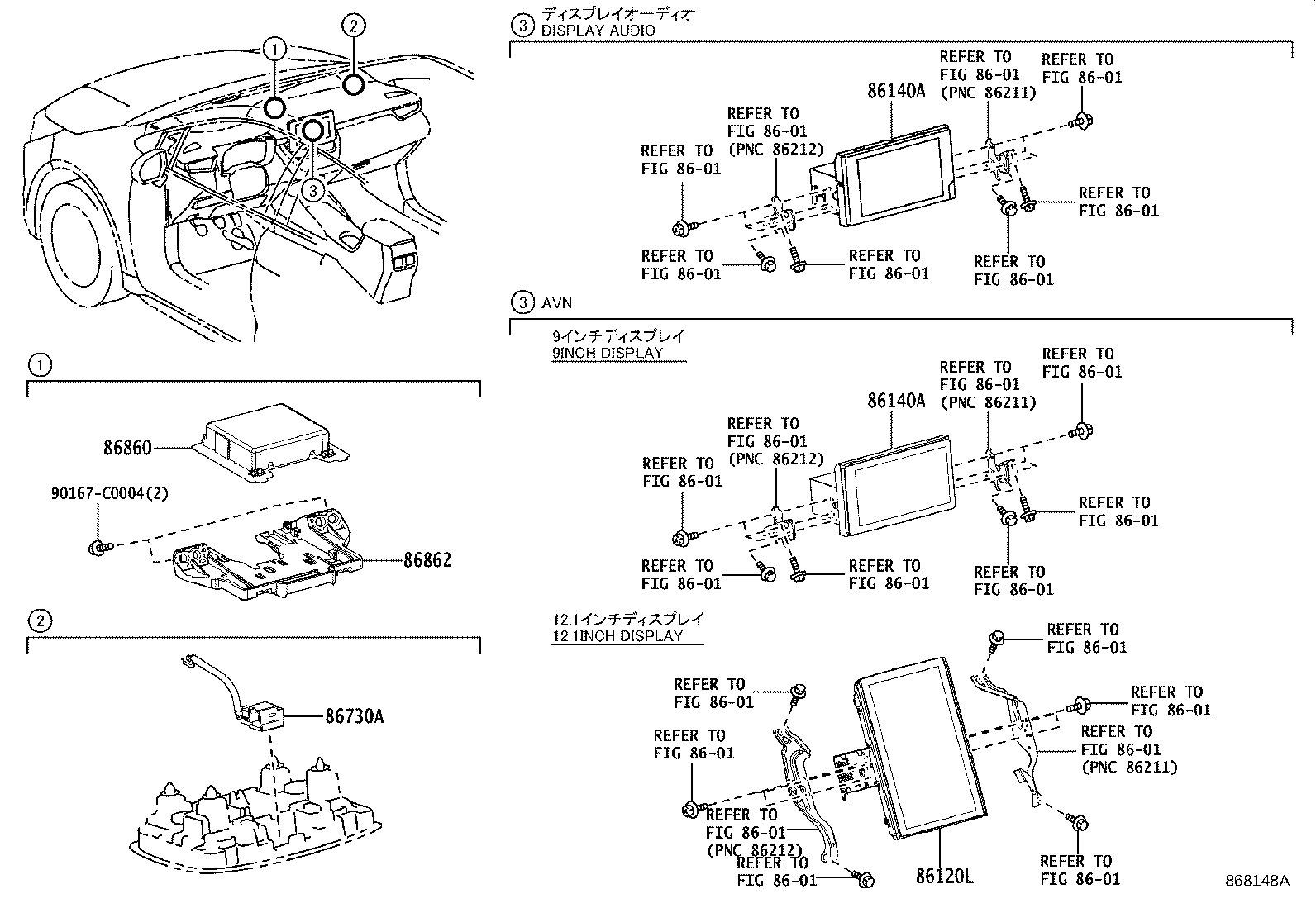

Figure 867610B 867610B 2019-06 → 2020-07 Figure 868148A 868148A 2020-07 → 2023-04 Figure 868148A 868148A 2022-07 → — Figure 869968 869968 2023-04 → —

Part groups

PNCDescription
86120L Receiver Assy, Navigation
86140A Receiver Assy, Radio & Display
86211J Bracket, Radio Receiver, NO.1
86212C Bracket, Radio Receiver, NO.2
86730A Microphone Assy, Telephone
86860 Antenna Assy, Navigation
86862 Bracket, Navigation Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
