Toyota Levin/Hybrid
2019-06 → present · chassis MZEA1#,NRE210,ZWE21# · catalogue 168320 · General
Supported model
Data version 2023-03
Horn

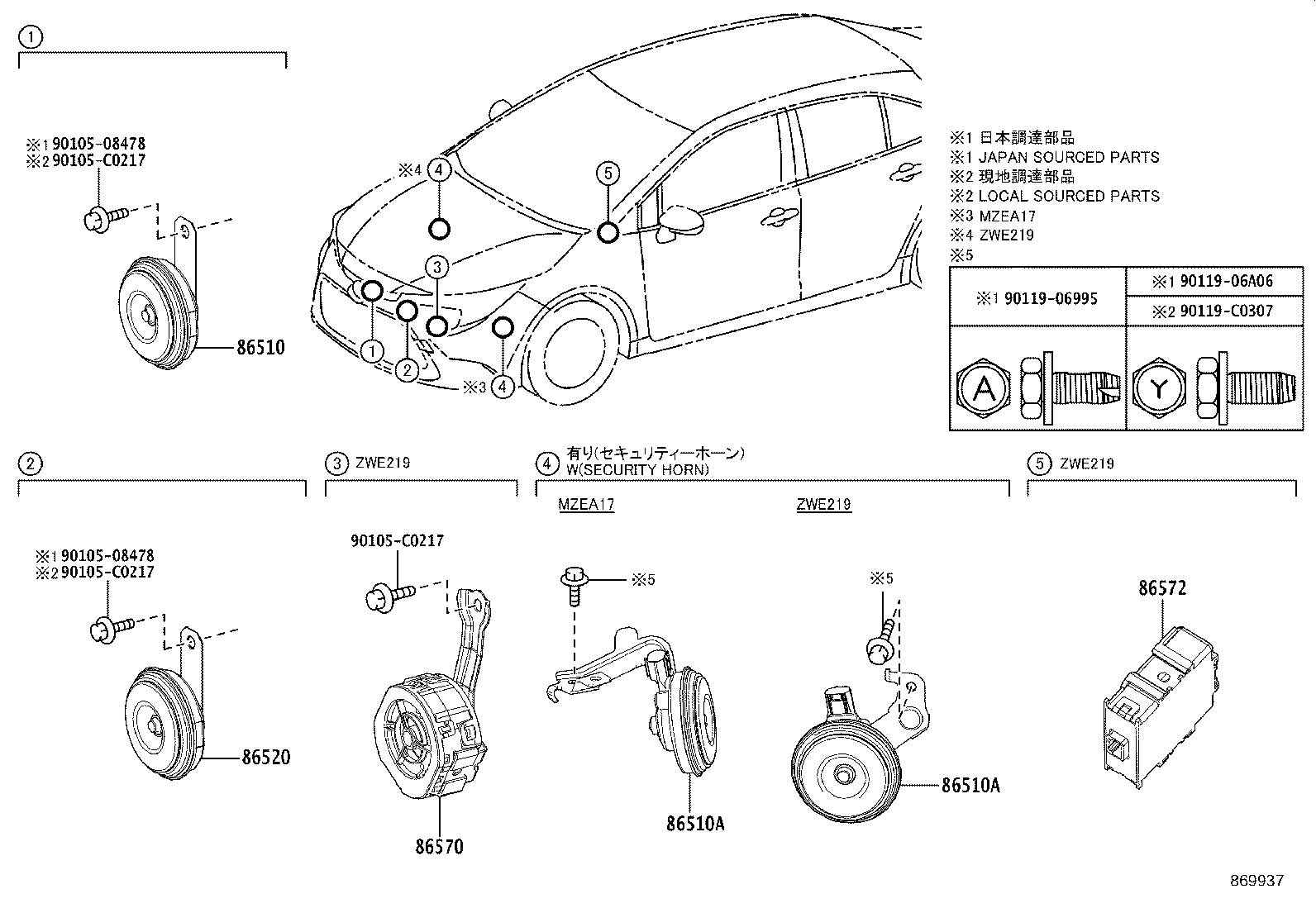

7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86510 | Horn Assy, High Pitched |
| 86510A | Horn Assy, Security |
| 86520 | Horn Assy, Low Pitched |
| 86570 | Speaker Assy, Vehicle Approaching |
| 86572 | Controller, Vehicle Approaching Speaker |
| 86591 | Bracket, Horn |
| F1712 | Cover, Vehicle Approaching Speaker Controller |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
