Heating & Air Conditioning - Water Piping

4 part groups · 4 illustrations

Illustrations

Figure 87I988C

87I988C 2021-01 → —

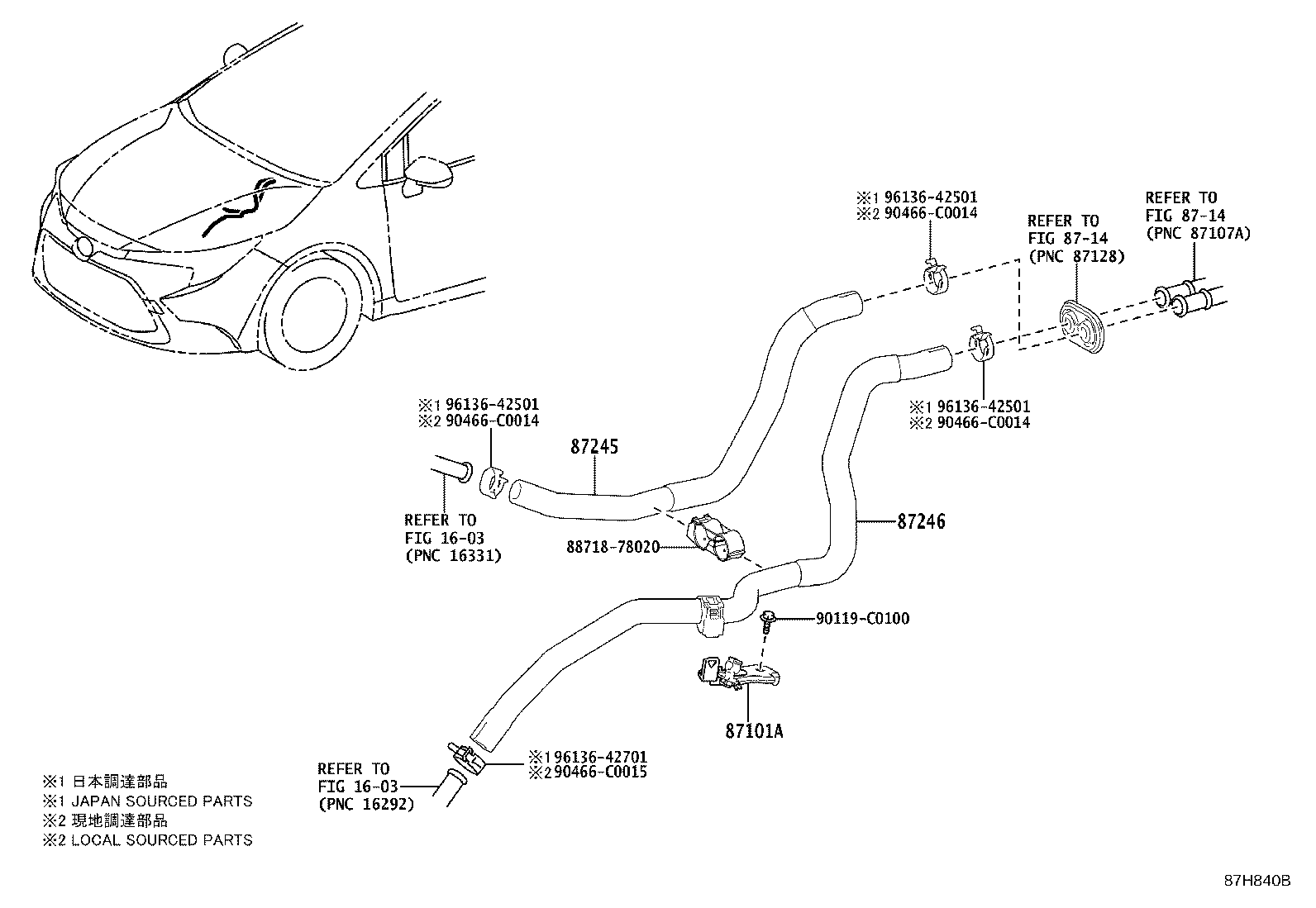

Figure 87H840B

87H840B 2019-06 → —

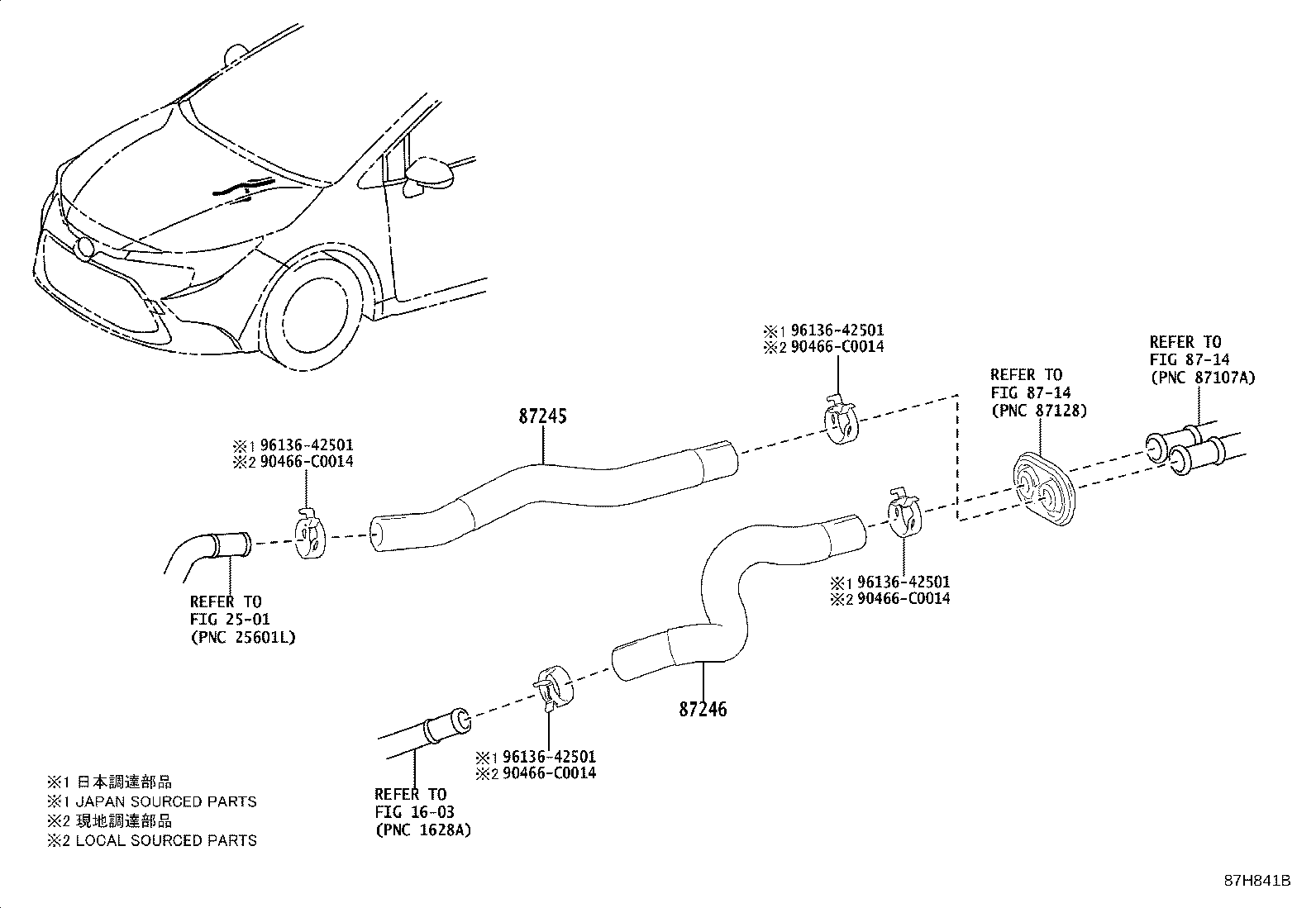

Figure 87H841B

87H841B 2019-06 → —

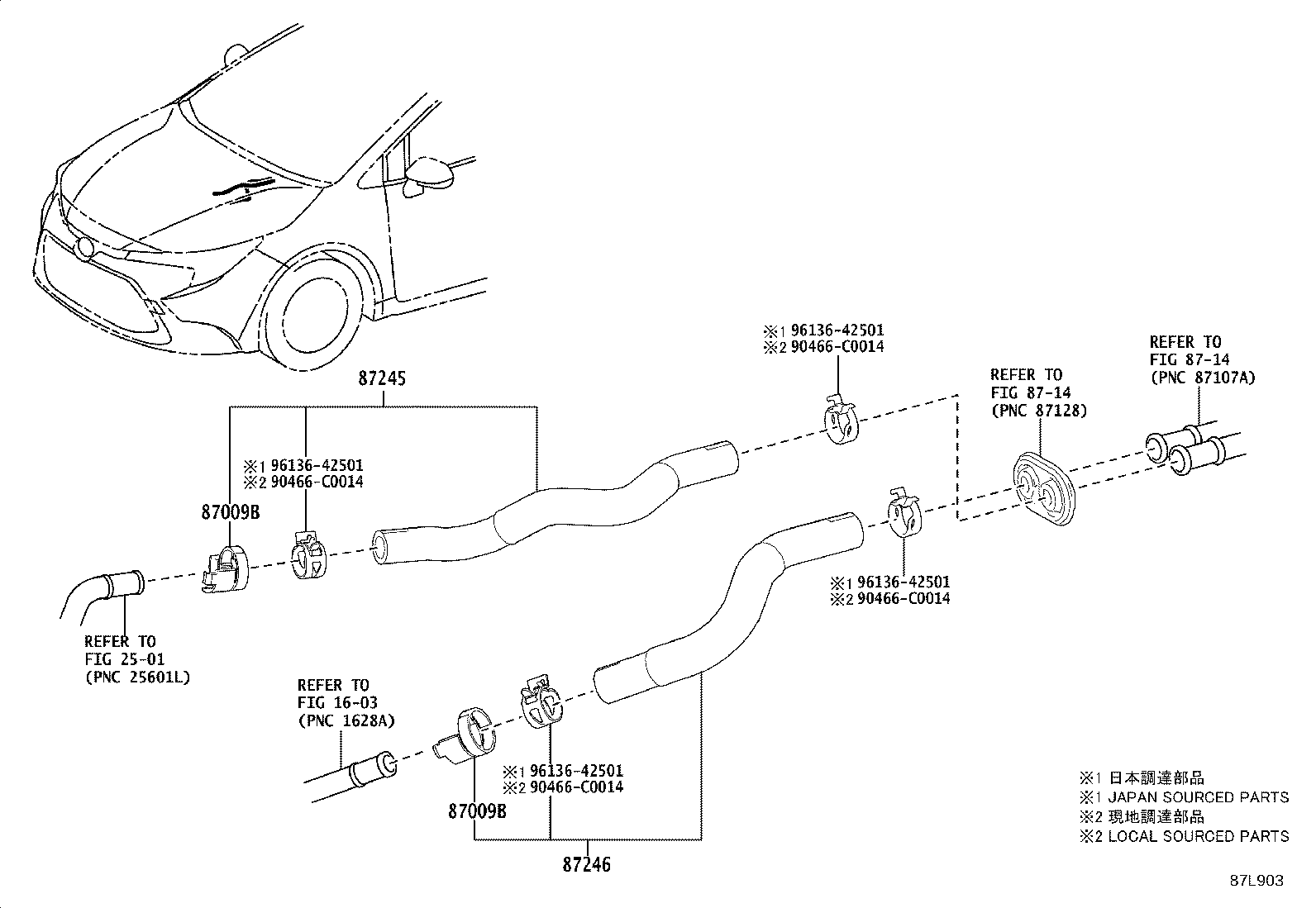

Figure 87L903

87L903 2023-04 → —

Part groups

PNC	Description
87009B	Hose Set, Water
87101A	Bracket Sub-assy, Heater NO.1
87245	Hose, Heater Water, Inlet
87246	Hose, Heater Water, Outlet

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
