Heating & Air Conditioning - Cooler Piping

22 part groups · 8 illustrations

Illustrations

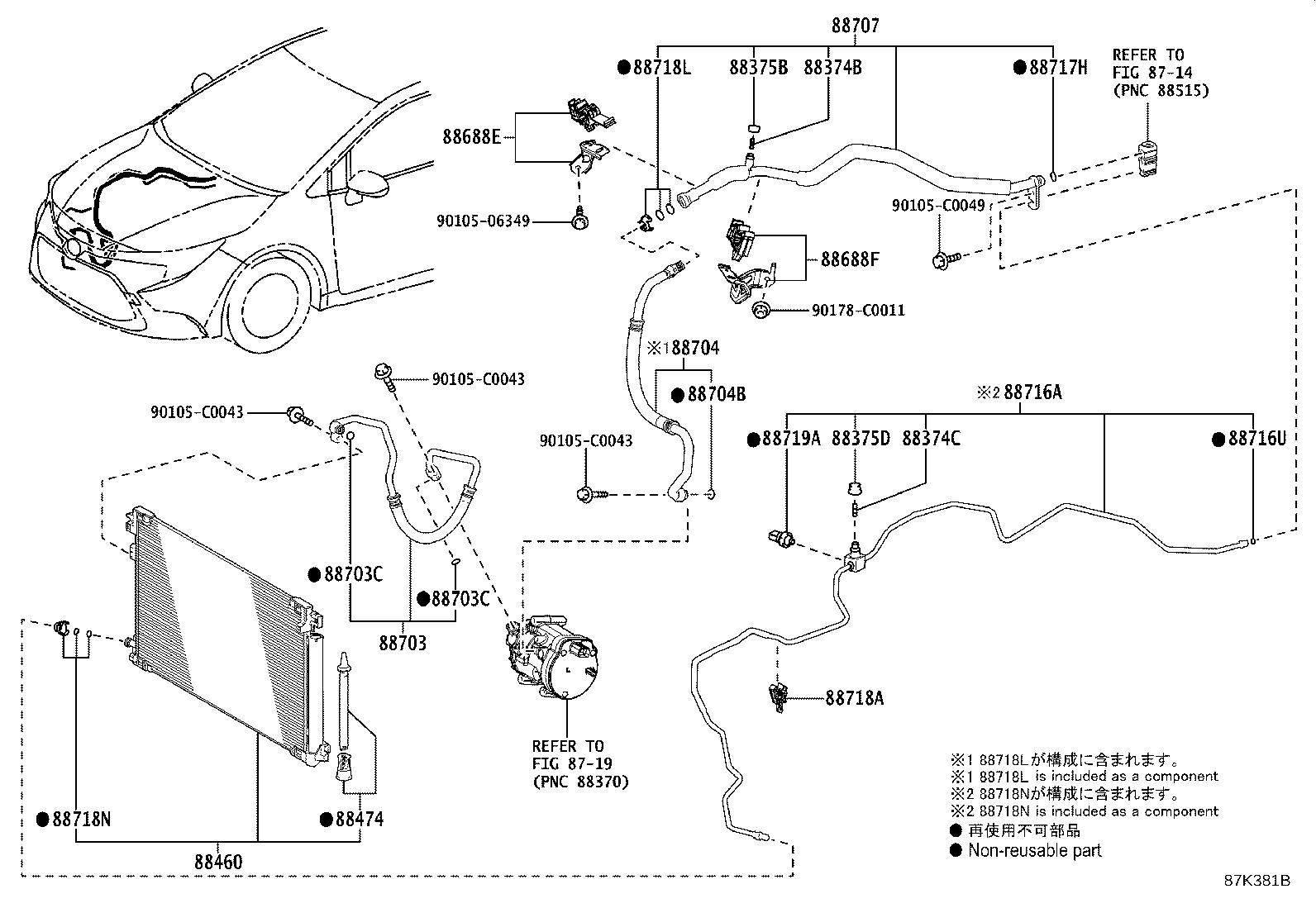

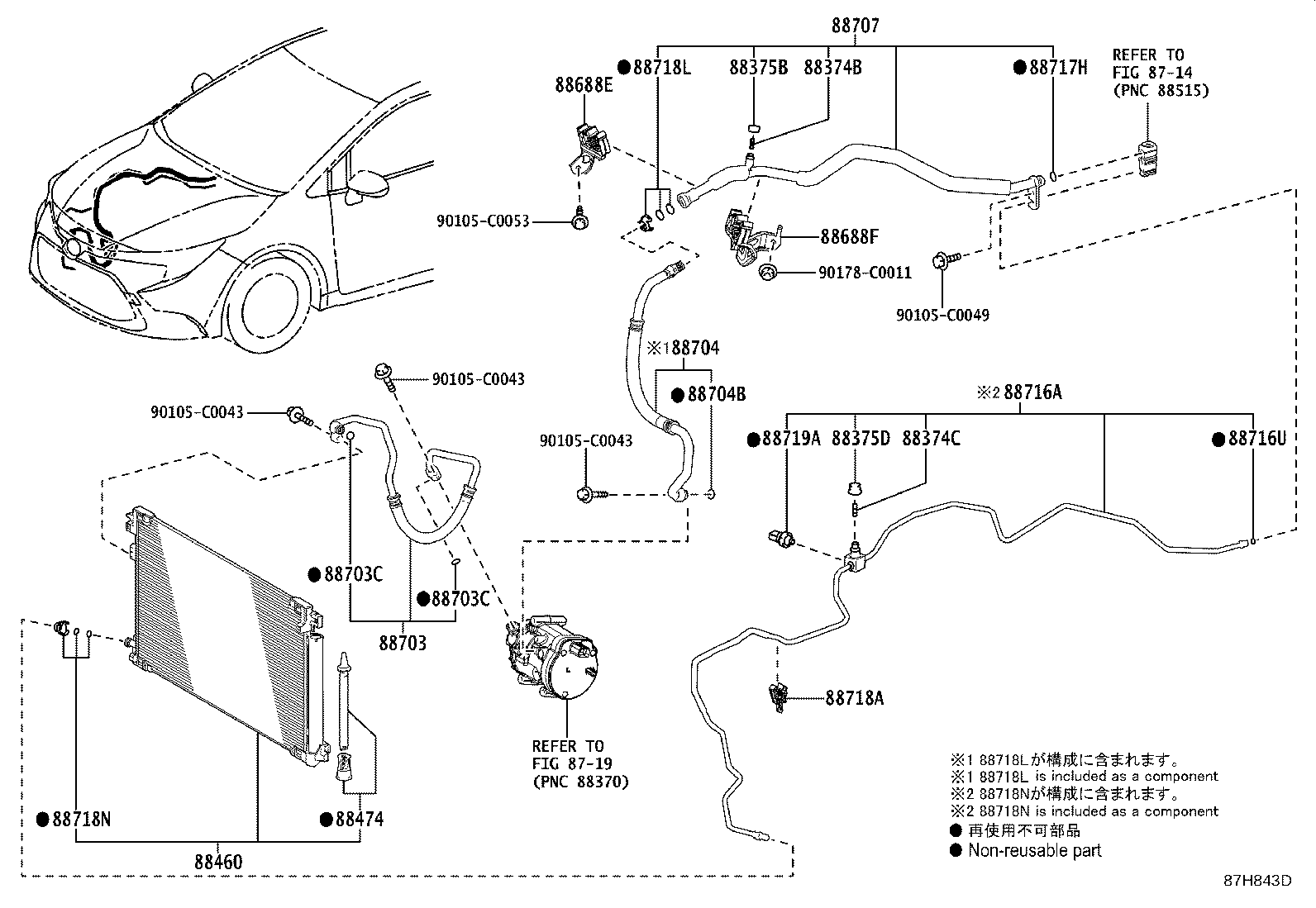

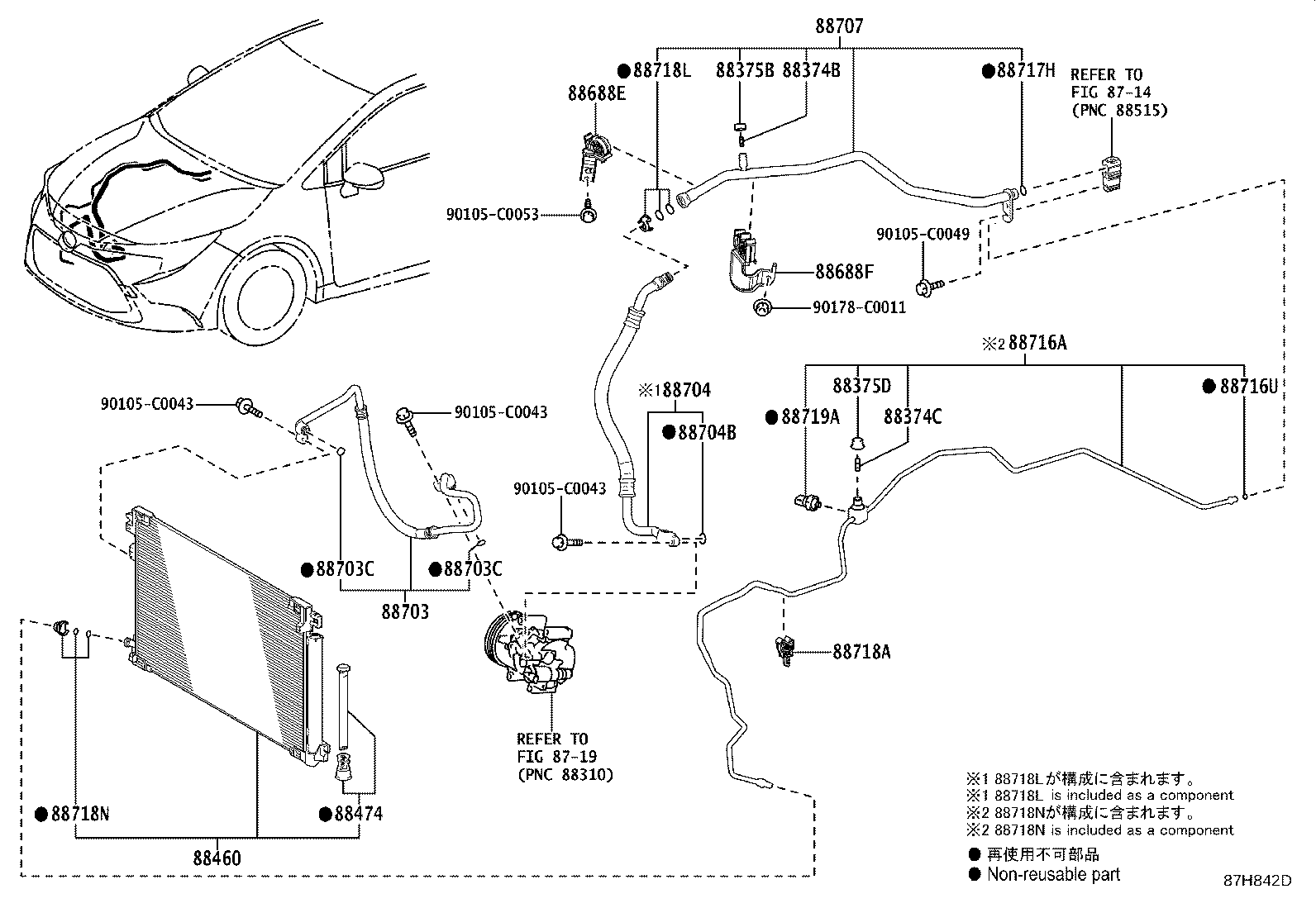

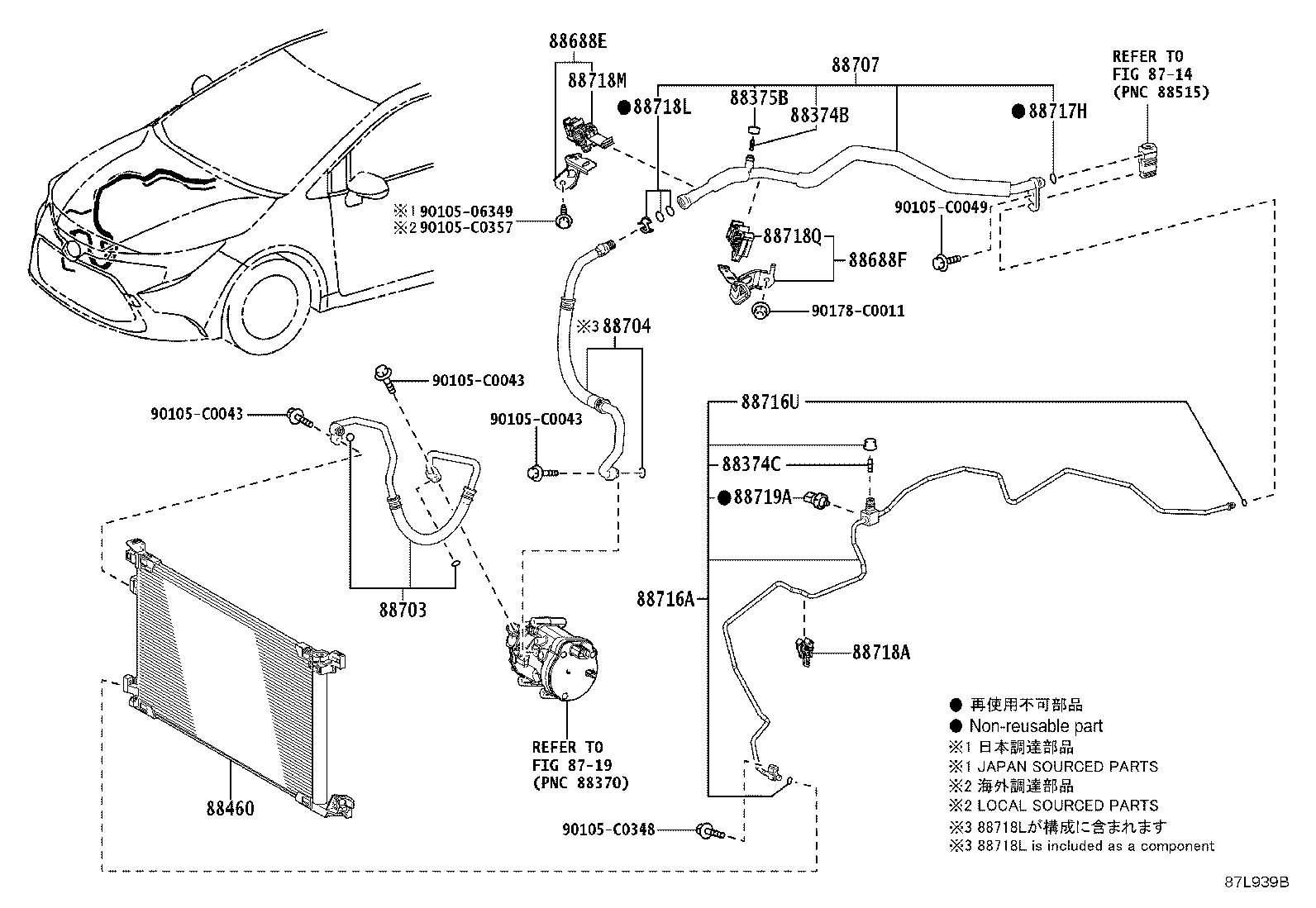

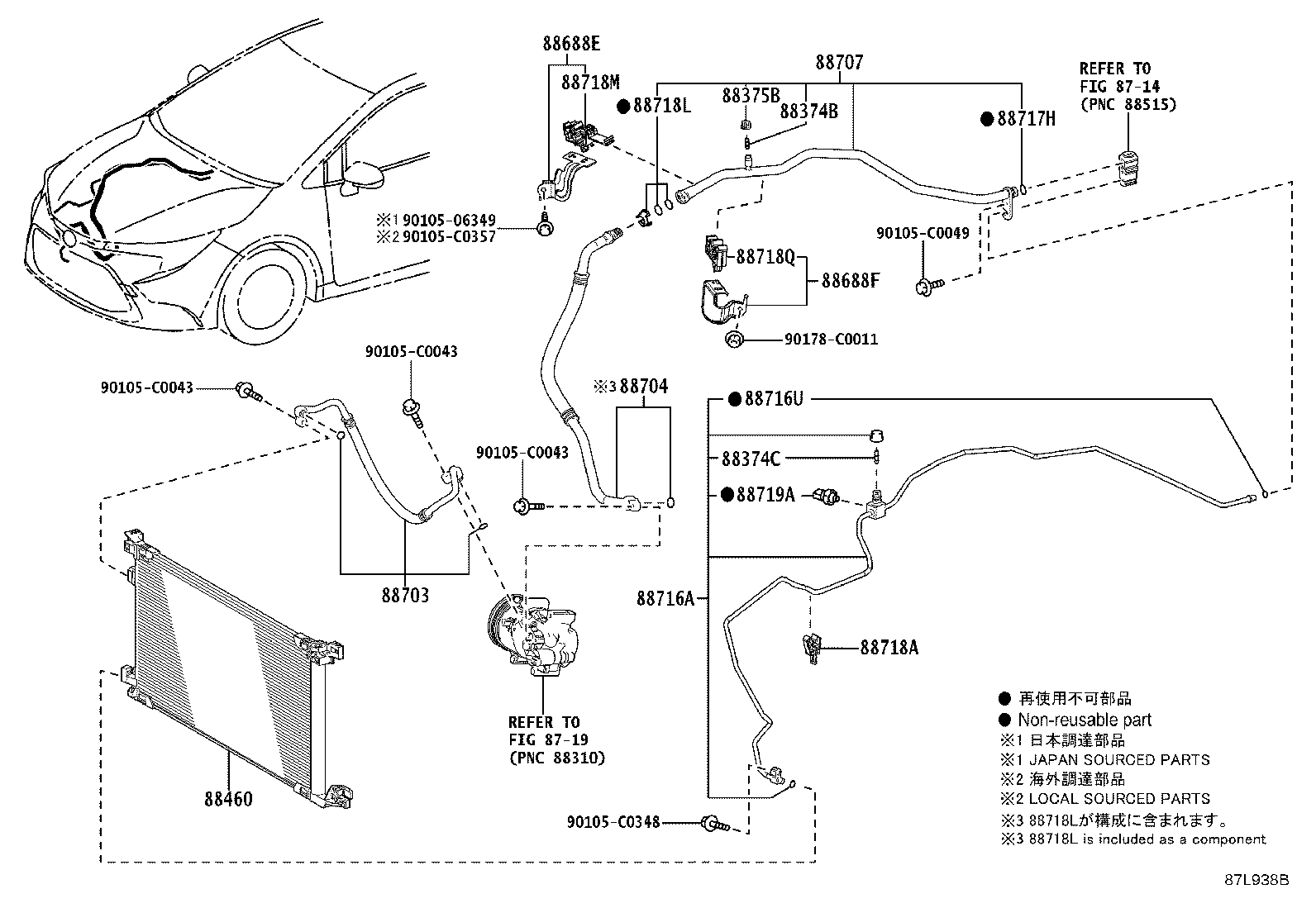

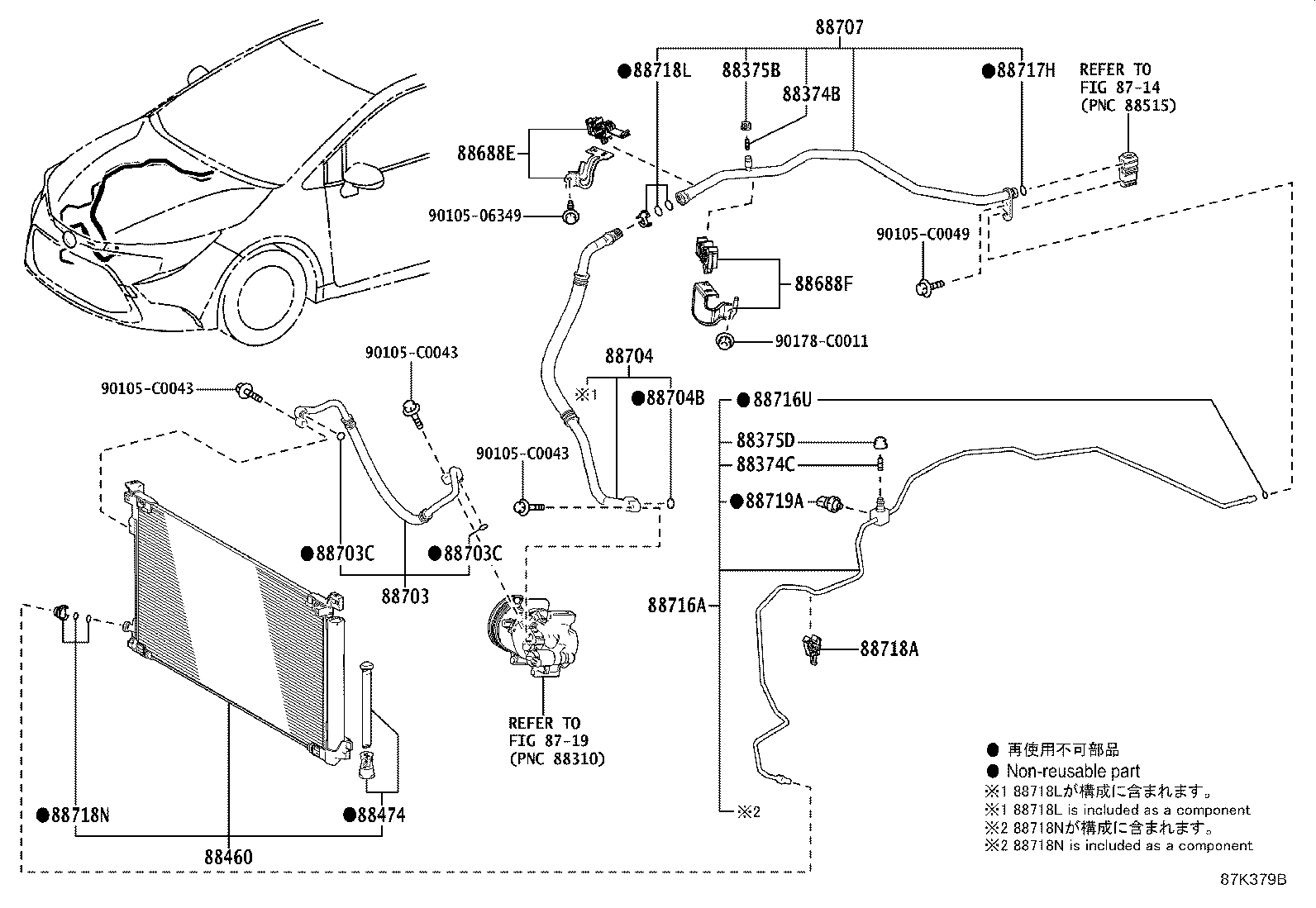

Figure 87I993A 87I993A 2021-01 → 2021-07 Figure 87K379B 87K379B 2021-08 → 2023-04 Figure 87L938B 87L938B 2023-04 → — Figure 87H842D 87H842D 2019-06 → 2021-07 Figure 87K380 87K380 2021-08 → — Figure 87H843D 87H843D 2019-06 → 2021-07 Figure 87K381B 87K381B 2021-08 → 2023-04 Figure 87L939B 87L939B 2023-04 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88688E Bracket, Cooler Refrigerant Hose, NO.1
88688F Bracket, Cooler Refrigerant Hose, NO.2
88703 Hose Sub-assy, Discharge
88703C Ring, O(FOR DISCHARGE HOSE)
88704 Hose Sub-assy, Suction
88704B Ring, O(FOR SUCTION HOSE)
88707 Pipe Sub-assy, Suction
88716A Pipe, Cooler Refrigerant Liquid, A
88716U Ring, O(FOR COOLER REFRIGERANT LIQUID PIPE)
88717H Ring, O(FOR COOLER REFRIGERANT SUCTION PIPE)
88718A Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88718L Clamp, Piping
88718M Clamp, Piping
88718N Clamp, Piping
88718Q Clamp, Piping
88719A Sensor, Air Conditioner Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
