Toyota Allion

2021-04 → present · chassis MZEA12,MZEH16 · catalogue 169310 · General

Supported model Data version 2023-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

24 part groups · 2 illustrations

Illustrations

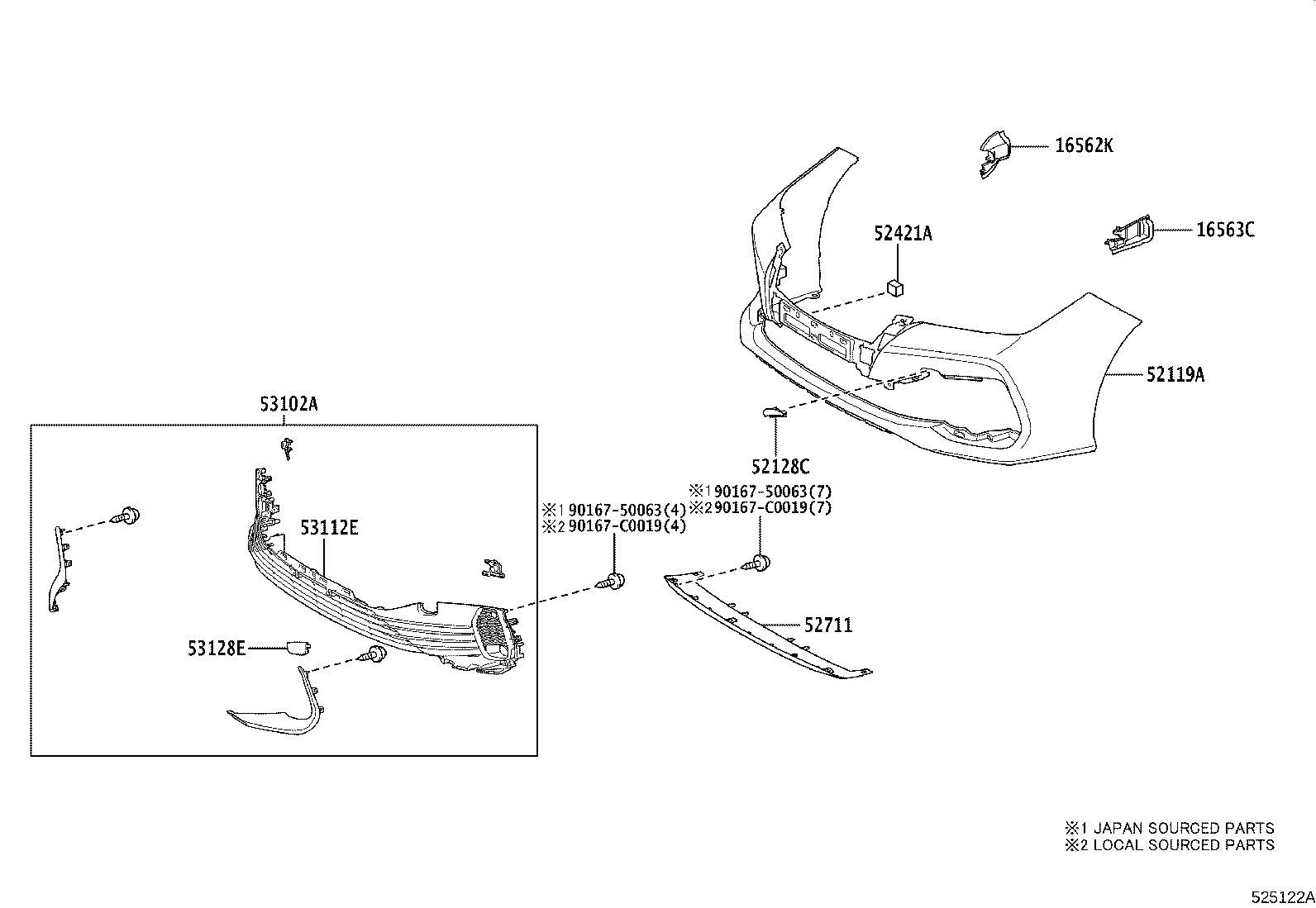

Figure 525121B 525121B 2021-04 → — Figure 525122A 525122A 2021-04 → —

Part groups

PNCDescription
16562K Seal, Radiator TO Support, NO.2
16563C Seal, Radiator TO Support, NO.3
47749F Clip, Pin Hold
51451F Grommet, NO.1
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52128C Cover, Front Bumper Hole, LH
52131A Reinforcement, Front Bumper
52132A Reinforcement, Front Bumper, NO.2
52133F Bracket, Front Bumper, RH
52134G Bracket, Front Bumper, LH
52421A Pad, Front Bumper
52611 Absorber, Front Bumper Energy
52618 Absorber, Front Bumper, Lower
52711 Moulding, Front Bumper
53102A Grille Sub-assy, Radiator, Lwr
53112E Grille, Radiator, Lower NO.1
53121E Clip(FOR FRONT BUMPER), NO.1
53128E Grille, Radiator, Lower Side LH
53879H Retainer, Front Fender Liner
57013C Bracket Sub-assy, Front Side Member, RH
57014A Bracket Sub-assy, Front Side Member, LH
76851G Grommet, Screw, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
