Toyota Allion

2021-04 → present · chassis MZEA12,MZEH16 · catalogue 169310 · General

Supported model Data version 2023-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

26 part groups · 2 illustrations

Illustrations

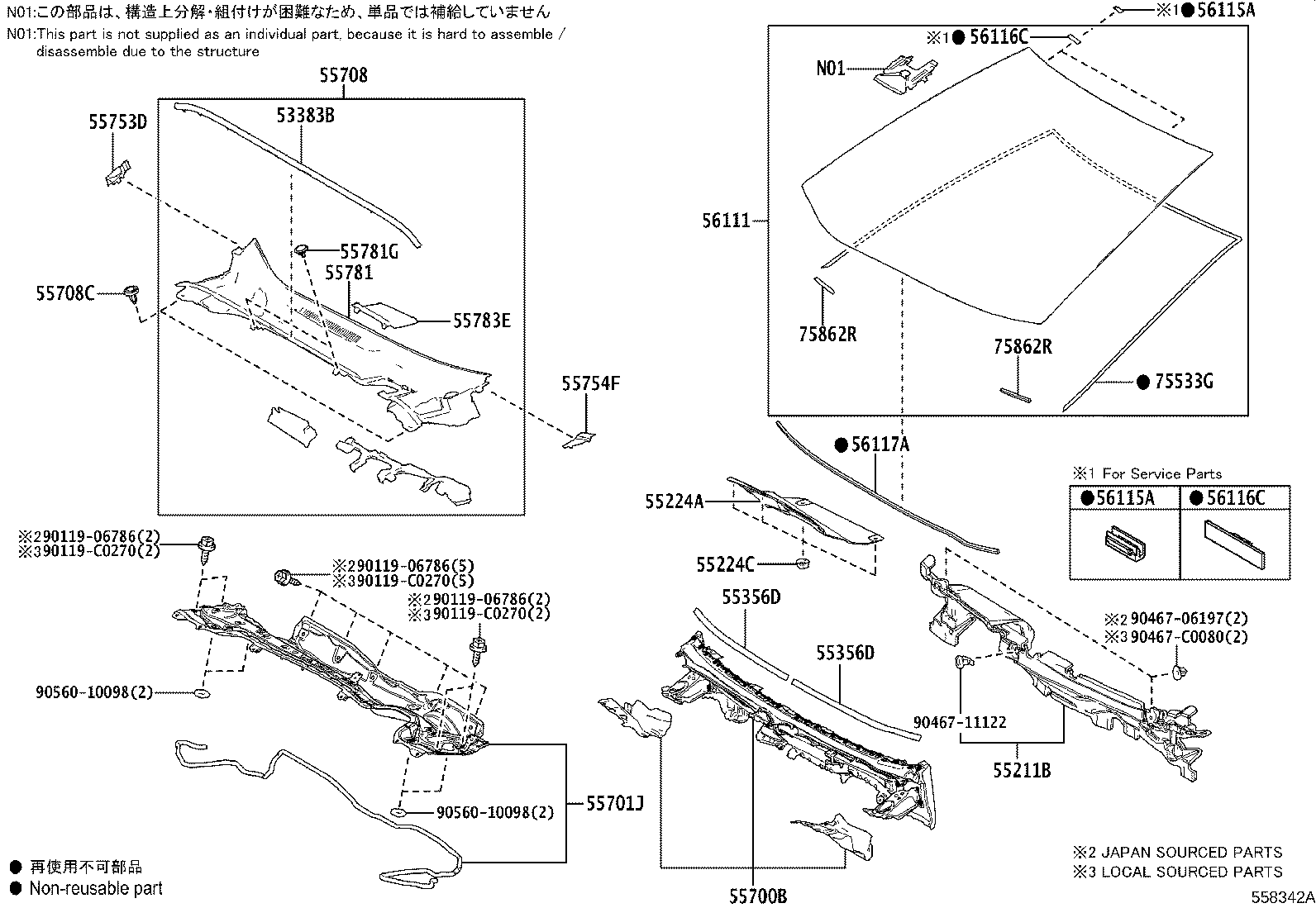

Figure 554927G 554927G 2021-04 → 2023-04 Figure 558342A 558342A 2023-05 → —

Part groups

PNCDescription
53383B Seal, Hood TO Cowl Top
55211B Silencer, Front Panel
55224A Insulator, Dash Panel, Outer NO.2
55224C Clip, Dash Panel Insulator
55356D Cushion, Instrument Panel, NO.2
55700B Cowl Assy
55701J Panel Sub-assy, Cowl Top, Outer
55708 Louver Sub-assy, Cowl Top Ventilator
55708C Clip, Cowl Top Ventilator Louver
55753D Shield, Cowl Water Extract, RH
55754F Shield, Cowl Water Extract, LH
55781 Louver, Cowl Ventilator
55781G Clip, Cowl Top Ventilator Louver
55783E Louver, Cowl Top Ventilator, Center
55875A Seal, Air Duct, NO.5
55876D Seal, Air Duct, NO.6
55877B Cover, Cowl Vent, RH
55878B Cover, Cowl Vent, LH
56111 Glass, Windshield
56115A Stopper, Windshield Glass, NO.1
56116C Stopper, Windshield Glass, NO.2
56117A Dam, Window Glass Adhesive
56153C Moulding, Front Window, Inner Center
75533G Moulding, Windshield, Outside
75862R Protector, Rocker Panel Moulding, NO.2
F1969 Tape, Seal(FOR TOLL COLLECTION COMPUTER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
