Toyota Allion
2021-04 → present · chassis MZEA12,MZEH16 · catalogue 169310 · General
Supported model
Data version 2023-06

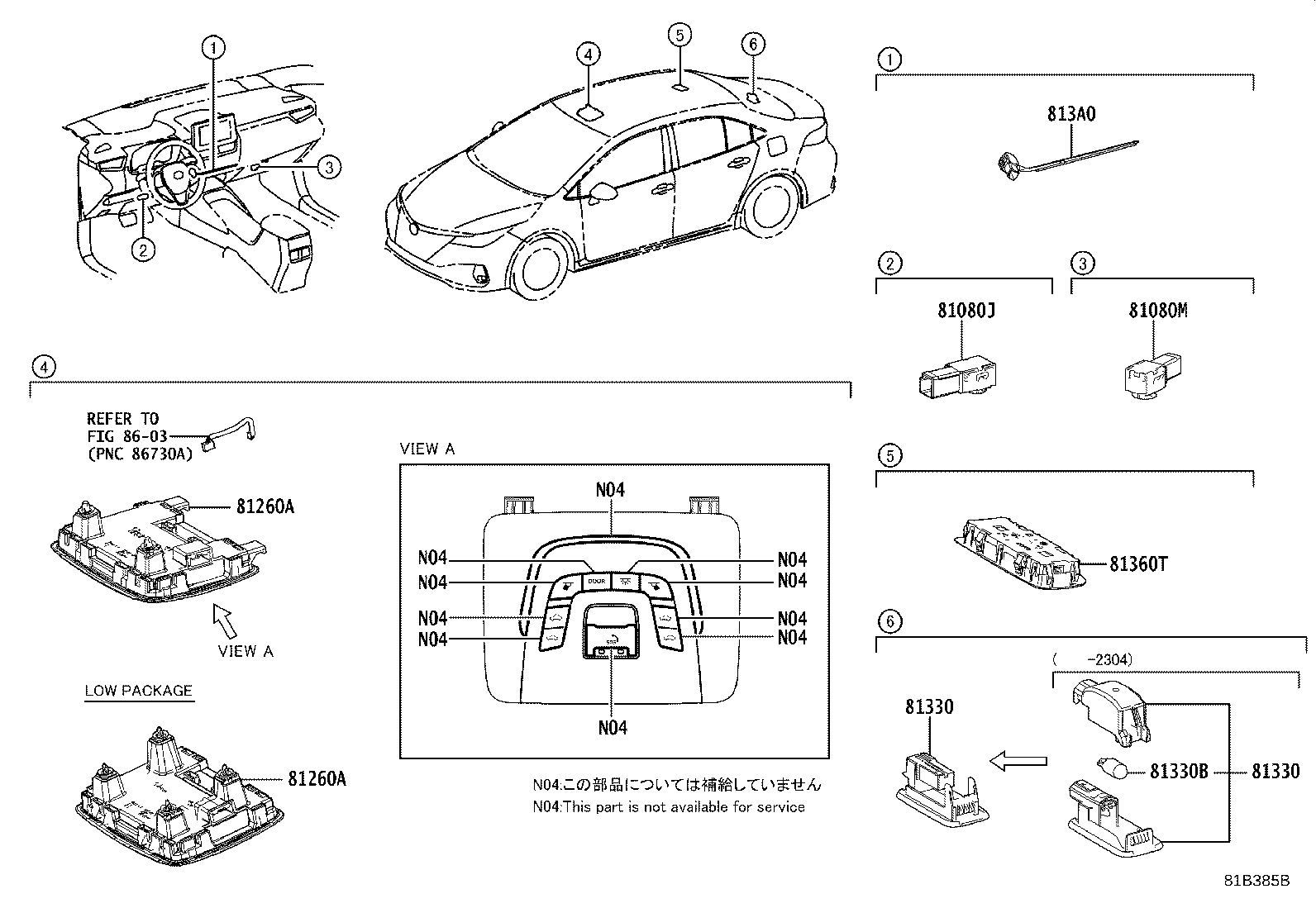

Interior Lamp
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 63395E | Clip(FOR MAP LAMP) |
| 81080J | Lamp Assy, Interior Illumination, NO.1 |
| 81080M | Lamp Assy, Interior Illumination, NO.1 |
| 81208 | Lamp Sub-assy, Map |
| 81260A | Lamp Assy, Map |
| 81260C | Bulb(FOR MAP LAMP) |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
| 81330B | Bulb, Luggage Compartment Lamp |
| 81360T | Lamp Assy, Spot |
| 81360U | Bulb, Spot Lamp |
| 81361D | Lens, Spot Lamp |
| 81361E | Lens, Spot Lamp, NO.2 |
| 813A0 | Lamp Assy, Instrument Panel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
