Toyota Allion
2021-04 → present · chassis MZEA12,MZEH16 · catalogue 169310 · General
Supported model
Data version 2023-06
Camera & Rear Monitor Display

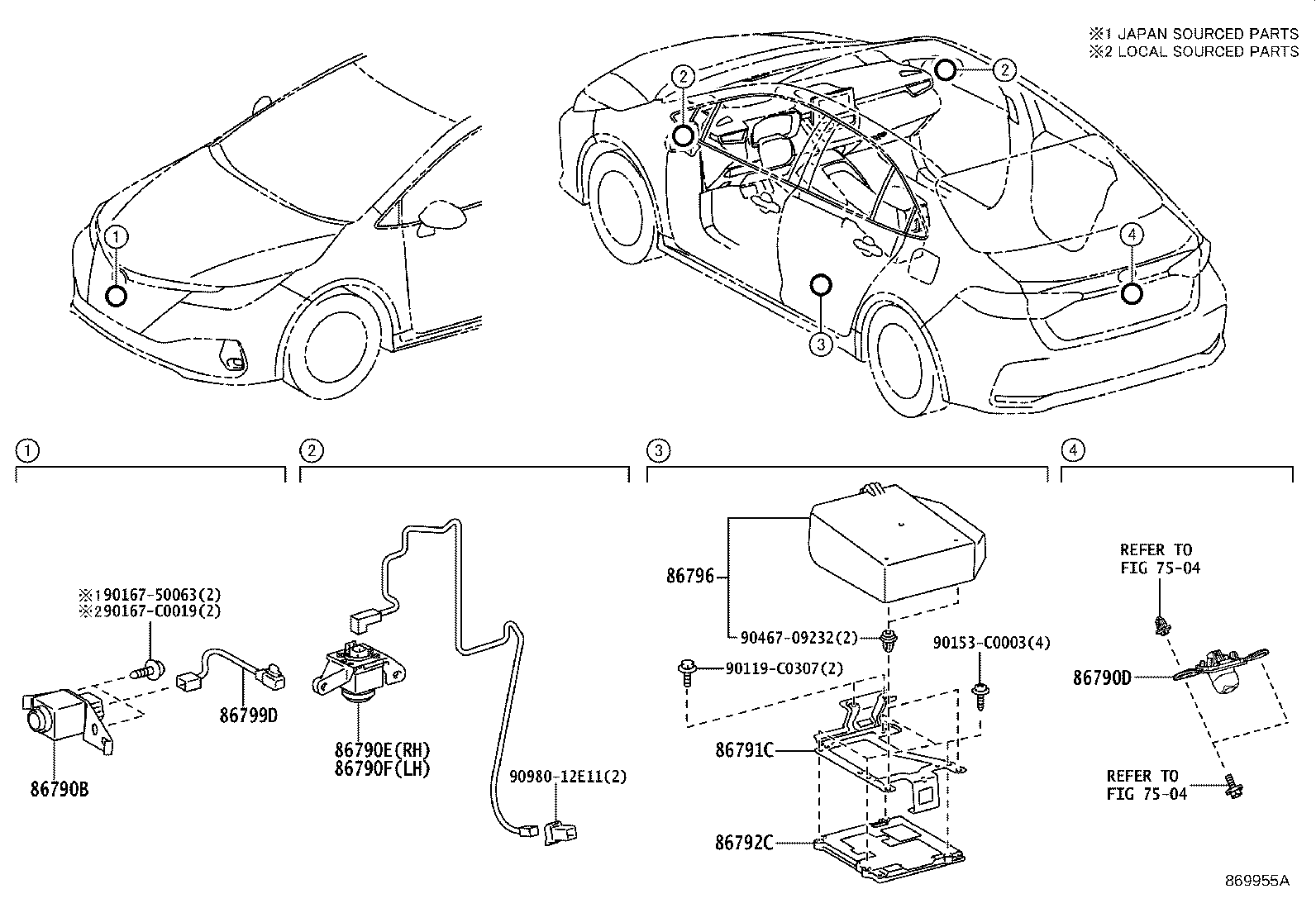

8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86790B | Camera Assy, Television, FR |
| 86790D | Camera Assy, Television, RR |
| 86790E | Camera Assy, Television, Side RH |
| 86790F | Camera Assy, Television, Side LH |
| 86791C | Bracket, Computer Parking Assist, NO.1 |
| 86792C | Computer, Parking Assist |
| 86796 | Cover, Computer Parking Assist |
| 86799D | Wire, Television Camera, Front |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
