Toyota Corolla (CHINA)
2019-03 → 2022-07 · chassis ZWE183 · catalogue 16A310 · General
Supported model
Data version 2023-09

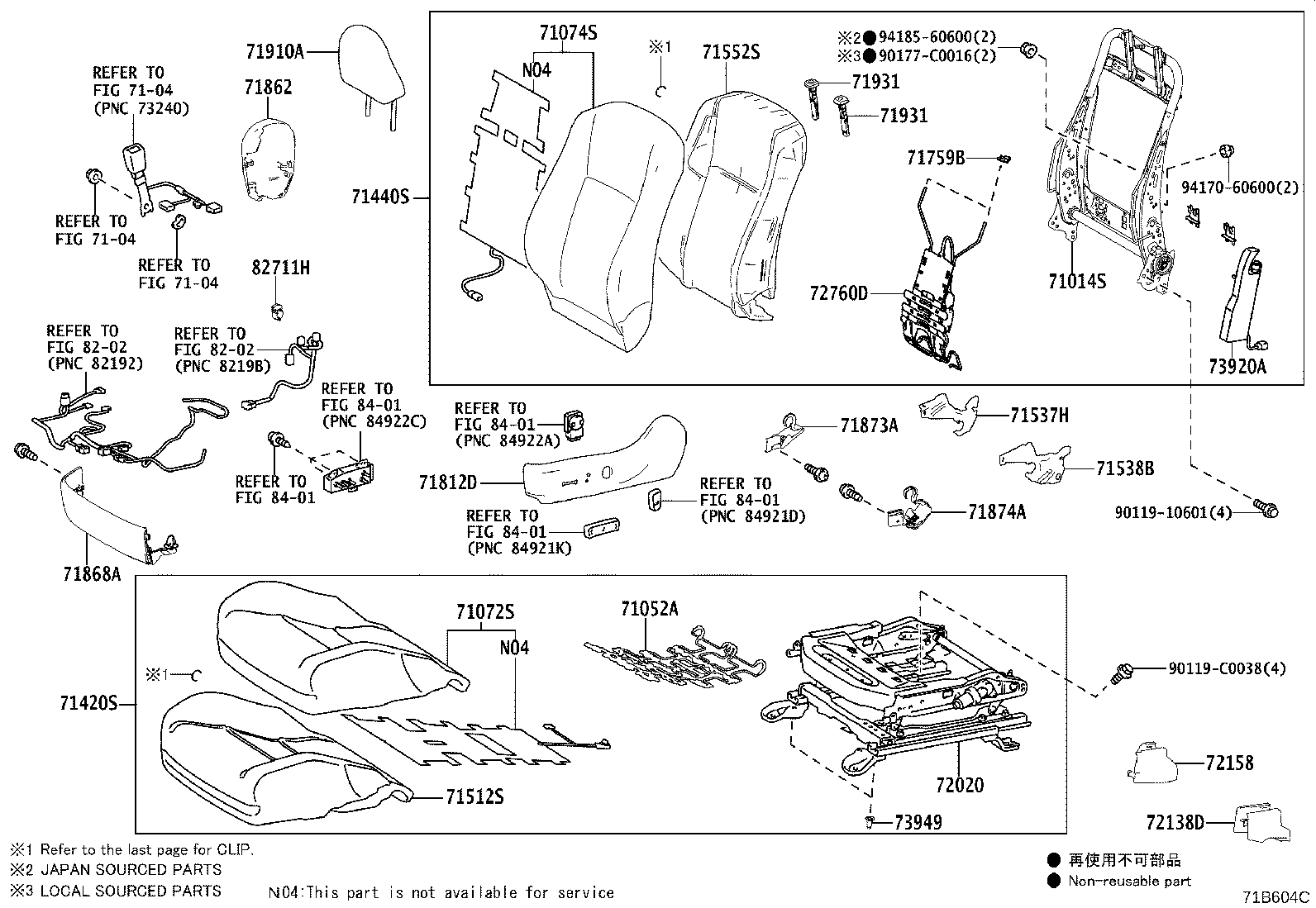

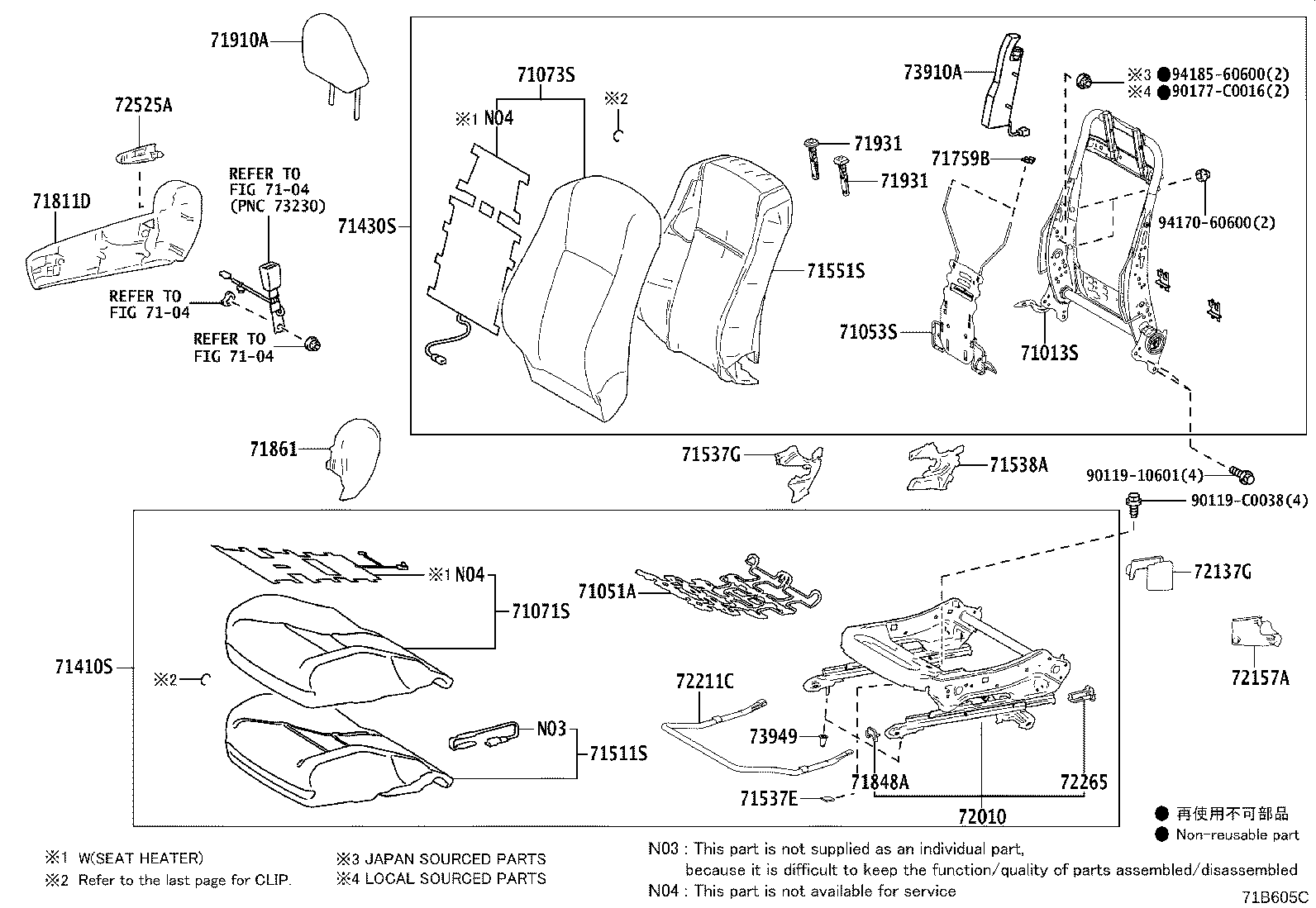

Front Seat & Seat Track
53 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 71013S | Frame Sub-assy, Front Seatback, RH |
| 71014S | Frame Sub-assy, Front Seatback, LH |
| 71051A | Spring Sub-assy, Front Seat Cushion, RH |
| 71052A | Spring Sub-assy, Front Seat Cushion, LH |
| 71053S | Spring Sub-assy, Front Seatback, RH |
| 71054S | Spring Sub-assy, Front Seatback, LH |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71410S | Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71420S | Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE) |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71537E | Protector, Front Seat Cushion, NO.1 |
| 71537F | Protector, Front Seat Cushion, NO.2 |
| 71537G | Protector, Front Seat Cushion Edge, RH(FOR RH SEAT) |
| 71537H | Protector, Front Seat Cushion Edge, RH(FOR LH SEAT) |
| 71538A | Protector, Front Seat Cushion Edge, LH(FOR RH SEAT) |
| 71538B | Protector, Front Seat Cushion Edge, LH(FOR LH SEAT) |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71759B | Hook, Front Seatback |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71848A | Cap, Seat Adjuster Cover, RH |
| 71849 | Cap, Seat Adjuster Cover, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71868A | Shield, Front Seat Cushion, Inner NO.1 LH |
| 71873A | Shield, Front Seat Cushion, Lower |
| 71874A | Shield, Front Seat Cushion, Lower LH |
| 71910A | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 72010 | Adjuster Assy, Front Seat, RH |
| 72020 | Adjuster Assy, Front Seat, LH |
| 72137G | Cover, Seat Track, Outer RH |
| 72138D | Cover, Seat Track, Outer, LH |
| 72157A | Cover, Seat Track Bracket, Inner RH |
| 72158 | Cover, Seat Track Bracket, Inner LH |
| 72211C | Handle, Seat Track Adjusting |
| 72265 | Cover, Seat Track Upper Rail, RH |
| 72266C | Cover, Seat Track Upper Rail, LH |
| 72495 | Handle, Vertical Adjusting, LH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526A | Handle, Reclining Adjuster Release, LH |
| 72760D | Adjuster Assy, Lumbar Support, LH |
| 73910A | Airbag Assy, Front Seat, RH |
| 73920A | Airbag Assy, Front Seat, LH |
| 73949 | Cap |
| 82711H | Clamp, Wiring Harness |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
