Toyota Corolla (CHINA)

2019-03 → 2022-07 · chassis ZWE183 · catalogue 16A310 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

19 part groups · 2 illustrations

Illustrations

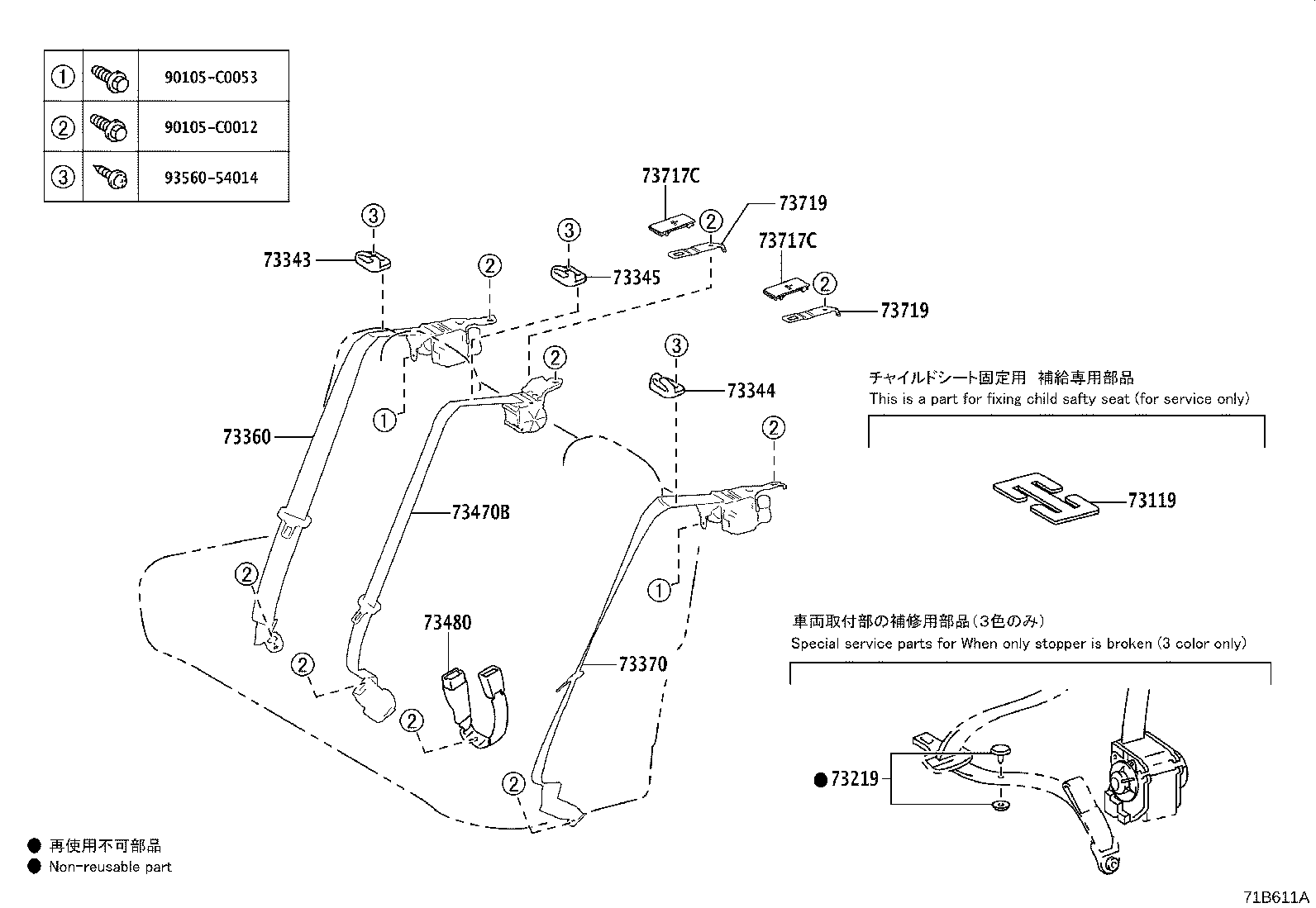

Figure 71B610A 71B610A 2019-03 → — Figure 71B611A 71B611A 2019-03 → —

Part groups

PNCDescription
73023 Plate Sub-assy, Front Shoulder Belt Anchor, RH
73024 Plate Sub-assy, Front Shoulder Belt Anchor, LH
73119 Plate, Seat Belt Webbing Clip
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73240 Belt Assy, Front Seat Inner, LH
73343 Guide, Rear Seat Shoulder Belt, RH
73344 Guide, Rear Seat Shoulder Belt, LH
73345 Guide, Rear Seat Shoulder Belt, Center
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73470B Belt Assy, Rear Seat Inner W/Center, RH
73480 Belt Assy, Rear Seat Inner W/Center, LH
73717C Cover, Child Restraint Seat Tether Anchor, Center
73719 Bracket, Child Restraint Seat Tether Anchor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
