Toyota Corolla (CHINA)
2019-03 → 2022-07 · chassis ZWE183 · catalogue 16A310 · General
Supported model
Data version 2023-09
Fuel Tank & Tube
65 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 23220A | Pump Assy, Fuel W/Filter |
| 23225A | Spacer, Fuel Pump |
| 23280J | Regulator Assy, Fuel Pressure |
| 23280K | Ring, O(FOR FUEL PRESSURE REGULATOR) |
| 23280N | Ring, O(FOR FUEL PRESSURE REGULATOR), NO.2 |
| 77020A | Tube Assy, Fuel Suction W/Pump & Gage |
| 77024A | Plate Sub-assy, Fuel Suction |
| 77030A | Lock Assy, Fuel Lid W/Motor |
| 77100 | Tank Assy, Fuel |
| 77144 | Retainer, Fuel Pump Gauge |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77174 | Support, Fuel Suction, NO.1 |
| 77197D | Clamp, Evaporation Vent Tube, NO.2 |
| 77201E | Pipe Sub-assy, Fuel Tank Filler |
| 77209F | Tube Sub-assy, Fuel Tank Main |
| 77216A | Support, Fuel Tank Filler Pipe, NO.1 |
| 77217A | Support, Fuel Tank Filler Pipe, NO.2 |
| 77218A | Support, Fuel Tank Filler Pipe, NO.3 |
| 77229C | Clamp, Breather Tube |
| 77229D | Support, Fuel Tank Filler Pipe, NO.4 |
| 77241V | Clip, Tube Joint |
| 77241W | Clip, Tube Joint |

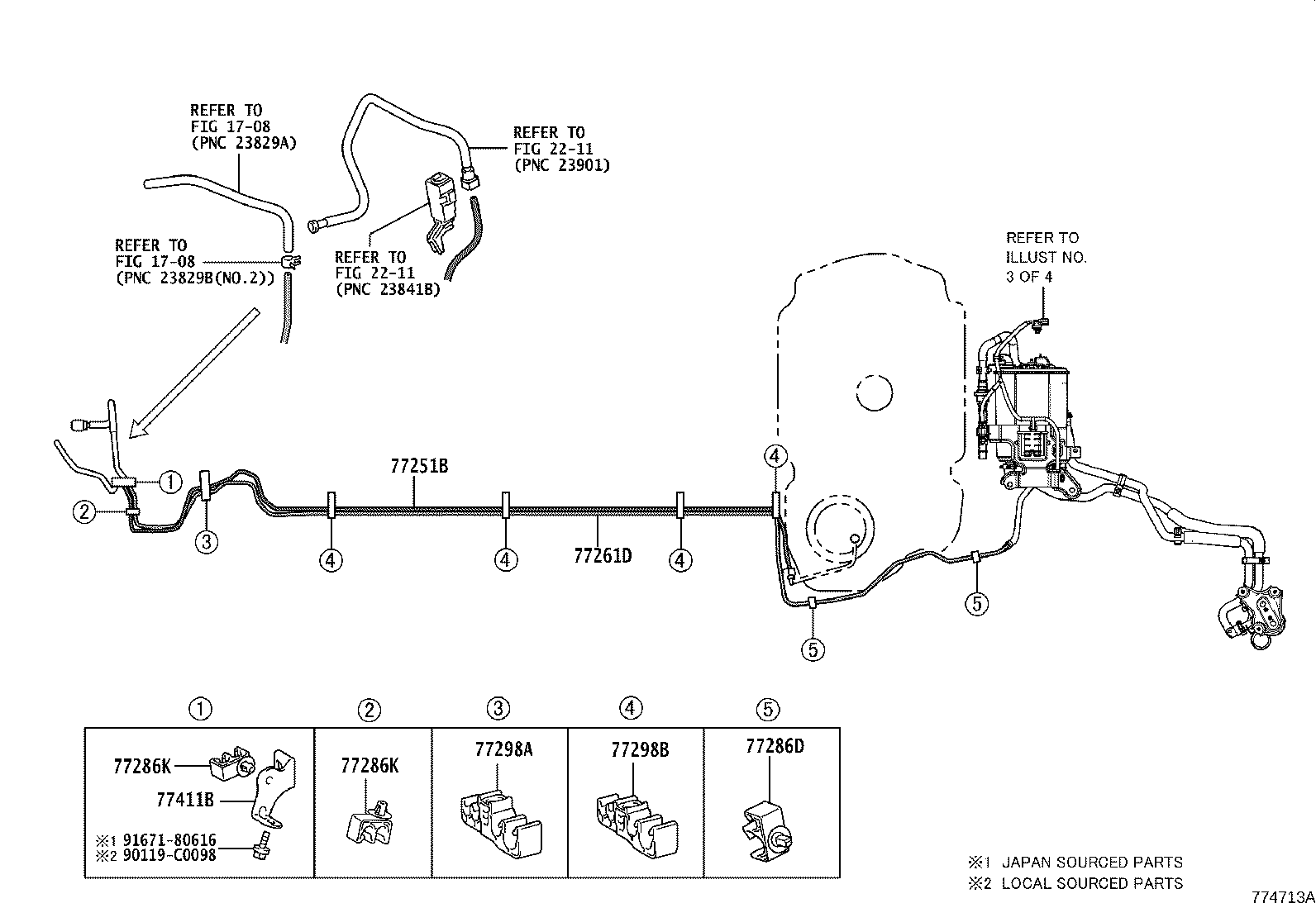

| 77251B | Tube, Fuel Main |
| 77261D | Tube, Fuel Tank TO Canister |
| 77277R | Protector, Fuel Tank Filler Pipe |
| 77281G | Clamp, Fuel Hose |
| 77283C | Bracket, Fuel Tank Protector |
| 77285D | Clamp, Fuel Tube, NO.1 |
| 77285L | Clamp, Fuel Tube, NO.1 |
| 77286D | Clamp, Fuel Tube, NO.2 |
| 77286F | Clamp, Fuel Tube, NO.2 |
| 77286K | Clamp, Fuel Tube, NO.2 |
| 77291A | Shield, Fuel Tank Filler Pipe |
| 77298A | Clamp, Fuel Tube, NO.4 |
| 77298B | Clamp, Fuel Tube, NO.4 |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |

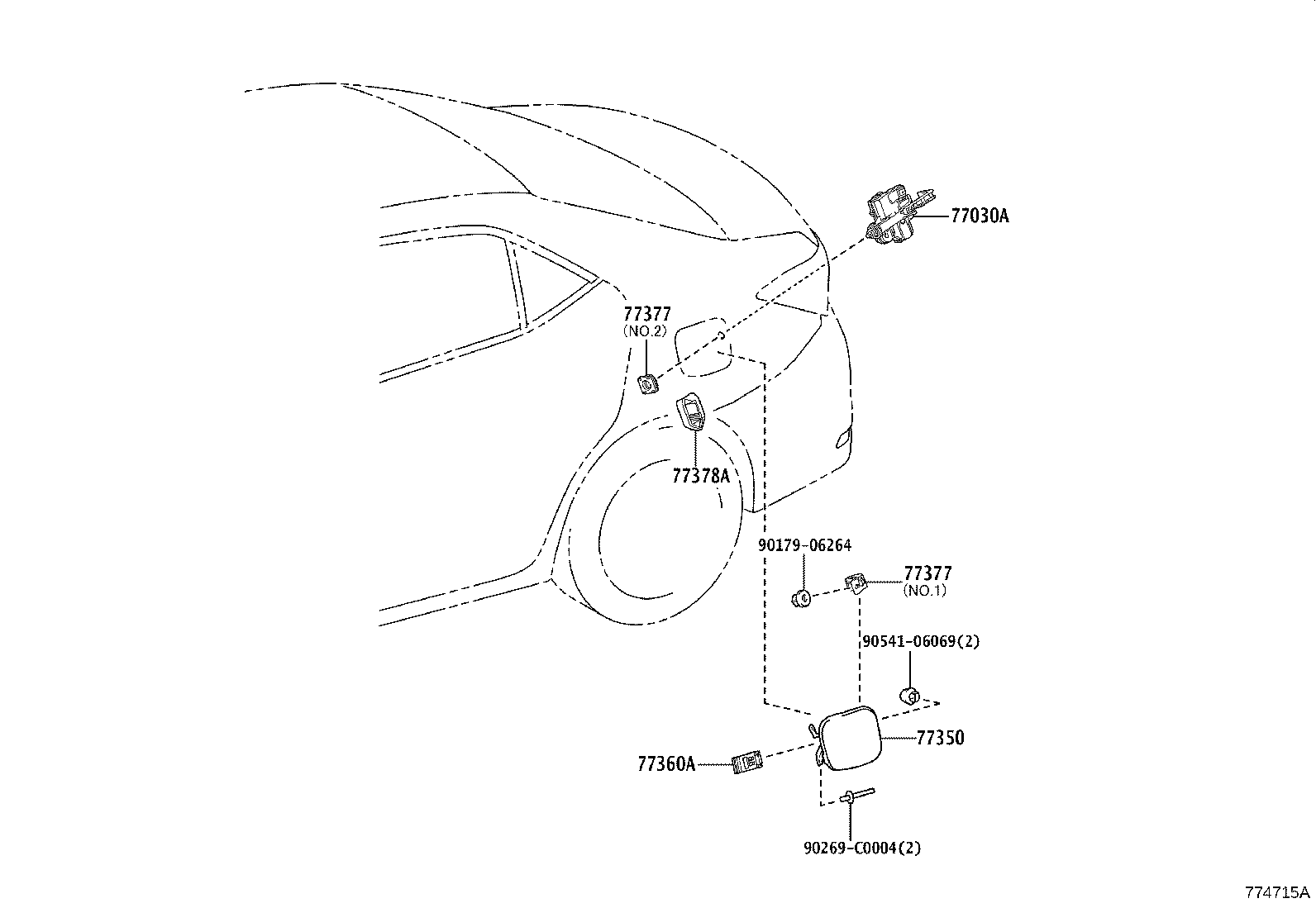

| 77350 | Lid Assy, Fuel Filler Opening |
| 77360A | Spring Assy, Fuel Filler Opening Lid |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77378A | Cover, Fuel Filler Opening Lid Lock |
| 77391A | Ring, Fuel Inlet Box |
| 77404 | Hose Sub-assy, Fuel Tank Vent |
| 77404A | Hose Sub-assy, Fuel Tank Vent |
| 77409 | Hose Sub-assy, Fuel, NO.3 |
| 77411B | Support, Fuel Tube Grommet, NO.1 |
| 77512 | Bracket, Fuel Tank, Rear |
| 77601B | Band Sub-assy, Fuel Tank, NO.1 RH |
| 77602B | Band Sub-assy, Fuel Tank, NO.1 LH |
| 77602C | Cover Sub-assy, Fuel Tank, Lower |
| 77606C | Protector, Fuel Tank, NO.2 |
| 77611F | Cover, Fuel Tank, Upper |
| 77641A | Protector, Fuel Tank, NO.1 |
| 77642A | Protector, Fuel Tank, NO.2 |
| 77651A | Cushion, Fuel Tank, NO.1 |
| 77653A | Cushion, Fuel Tank, NO.3 |
| 77705 | Bracket Sub-assy, Charcoal Canister |
| 77707 | Tube Sub-assy, Charcoal Canister Outlet |
| 77710B | Valve Assy, Fuel Tank Solenoid Main |

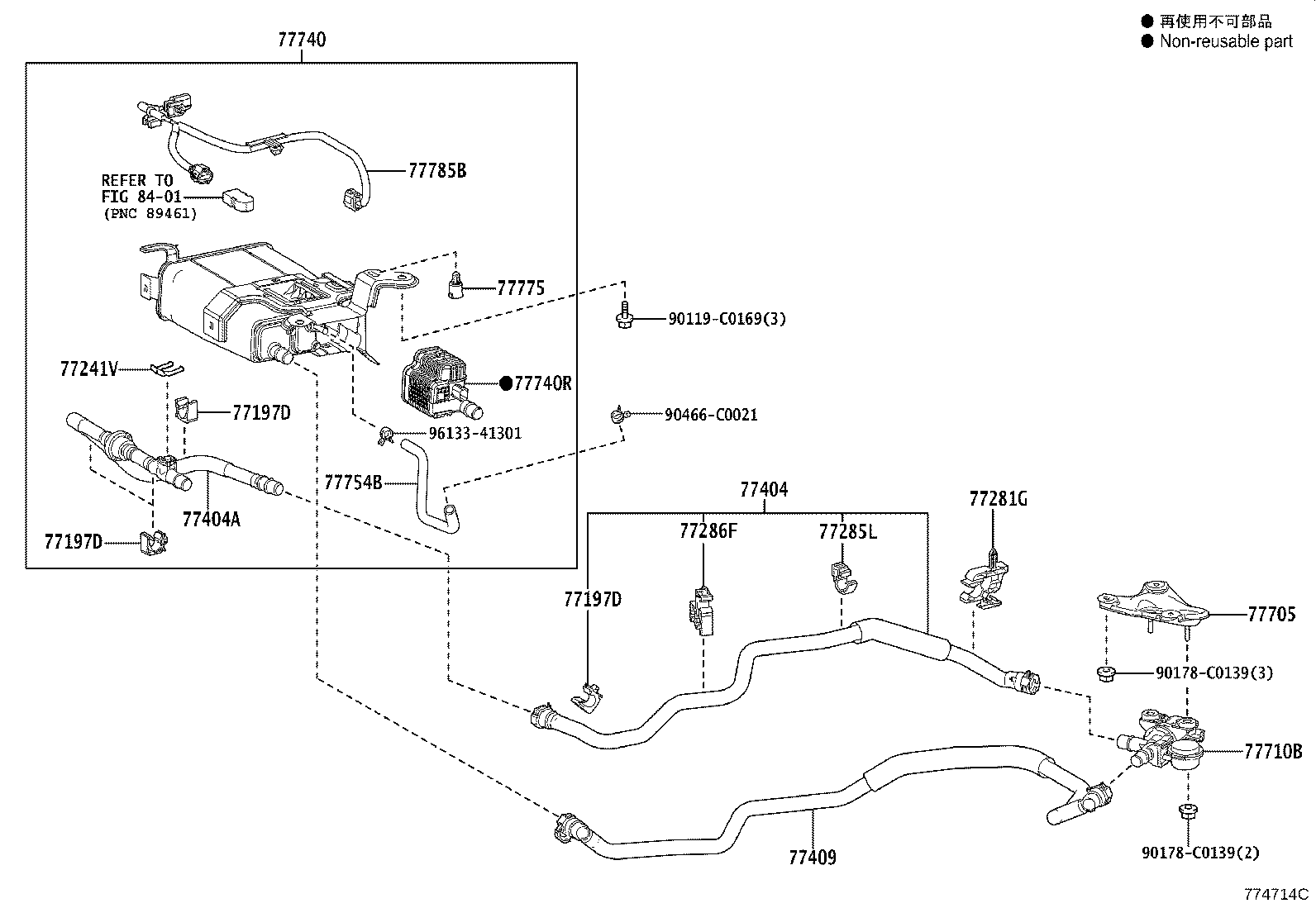

| 77740 | Canister Assy, Charcoal |
| 77740R | Pump Sub-assy, Leak Detection |
| 77754B | Hose, Charcoal Canister Outlet |
| 77775 | Guide, Charcoal Canister Outlet |
| 77785 | Harness, Fuel Pump |
| 77785B | Harness, Fuel Pump, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
