Toyota Corolla (CHINA)
2019-03 → 2022-07 · chassis ZWE183 · catalogue 16A310 · General
Supported model
Data version 2023-09

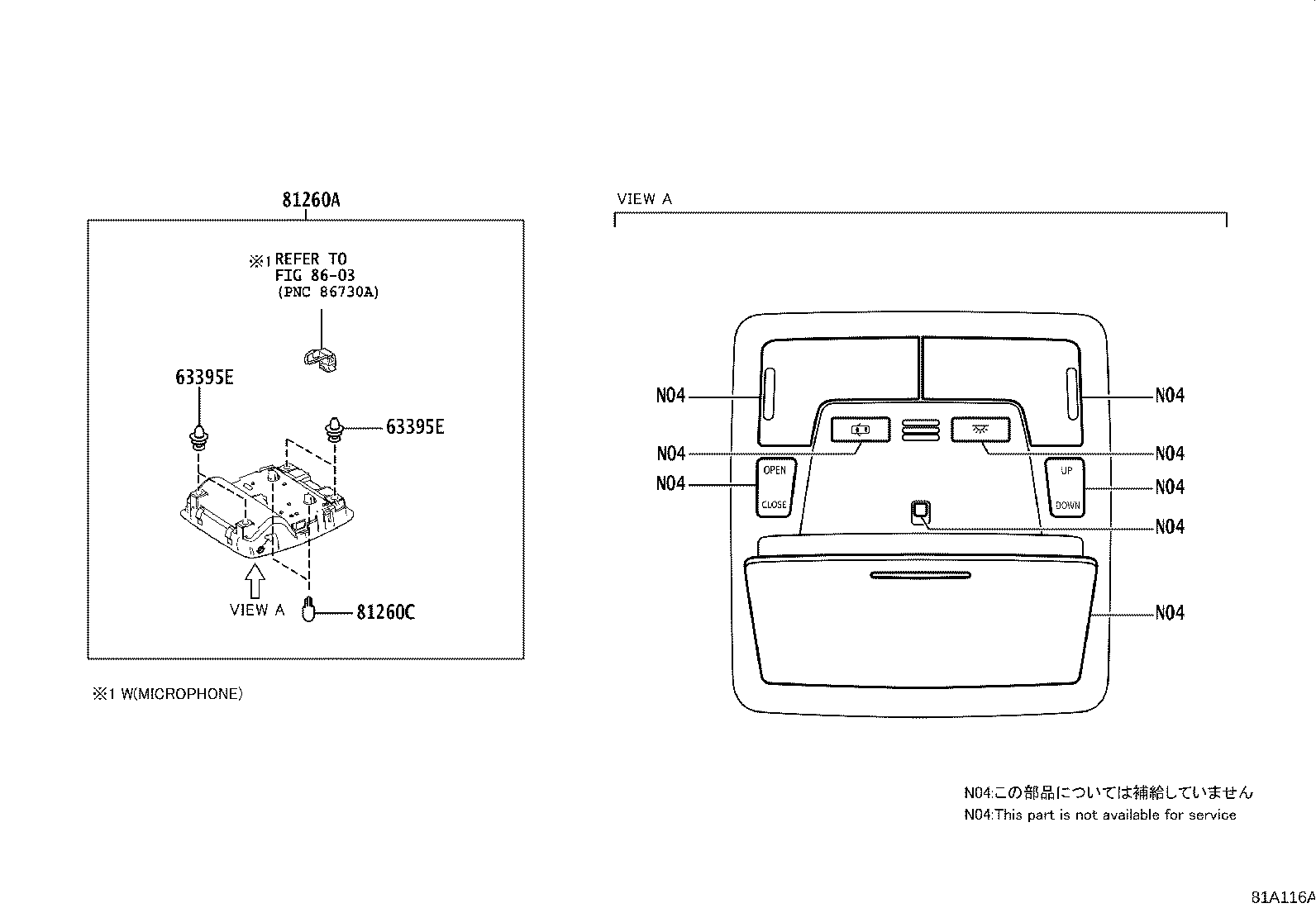

Interior Lamp
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 63395E | Clip(FOR MAP LAMP) |
| 81081 | Lamp Sub-assy, Interior Illumination |
| 81230 | Lamp Assy, Courtesy |
| 81230B | Bulb(FOR COURTESY LAMP) |
| 81240 | Lamp Assy, Room, NO.1 |
| 81240B | Bulb, Room Lamp, NO.1 |
| 81260A | Lamp Assy, Map |
| 81260C | Bulb(FOR MAP LAMP) |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
