Toyota Levin
2019-04 → 2022-06 · chassis ZWE183 · catalogue 16B310 · General
Supported model
Data version 2023-09

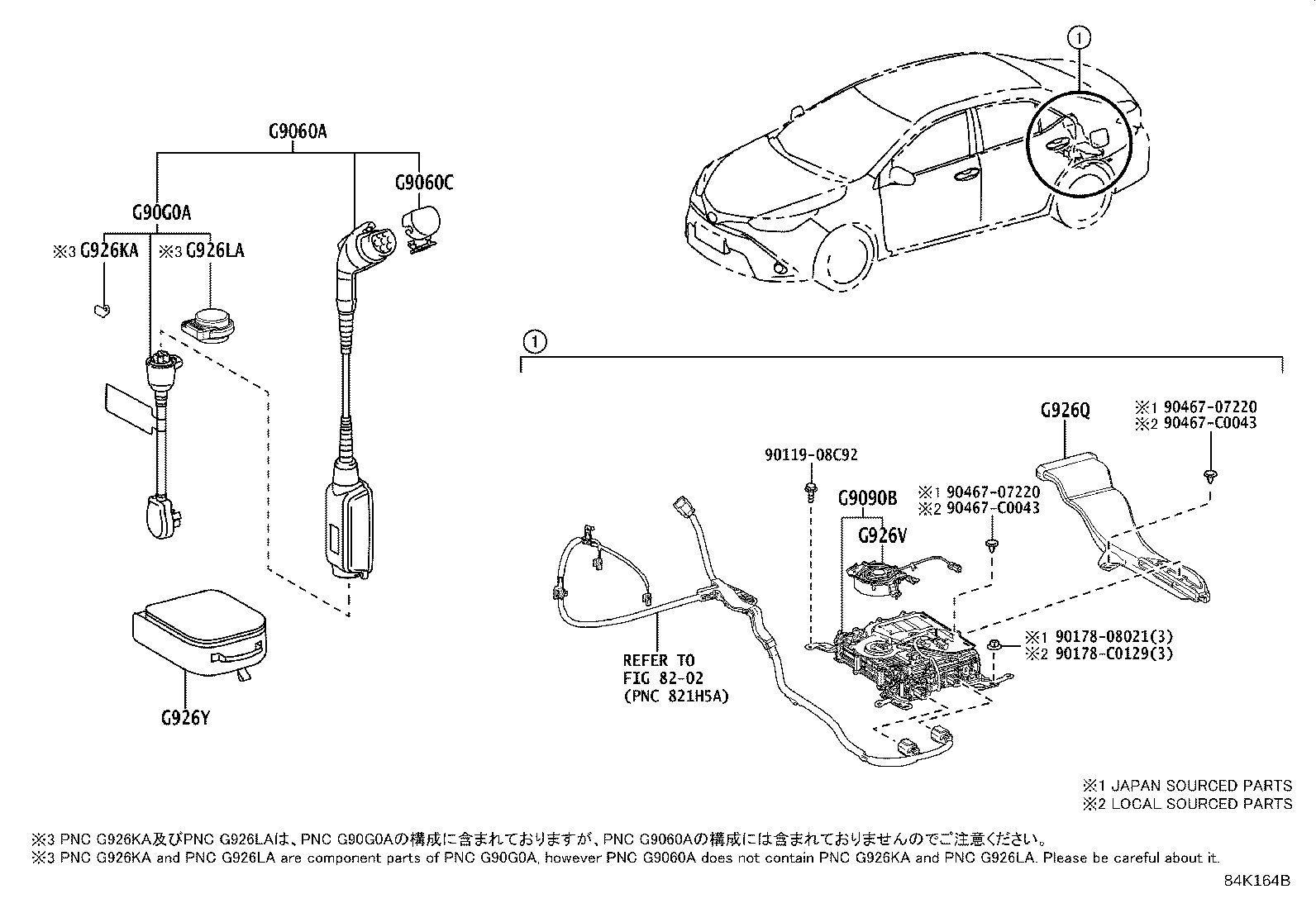

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| G9060A — Cable Assy, Electric Vehicle Charger | ||||
| G9060-12020 |
Cable Assy, Electric Vehicle Charger
2019-04 → 2020-08
ended
|
ZWE183 | — | |
| G9060-F4010 |
Cable Assy, Electric Vehicle Charger
2020-08 → —
|
ZWE183 | — | |
| G9060C — Cover, Connector, NO.2 | ||||
| 82821-12730 |
Cover, Connector, NO.2
2019-04 → 2020-08
ended
|
ZWE183 | — | |
| 82821-F4040 |
Cover, Connector, NO.2
2020-08 → —
|
ZWE183 | — | |
| G9090B — Charger Assy, Electric Vehicle | ||||
| G9090-02010 |
Charger Assy, Electric Vehicle
2019-04 → —
|
ZWE183 | — | |
| G90G0A — Plug Assy, Cable EV Charger | ||||
| G90G0-12010 |
Plug Assy, Cable EV Charger
2019-04 → —
|
ZWE183 | — | |
| G926KA — Key, Plug Cable EV Charger | ||||
| G926K-47020 |
Key, Plug Cable EV Charger
2019-04 → —
|
ZWE183 | — | |
| G926LA — Cover, Plug Cable EV Charger | ||||
| G926L-47020 |
Cover, Plug Cable EV Charger
2019-04 → —
|
ZWE183 | — | |
| G926Q — Duct, EV Charger | ||||
| G926Q-02020 |
Duct, EV Charger
2019-04 → —
|
ZWE183 | — | |
| G926V — Blower, Charger Cooling | ||||
| G926V-02010 |
Blower, Charger Cooling
2019-04 → —
|
ZWE183 | — | |
| G926Y — Bag, Cable EV Charger | ||||
| G926Y-02010 |
Bag, Cable EV Charger
2020-08 → 2021-09
ended
|
ZWE183 | — | |
| G926Y-12010 |
Bag, Cable EV Charger
2019-04 → 2020-08
ended
|
ZWE183 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
