Toyota Levin
2019-04 → 2022-06 · chassis ZWE183 · catalogue 16B310 · General
Supported model
Data version 2023-09

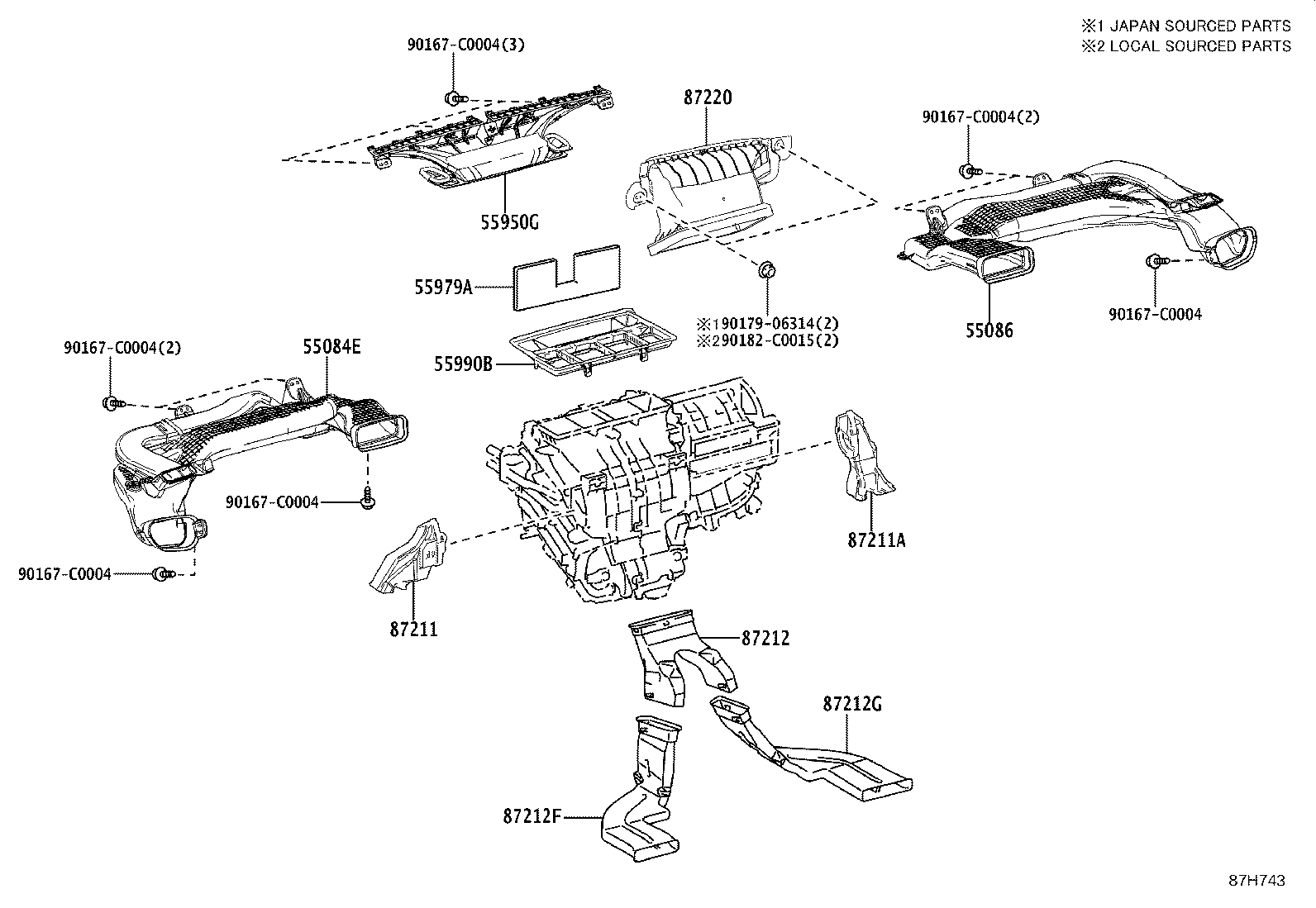

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55084E — Duct Sub-assy, Heater TO Register, NO.1 | ||||
| 55084-02350 |
Duct Sub-assy, Heater TO Register, NO.1
2019-04 → —
|
ZWE183 | — | |
| 55086 — Duct Sub-assy, Heater TO Register, NO.3 | ||||
| 55086-02550 |
Duct Sub-assy, Heater TO Register, NO.3
2019-04 → —
|
ZWE183 | — | |
| 55950G — Nozzle Assy, Defroster | ||||
| 55950-02370 |
Nozzle Assy, Defroster
2019-04 → —
|
ZWE183 | — | |
| 55979A — Cushion, Defroster Nozzle | ||||
| 55979-02100 |
Cushion, Defroster Nozzle
2019-04 → —
|
ZWE183 | — | |
| 55990B — Nozzle Assy, Defroster, Lower | ||||
| 55990-02390 |
Nozzle Assy, Defroster, Lower
2019-04 → —
|
ZWE183 | — | |
| 87211 — Duct, Air, NO.1 | ||||
| 87211-02750 |
Duct, Air, NO.1
2019-04 → —
|
ZWE183 | — | |
| 87211A — Duct, Air, NO.2 | ||||
| 87211-02760 |
Duct, Air, NO.2
2019-04 → —
|
ZWE183 | — | |
| 87212 — Duct, Air, Rear NO.1 | ||||
| 87215-02080 |
Duct, Air, Rear NO.1
2019-04 → —
|
ZWE183 | — | |
| 87212F — Duct, Air, Rear NO.2 | ||||
| 87213-02100 |
Duct, Air, Rear NO.2
2019-04 → —
|
ZWE183 | — | |
| 87212G — Duct, Air, Rear NO.3 | ||||
| 87212-02100 |
Duct, Air, Rear NO.3
2019-04 → —
|
ZWE183 | — | |
| 87220 — Duct Assy, Air | ||||
| 87220-02290 |
Duct Assy, Air
2019-04 → —
|
ZWE183 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
