Toyota Levin

2019-04 → 2022-06 · chassis ZWE183 · catalogue 16B310 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

21 part groups · 2 illustrations

Illustrations

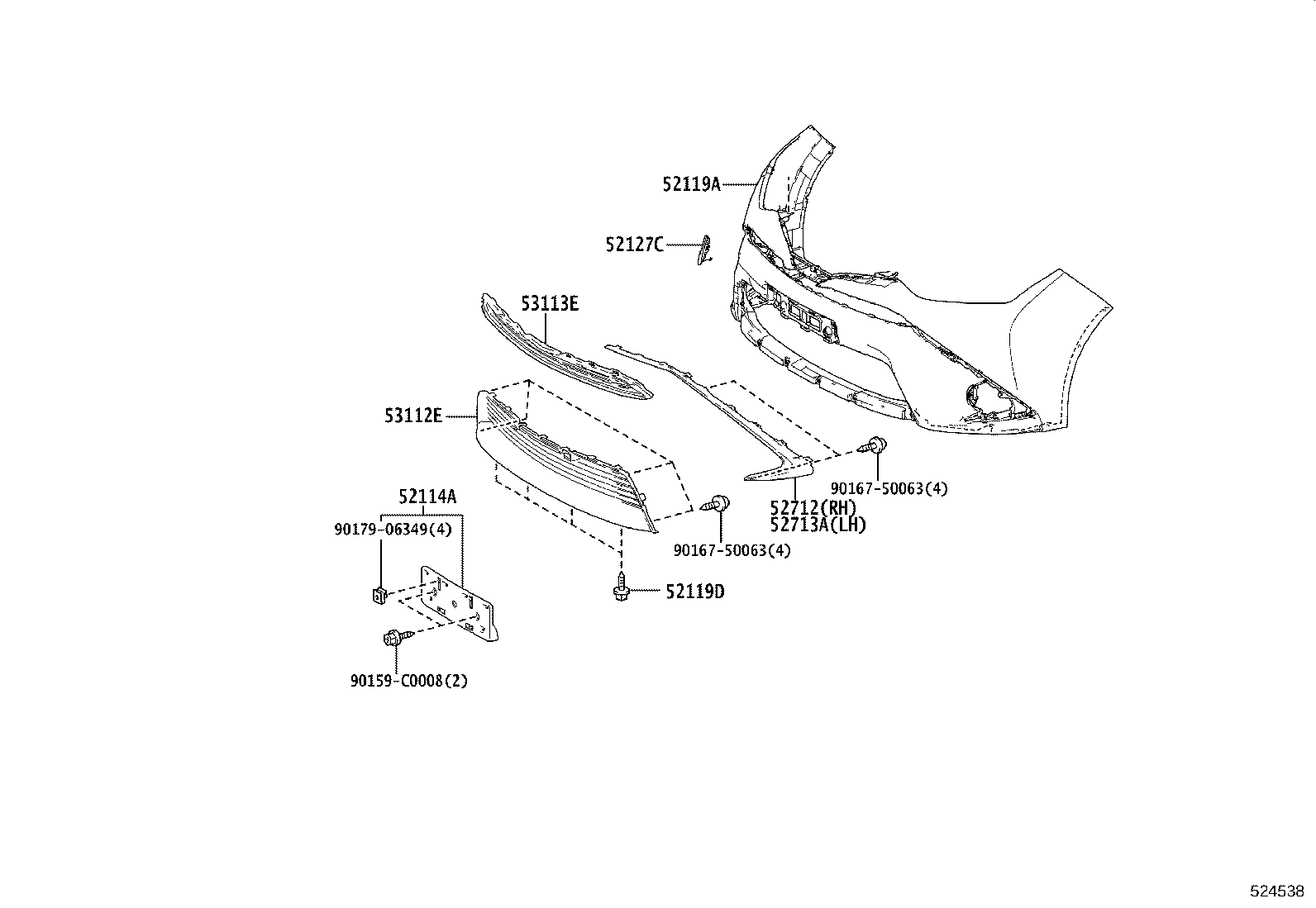

Figure 523957C 523957C 2019-04 → — Figure 524538 524538 2019-04 → —

Part groups

PNCDescription
51451L Bolt, NO.1
52021 Reinforcement Sub-assy, Front Bumper
52114A Bracket, Front Bumper Extension Mounting
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52119D Screw, NO.1
52127C Cover, Front Bumper Hole
52145C Bracket, Front Bumper Side Mounting, RH
52146B Bracket, Front Bumper Side Mounting, LH
52161C Piece, Front Bumper
52611 Absorber, Front Bumper Energy
52618 Absorber, Front Bumper, Lower
52712 Moulding, Front Bumper Side, RH
52713A Moulding, Front Bumper Side, LH
53112E Grille, Radiator, Lower NO.1
53113E Grille, Radiator, Lower NO.2
53879H Retainer, Front Fender Liner
76851G Grommet, Screw, NO.1
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
