Toyota Levin
2019-04 → 2022-06 · chassis ZWE183 · catalogue 16B310 · General
Supported model
Data version 2023-09

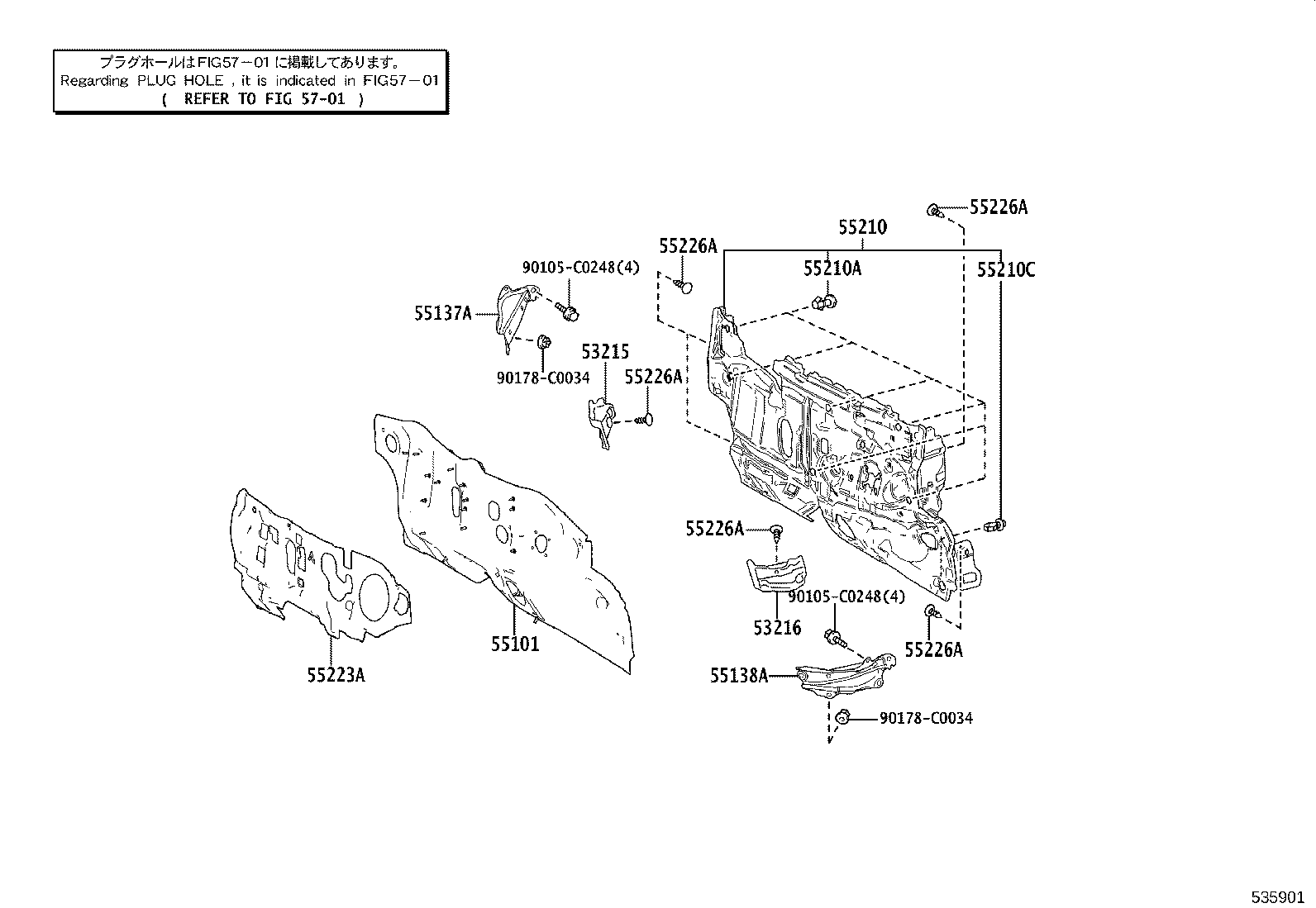

Front Fender Apron & Dash Panel
50 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 16592A | Guide, Radiator Air, NO.3 |
| 16593B | Guide, Radiator Air, NO.1 RH |
| 16594A | Guide, Radiator Air, NO.2 |
| 16595B | Guide, Radiator Air, NO.1 LH |
| 53117E | Bracket, Radiator Grille, Lower |
| 53141F | Cover, Radiator |
| 53187A | Stay, Radiator Support, RH |
| 53188B | Stay, Radiator Support, LH |
| 53201 | Support Sub-assy, Radiator |
| 53202 | Support Sub-assy, Radiator, RH |
| 53202D | Cushion, Radiator Support |
| 53203 | Support Sub-assy, Radiator, LH |
| 53205 | Support Sub-assy, Radiator, Upper |
| 53209B | Brace Sub-assy, Hood Lock Support |
| 53213A | Support, Radiator, Upper RH |
| 53214A | Support, Radiator, Upper LH |
| 53215 | Silencer, Front Panel, RH |
| 53216 | Silencer, Front Panel, LH |
| 53218A | Support, Radiator, Lower |
| 53271E | Bracket, Headlamp Mounting, RH |
| 53272C | Bracket, Headlamp Mounting, LH |
| 53281A | Reinforcement, Front Body Mounting, RH |
| 53282 | Reinforcement, Front Body Mounting, LH |
| 53301G | Cushion, Hood Bumper |
| 53701 | Apron Sub-assy, Front Fender, RH |
| 53702 | Apron Sub-assy, Front Fender, LH |
| 53710J | Apron Assy, Front Fender, RH |
| 53713C | Extension, Front Fender Apron, Front RH |
| 53720B | Apron Assy, Front Fender, LH |
| 53725D | Reinforcement, Front Spring Support, NO.2 RH |
| 53726B | Reinforcement, Front Spring Support, NO.2 LH |
| 53731D | Member, Front Apron TO Cowl Side, Upper RH |
| 53731E | Patch, Front Fender Apron |
| 53732D | Member, Front Apron TO Cowl Side, Upper LH |
| 53733D | Member, Front Apron TO Cowl Side, Lower Front RH |
| 53734C | Member, Front Apron TO Cowl Side, Lower Front LH |
| 53735J | Patch, Front Fender Apron, NO.5 |
| 53737 | Plate, Front Apron TO Cowl Side Member, RH |
| 53738 | Plate, Front Apron TO Cowl Side Member, LH |
| 53813C | Extension, Front Fender, RH |
| 53814C | Extension, Front Fender, LH |
| 55101 | Panel Sub-assy, Dash |
| 55137A | Brace, Dash TO Frame, RH |
| 55138A | Brace, Dash TO Frame, LH |
| 55210 | Insulator Assy, Dash Panel |
| 55210A | Clip |
| 55210C | Clip |
| 55223A | Insulator, Dash Panel, Outer |
| 55223C | Clip |
| 55226A | Clip |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
