Toyota Levin

2021-07 → present · chassis MZEA12,MZEH16 · catalogue 16C310 · General

Supported model Data version 2023-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

9 part groups · 2 illustrations

Illustrations

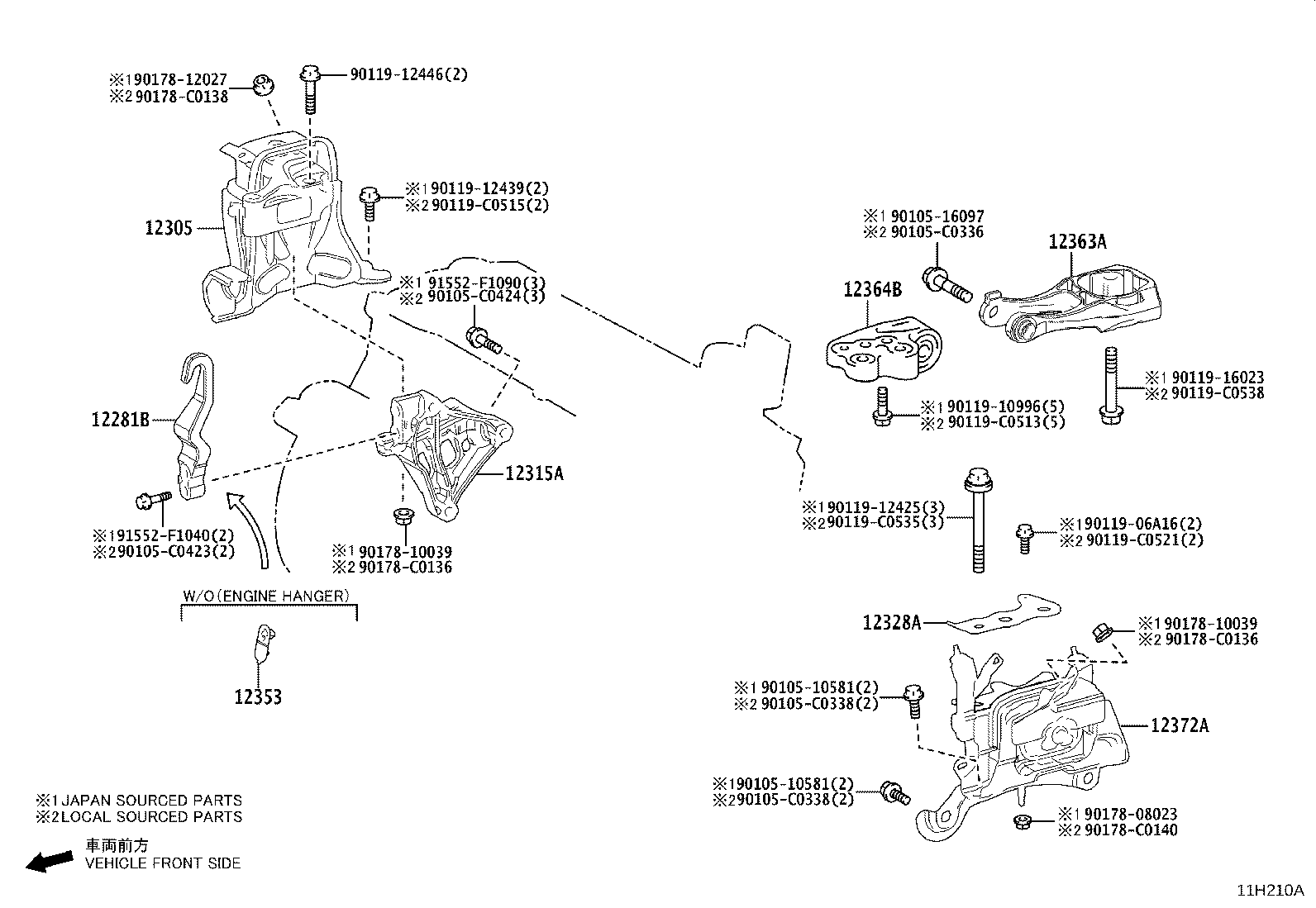

Figure 11F802A 11F802A 2021-07 → — Figure 11H210A 11H210A 2023-07 → —

Part groups

PNCDescription
12281B Hanger, Engine, NO.1
12305 Insulator Sub-assy, Engine Mounting, RH
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12328A Stay, Engine Mounting, NO.2 LH
12353 Cap, Engine Mounting Bracket
12363A Rod, Engine Moving Control
12364B Rod, Engine Moving Control, NO.2
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
