Ventilation Hose

4 part groups · 2 illustrations

Illustrations

Figure 121485B

121485B 2021-07 → —

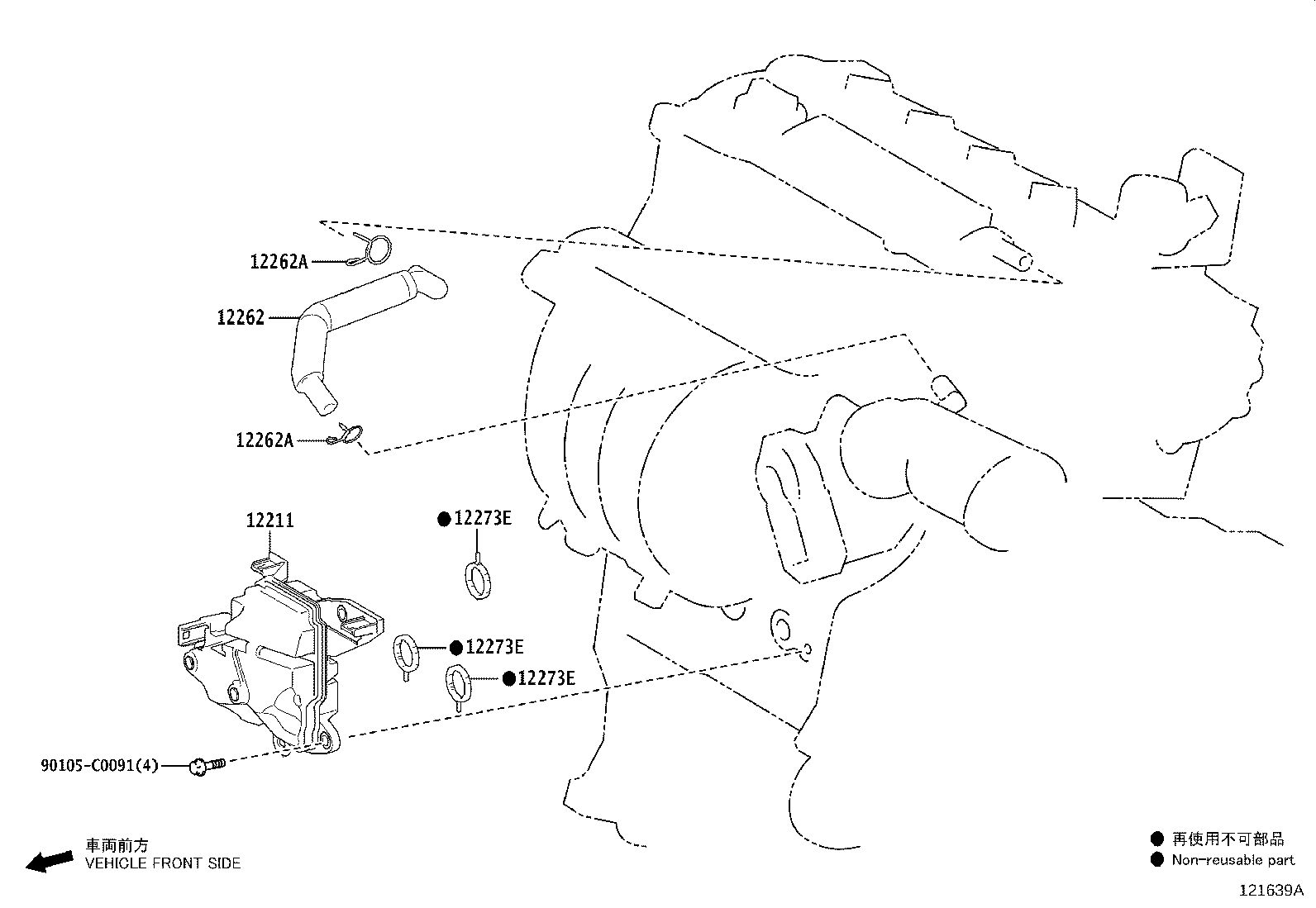

Figure 121639A

121639A 2023-07 → —

Part groups

PNC	Description
12211	Case, Ventilation, NO.1
12262	Hose, Ventilation, NO.2
12262A	Clip(FOR VENTILATION HOSE NO.2)
12273E	Gasket(FOR VENTILATION CASE)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
