Toyota Levin

2021-07 → present · chassis MZEA12,MZEH16 · catalogue 16C310 · General

Supported model Data version 2023-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

9 part groups · 3 illustrations

Illustrations

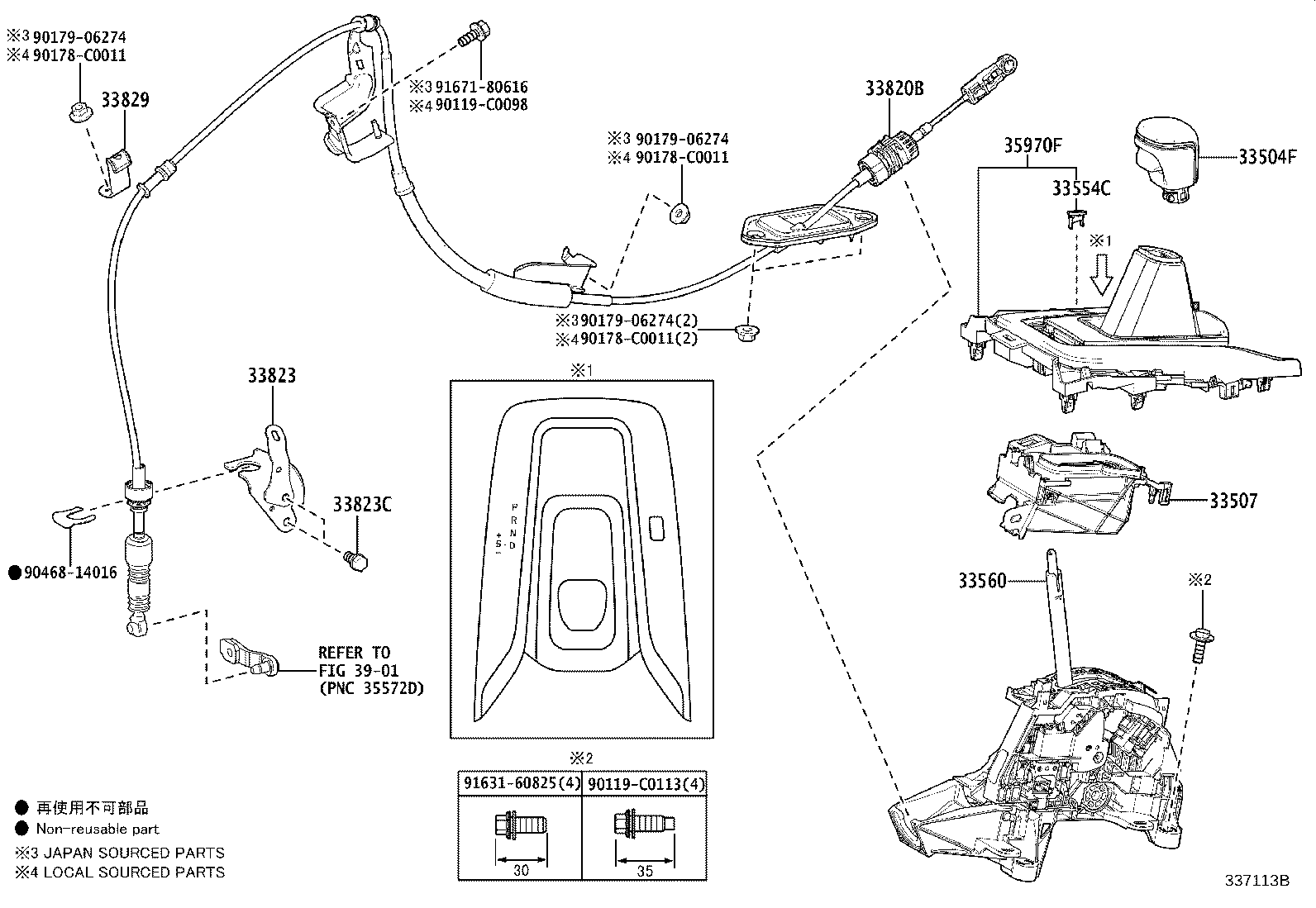

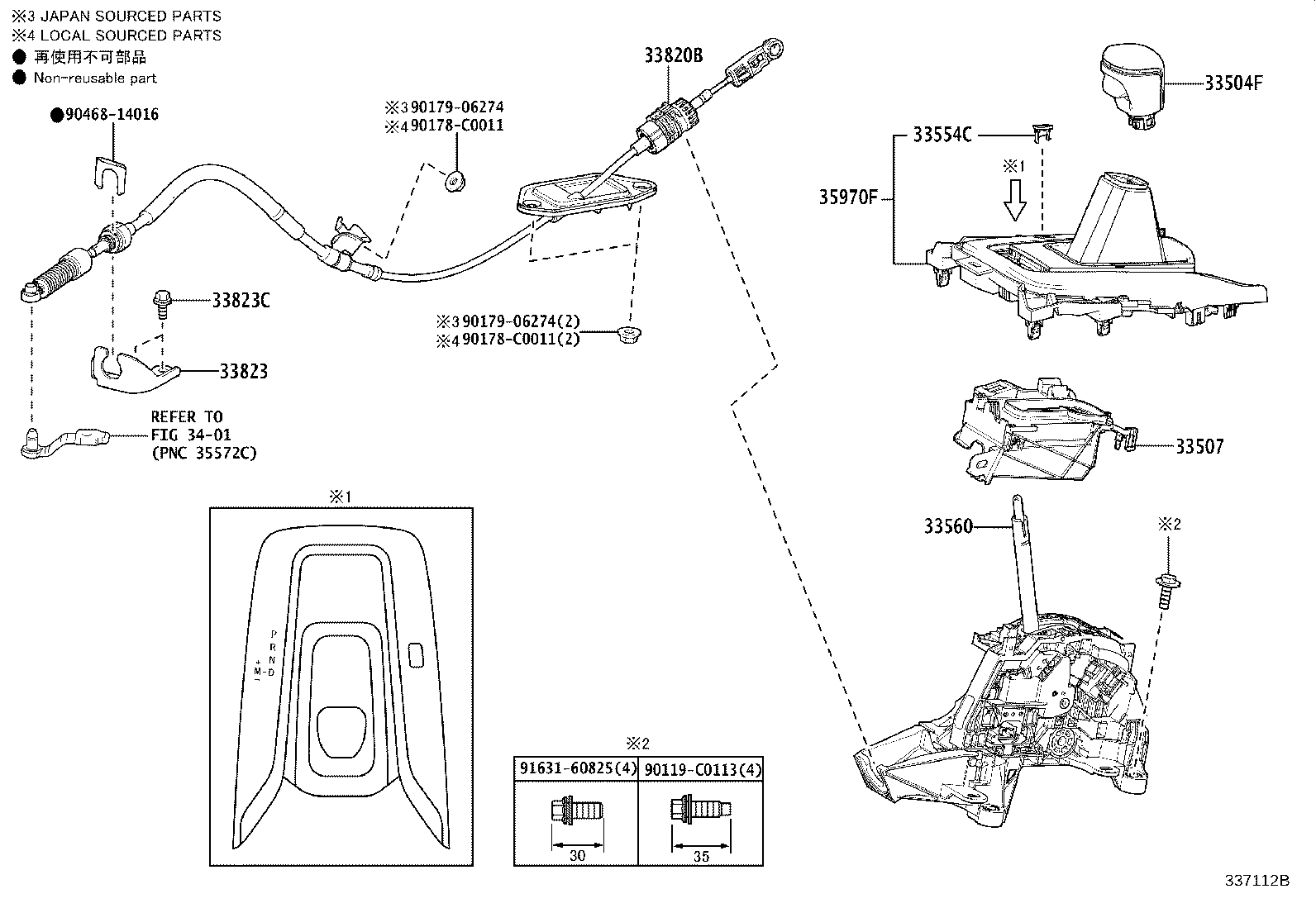

Figure 336632B 336632B 2021-07 → 2023-04 Figure 337112B 337112B 2023-04 → — Figure 337113B 337113B 2023-07 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33507 Bracket Sub-assy, Shift Lever Housing
33554C Cover, Shift Lock Release Button
33560 Unit Assy, Shift Lock Control
33820B Cable Assy, Transmission Control
33823 Bracket, Transmission Control Cable, NO.1
33823C Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
33829 Support, Transmission Control Cable
35970F Housing Assy, Position Indicator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
