Toyota Levin

2021-07 → present · chassis MZEA12,MZEH16 · catalogue 16C310 · General

Supported model Data version 2023-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

33 part groups · 2 illustrations

Illustrations

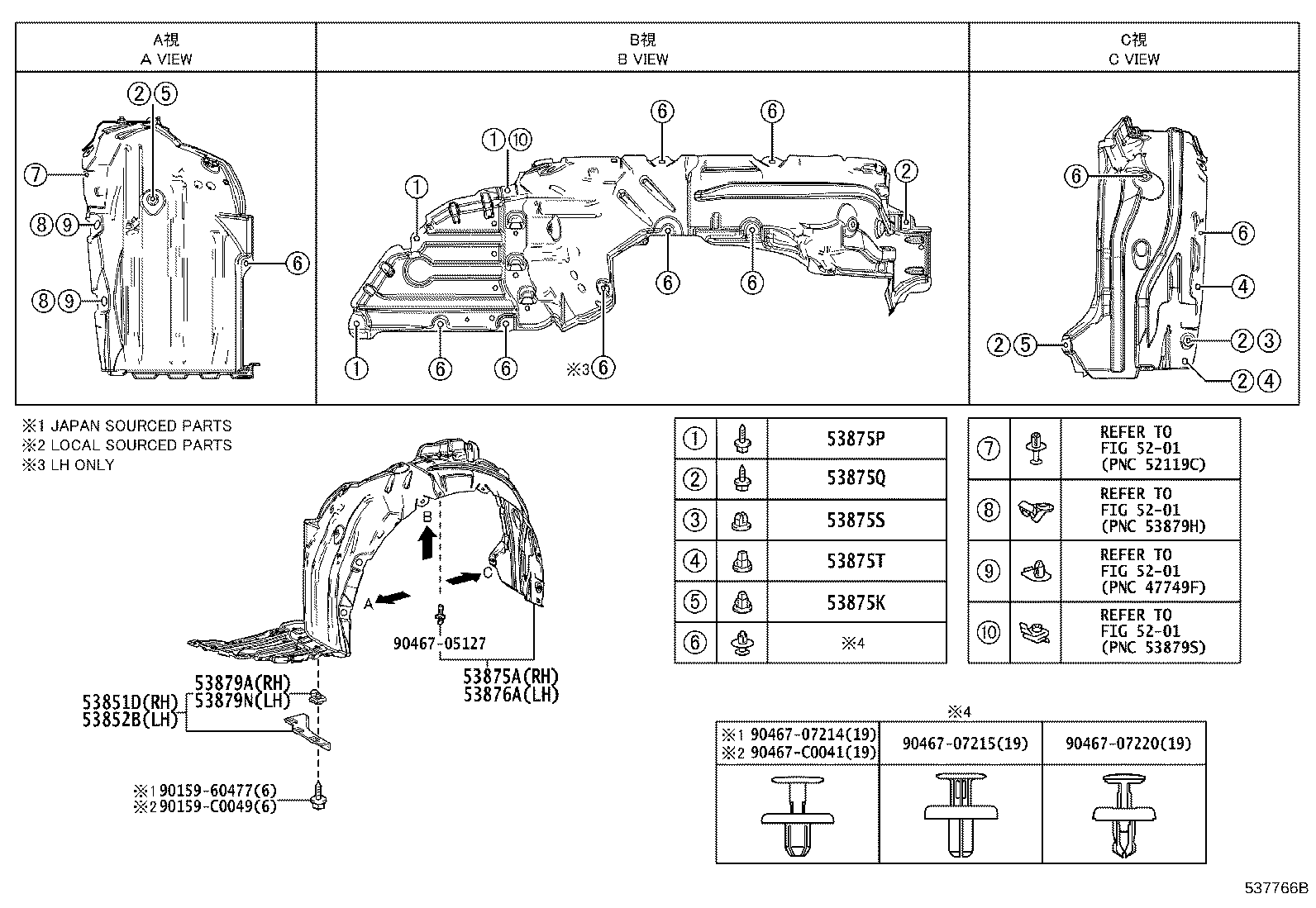

Figure 537765B 537765B 2021-07 → — Figure 537766B 537766B 2021-07 → —

Part groups

PNCDescription
53153B Guide, Front Side Air
53154E Guide, Front Side Air, NO.2
53301 Hood Sub-assy
53336A Bracket, Hood Stay
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53384B Cushion, Hood, Center
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53813D Extension, Front Fender
53823E Protector, Front Side Panel, NO.2 RH
53824B Protector, Front Side Panel, NO.2 LH
53825A Protector, Front Fender, Upper RH
53826A Protector, Front Fender, Upper LH
53827L Protector, Front Fender Side Panel, RH
53828B Protector, Front Fender Side Panel, LH
53851D Pad, Front Wheel Opening Extension, RH
53852B Pad, Front Wheel Opening Extension, LH
53857 Retainer, Front Wheel Opening Extension, RH
53857C Retainer, Front Wheel Opening Extension, RH
53858 Retainer, Front Wheel Opening Extension, LH
53858B Retainer, Front Wheel Opening Extension, LH
53875A Liner, Front Fender, RH
53875K Grommet, Screw
53875P Screw, NO.1
53875Q Screw, NO.2
53875S Grommet, NO.1
53875T Grommet, NO.2
53876A Liner, Front Fender, LH
53879A Retainer, Front Fender Liner
53879N Retainer, Front Fender Liner, LH
53882F Seal, Front Fender
53936C Cushion
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
